Air Bag Control Module

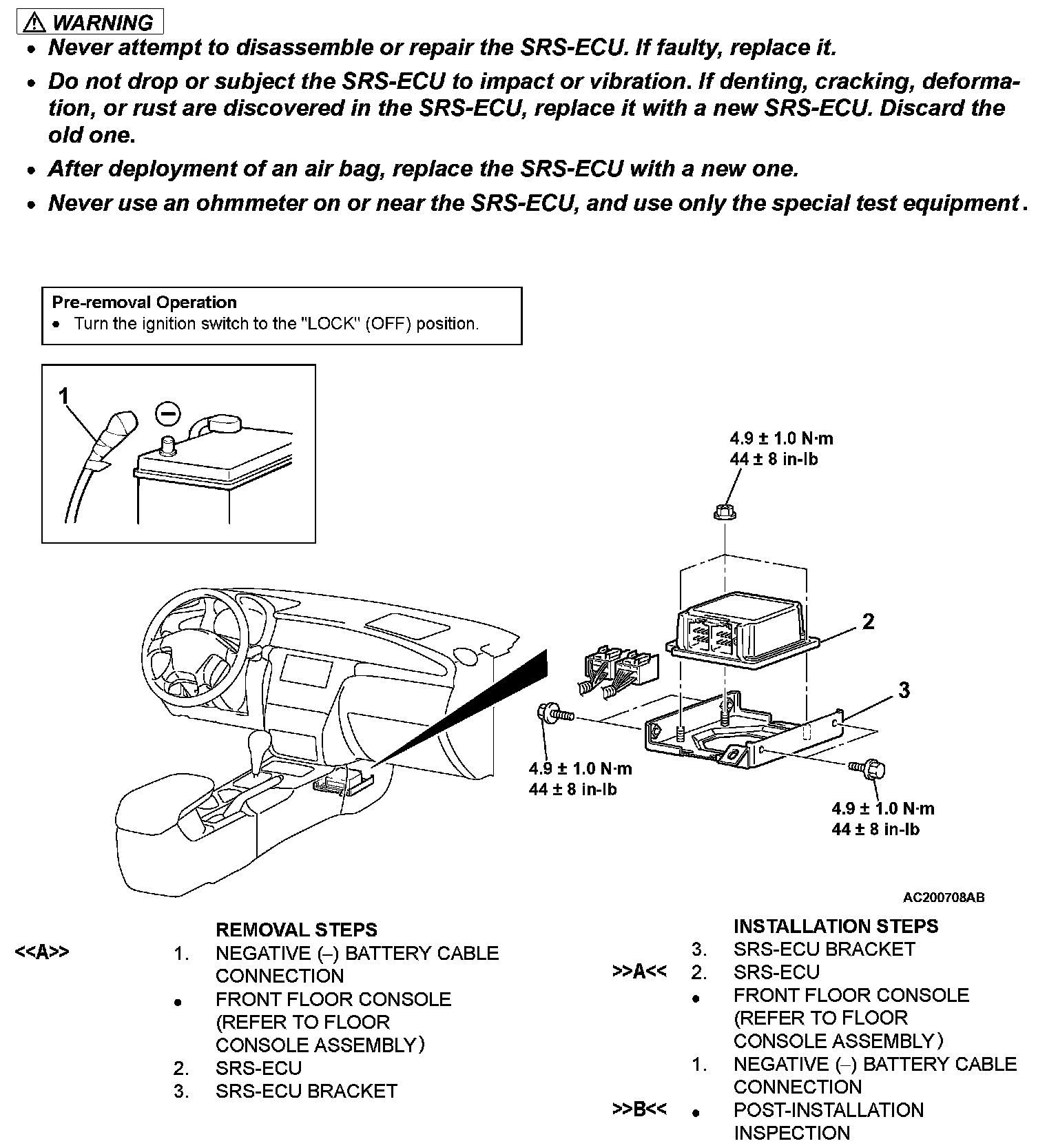

SRS Control Unit (SRS-ECU):
ITEM
SPECIFICATION
SRS-ECU bracket bolt
4.9 ± 1.0 Nm (43 ± 8 in-lb)
