Diagnostic Trouble Code Chart

Follow the inspection chart that is appropriate for the diagnostic trouble code.

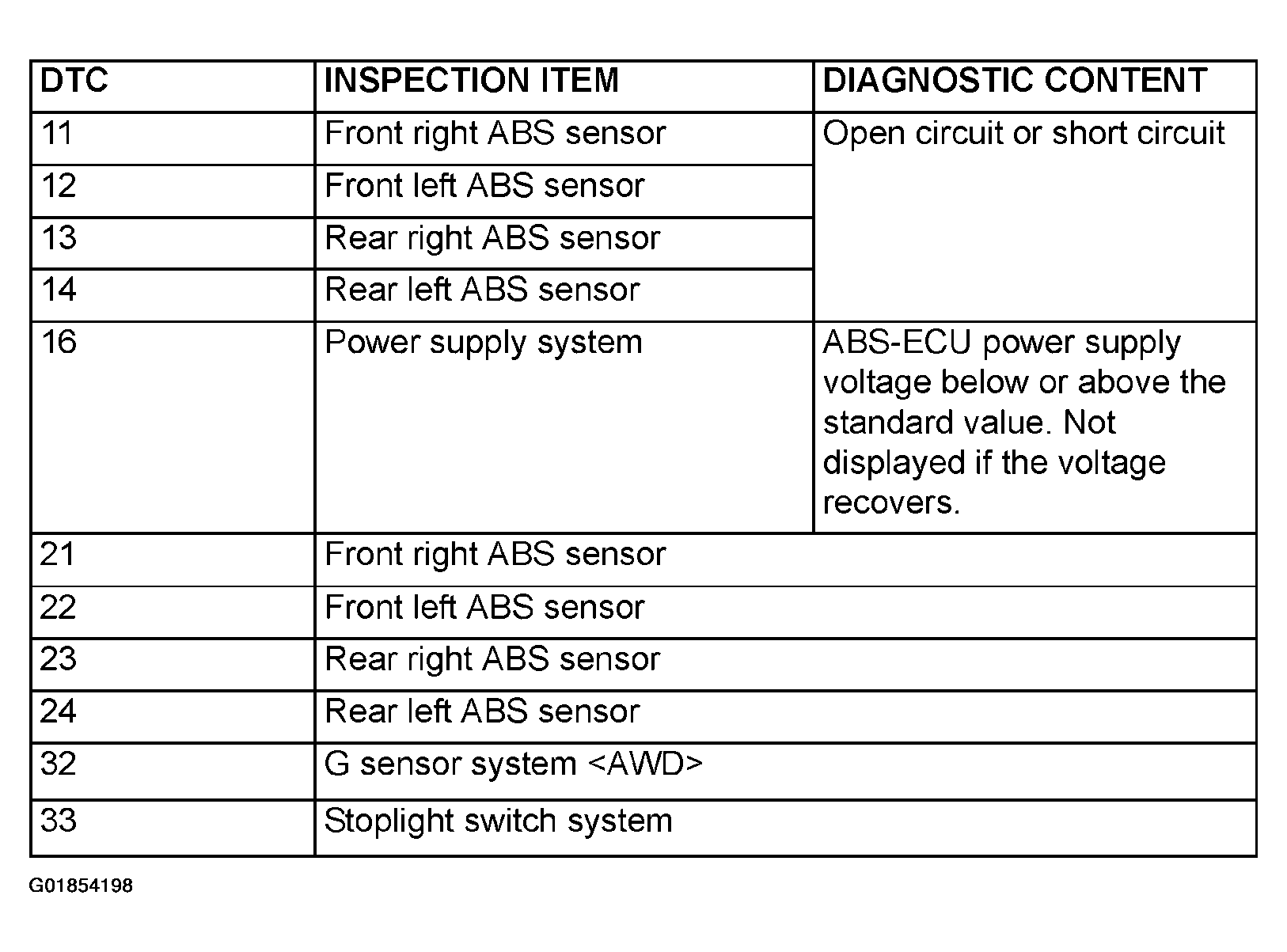

Fig 1: Diagnostic Trouble Code Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

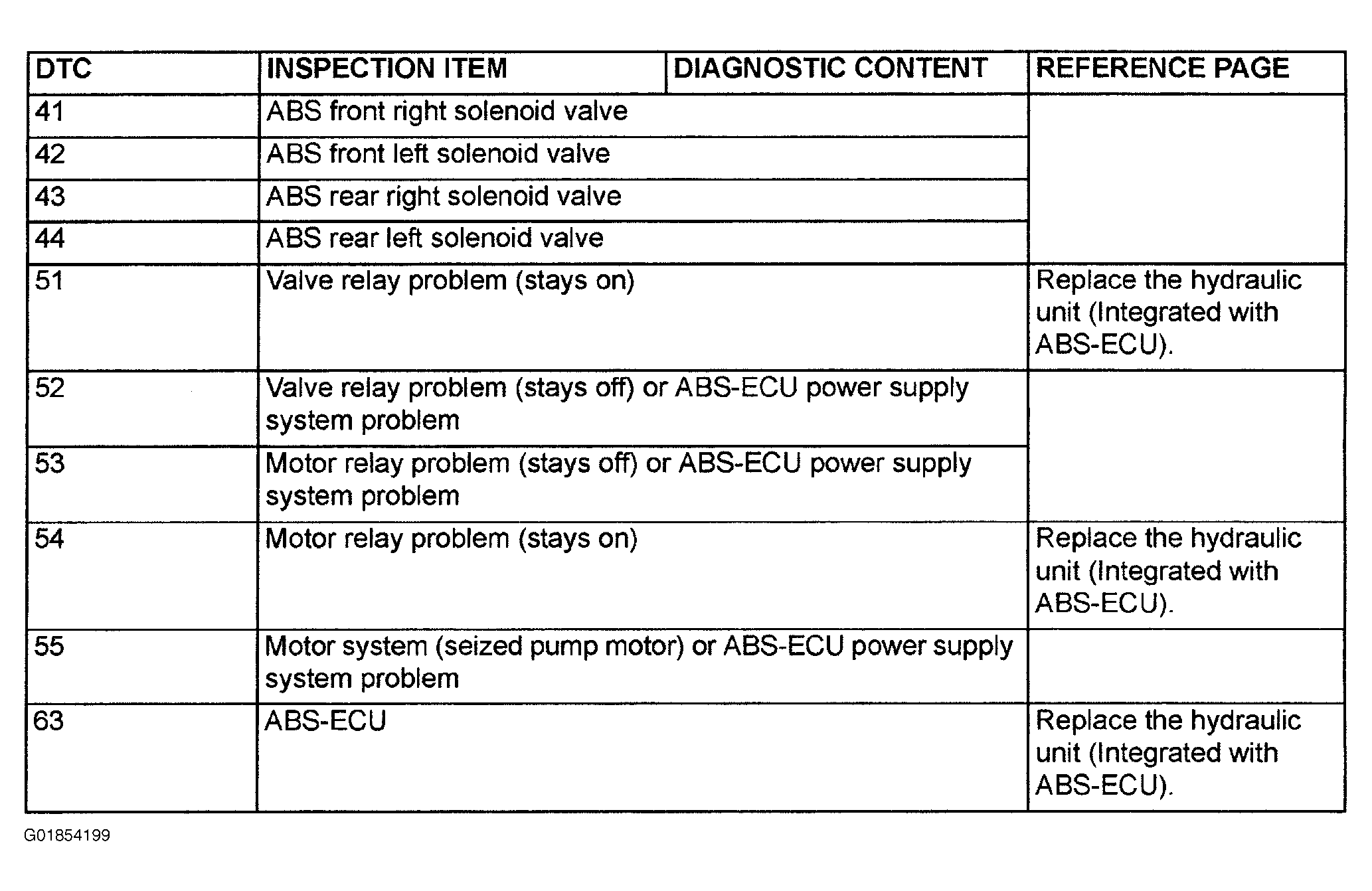

Fig 2: Diagnostic Trouble Code Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Diagnostic trouble code No. 16, 52, 63.

Code No. 16 is cleared from the memory by turning the ignition switch to ACC position. When the system is properly reset, this code is also cleared from the memory.
Code No. 52 and 63 are cleared from the memory by turning the ignition switch to ACC position.
