DTC 32: G-Sensor: Notes

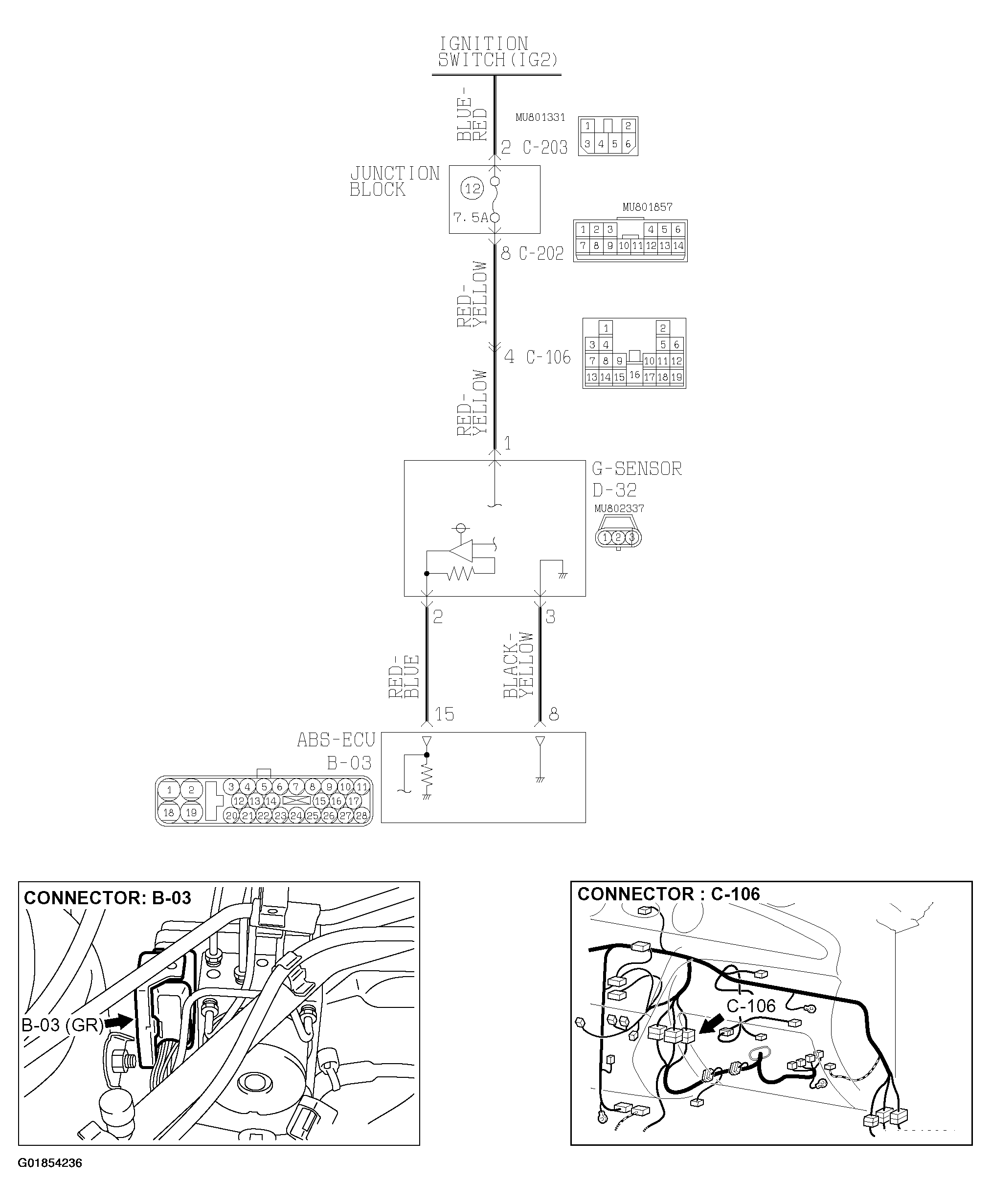

Fig 1: G-sensor Circuit Diagram
G01854236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

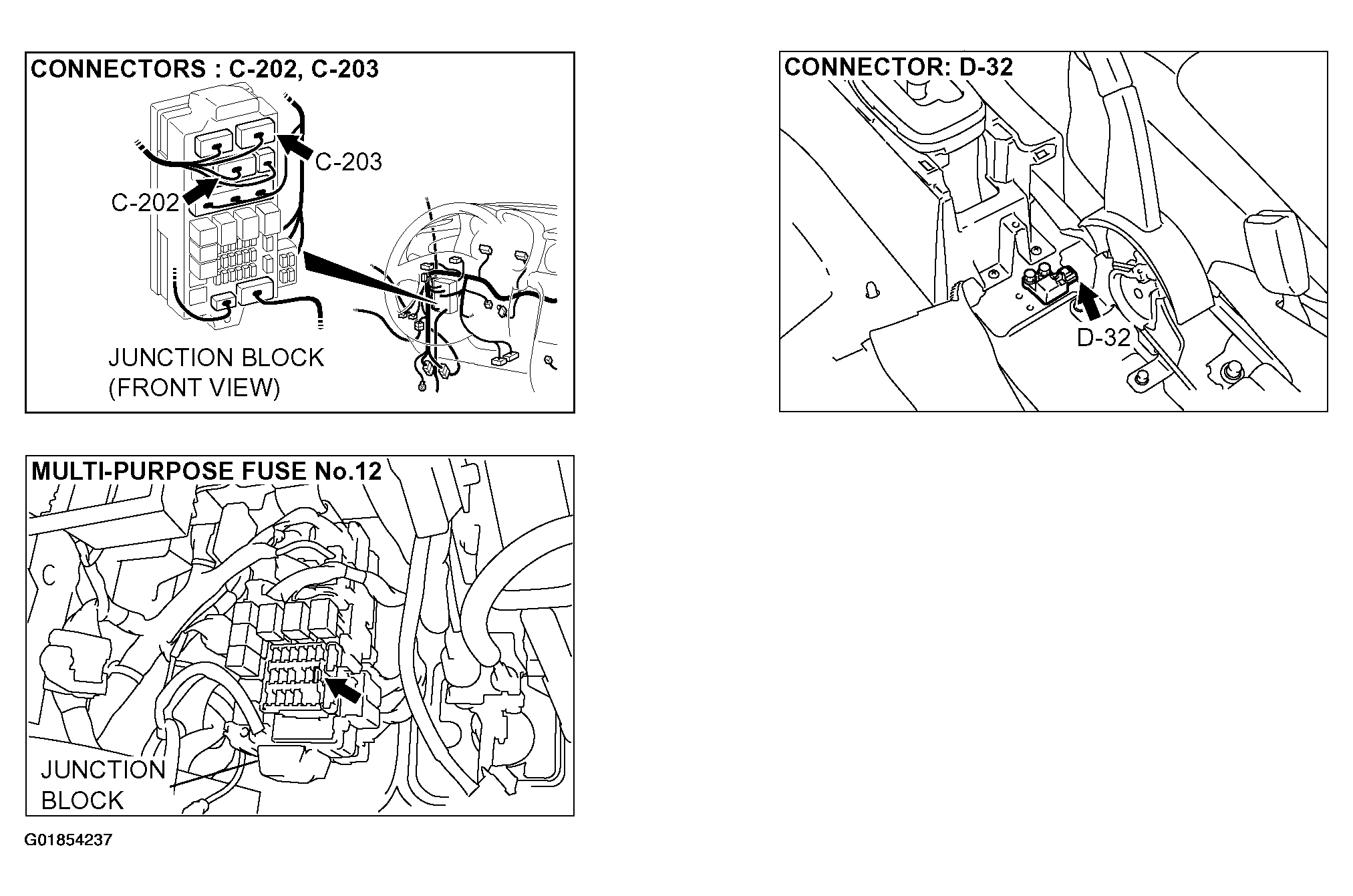

Fig 2: G-sensor Circuit Harness Connectors
G01854237Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
