Removal And Installation: Notes

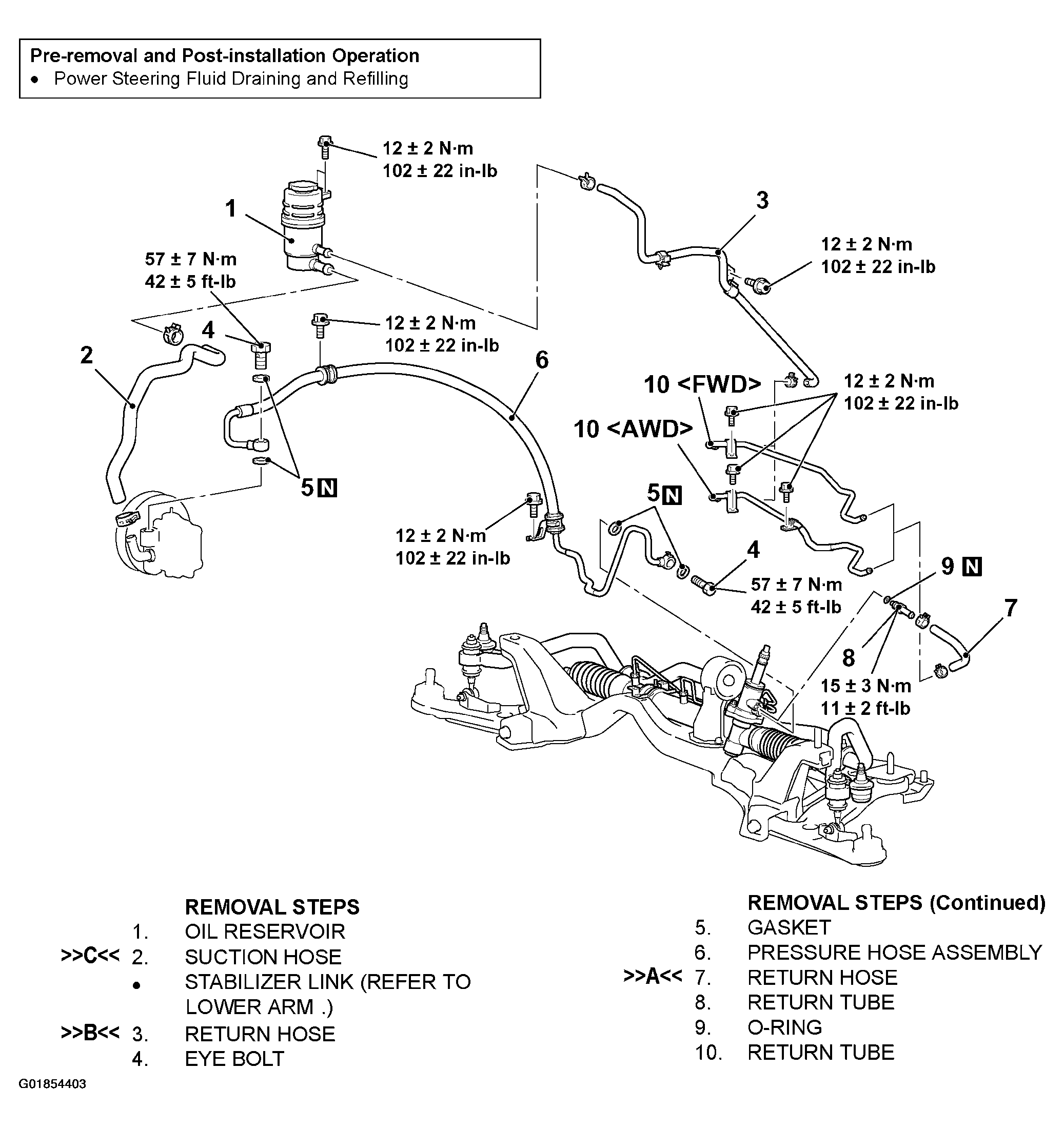

Fig 1: Identifying Power Steering Hoses Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
