Inspection Procedure Using An Oscilloscope

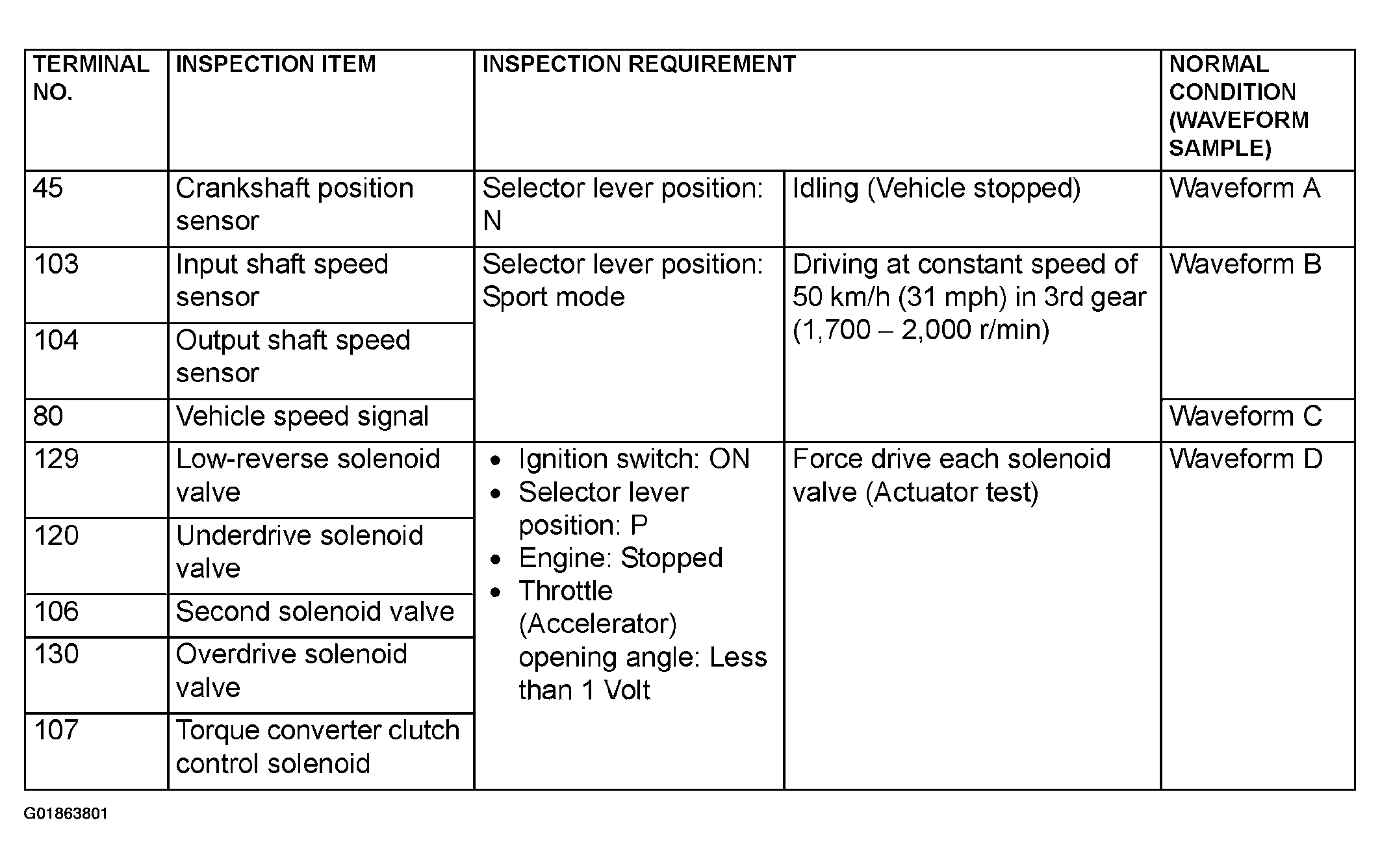

Fig 1: Inspection Procedure Chart Using An Oscilloscope (PCM)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Waveform sample

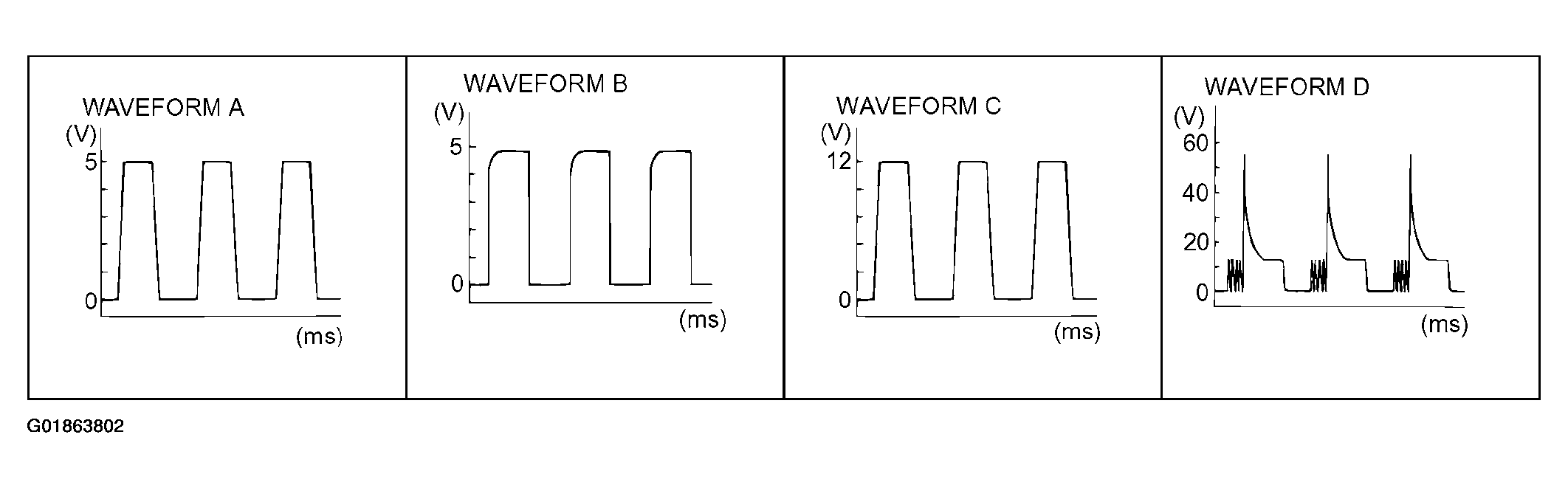

Fig 2: Waveform Samples
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
