Disassembly And Assembly: W4A42

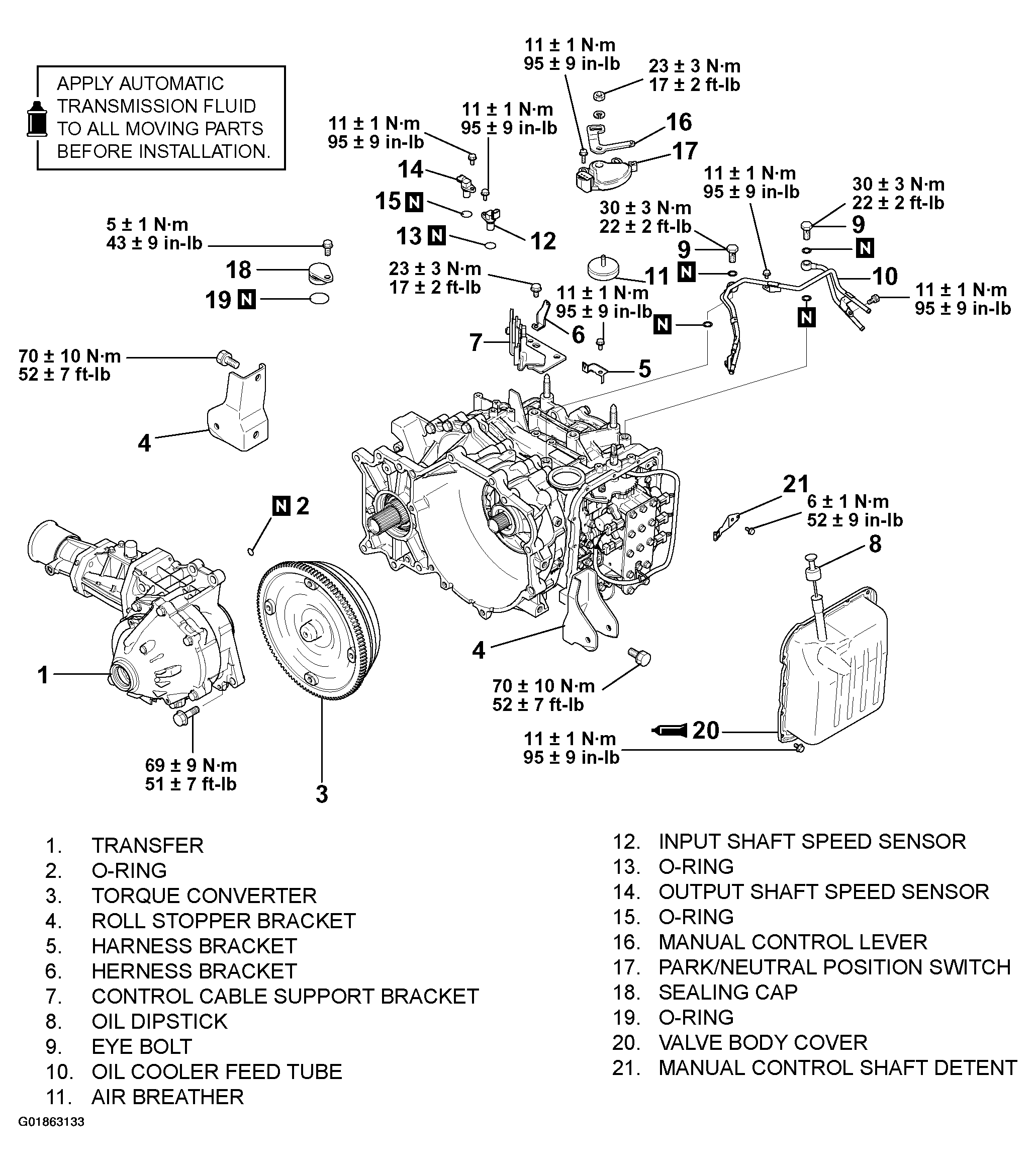

Fig 1: Exploded View And Torque Specification Of Transaxle W4A42 (1 Of 4)
G01863133Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

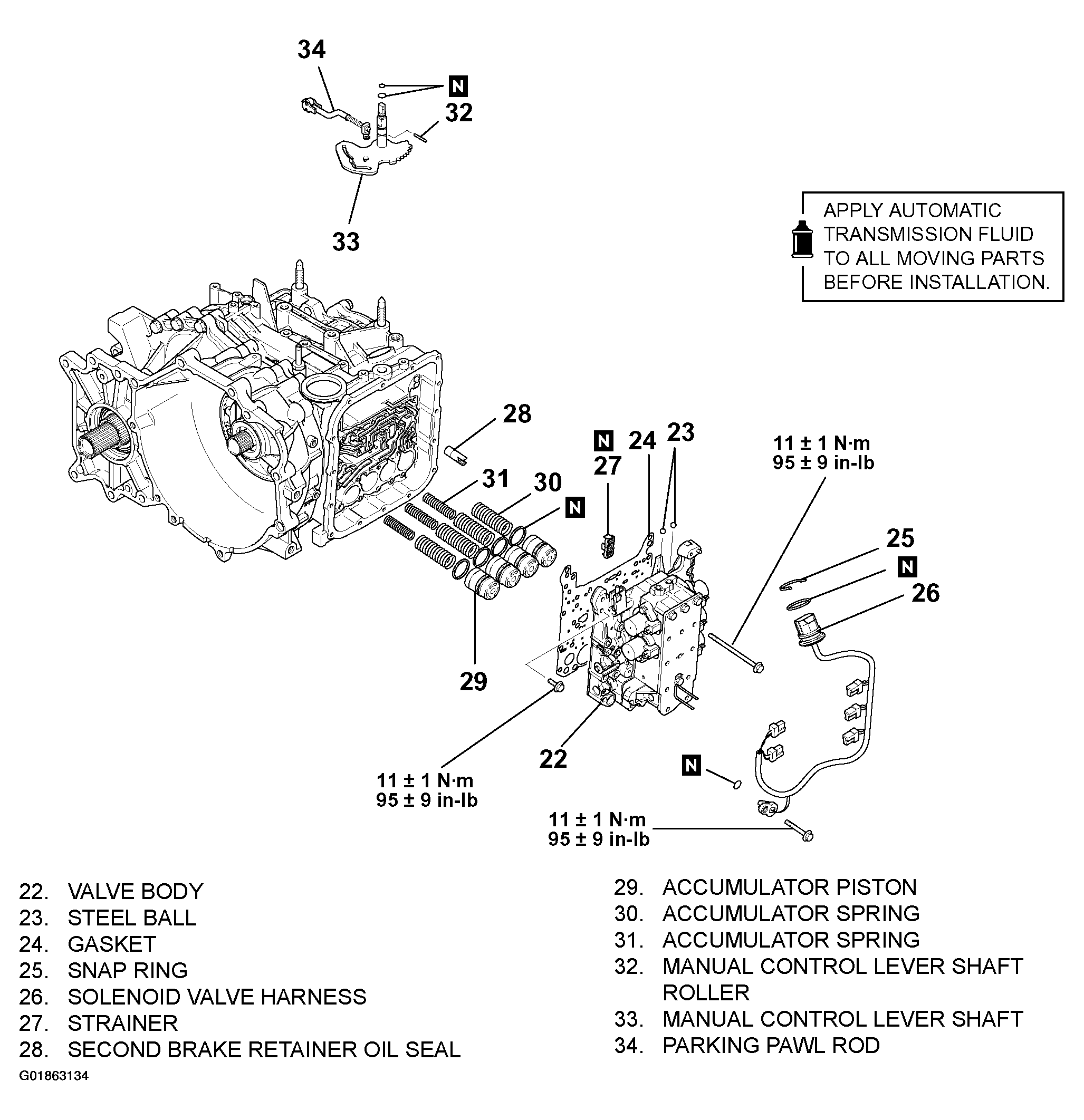

Fig 2: Exploded View And Torque Specification Of Transaxle W4A42 (2 Of 4)
G01863134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

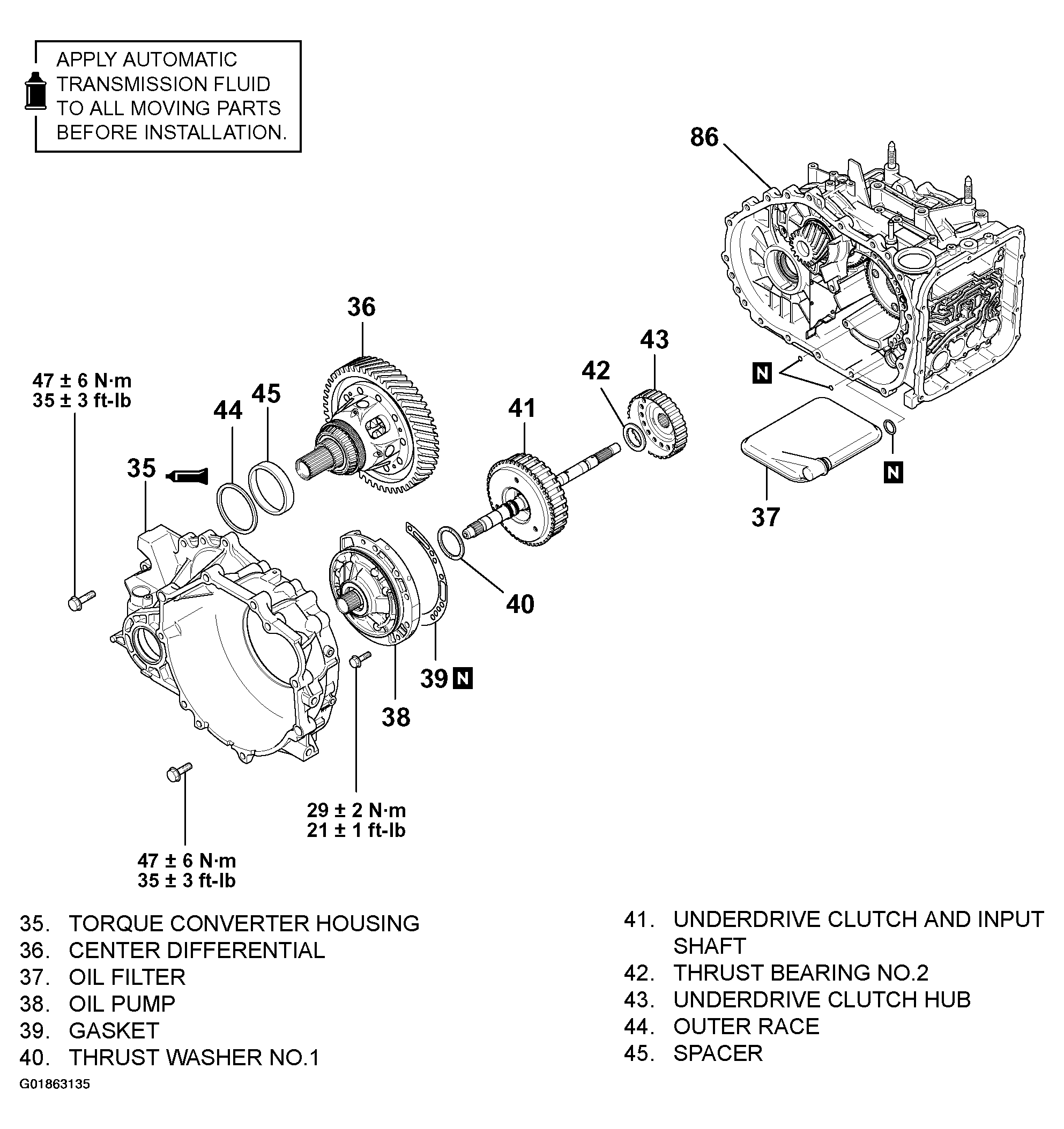

Fig 3: Exploded View And Torque Specification Of Transaxle W4A42 (3 Of 4)
G01863135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

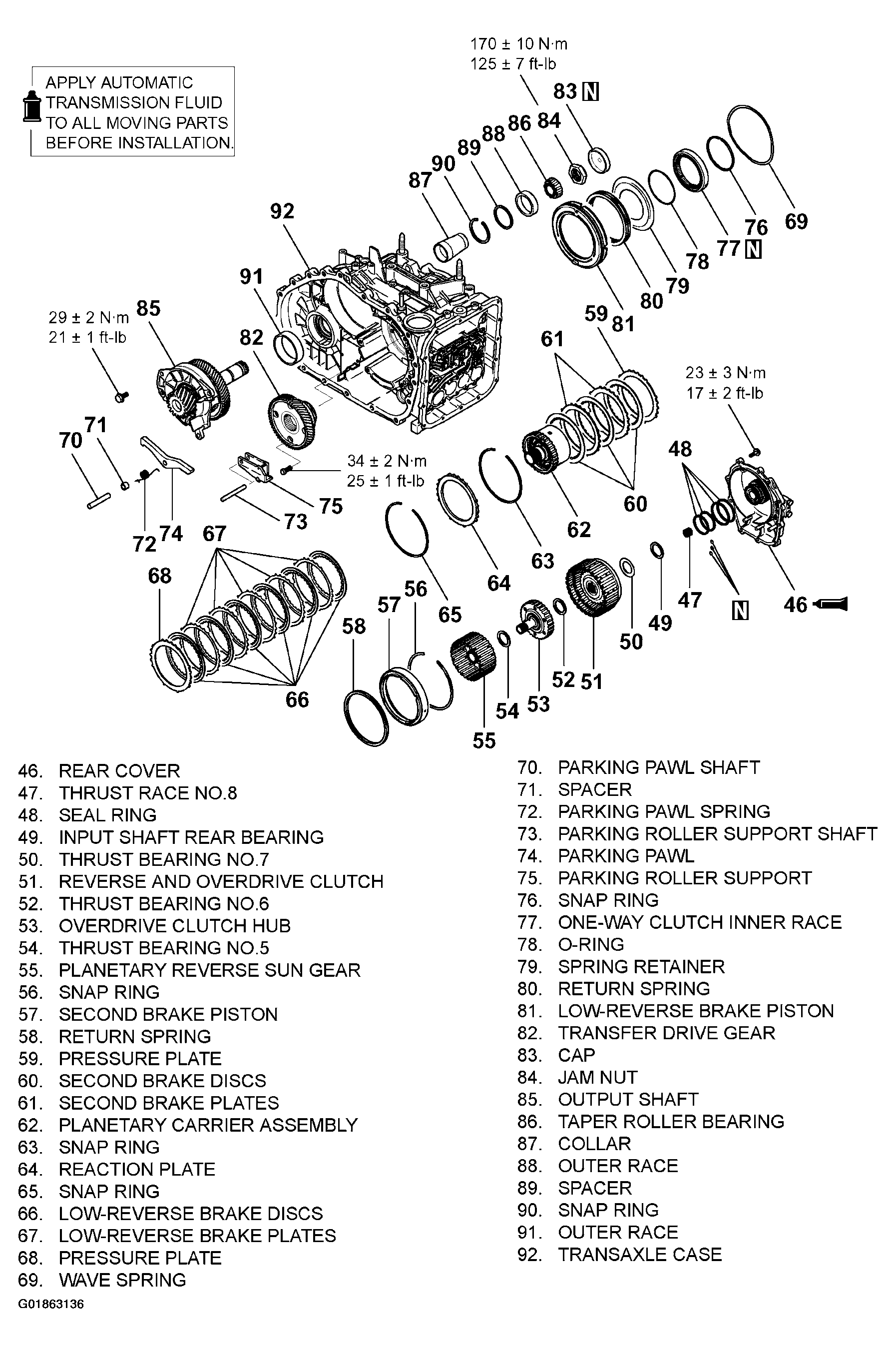

Fig 4: Exploded View And Torque Specification Of Transaxle W4A42 (4 Of 4)
G01863136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
