Check Auto-Cruise Control-Ecu Terminals

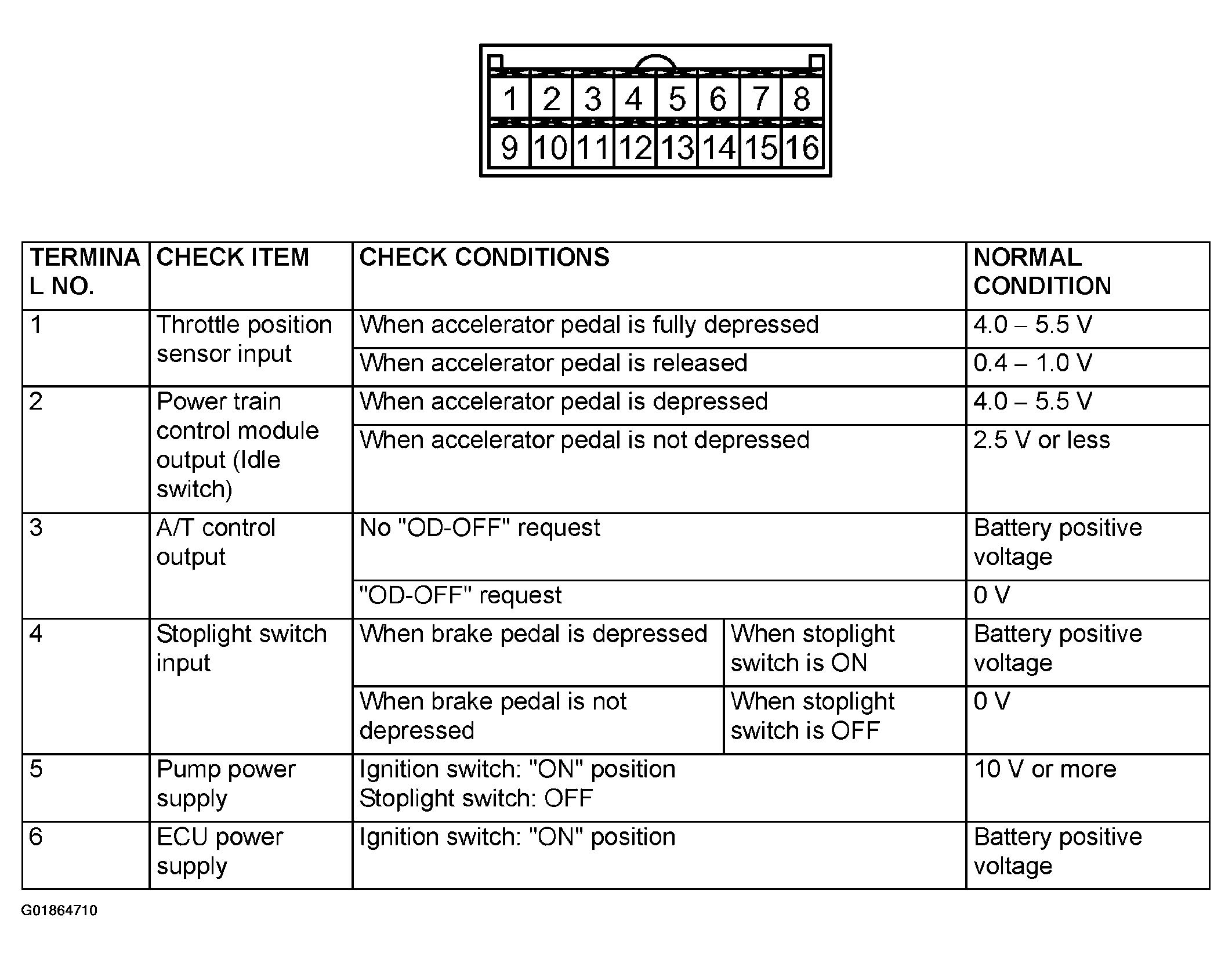

Fig 1: Identifying Auto-Cruise Control-ECU Terminals (1 Of 2)
G01864710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

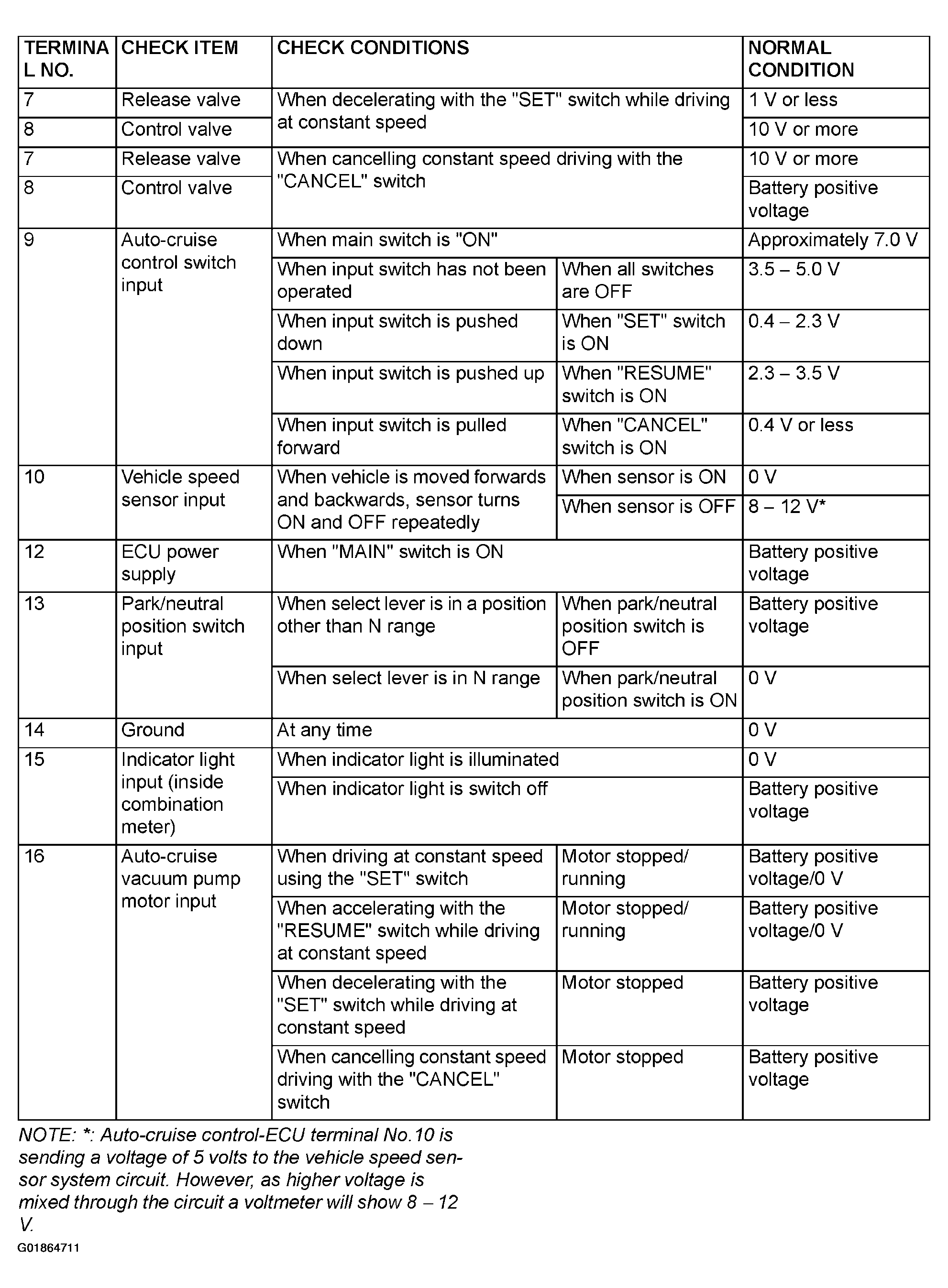

Fig 2: Identifying Auto-Cruise Control-ECU Terminals (2 Of 2)
G01864711Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: *: Auto-cruise control-ECU terminal No. 10 is sending a voltage of 5 volts to the vehicle speed sensor system circuit. However, as higher voltage is mixed through the circuit a voltmeter will show 8 - 12 V.
