DTC 41: Steering Wheel Sensor (ST-1) Circuit System (Open Circuit), DTC 42: Steering Wheel Sensor (ST-2) Circuit System (Open Circuit), DTC 43: Steering Wheel Sensor (ST-N) Circuit System (Open Circuit)

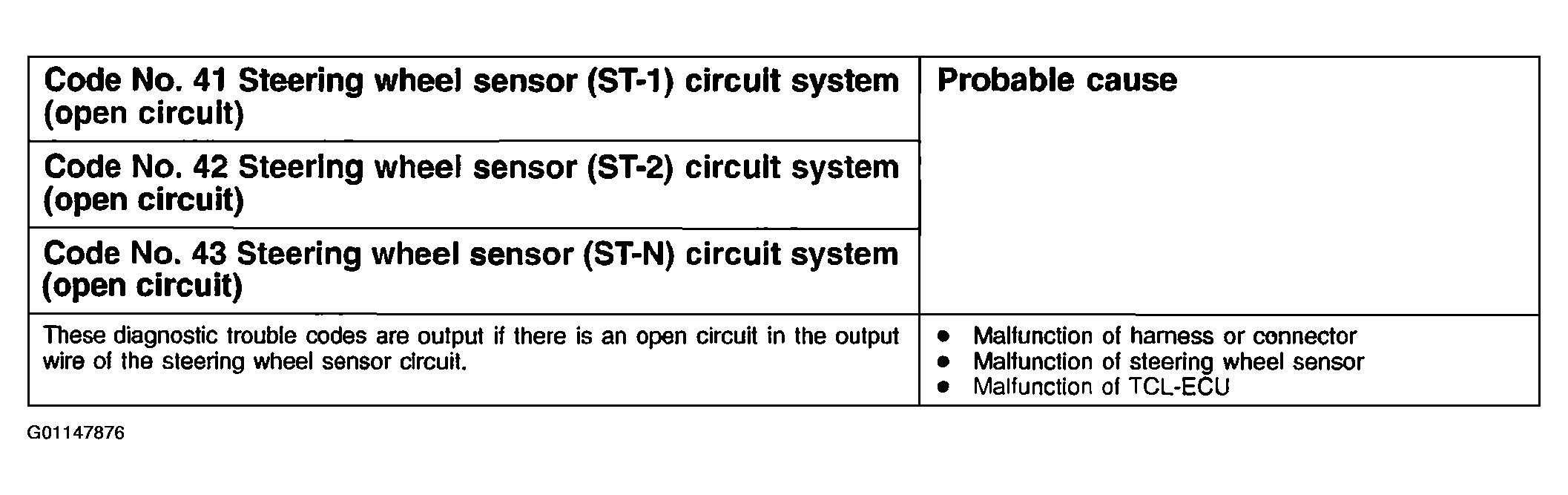

Fig 1: DTC 41, 42, 43 Probable Causes
G01147876Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

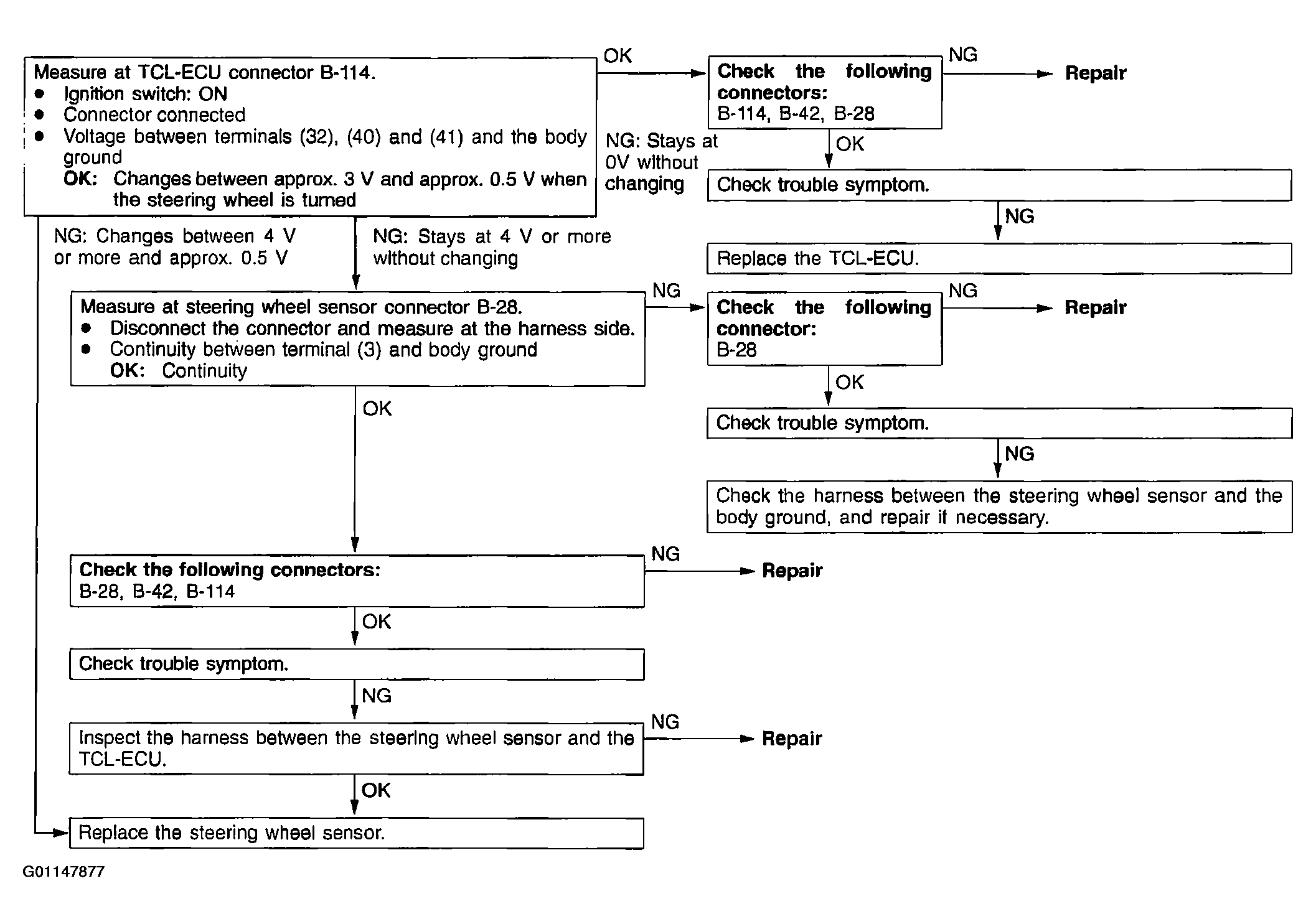

Fig 2: DTC 41, 42, 43 Flow Chart
G01147877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
