Service Specifications

General Specifications

ITEMS		SPECIFICATIONS
Heater Unit	Type	Two-way-flow full-air-mix system
Heater control assembly		Push button type
Compressor	Model	Scroll type <MSC90C>

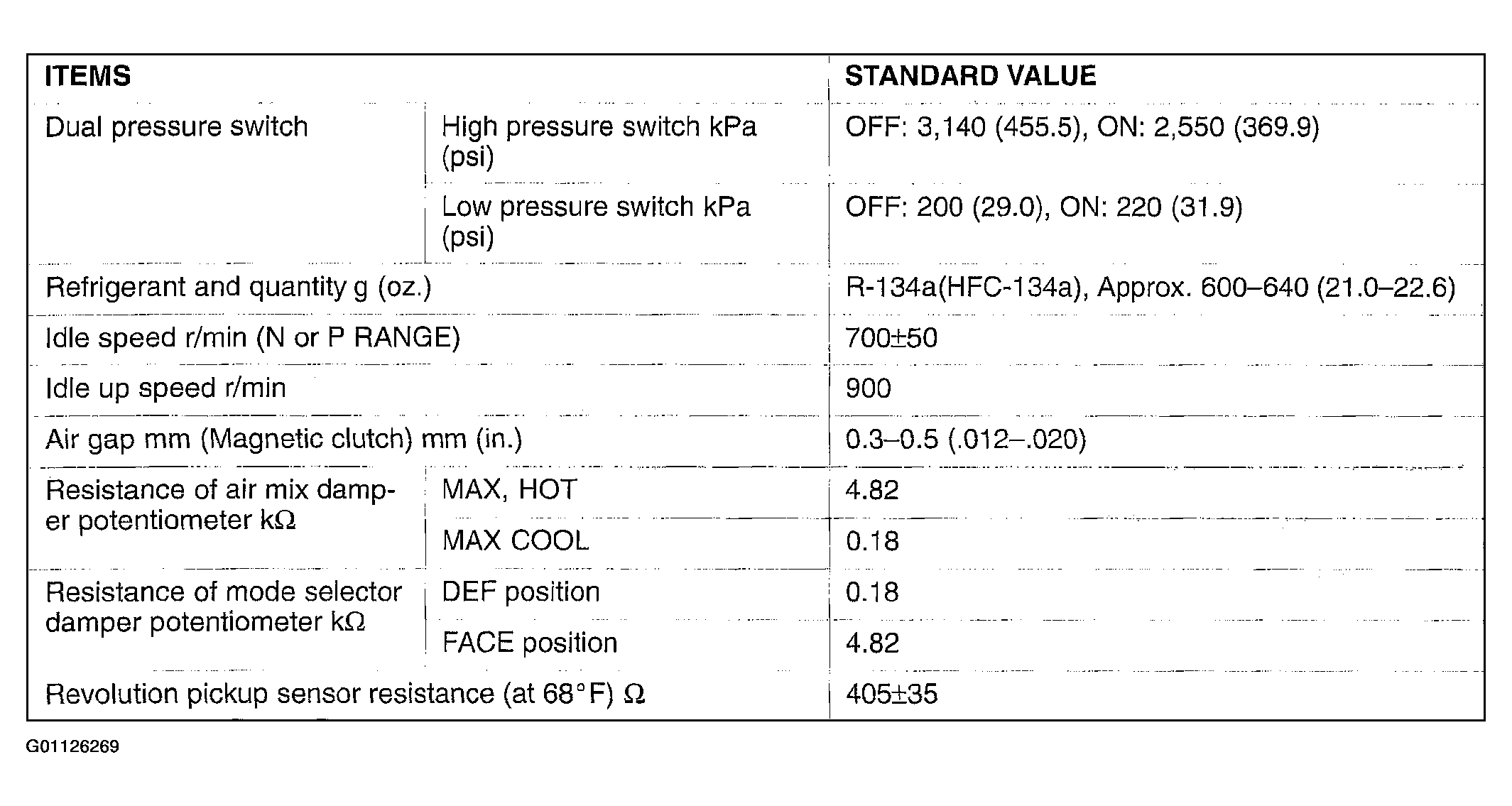

Fig 1: Service Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

LUBRICANTS

ITEMS	SPECIFIED LUBRICANTS	QUANTITY
Each connection of refrigerant line Lip seal of the compressor	SUN PAG 56	As required
Compressor refrigerant unit lubricant cm³ (fl.oz.)	SUN PAG 56	140-160 (4.9-5.6)
