Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

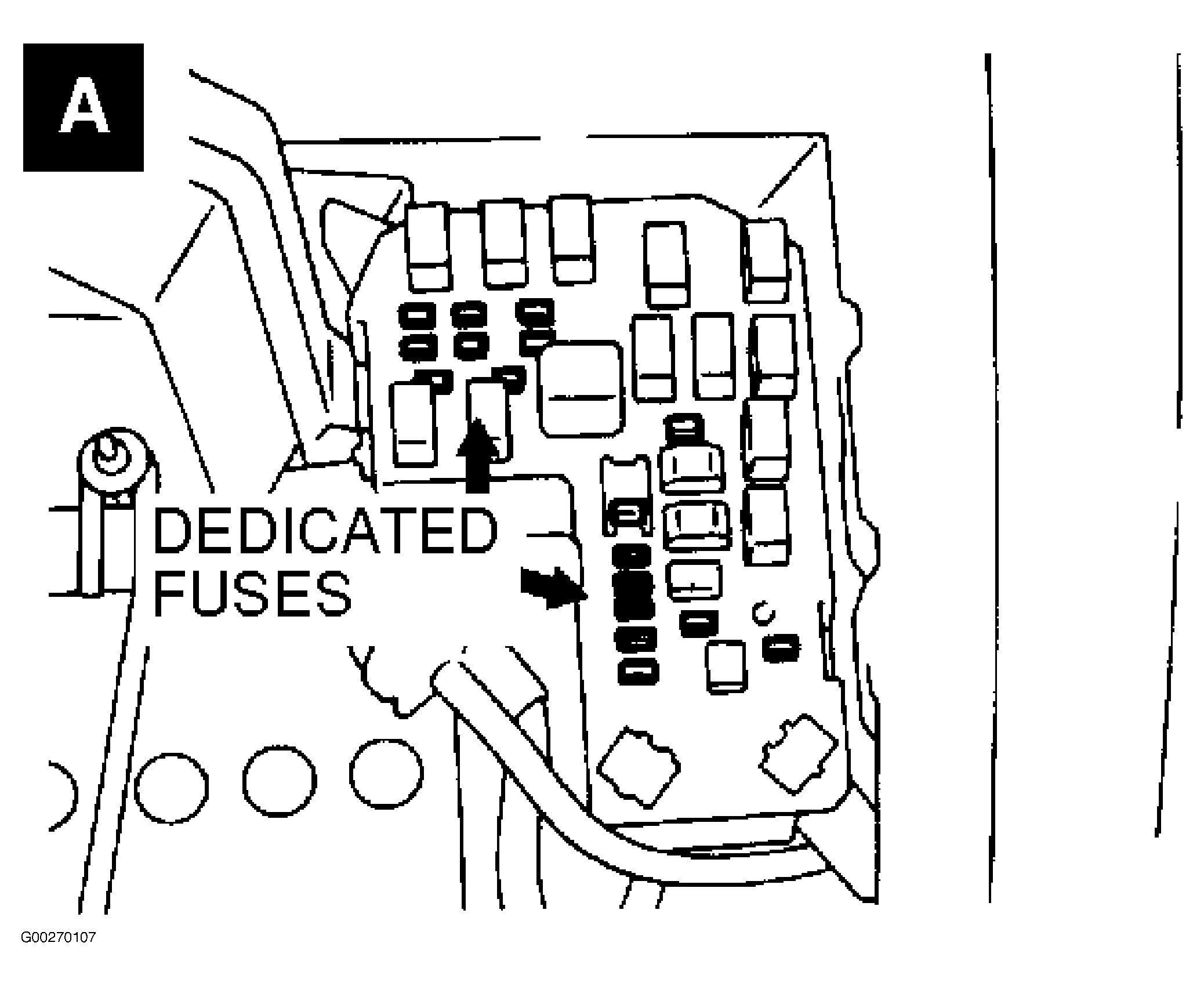

| Dedicated Fuses | In engine compartment relay box. See Figure . |

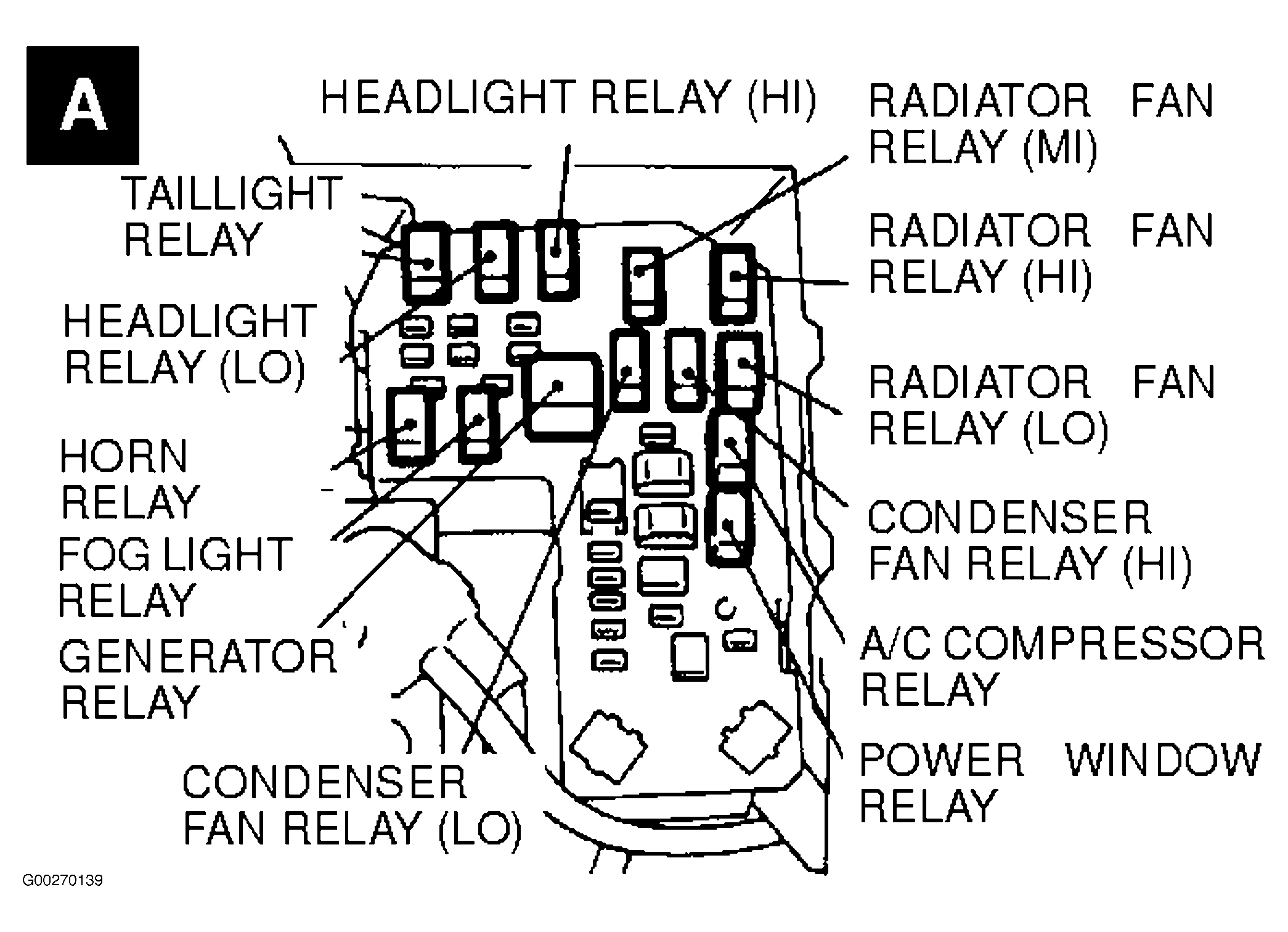

| Engine Compartment Relay Box | On left front fender. See Figure . |
| Fuse Box | Behind left side of dash, next to junction block. See Figure . |

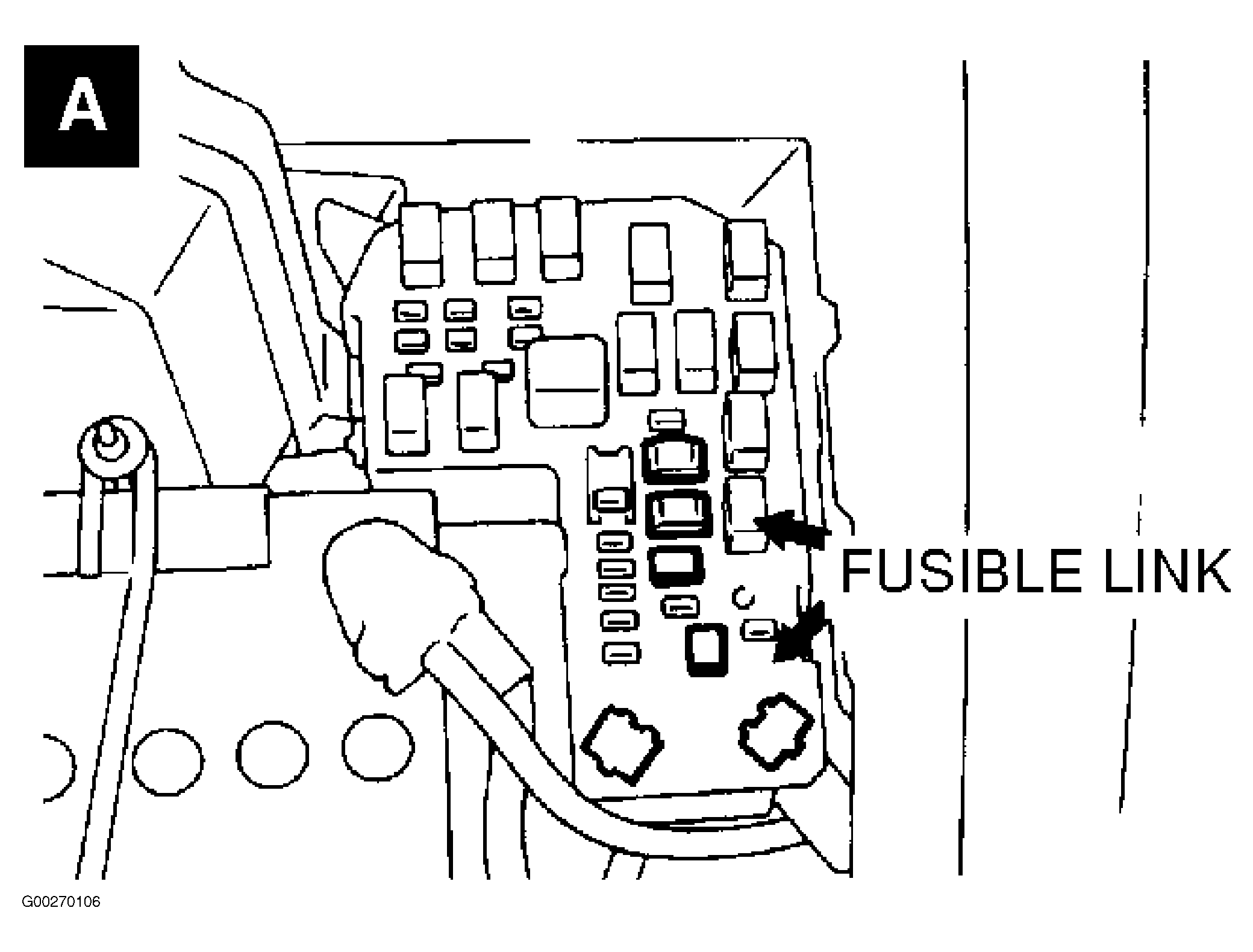

| Fusible Link | In engine compartment relay box. See Figure . |
| Junction Block | Behind left side of dash. See Figure . |

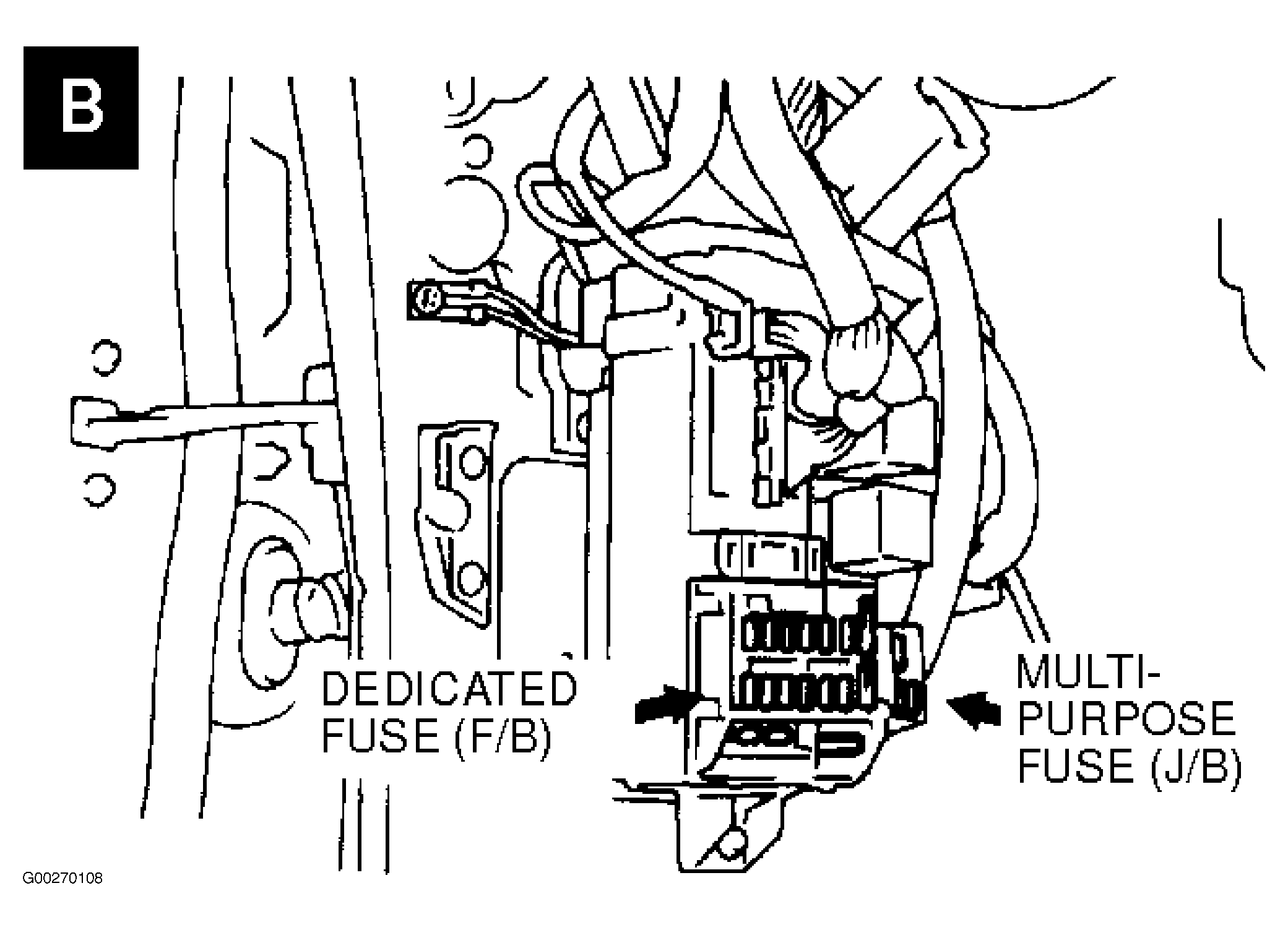

| Multi-Purpose Fuses | In junction block. See Figure . |
