Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

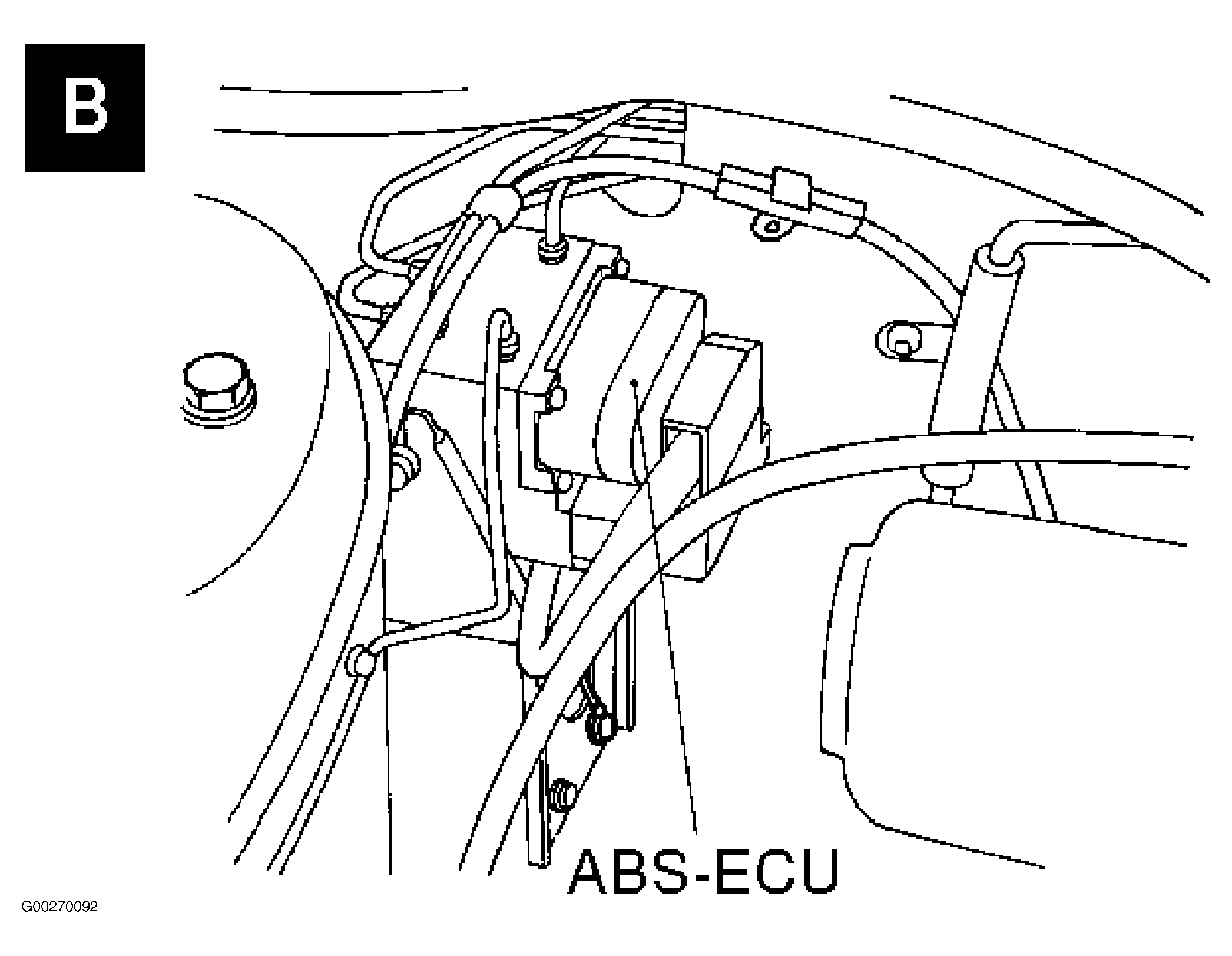

| ABS ECU | At right rear corner of engine compartment. See Figure . |

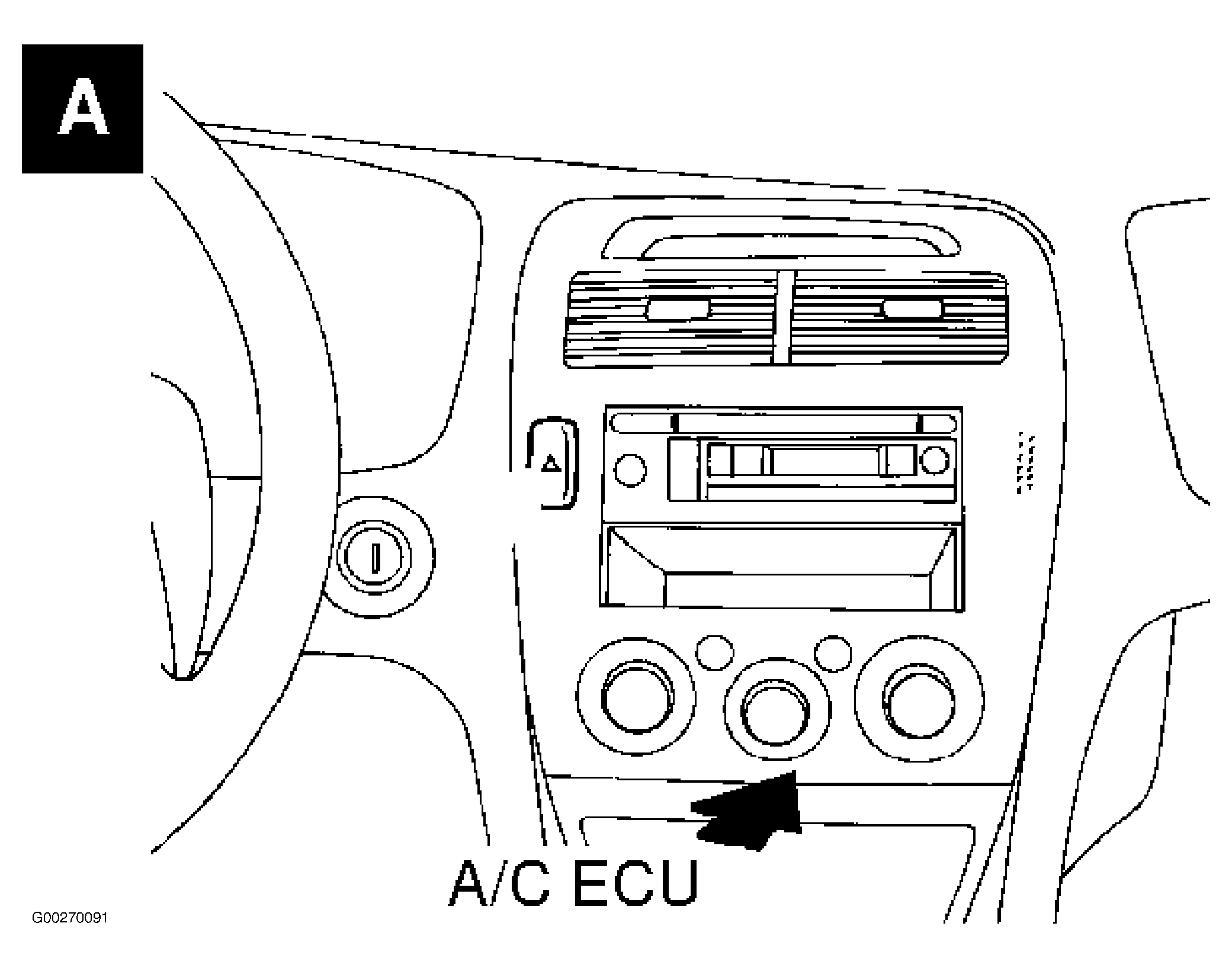

| A/C ECU | Behind A/C control panel. See Figure . |

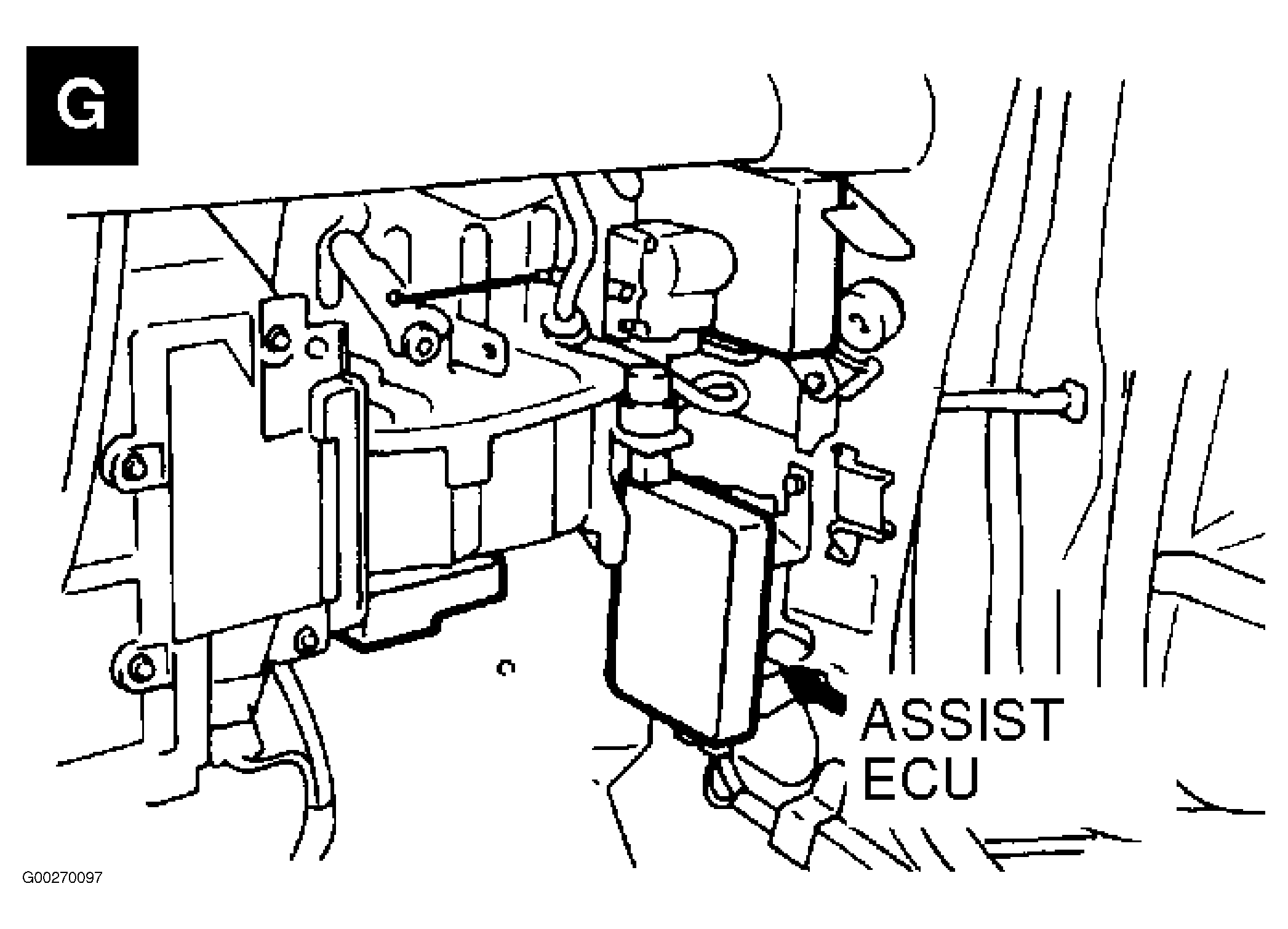

| Assist ECU | Under right side of dash, near kick panel. See Figure . |

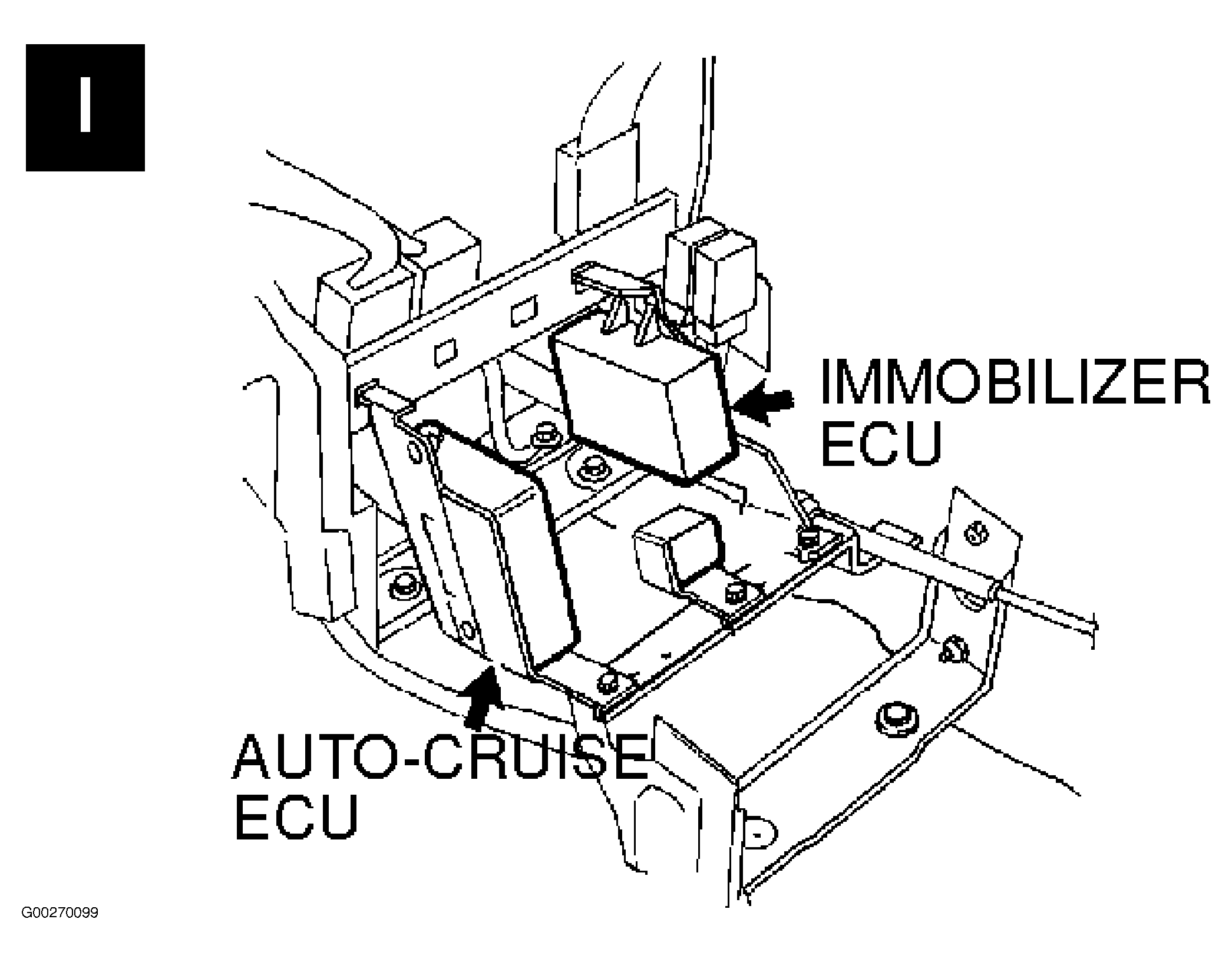

| Auto-Cruise ECU | Under center of dash, forward of center console. See Figure . |

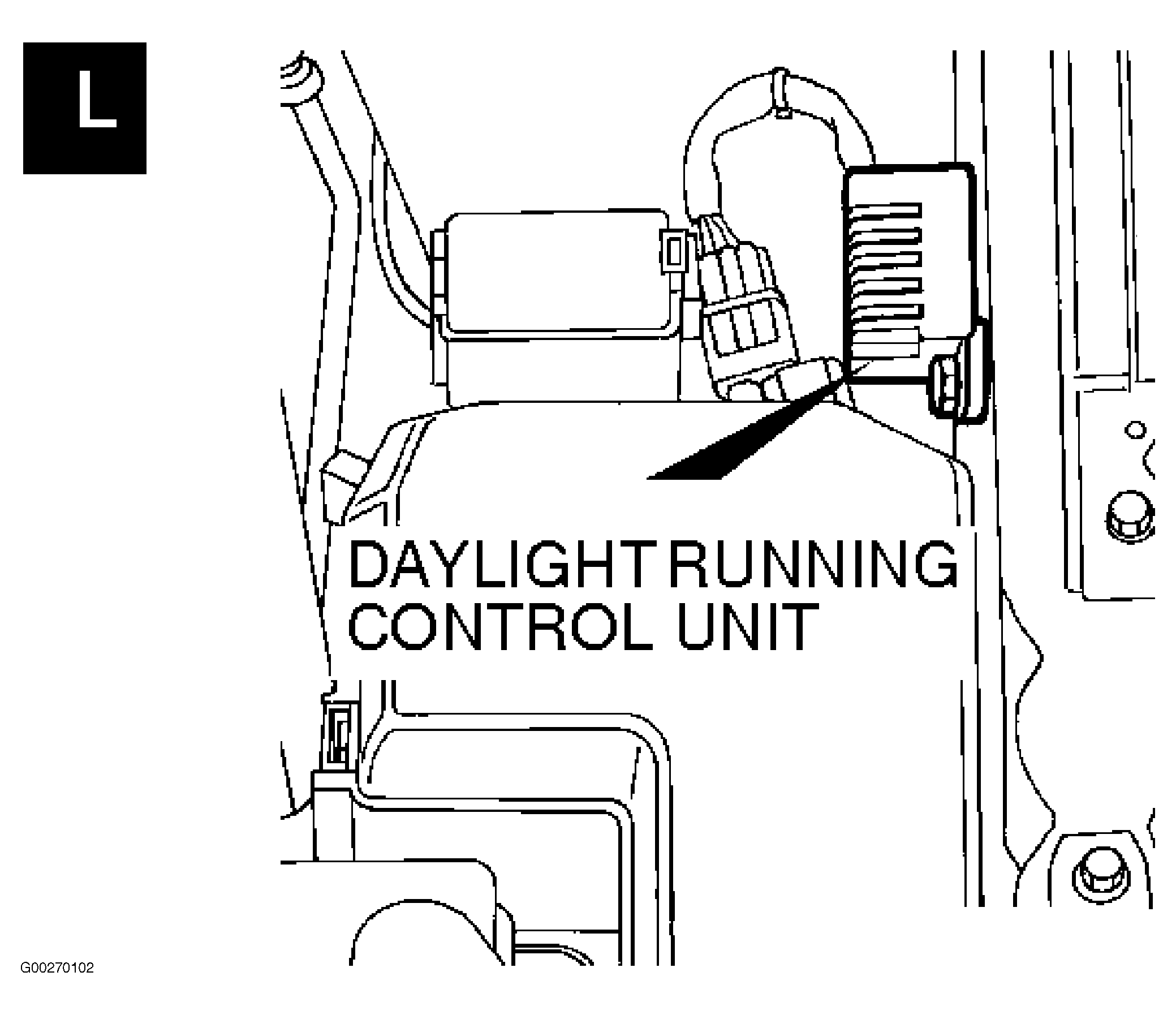

| Daylight Running Control Unit | Left side of engine compartment. See Figure . |

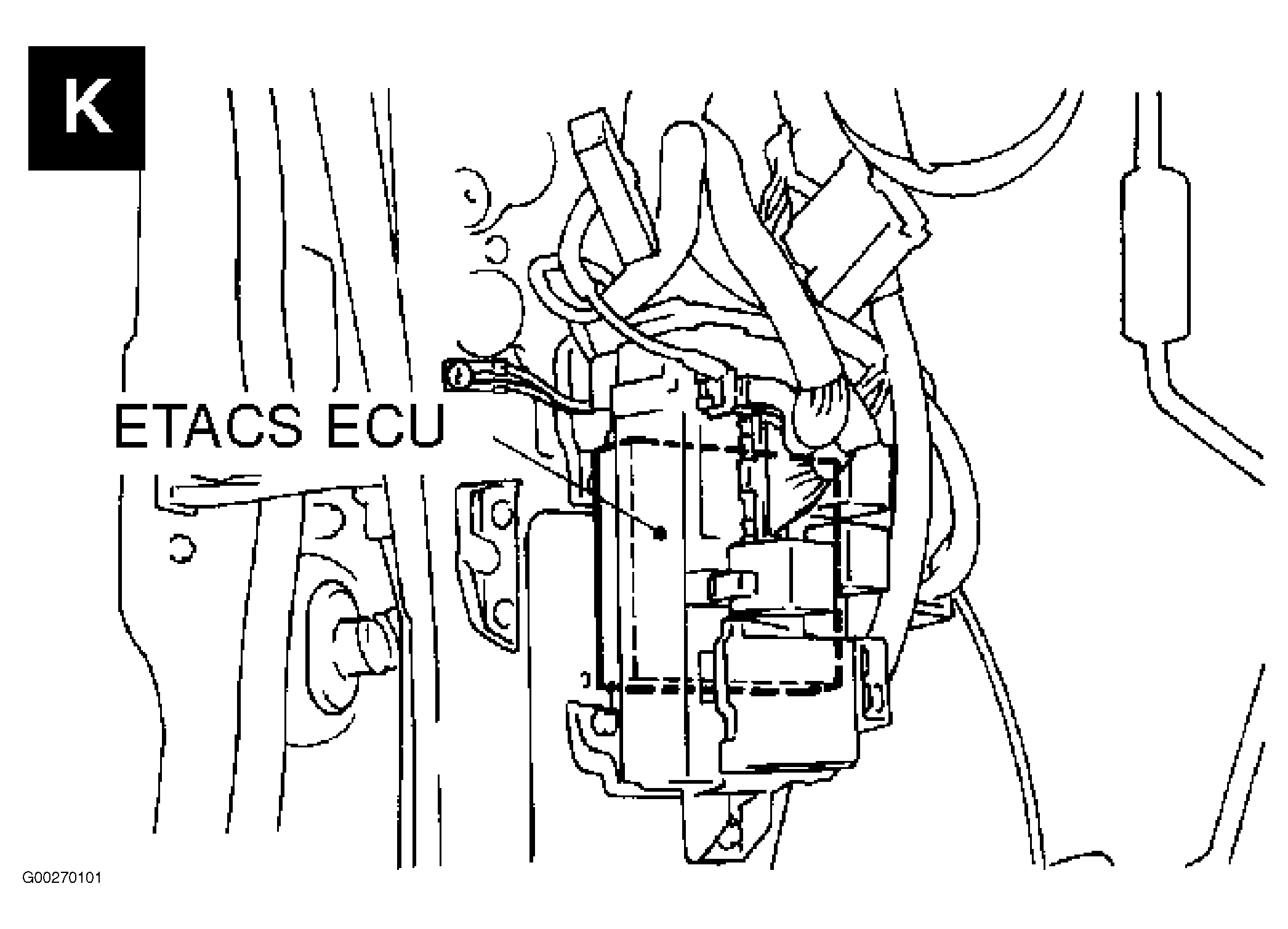

| ETACS ECU | Behind left side of dash, near kick panel. See Figure . |

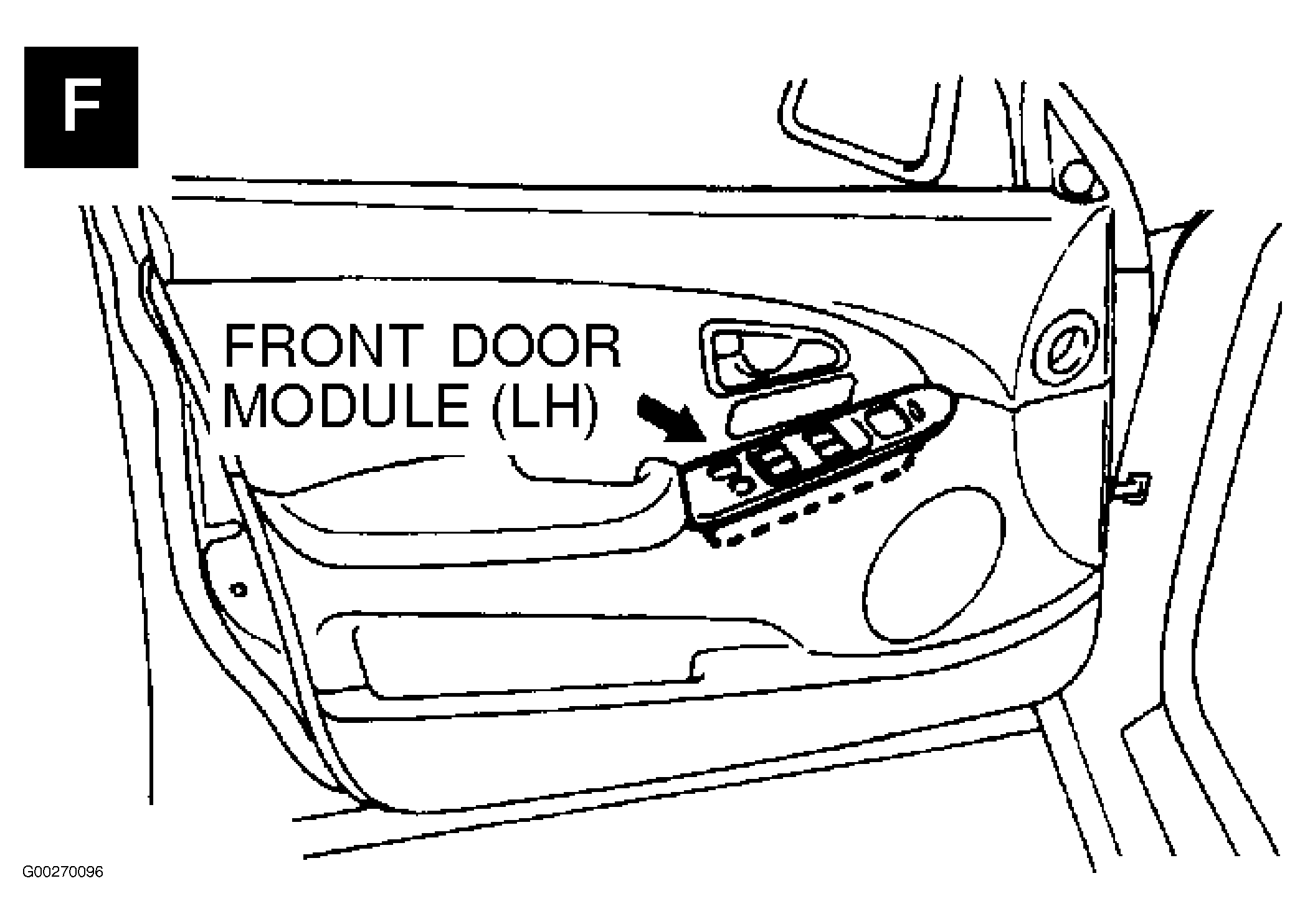

| Front Door Module (Left) | On left front door. See Figure . |

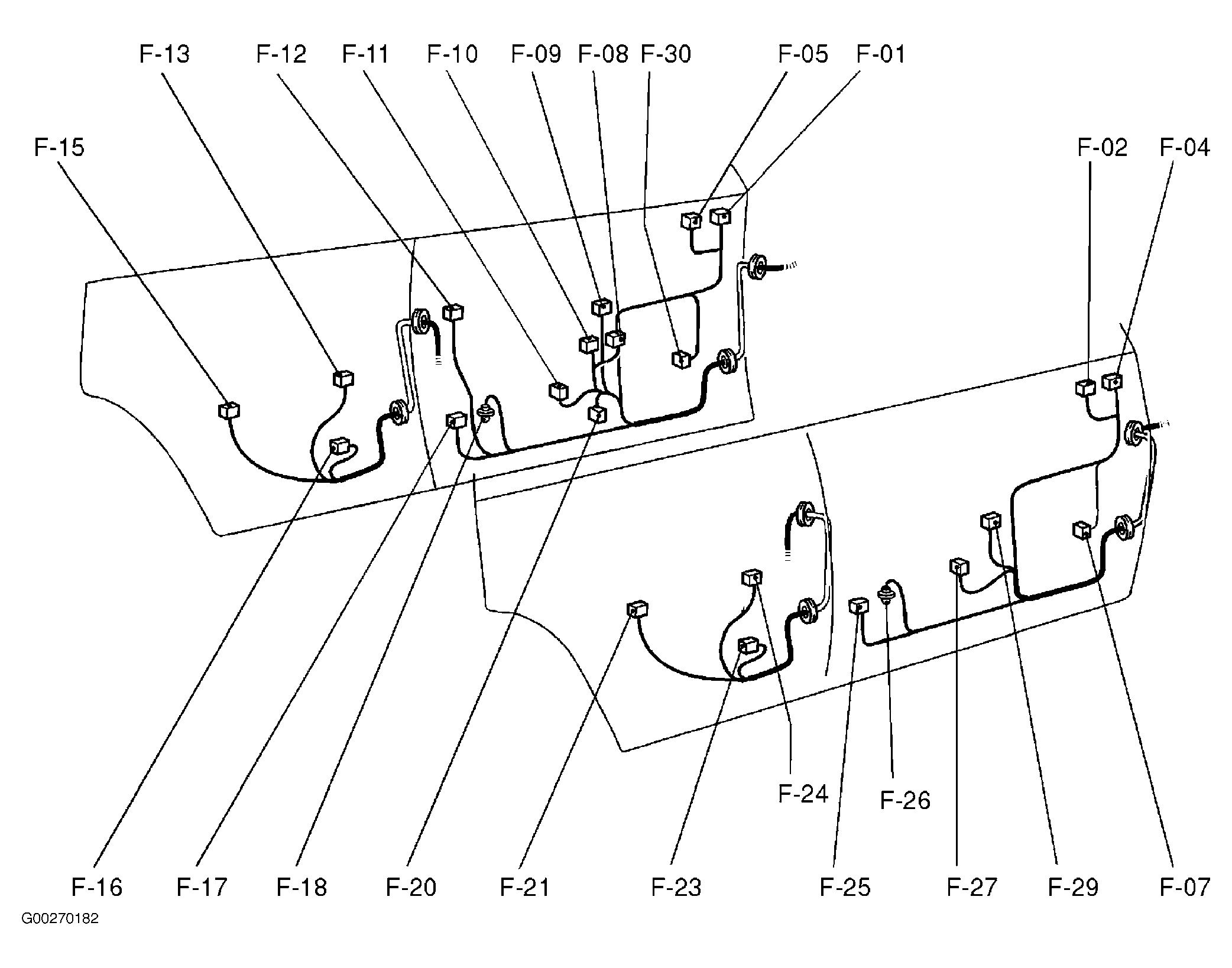

| Front Door Module (Right) (F-29) | On right front door. See Figure . |
| Immobilizer ECU | Under center of dash, forward of center console. See Figure . |

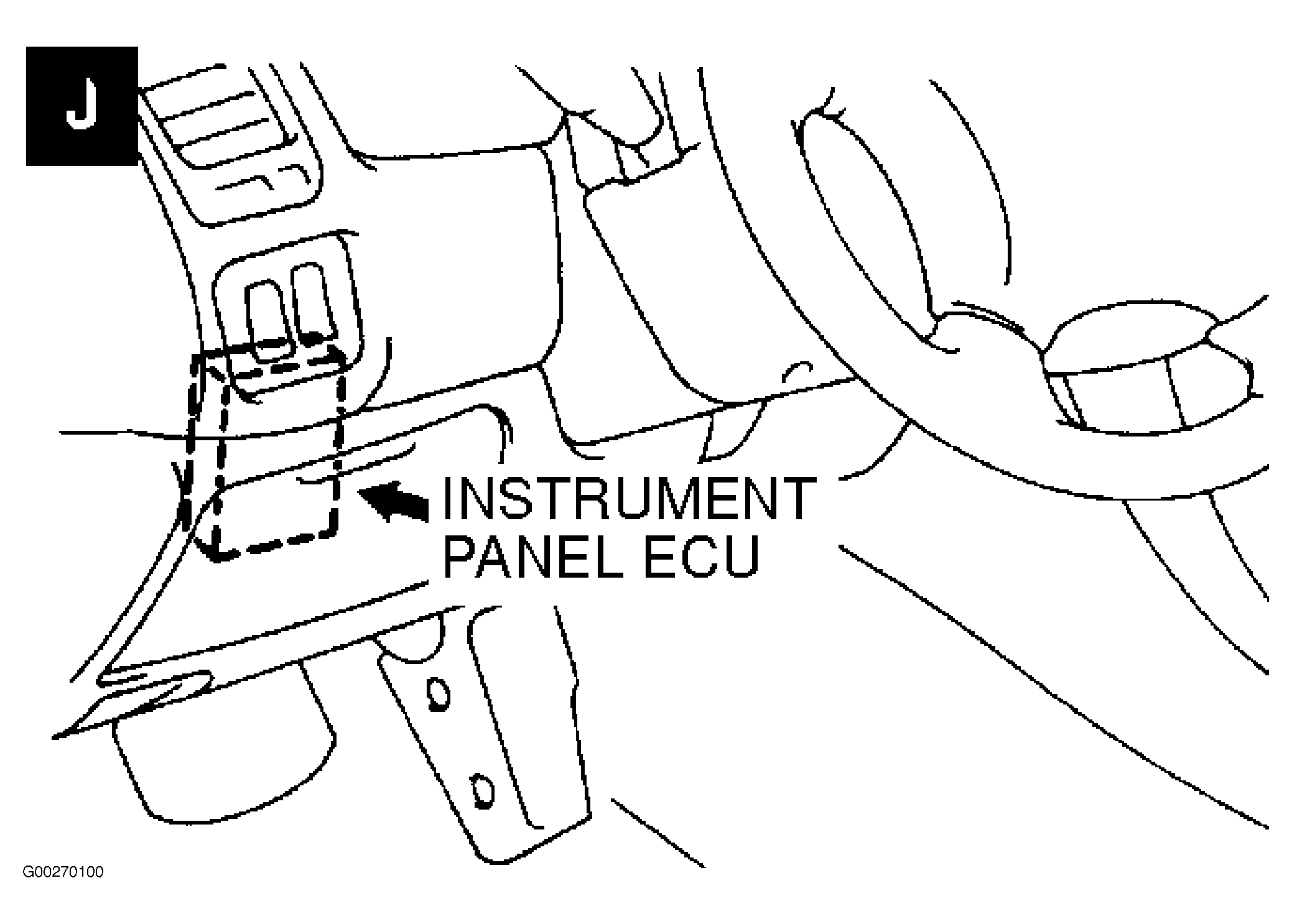

| Instrument Panel ECU | Behind left side of dash. See Figure . |

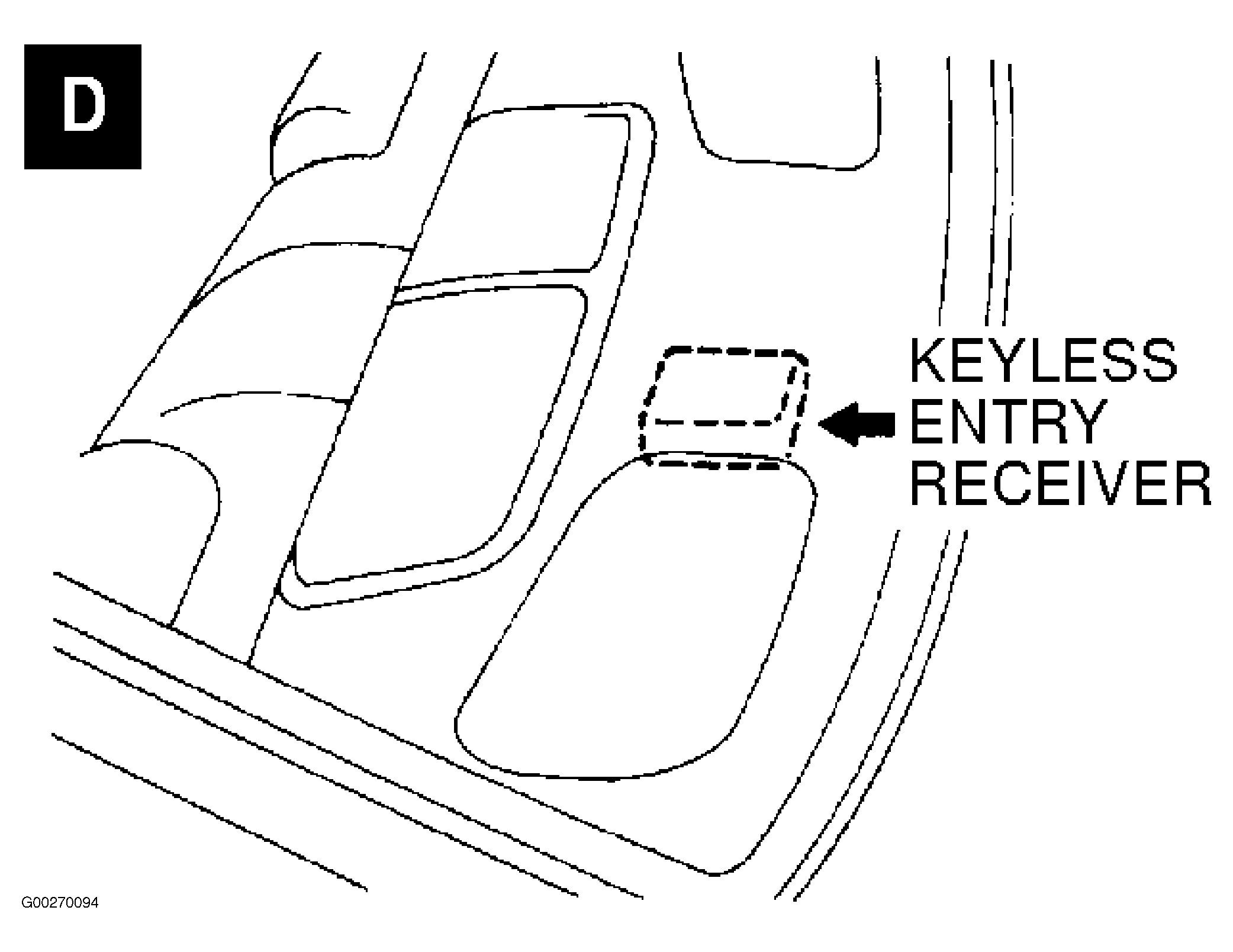

| Keyless Entry Receiver | Under center of rear shelf. See Figure . |

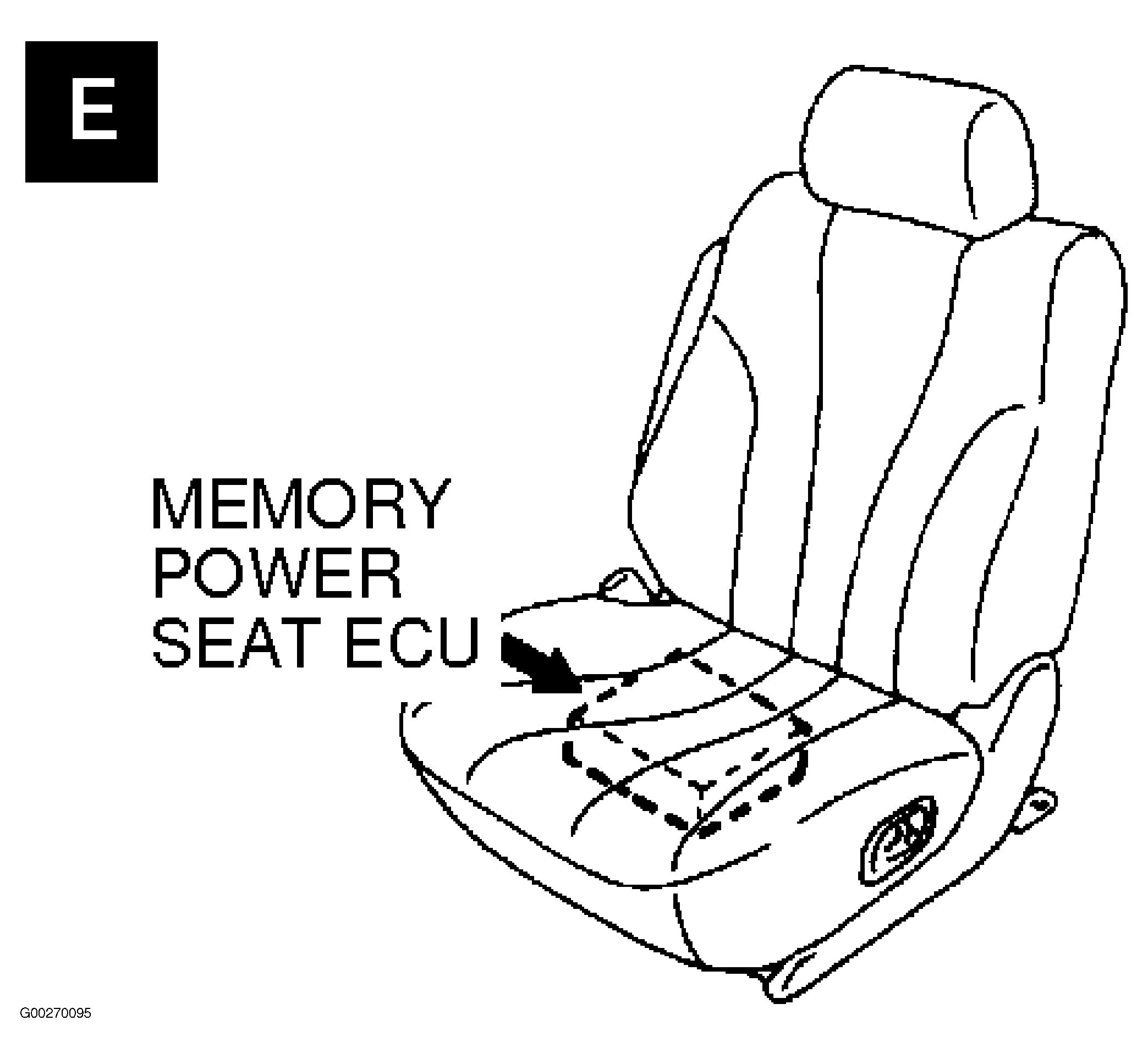

| Memory Power Seat ECU | Under driver's seat. See Figure . |

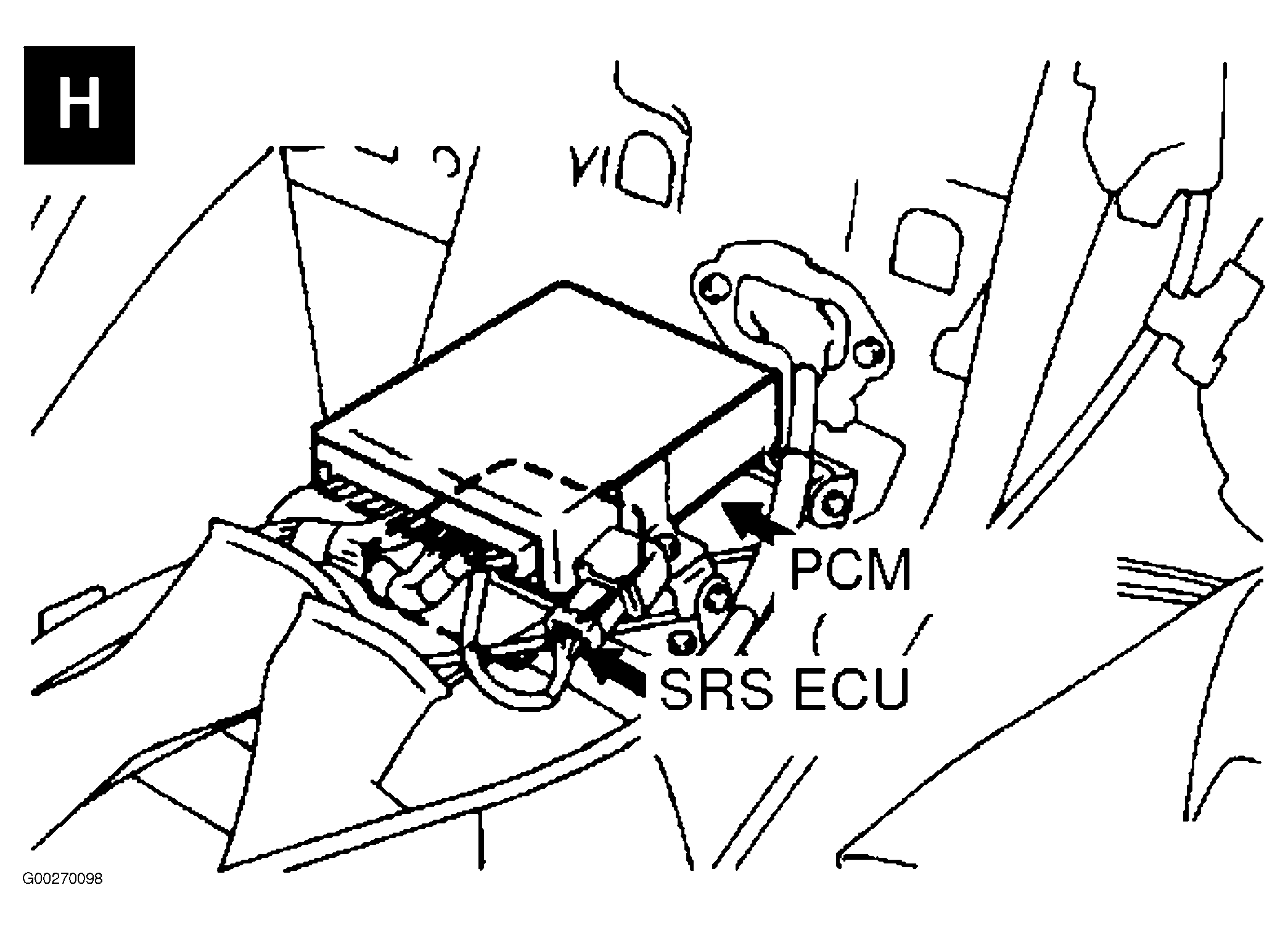

| Powertrain Control Module (PCM) | Under center of dash, forward of center console. See Figure . |
| SRS ECU | Under center of dash, forward of center console. See Figure . |

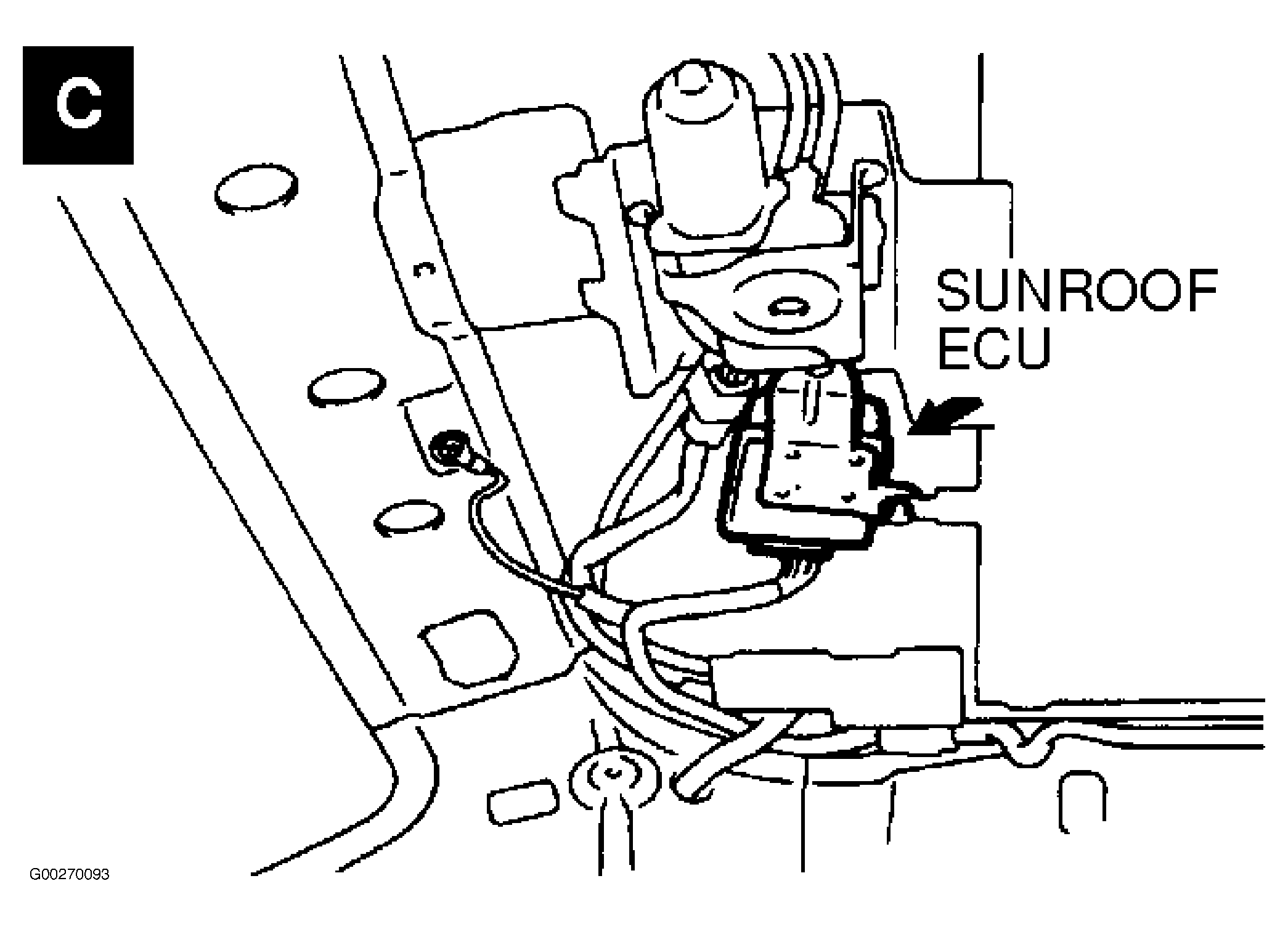

| Sunroof ECU | Under headliner, near sun roof motor. See Figure . |
