>>H<< Seal Ring Installation

Because the seal rings expand after installation, tighten after installing by using special tool MB991317 to compress the rings, or press down by hand.

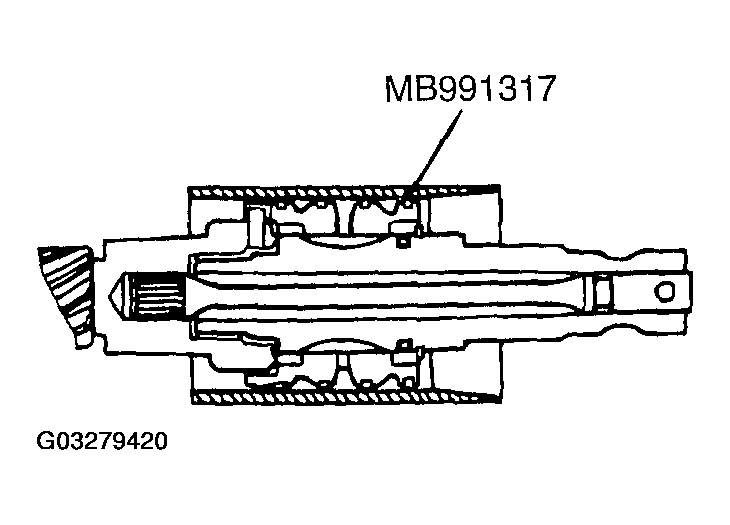

Fig 1: Installing Seal Ring Using Special Tool MB991317
G03279420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
