<< B>> Rack Support Cover Removal

Using special tool MB991204, remove the rack support cover from the gear box.

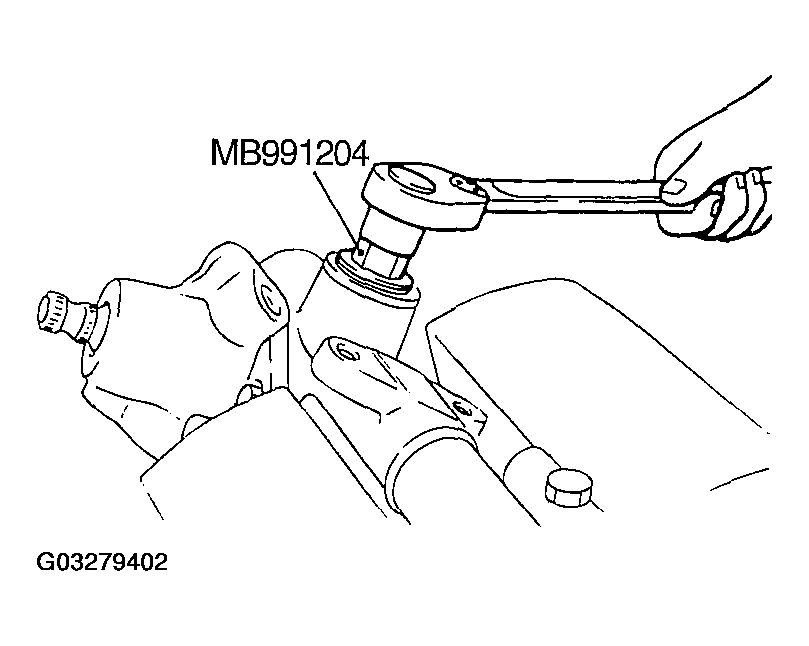

Fig 1: Removing Rack Support Cover From Gear Box Using Special Tool MB991204
G03279402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
