Transmission Range Switch And Control Cable Adjustment
- Set the selector lever to the "N" position.

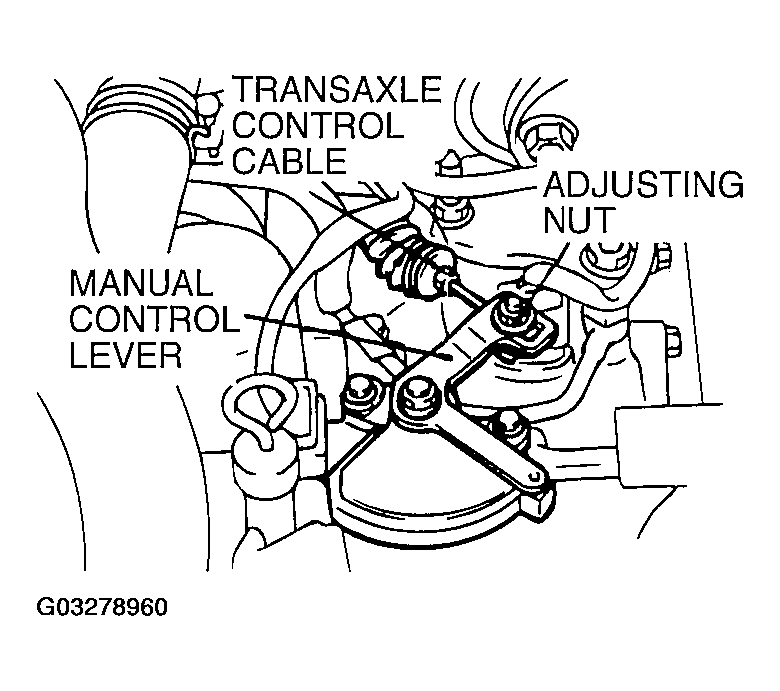

- Loosen the control cable to the manual control lever coupling nut to free the cable and lever.
- Set the manual control lever to the neutral position.

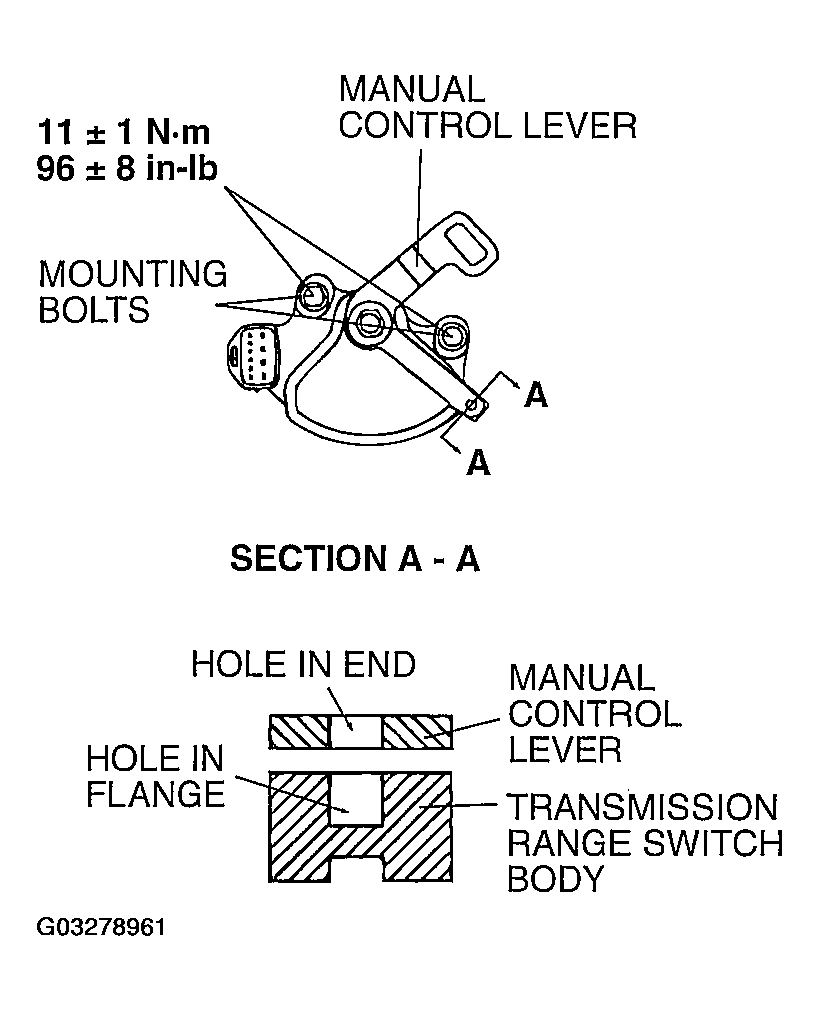

- Loosen the transmission range switch body mounting bolts and turn the transmission range switch body so the hole in the end of the manual control lever and the hole (section A - A in the figure on the left) in the flange of the transmission range switch body flange are aligned.NOTE: The transmission range switch body can be aligned by inserting a 5-mm diameter steel bar into the end hole of the manual control lever and the flange hole of the transmission range switch body.
- Tighten the transmission range switch body mounting bolts to the specified torque. Be careful at this time that the switch body does not move.
Tightening torque: 11 plus/minus 1 N-m (96 plus/minus 8 in-lb)

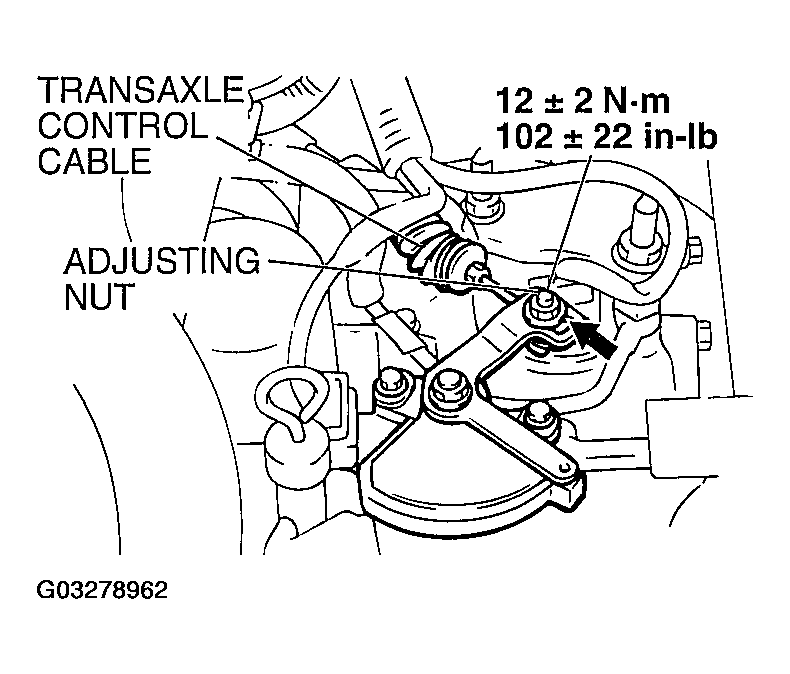

- Gently push the transaxle control cable in the direction of the arrow, until the cable is taut. Tighten the adjusting nut.
Tightening torque: 12 plus/minus 2 N-m (102 plus/minus 22 in-lb)
- Check that the selector lever is in the "N" position.
- Check that each position of the manual control lever matches each position of the selector lever using scan tool MB991958.
