Inspection Procedure O-8: Column Switch: ETACS-Ecu Does Not Receive Any Signal From The Windshield Mist Wiper Switch, The Windshield Intermittent Wiper Switch, The Windshield Low-Speed Wiper Switch, The Windshield High-Speed Wiper Switch, The Rear Wiper Switch, The Windshield Washer Switch Or The Rear Washer Switch.: Diagnosis

Required Special Tools:

• MB991223: Harness Set
• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: Vehicles communication interface
  • MB991827: MUT-III USB cable
  • MB991911: MUT-III Main harness B
• MB991813: SWS monitor kit
  • MB991806: SWS monitor cartridge
  • MB991812: SWS monitor harness (for column-ECU)
  • MB991922: Probe harness

1. STEP 1. Use scan tool MB991958 to select "ECU COMM Check" on the SWS monitor display.

   Check the column-ECU.

   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect special tool MB991911 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on special tool MB991824.
   1. Connect the special tool. Refer to "HOW TO CONNECT SWS MONITOR ."
   2. Turn the ignition switch to the "LOCK" (OFF) position.
   3. Operate scan tool MB991958 according to the procedure below to display "ECU COMM Check."
      1. Select "Interactive Diagnosis."
      2. Select "System Select."
      3. Select "SWS."
      4. Select "SWS MONITOR."
      5. Select "ECU COMM Check."
   4. Scan tool MB991958 should show "OK" on the "ECU COMM Check" menus for both the "COLUMN ECU" menus.

   Q: Is "OK" displayed on the "COLUMN ECU" menu?

   1. YES:  Go to Step 2.
   2. NO  : Refer to INSPECTION PROCEDURE A-2: COMMUNICATION WITH THE COLUMN SWITCH (COLUMN-ECU) IS IMPOSSIBLE .

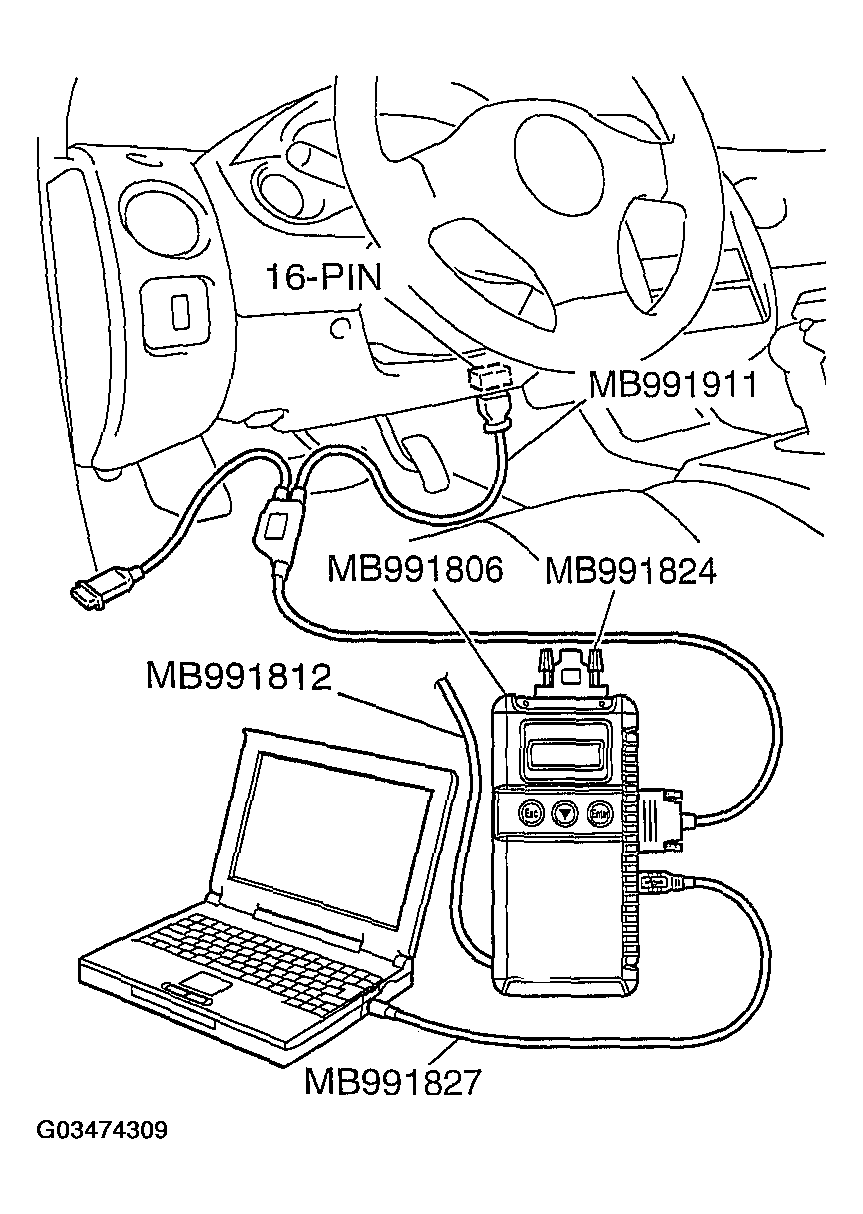

   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

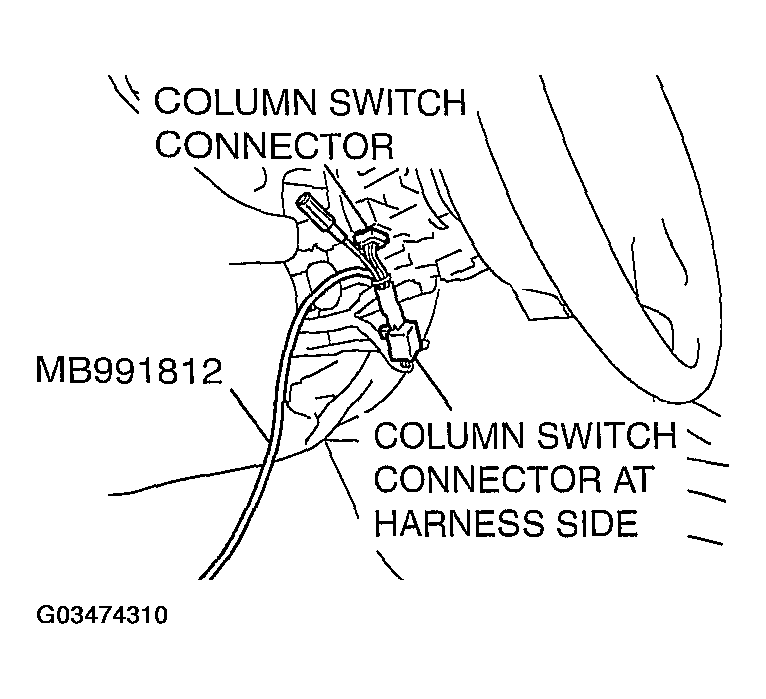

   Fig 2: Connecting Scan Tool To Column Switch Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Check the windshield wiper and washer switch.

   Remove the windshield wiper and washer switch. Then check continuity between the switch terminals.

   WINDSHIELD WIPER AND WASHER SWITCH POSITION AND SPECIFIED CONDITION



   SWITCH POSITION	TESTER CONNECTION	SPECIFIED CONDITION
   OFF	21-23, 22-23, 23-30, 23-31, 23-32, 25-26, 25-29	Open circuit
   Windshield mist wiper switch	23-32	Less than 2 ohms
   Windshield intermittent wiper switch	23-31	Less than 2 ohms
   Windshield low-speed wiper switch	23-30	Less than 2 ohms
   Windshield high-speed wiper switch	21-23	Less than 2 ohms
   Windshield washer switch	22-23	Less than 2 ohms
   Rear wiper switch	25-26	Less than 2 ohms
   Rear washer switch	25-29	Less than 2 ohms

   Q: Are the windshield wiper and washer switch in good condition?

   1. YES:  Go to Step 3.
   2. NO  : Replace the column switch. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.

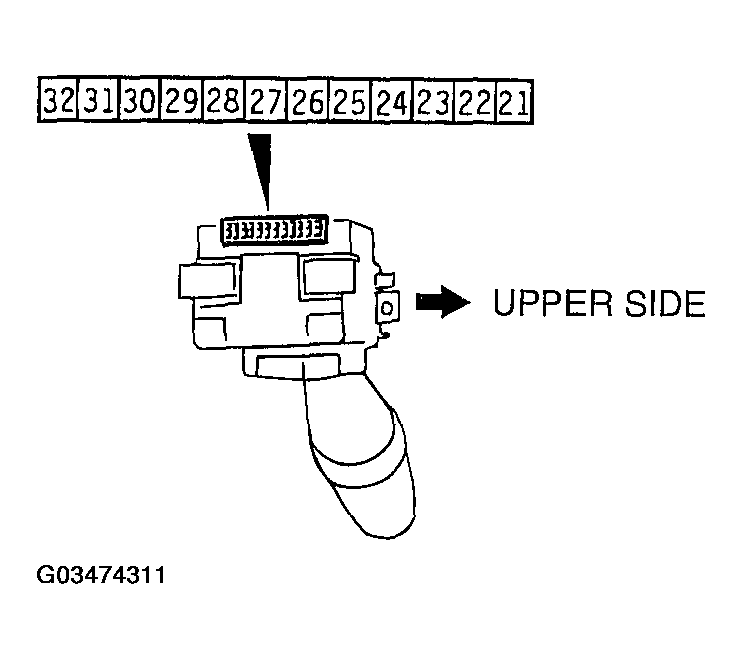

   Fig 3: Locating Windshield Wiper And Washer Switch Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Replace the ECU.
   1. Replace the column switch (turn-signal light and lighting switch).
   2. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.

   Q: Does the column switch (windshield wiper and washer switch) send a normal signal to the ECU?

   1. YES:  No action to be taken.
   2. NO  : Replace the ETACS-ECU. If the equipment, which are described in "CIRCUIT OPERATION"  work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.
