Operating The Transmitter Trunk Switch

When the transmitter trunk switch is pressed, the ETACS-ECU activates the open relay output for 0.25 seconds and open trunk lid.

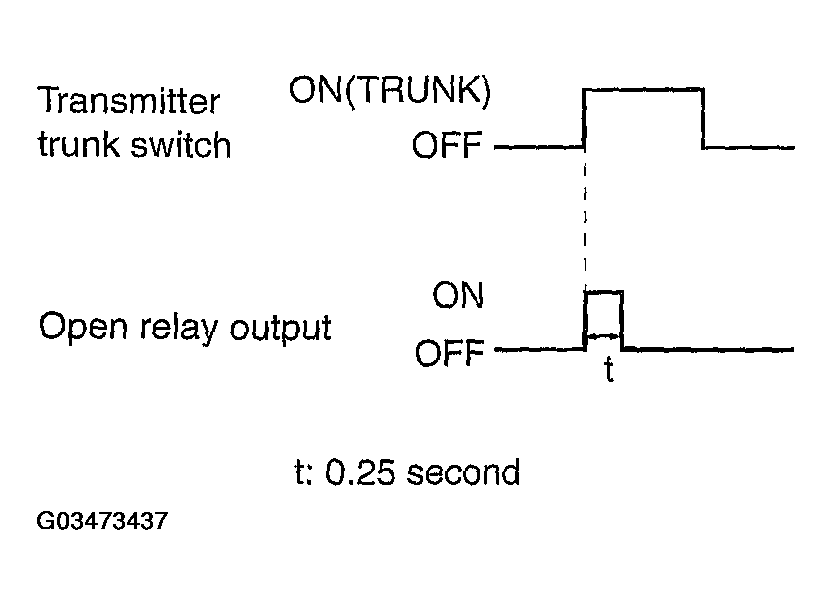

Fig 1: Identifying Trunk Lid Open Function

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
