>>G<< Synchronizer Sleeve Installation

  1. Check the installation direction of the synchronizer sleeve, and install it onto the 3rd-4th speed synchronizer hub.

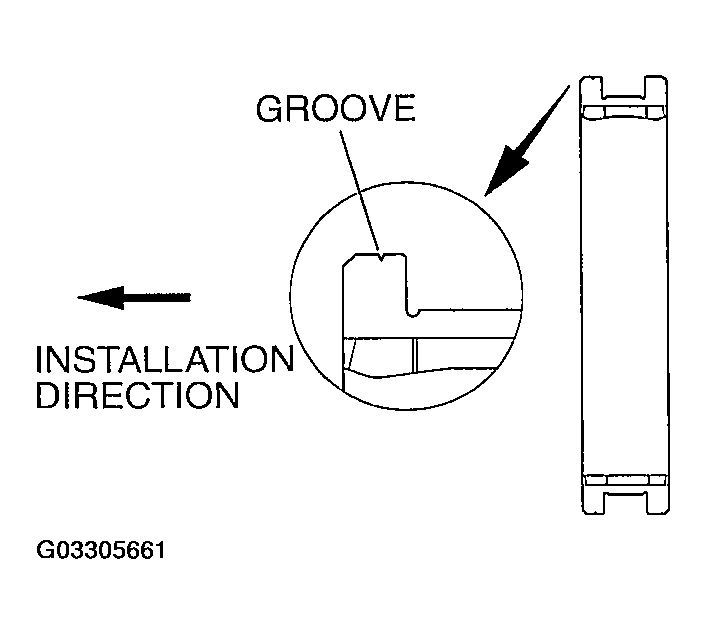

    Fig 1: Installing Synchronizer Sleeve Onto 3Rd-4Th Speed Synchronizer Hub
    G03305661Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

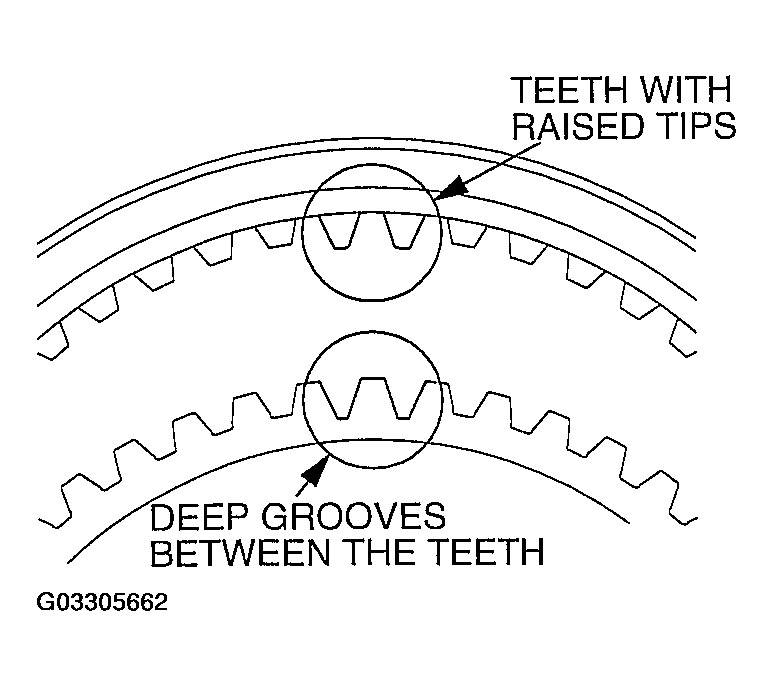

    Fig 2: Identifying Raised Tips And Deep Grooves Between Teeth
    G03305662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
