INSPECTION PROCEDURE 5: The TCL Warning Light Remains Illuminated after the Engine is Started.: Notes

NOTE: This diagnosis procedure is limited to cases where communication with the scan tool is possible (ABS-ECU power supply is normal) and no diagnostic trouble code outputs.

TCL Warning Light and TCL Indicator Light Circuit

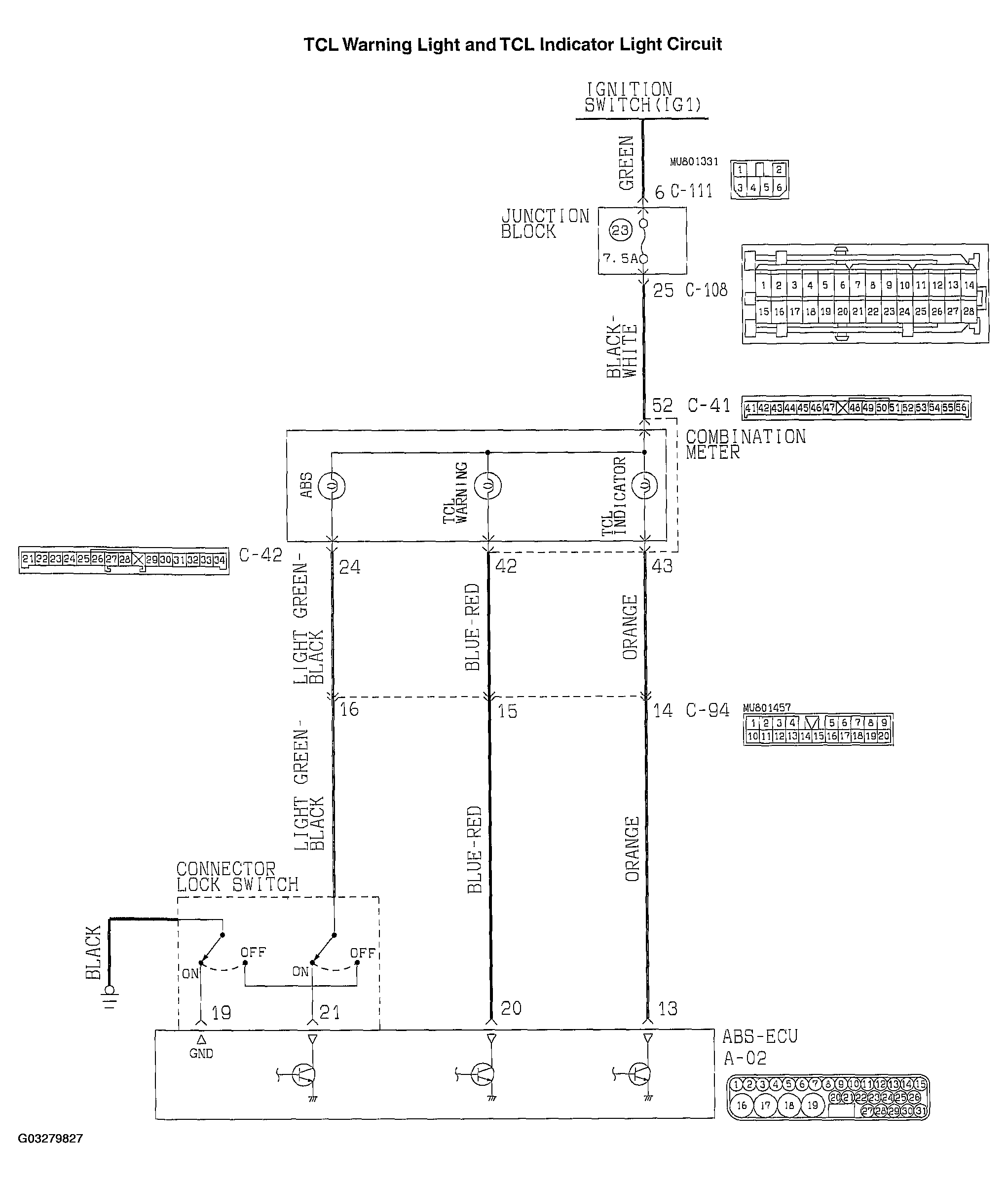

Fig 1: TCL Warning Light And TCL Indicator Light Circuit

G03279827

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: CONNECTOR LOCK SWITCH

ON: The ABS-ECU connector A-02 is connected.

OFF: The ABS-ECU connector A-02 is disconnected.

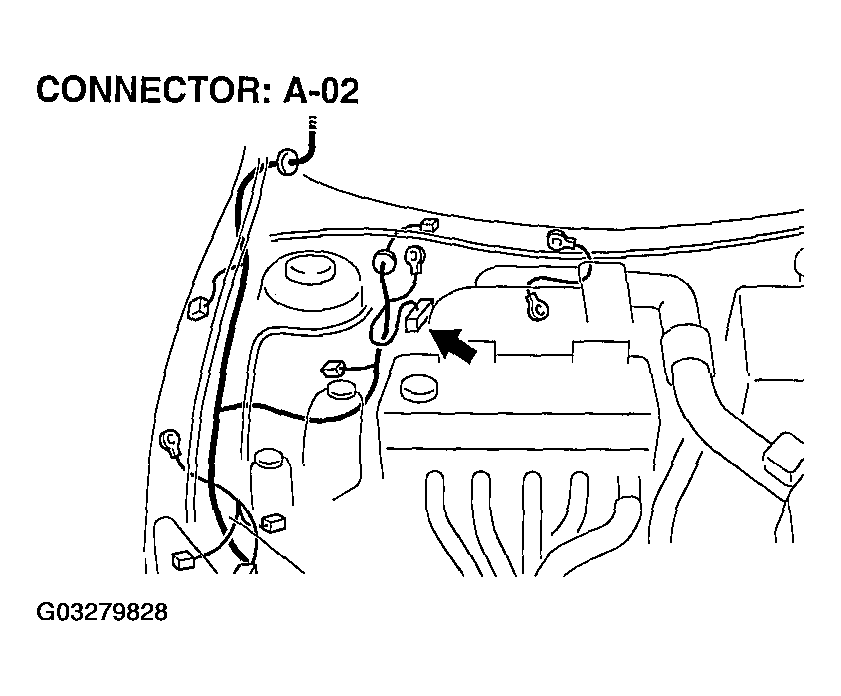

Fig 2: Identifying Connector A-02

G03279828

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

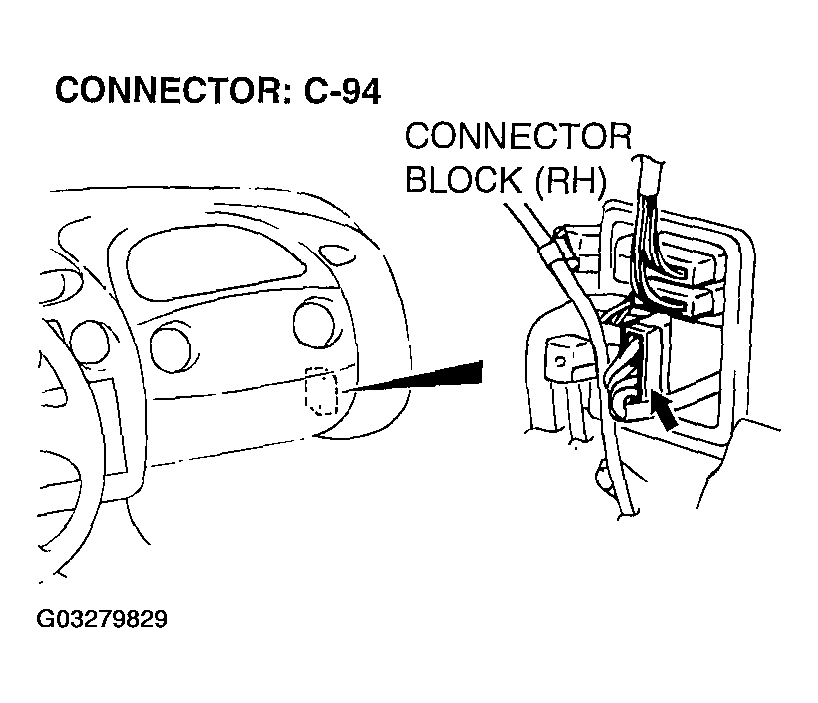

Fig 3: Identifying Connector C-94

G03279829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

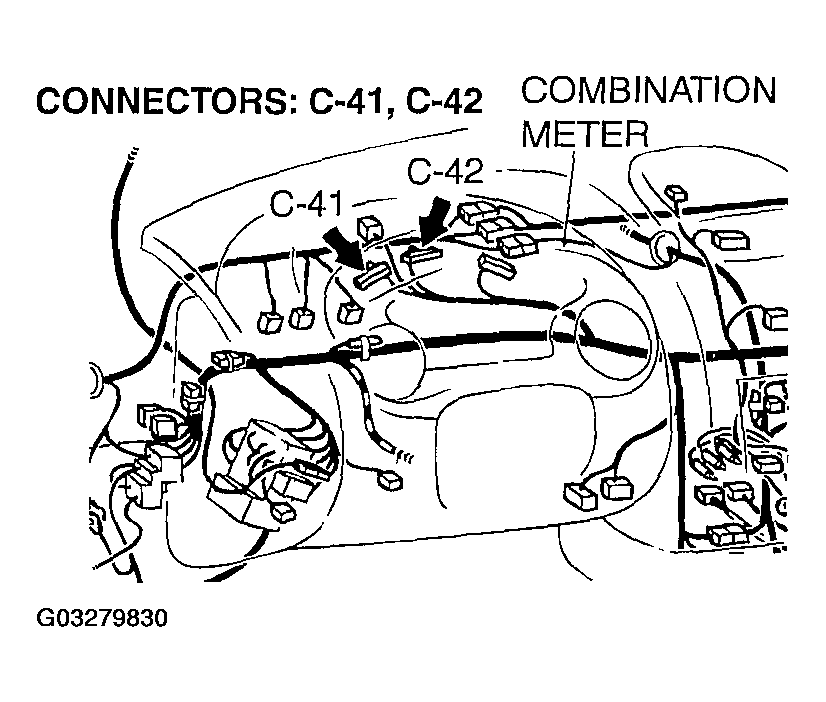

Fig 4: Identifying Connector C-41 And C-42

G03279830

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

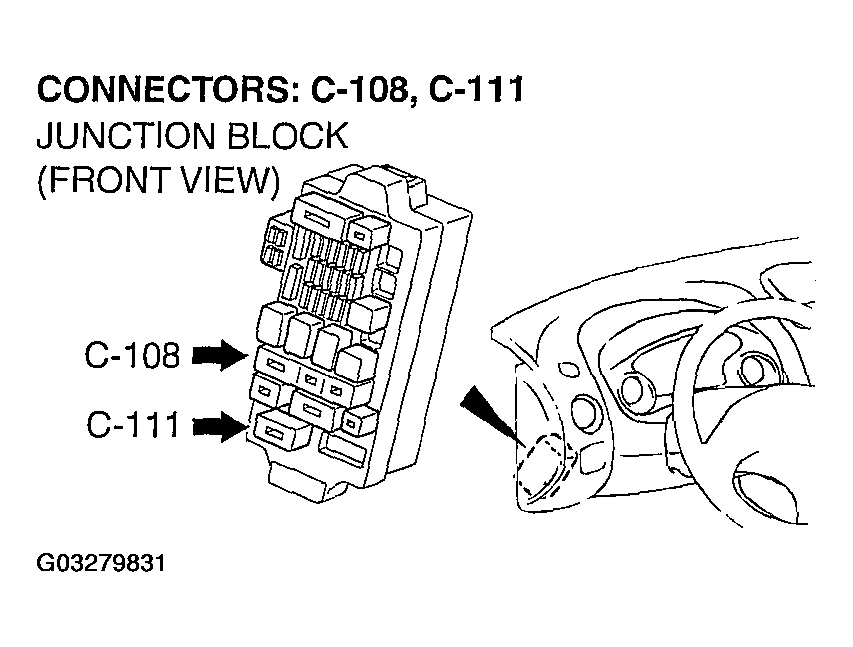

Fig 5: Identifying Connector C-108 And C-111

G03279831

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
