<< l>> BALL BEARING REMOVAL

Use a brass bar or special tool MB990939 to remove the ball bearing from the gear housing.

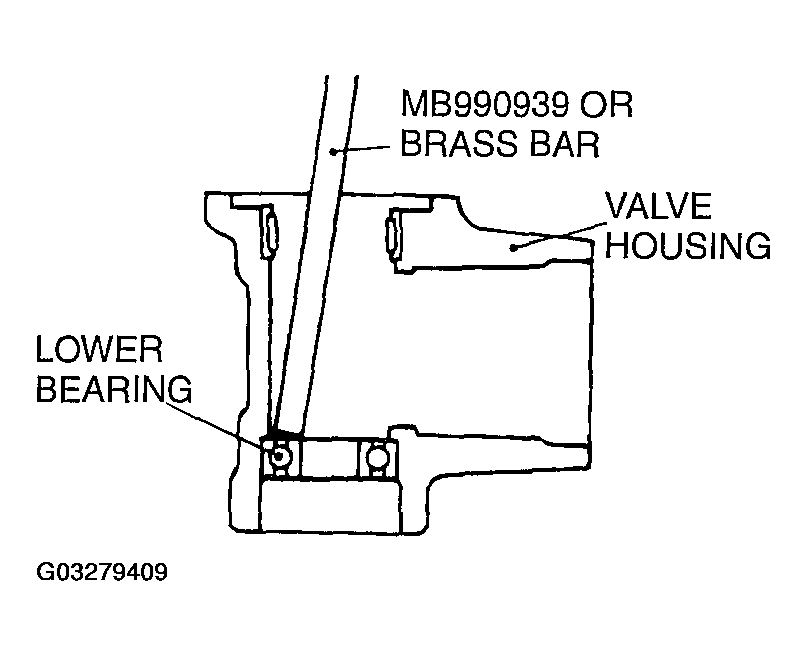

Fig 1: Removing Ball Bearing Using Brass Bar Or Special Tool MB990939
G03279409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
