Component Location

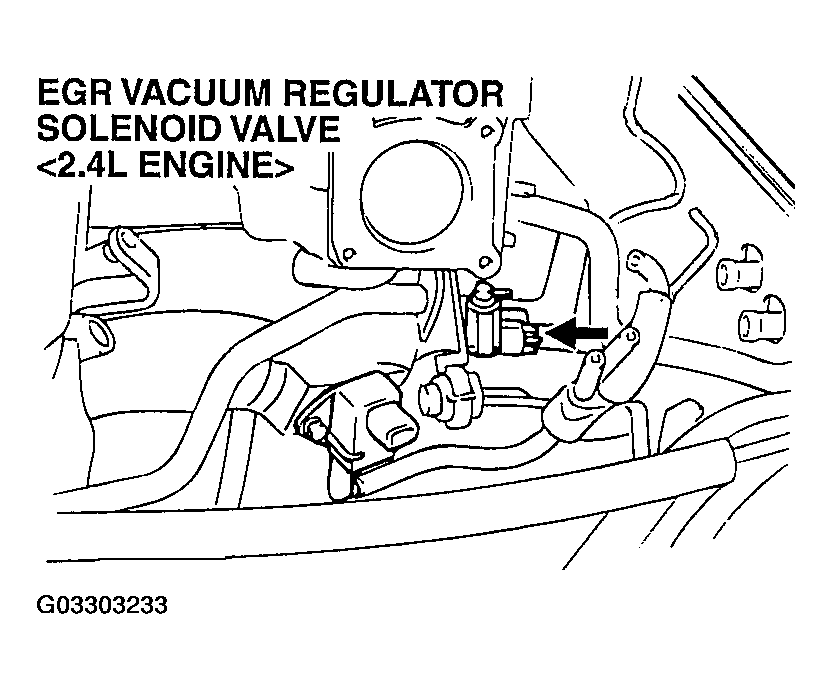

Fig 1: Identifying EGR Vacuum Regulator Solenoid Valve (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

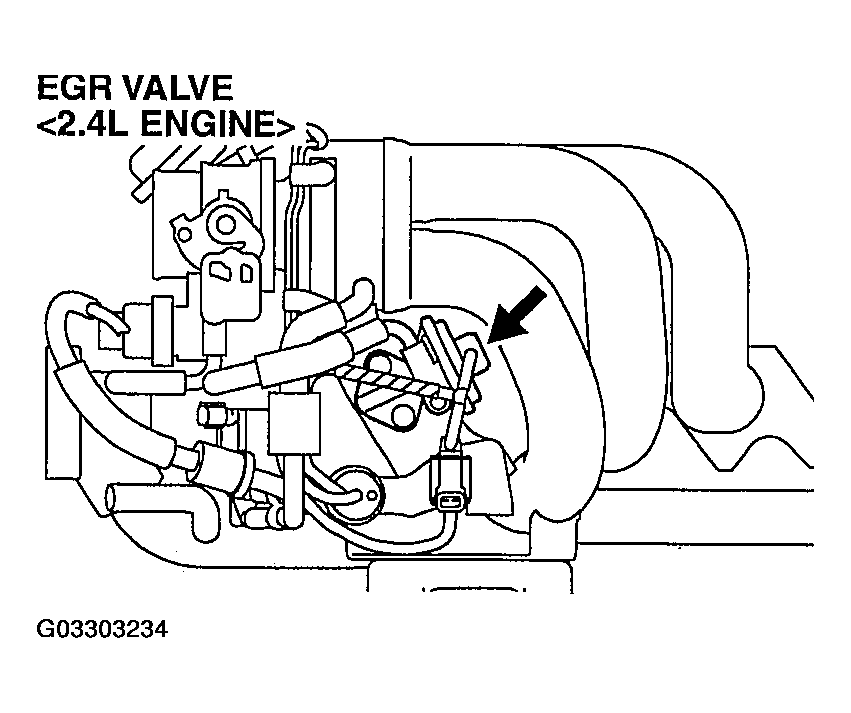

Fig 2: Identifying EGR Valve (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

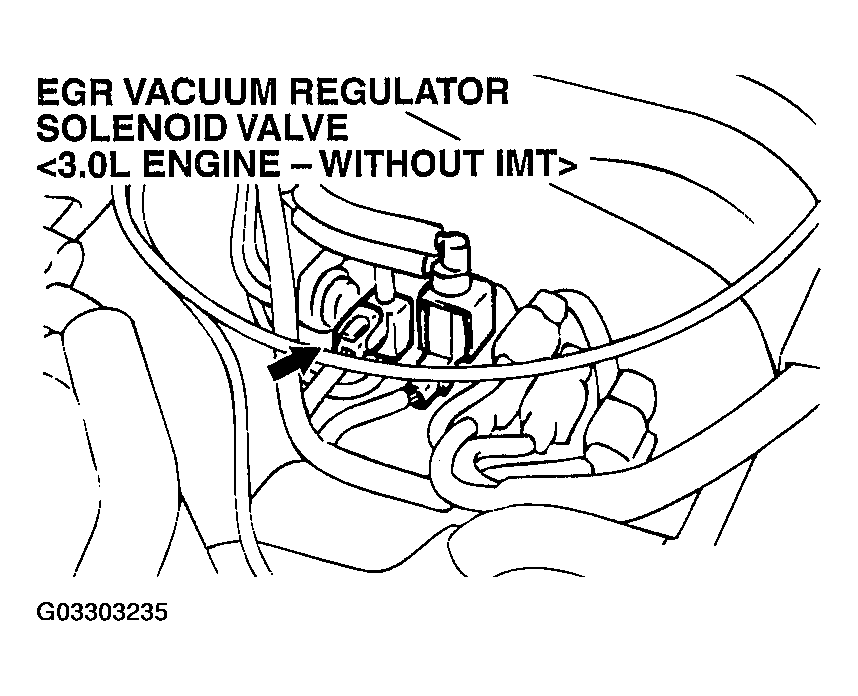

Fig 3: Identifying EGR Vacuum Regulator Solenoid Valve (3.0L Engine - Without IMT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

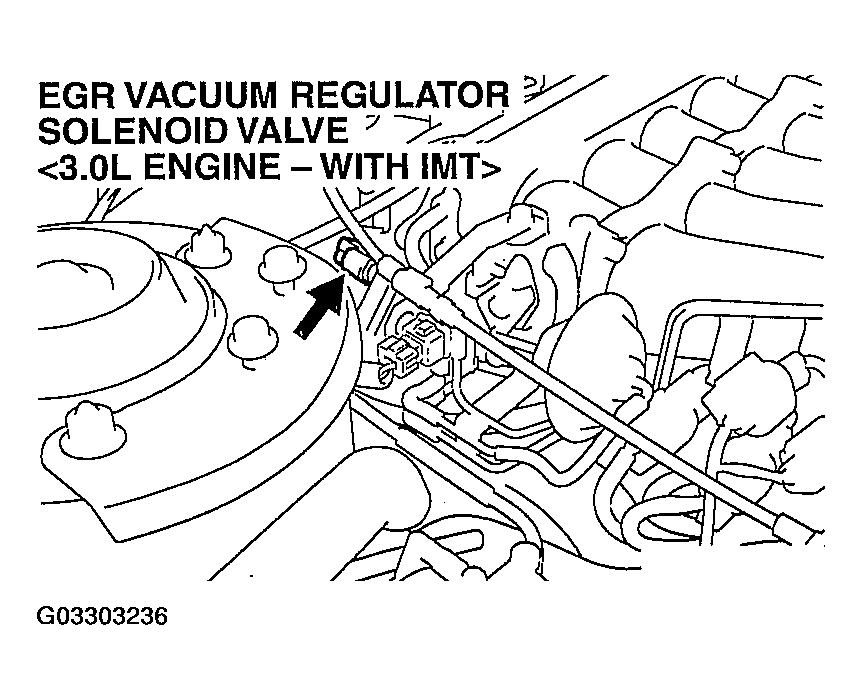

Fig 4: Identifying EGR Vacuum Regulator Solenoid Valve (3.0L Engine - With IMT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

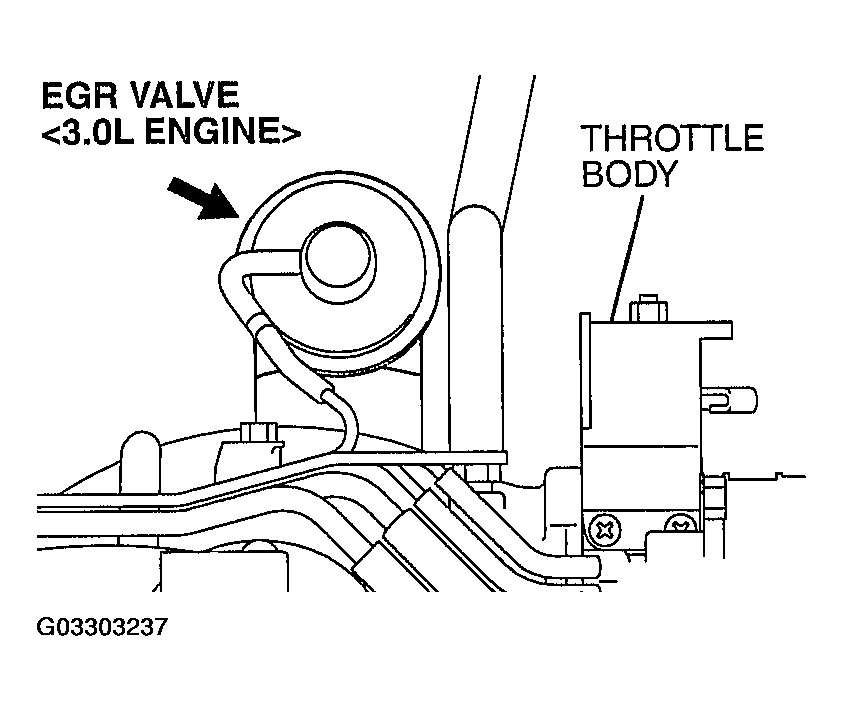

Fig 5: Identifying EGR Valve (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
