>>O<< Tie Rod End/Tie Rod End Jam Nut Installation

Screw in the tie rod end to achieve the right and left length as illustrated. Lock with the jam nut.

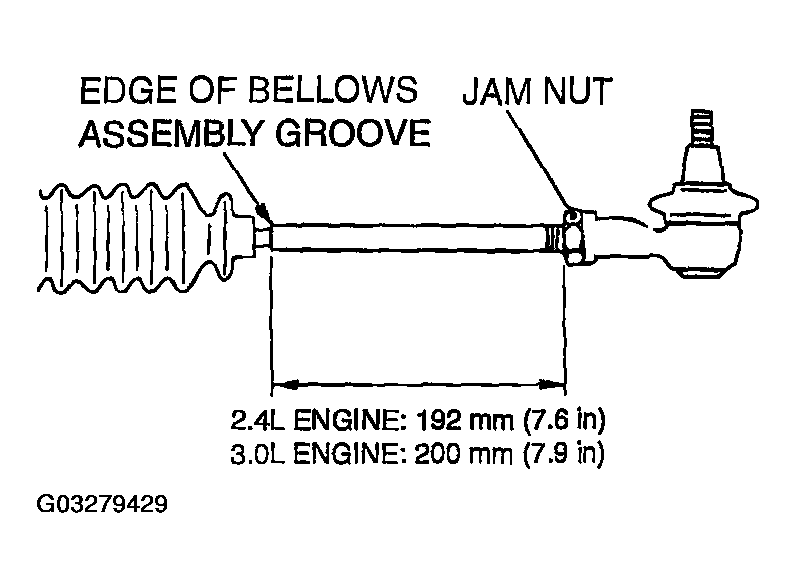

Fig 1: Identifying Length Of Tie Rod

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
