Liftgate Latch Switch < Eclipse > Or Trunk Lid Latch Switch < Eclipse SPYDER > Input Circuit

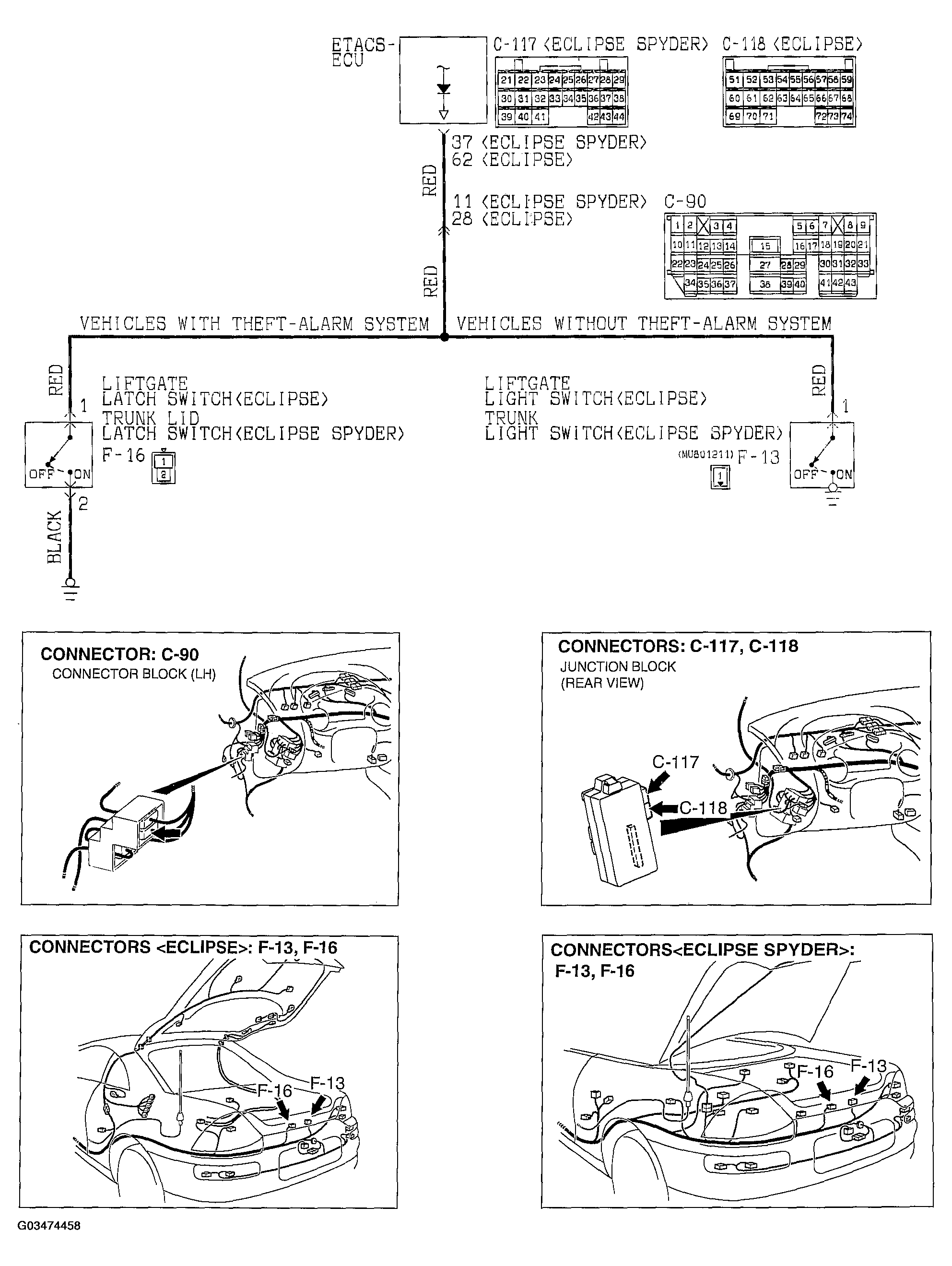

Fig 1: View Of Latch Switch (Eclipse/Eclipse Spyder) Input Circuit Diagram And Connectors
G03474458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
