Operating The Passenger's Power Window Down Function

When the passenger's power window switch on the power window main switch is pushed down, the system energizes its respective power window motor, and then passenger's window glass lowers.

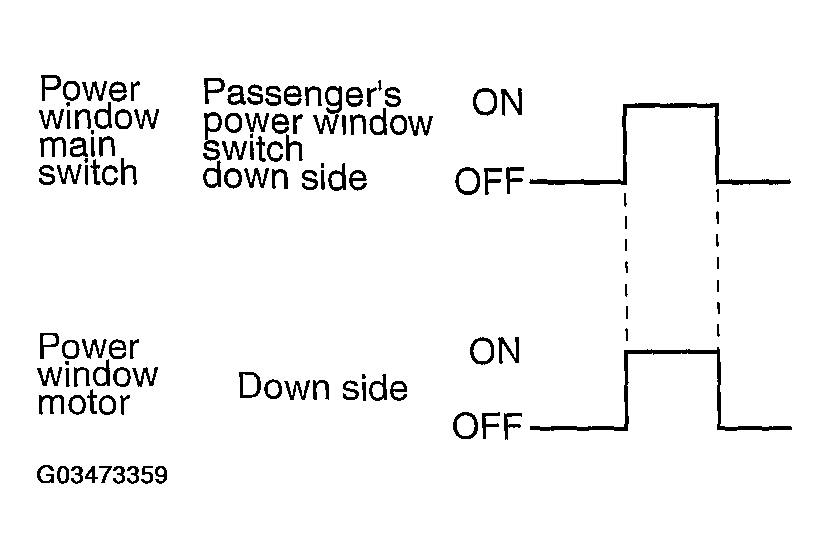

Fig 1: Identifying Power Window Main Switch Function - Operating Passenger's Power Window Down Function
G03473359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
