Operating The Passenger's Power Window Down Function

When the power window sub switch is pushed down, the system energizes its respective power window motor, and then passenger's window glass lowers.

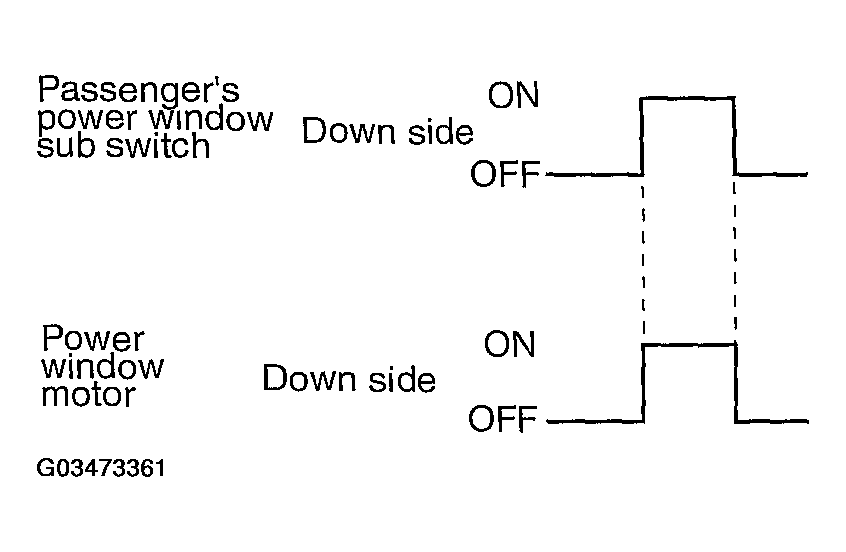

Fig 1: Identifying Power Window Sub Switch Function - Operating Passenger's Power Window Down Function
G03473361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
