>>F<< Lock Pin Installation

Drive the lock pin in from the direction shown in the figure.

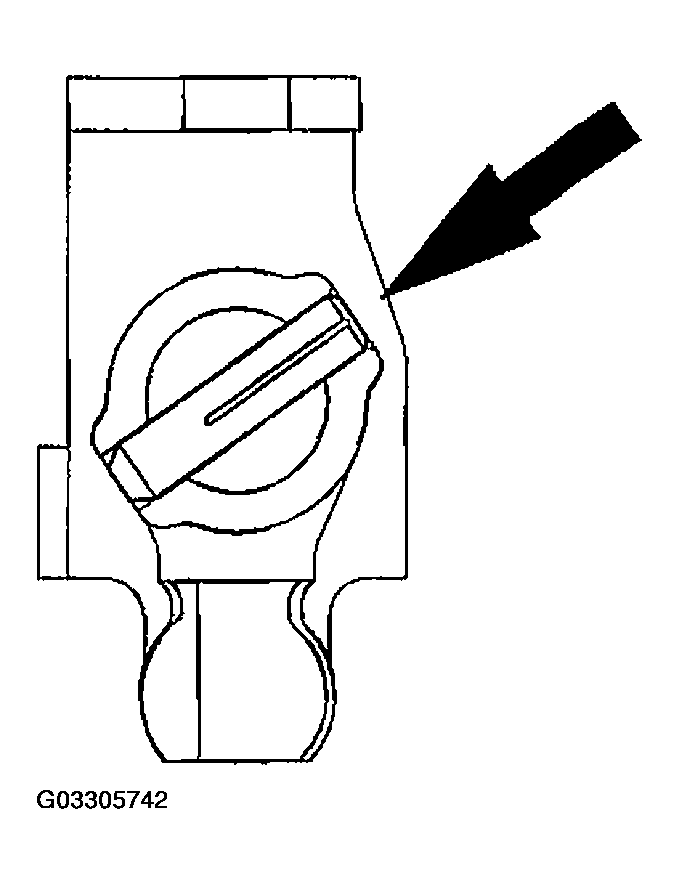

Fig 1: Installing Lock Pin
G03305742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
