>>B<< Input Shaft/Output Shaft/Differential Installation

Install the input shaft, output shaft and differential as a set.

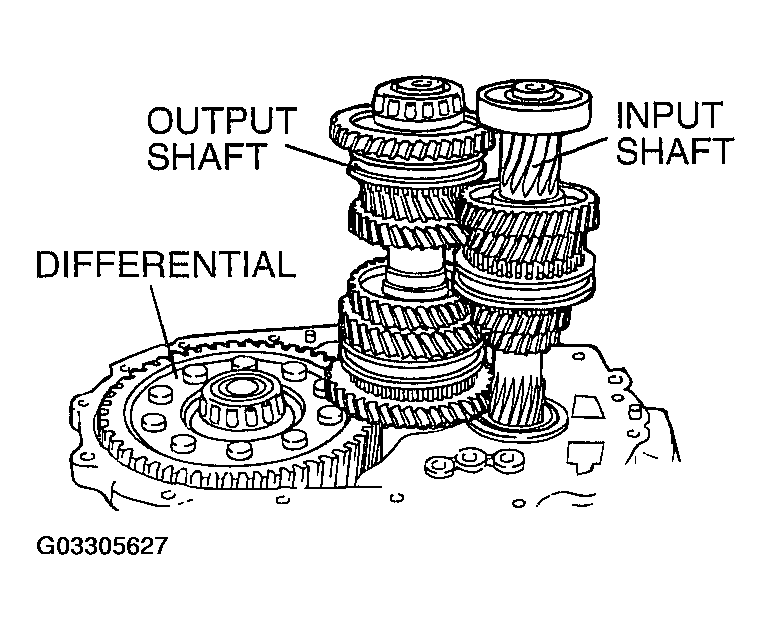

Fig 1: Installing Input, Output Shafts Together And Differential
G03305627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
