>>H<< Transaxle Case Installation

CAUTION: Squeeze out the sealant uniformly, while making sure that it is not broken or excessively applied.
  1. Apply a 2 mm (0.08 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD997740 or equivalent) to the illustrated position of the transaxle case.
    NOTE: Be sure to install the transaxle case while the sealant is wet (within 15 minutes).
  2. Install the transaxle case.
  3. Tighten the transaxle case mounting bolts to the specified torque.

    Tightening torque: 44 plus/minus 5 N-m (33 plus/minus 4 ft-lb)

    NOTE: After installation, keep the sealed area away from the oil for approximately one hour.

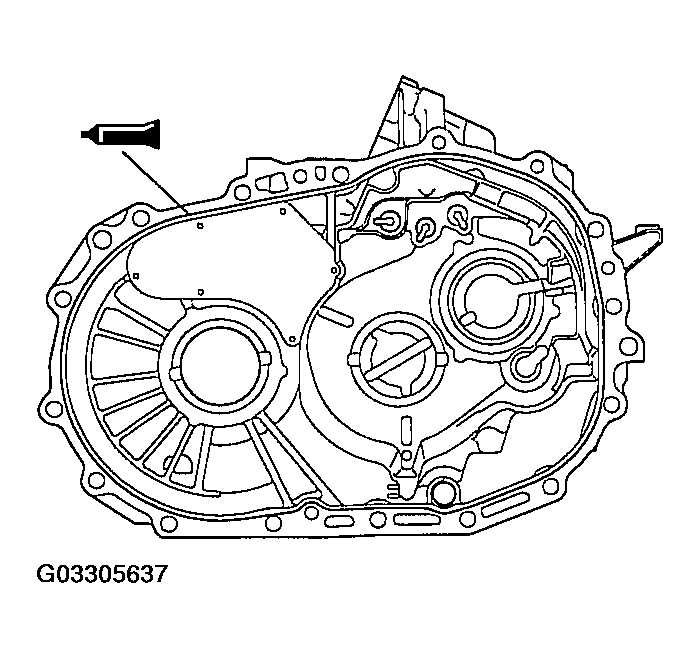

    Fig 1: Applying Sealant To Illustrated Position Of Transaxle Case
    G03305637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
