Scan Tool Testing and Procedures

The table shows the service data and their normal condition, which are displayed during the "Data List."

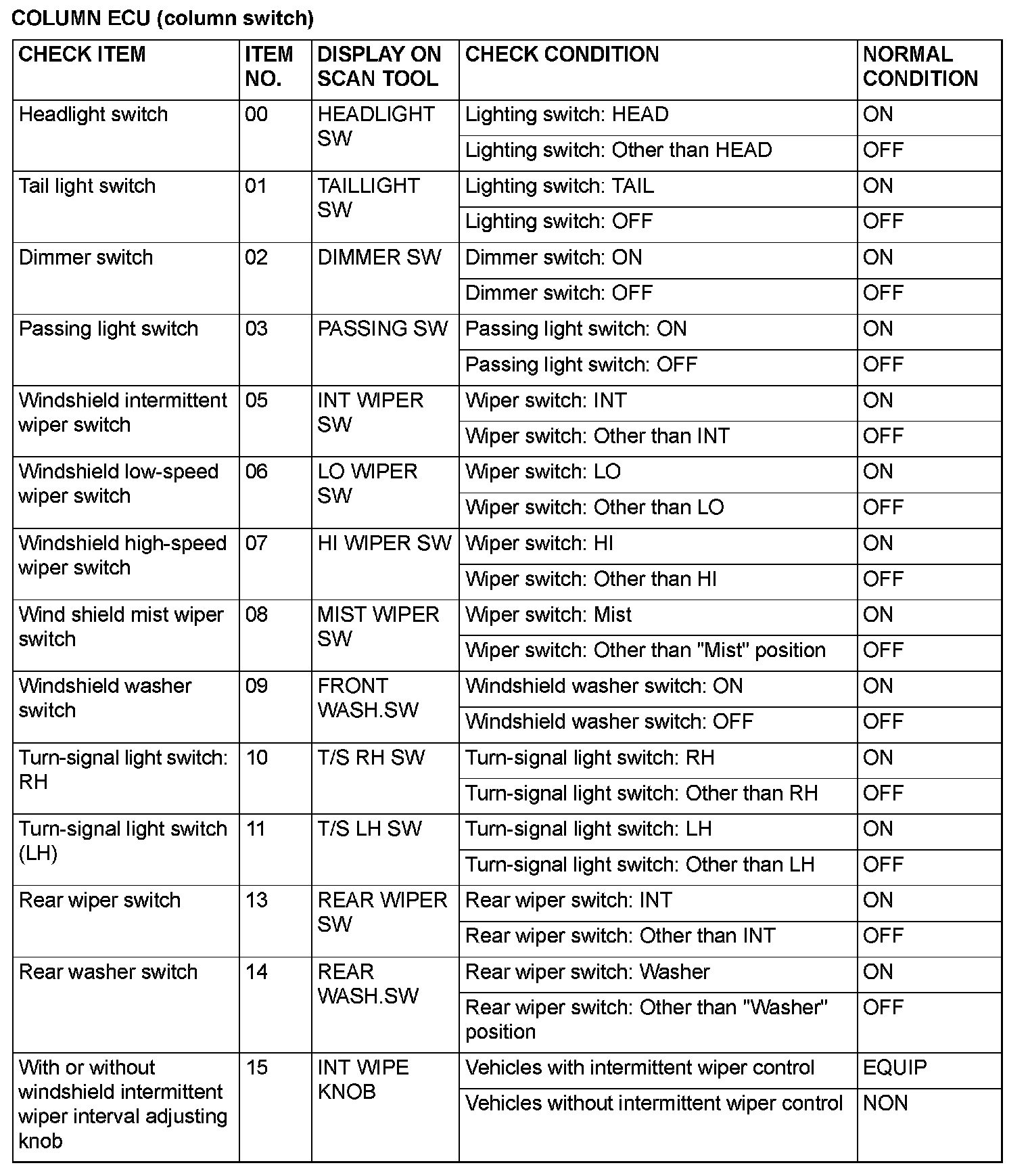

COLUMN ECU (column switch)

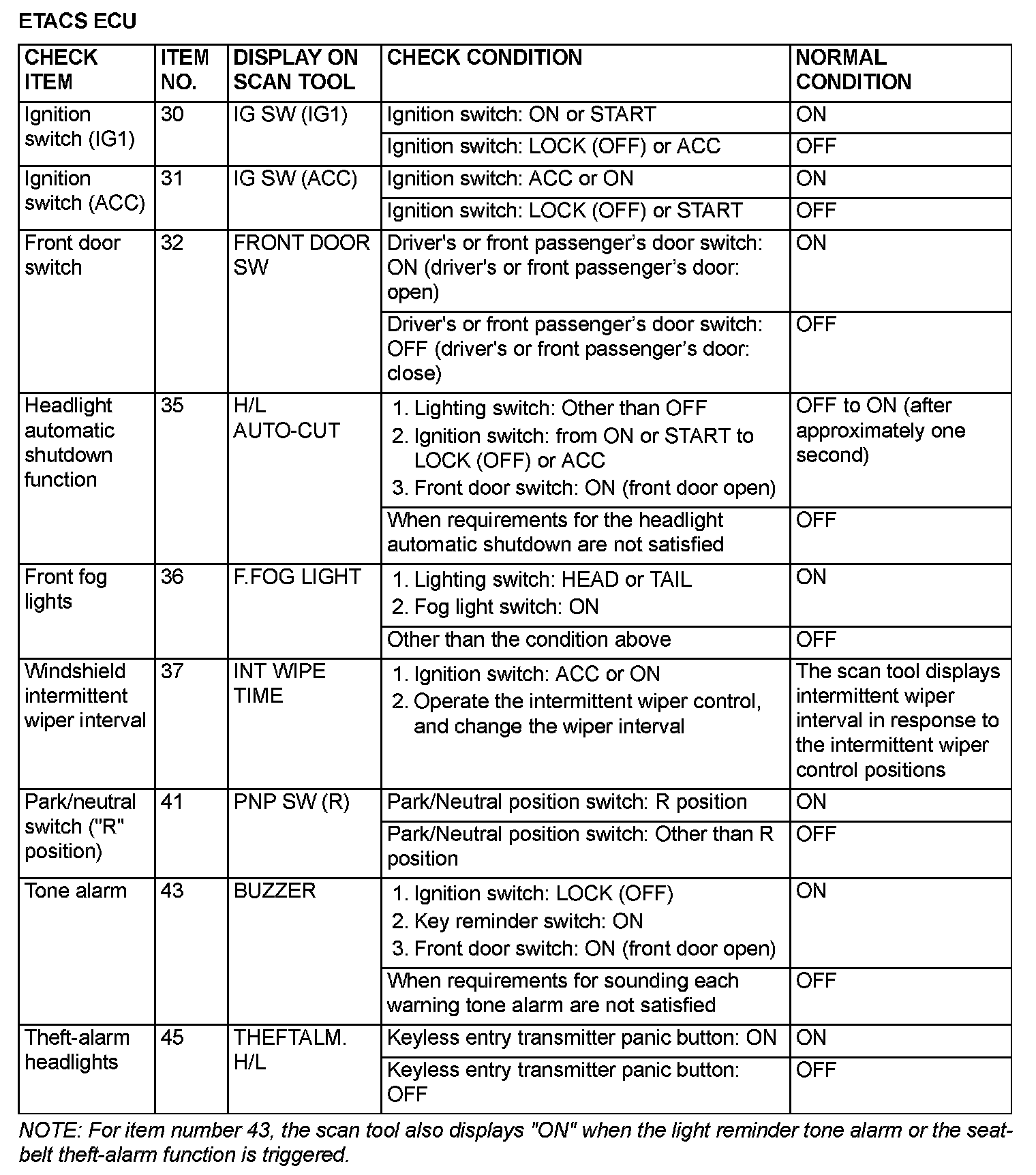

ETACS ECU

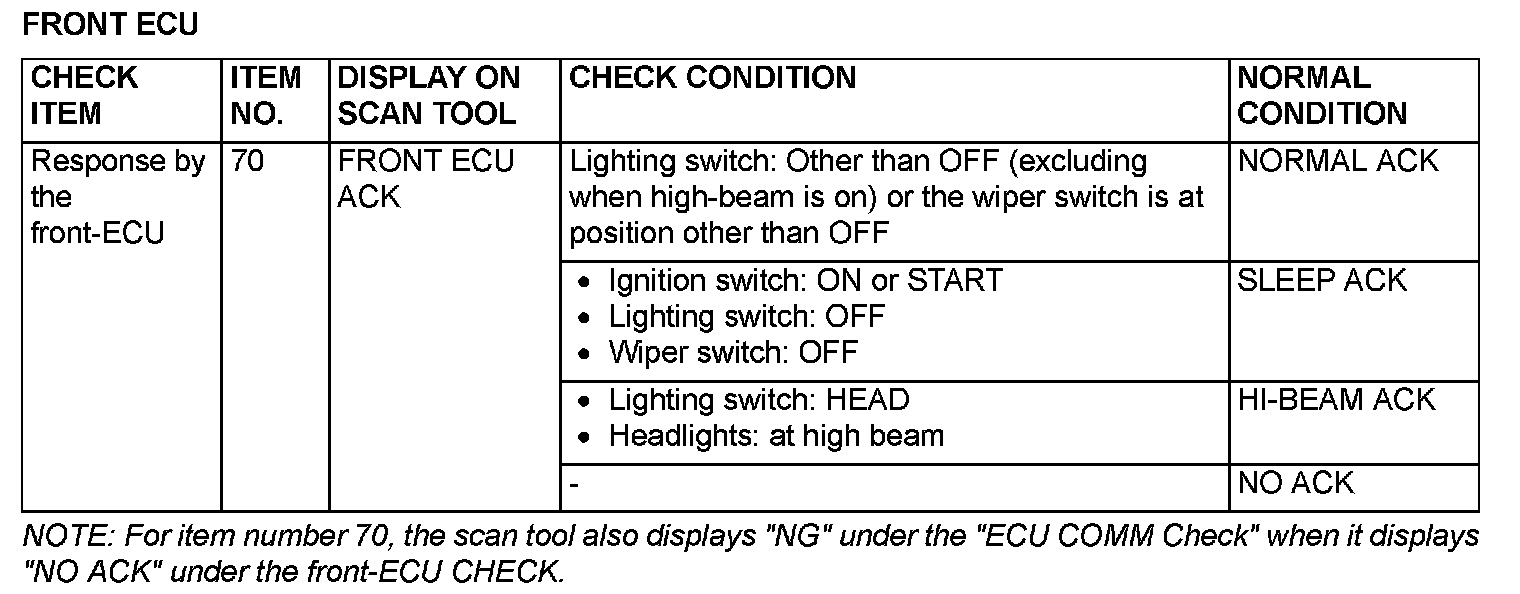

FRONT ECU

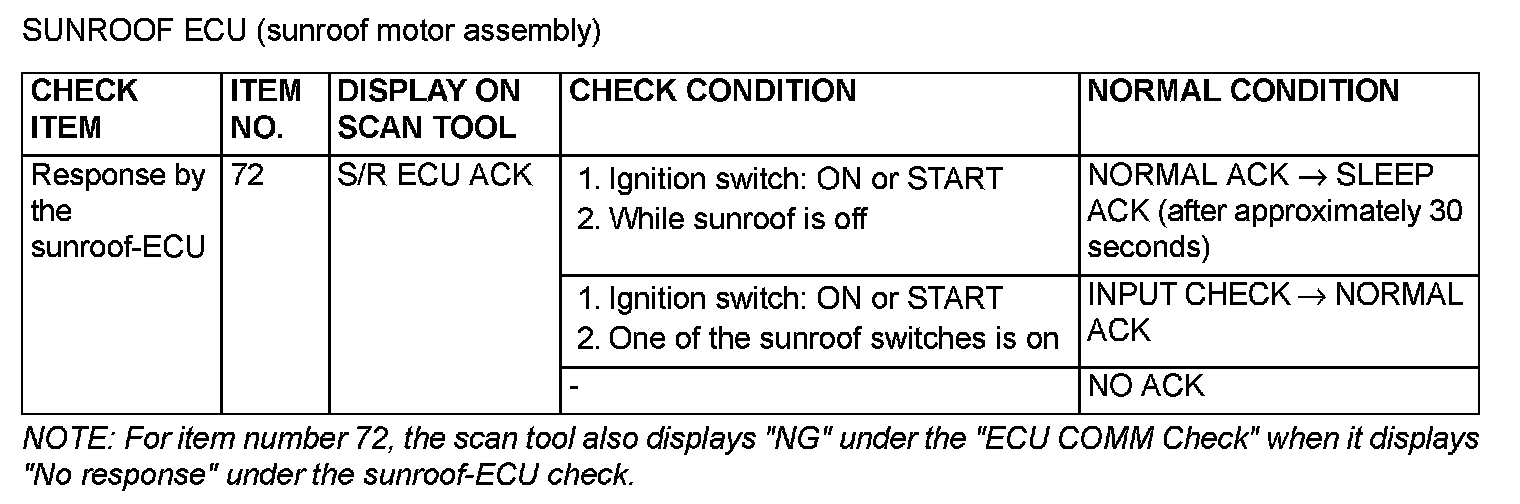

SUNROOF ECU (sunroof motor assembly)

Part 1:

Part 2:

Part 1:

Part 2:

Part 1:

Part 2:

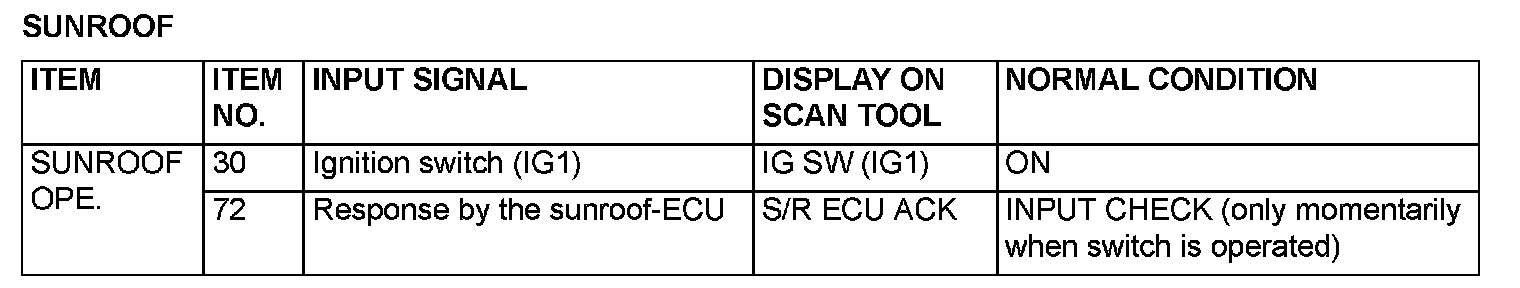

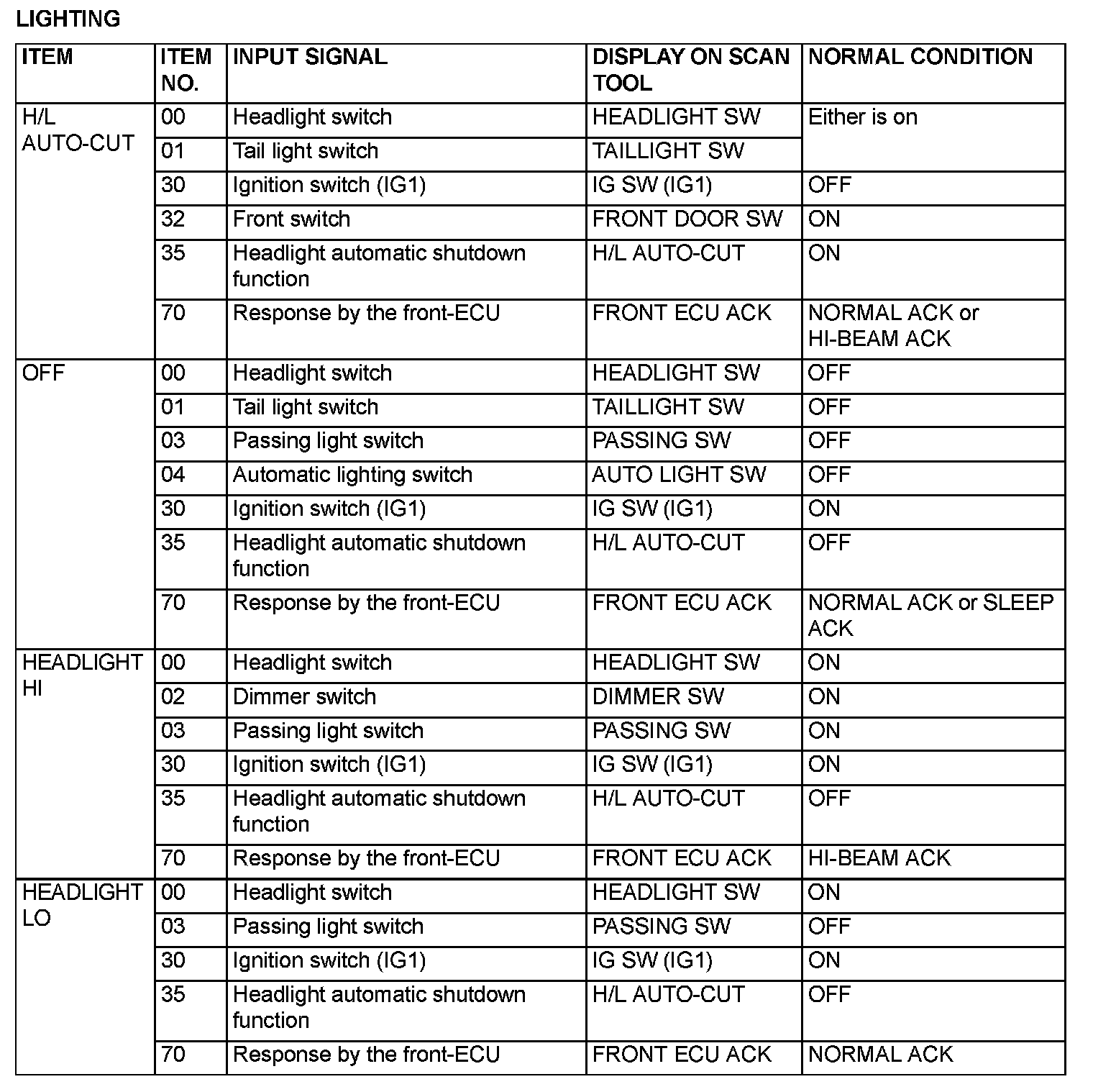

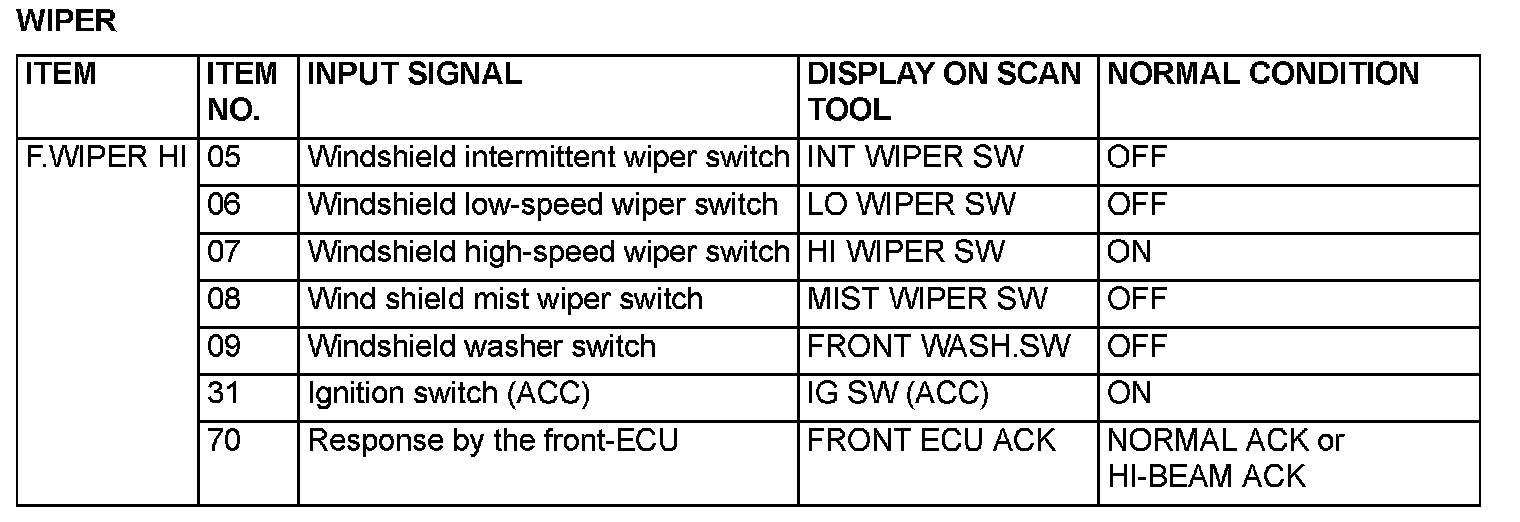

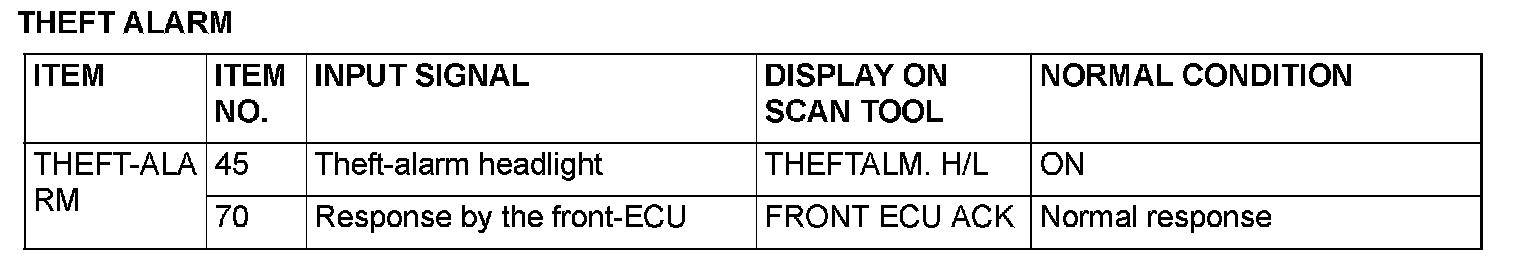

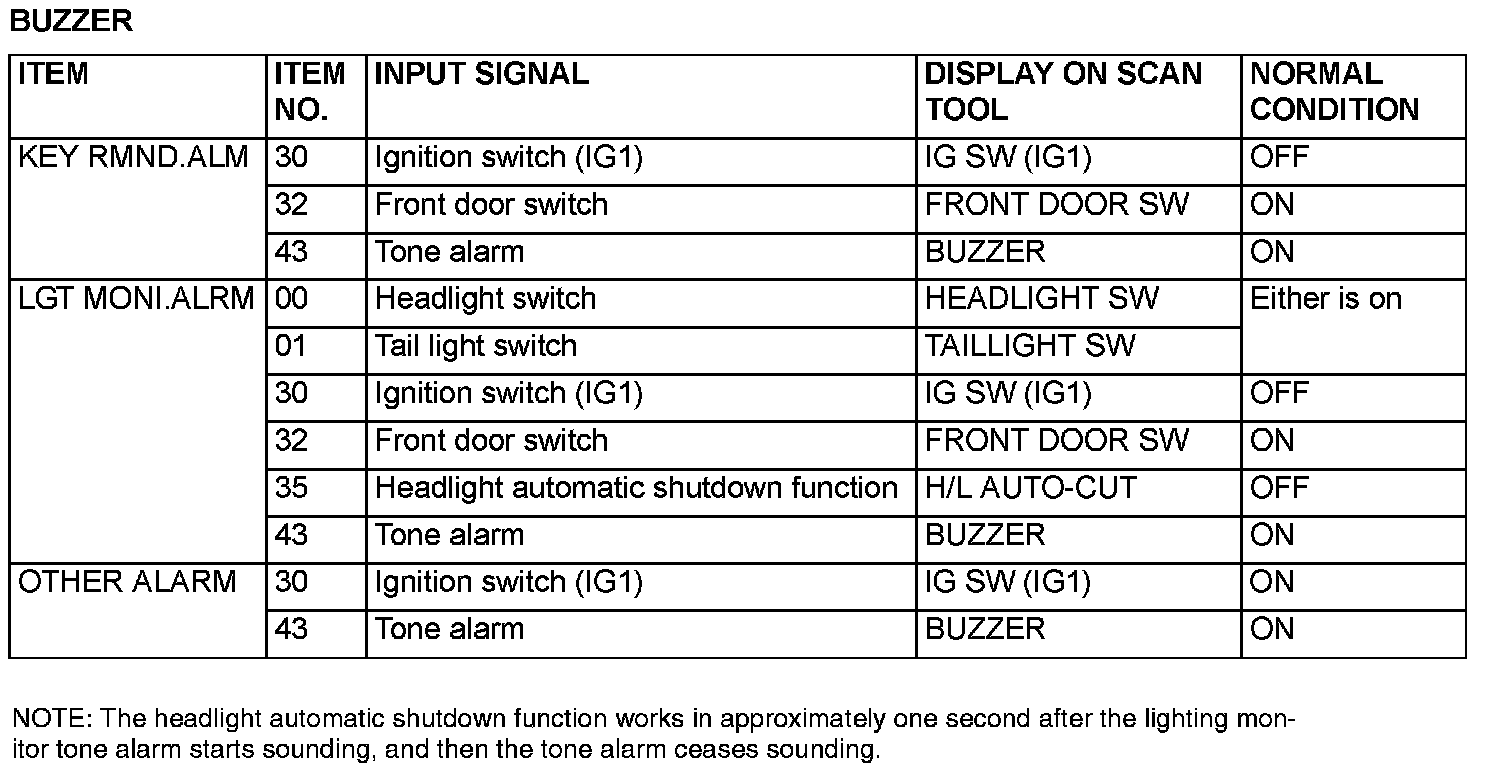

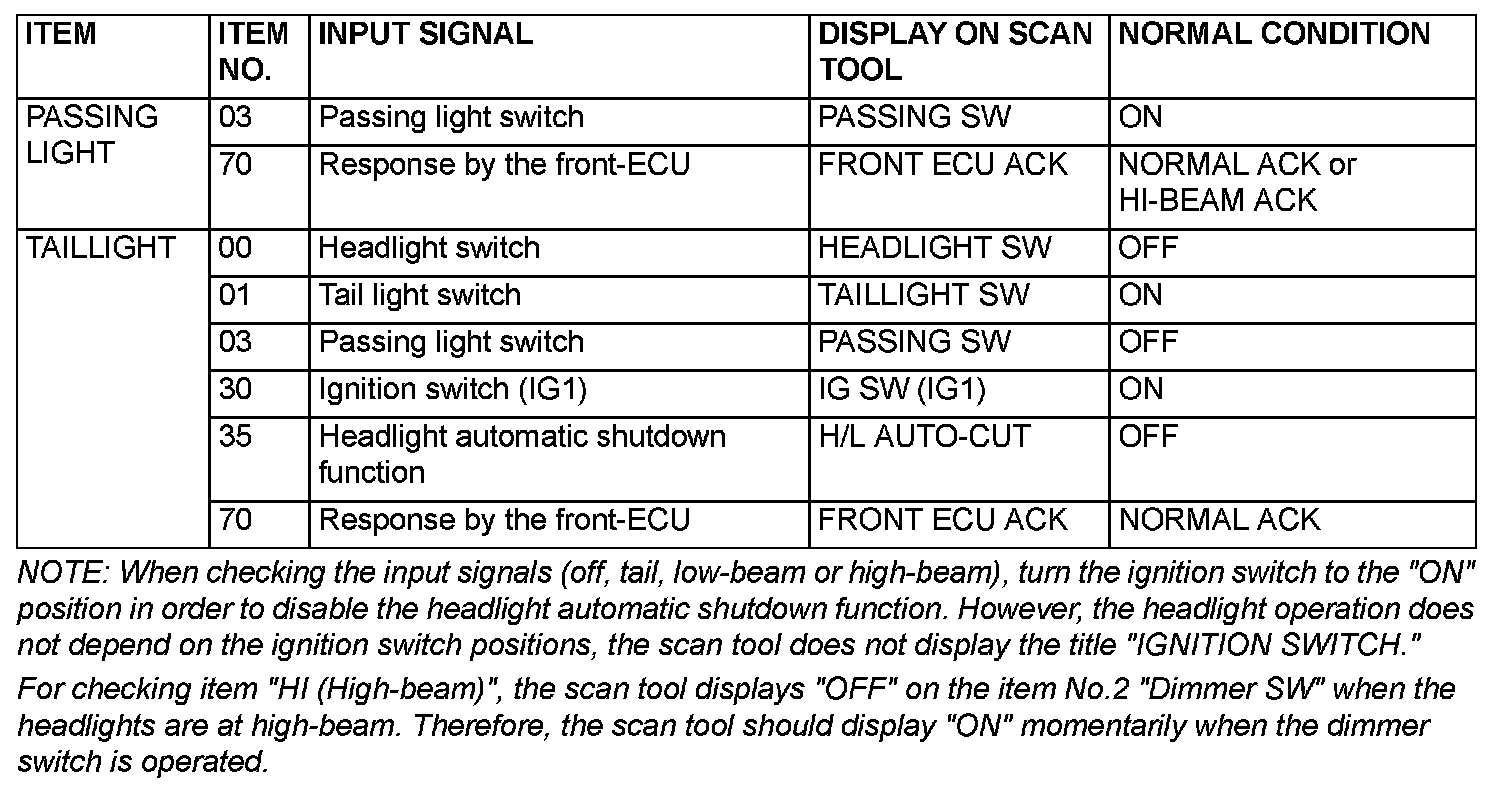

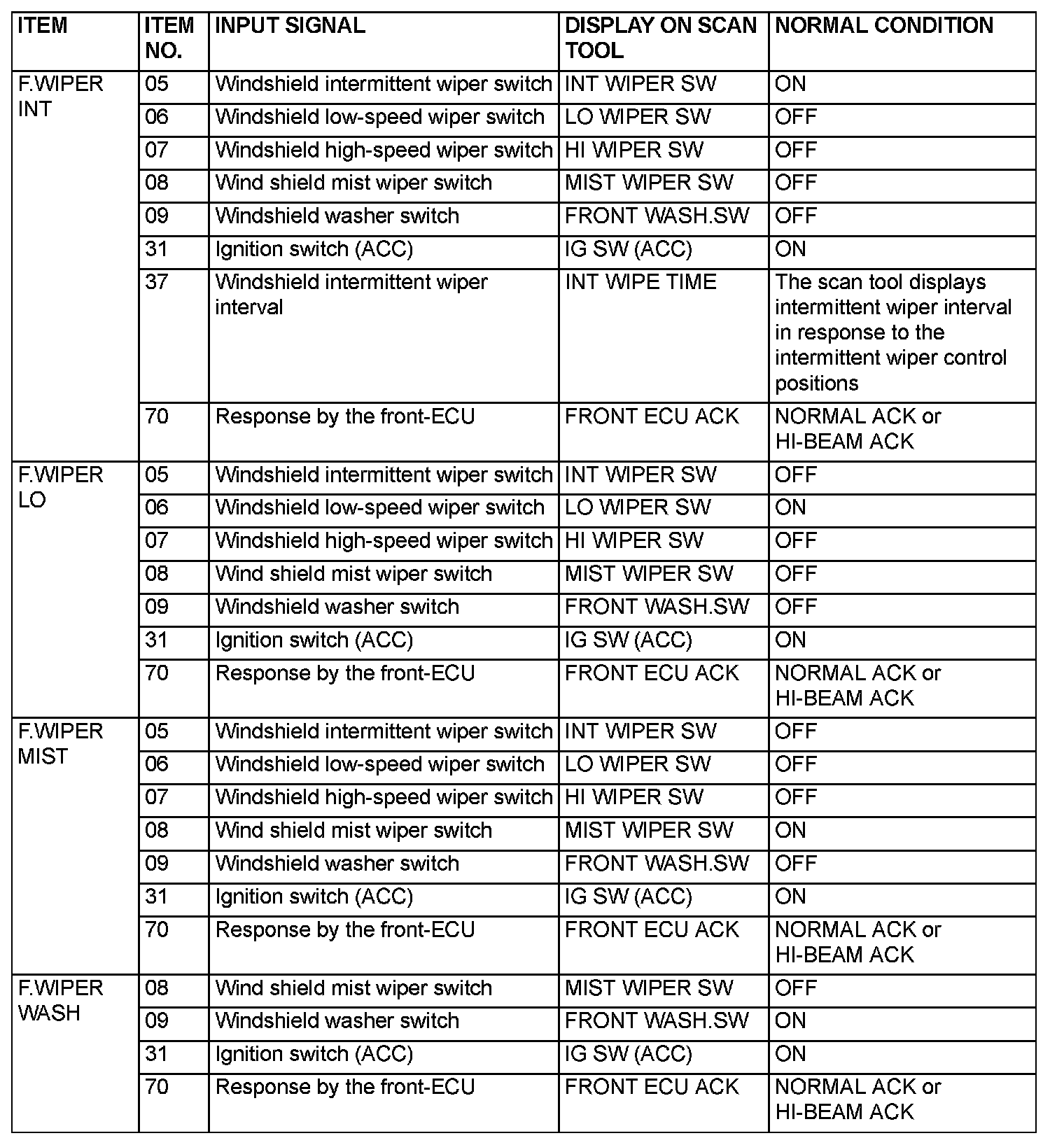

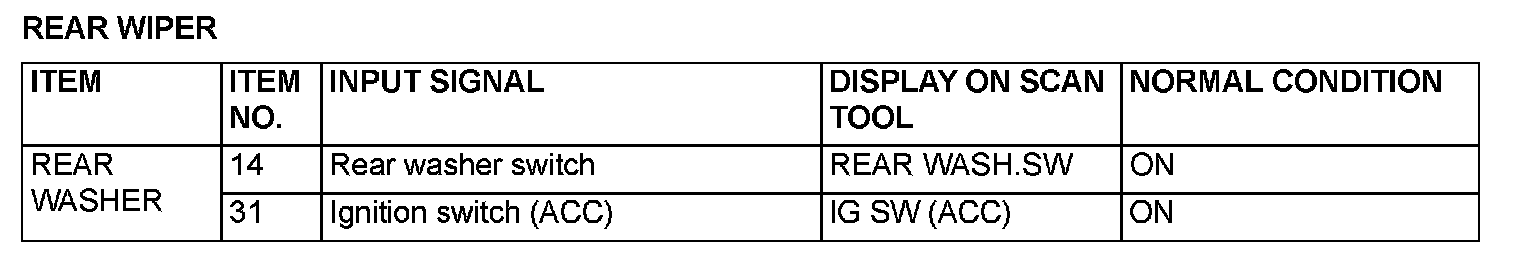

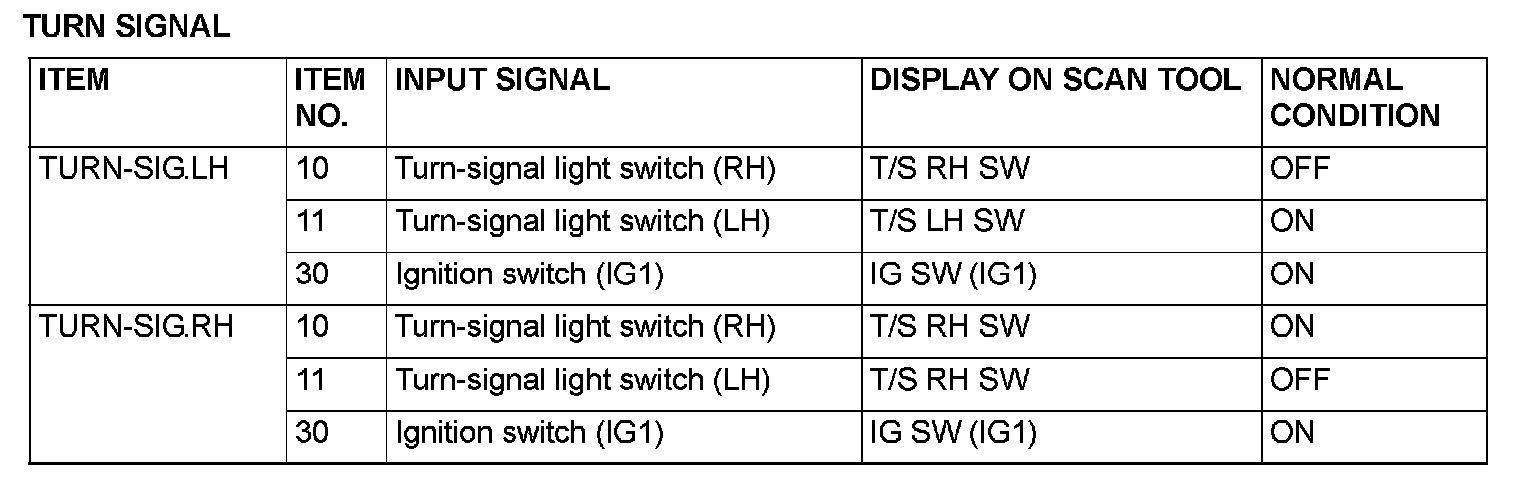

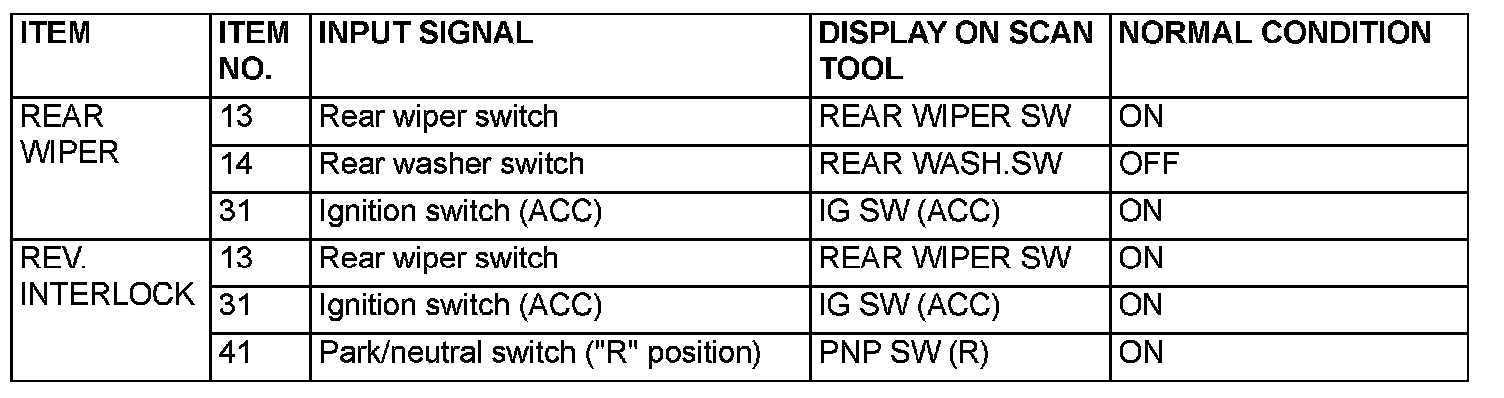

The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "Normal conditions" shows values, which are shown when each operation is made.
