Data List Reference Table

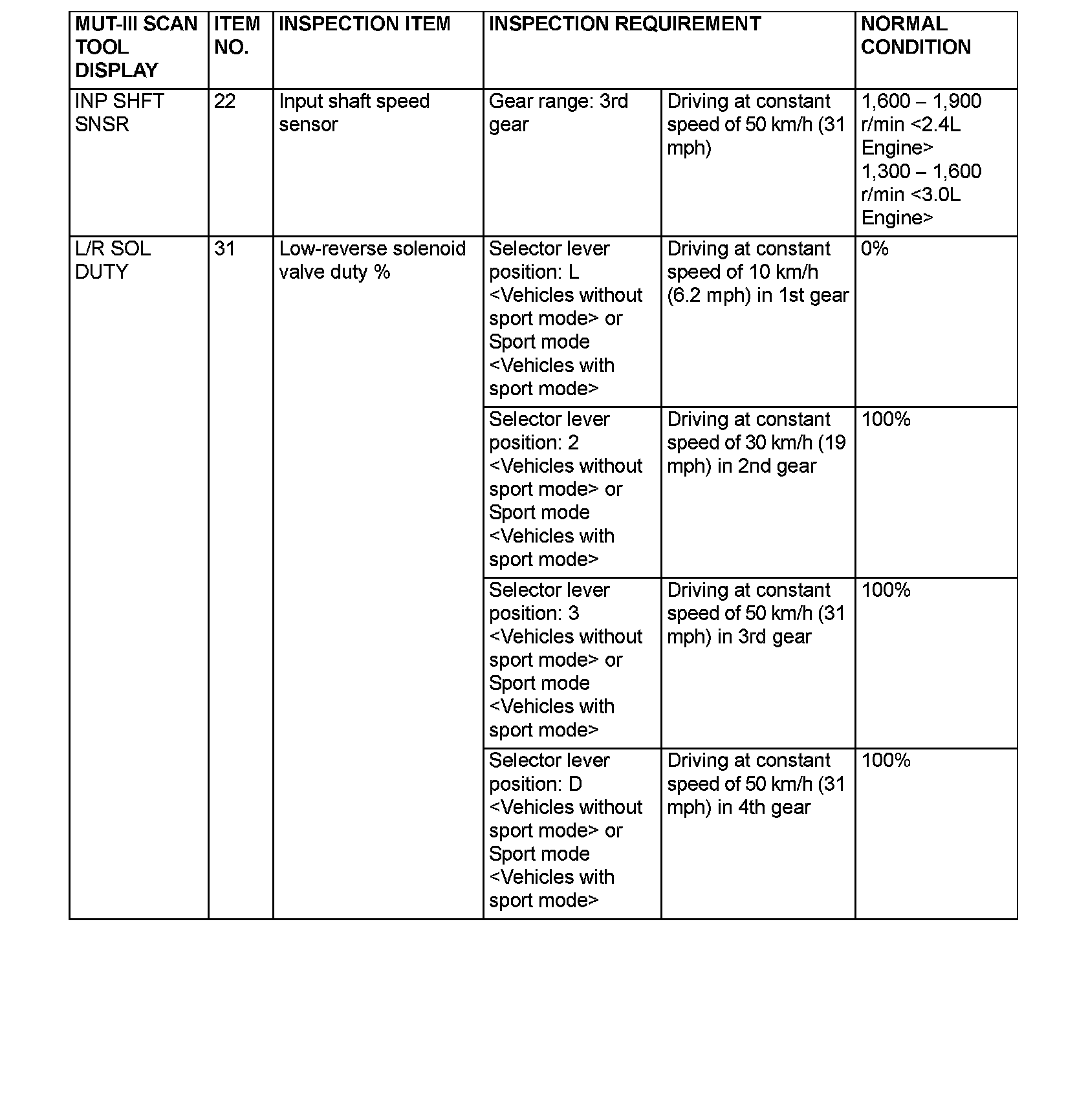

Part 1 Of 7:

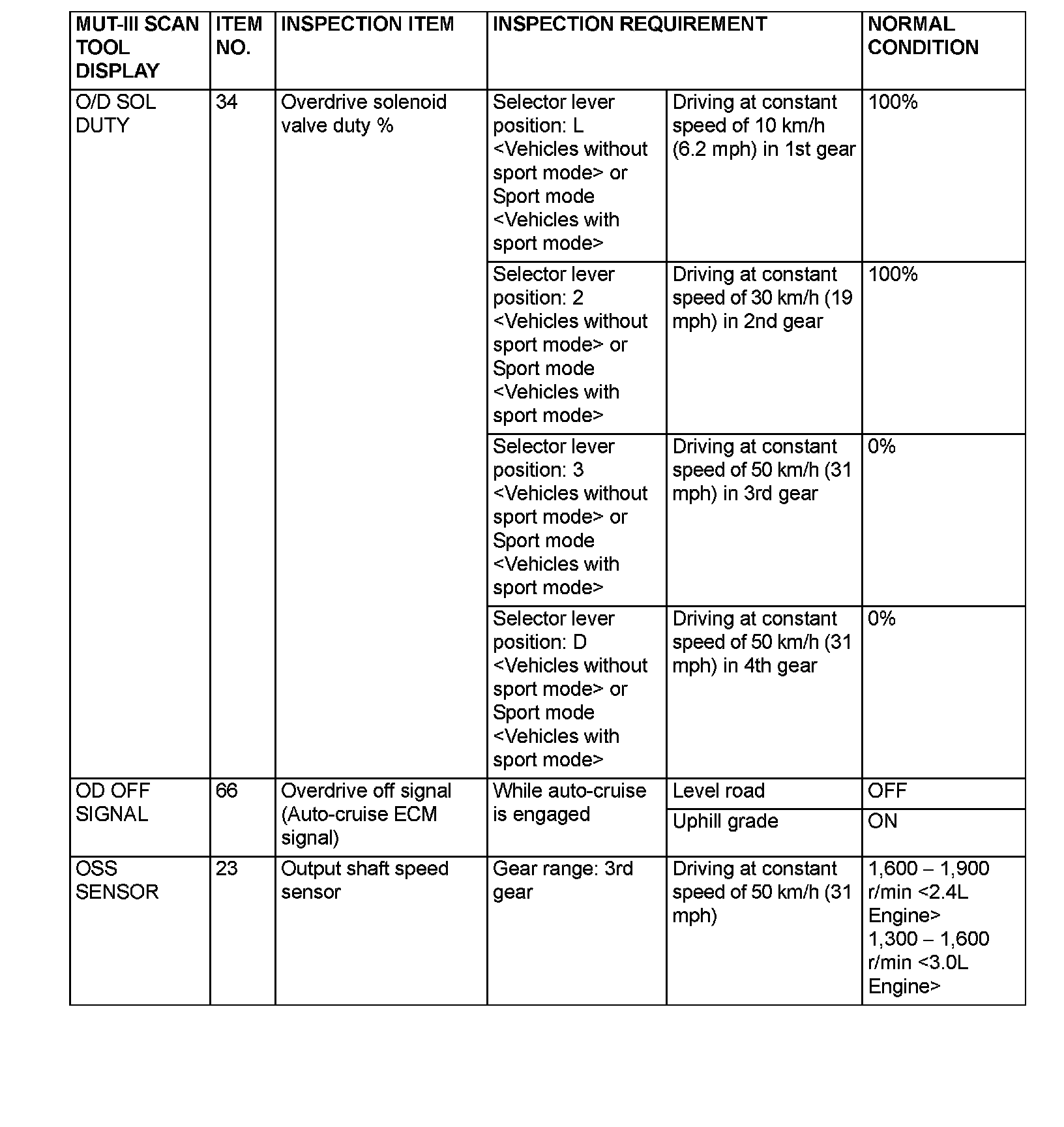

Part 2 Of 7:

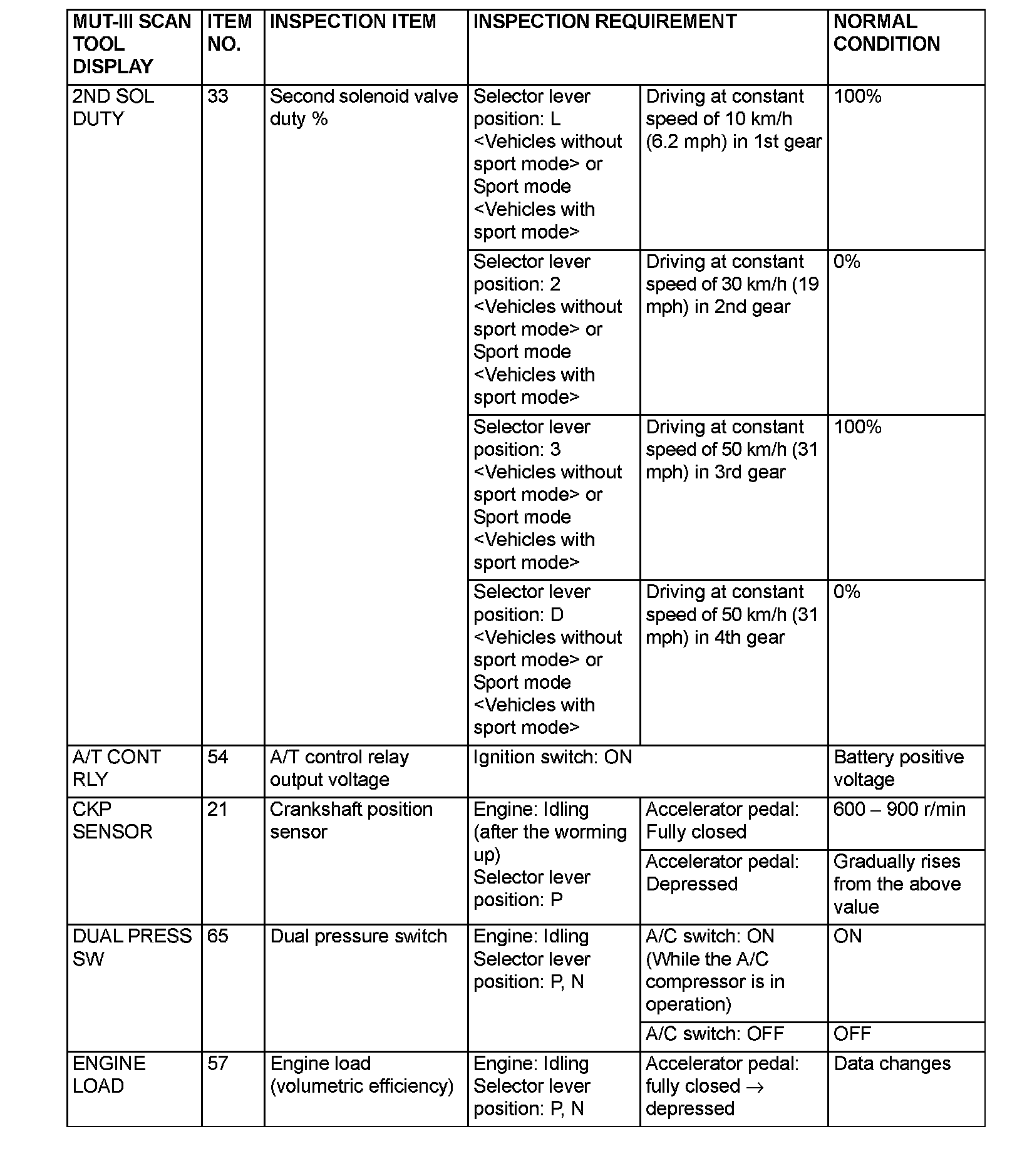

Part 3 Of 7:

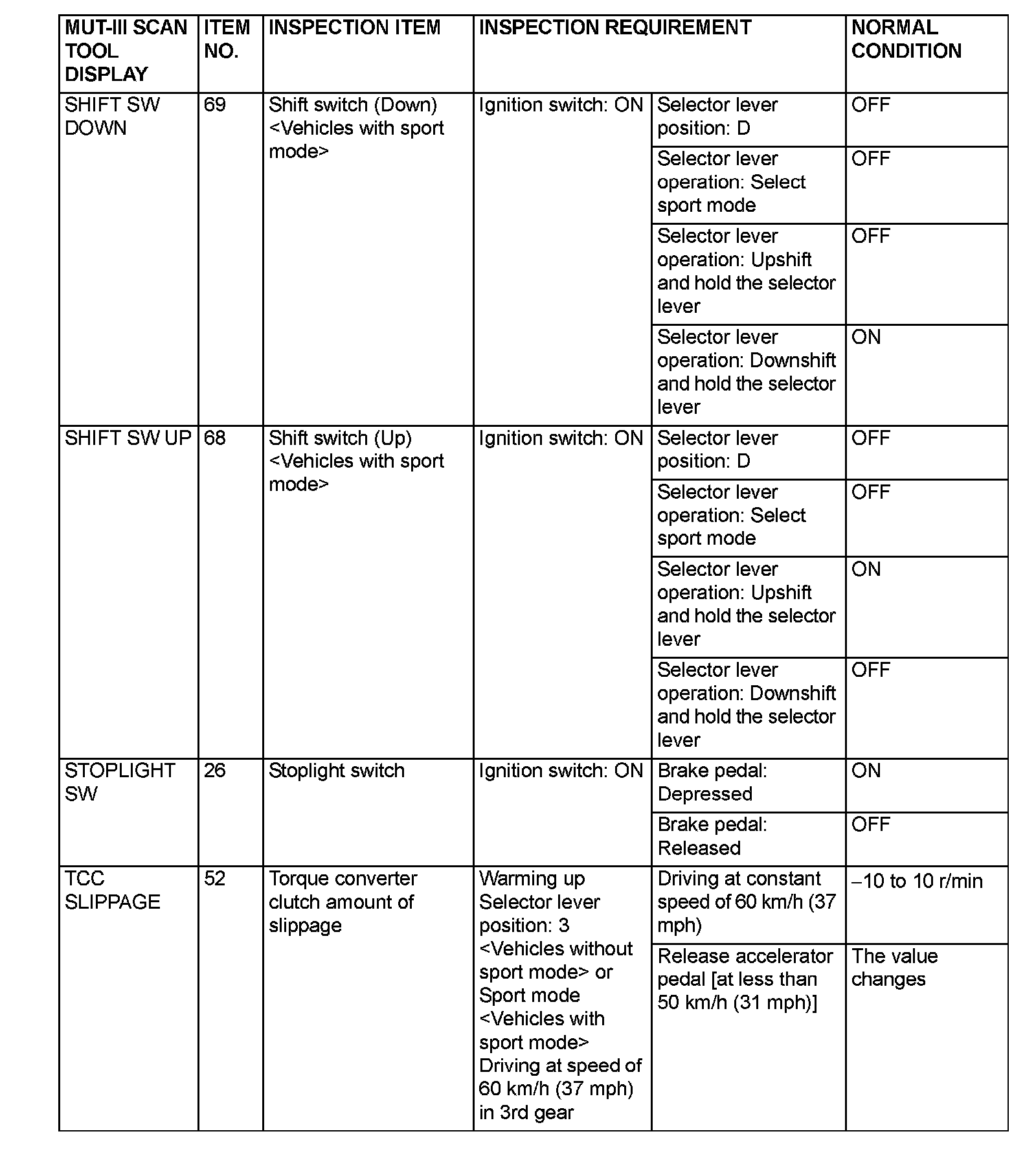

Part 4 Of 7:

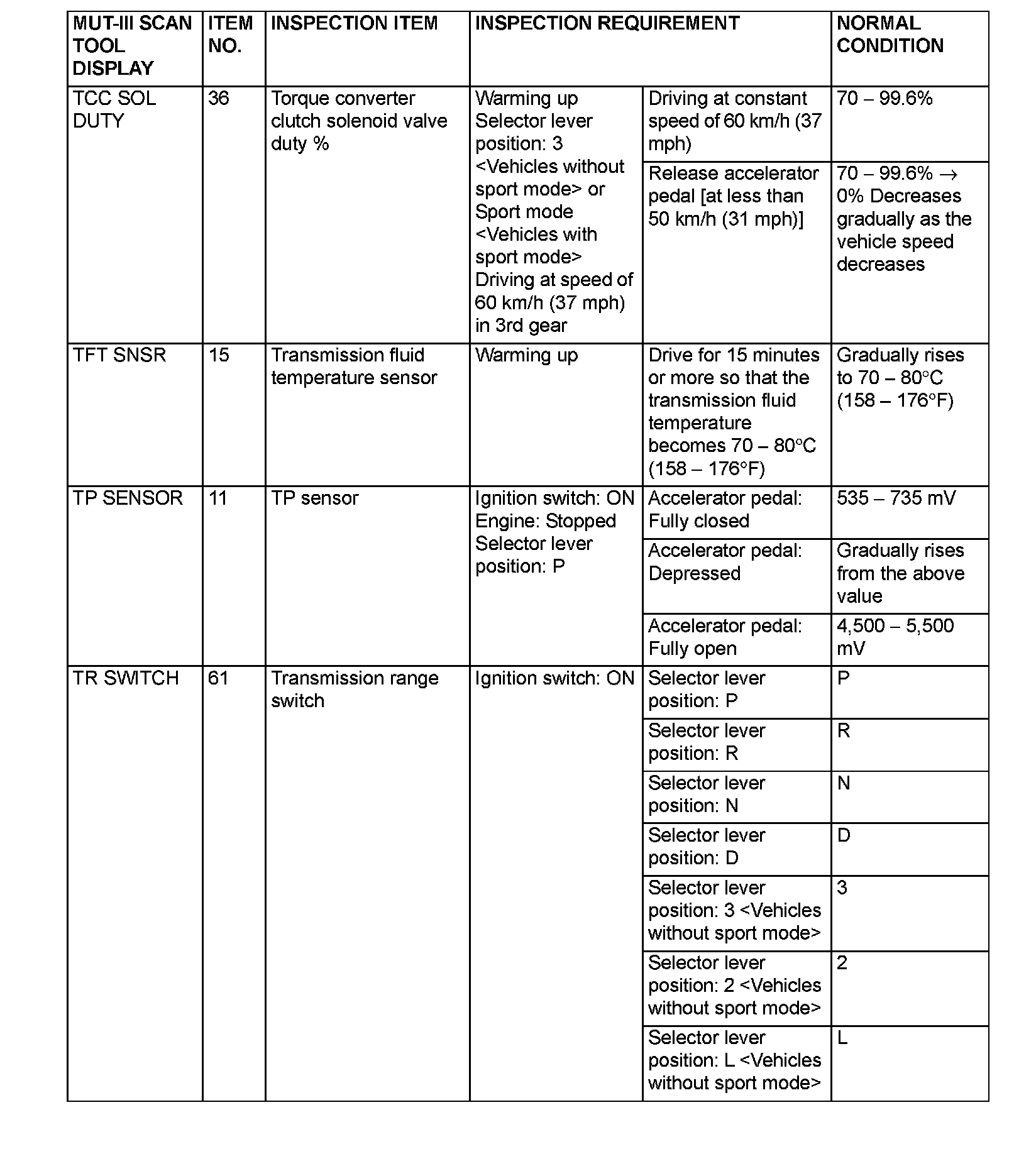

Part 5 Of 7:

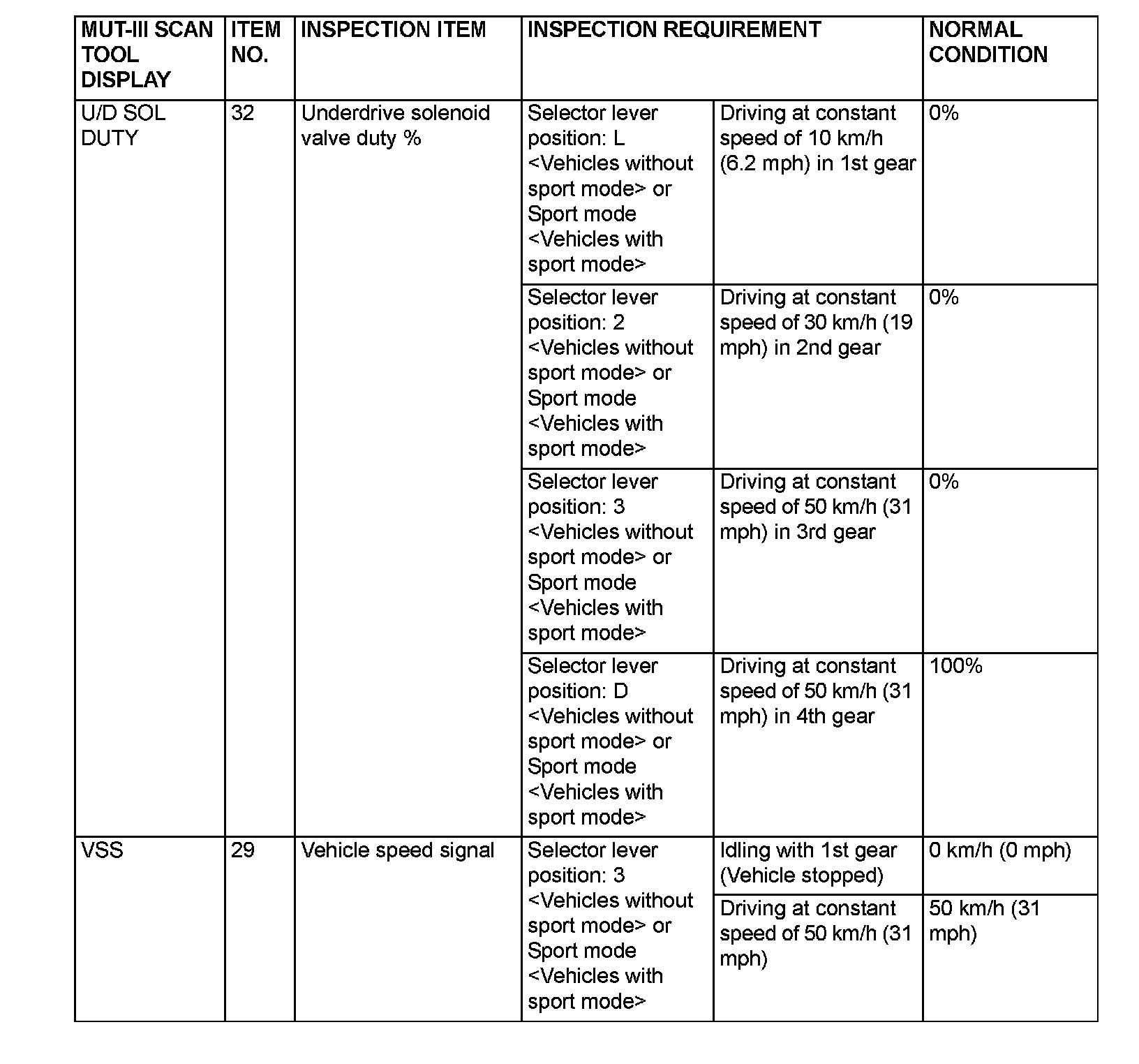

Part 6 Of 7:

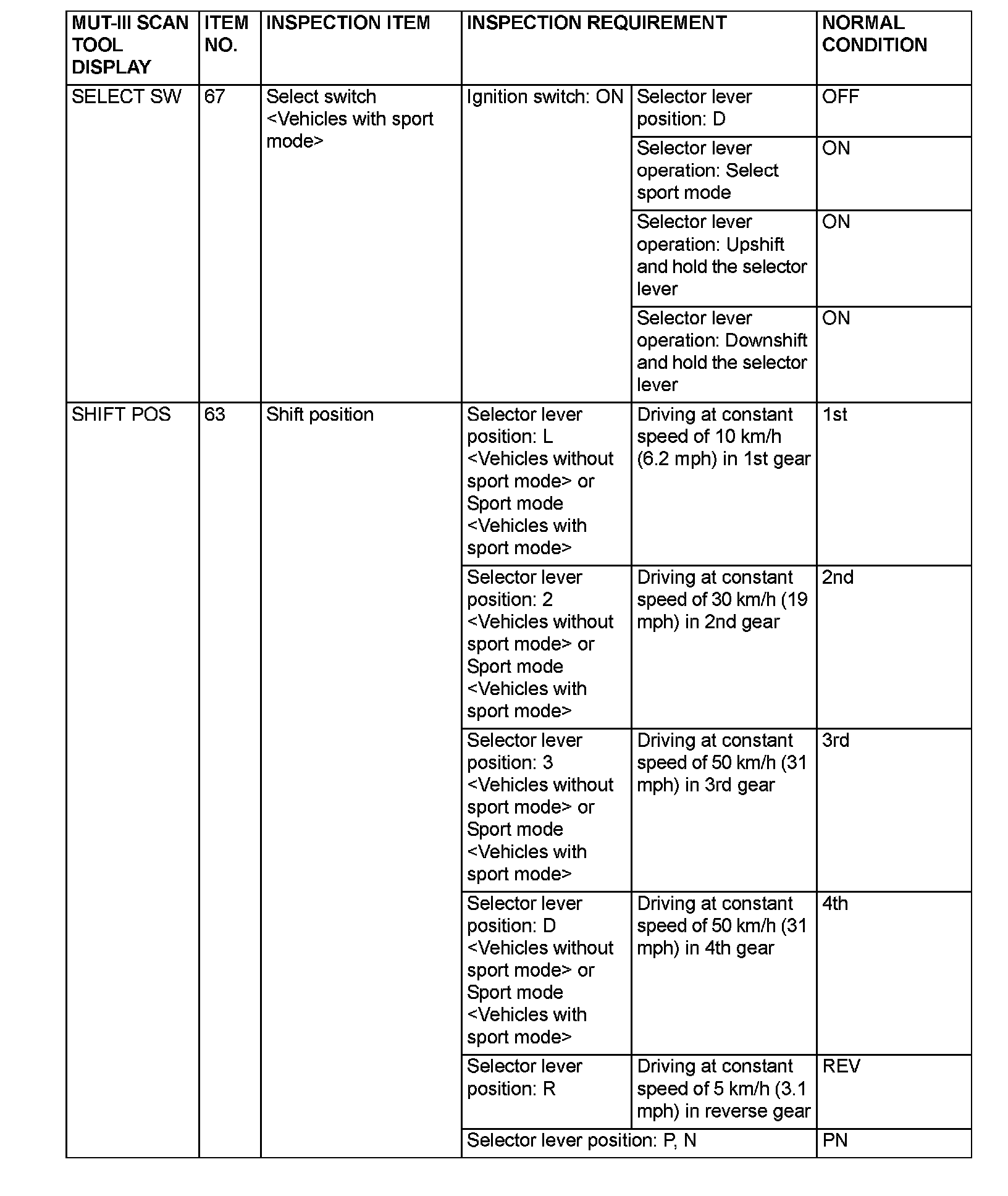

Part 7 Of 7:





DATA LIST REFERENCE TABLE
