General Data and Specifications





GENERAL DATA AND SPECIFICATIONS





GENERAL SPECIFICATIONS (Model with 2.4L Engine)





GENERAL SPECIFICATIONS (Model with 3.0L Engine without Variable Induction System)





GENERAL SPECIFICATIONS (Model with 3.0L Engine with Variable Induction System)

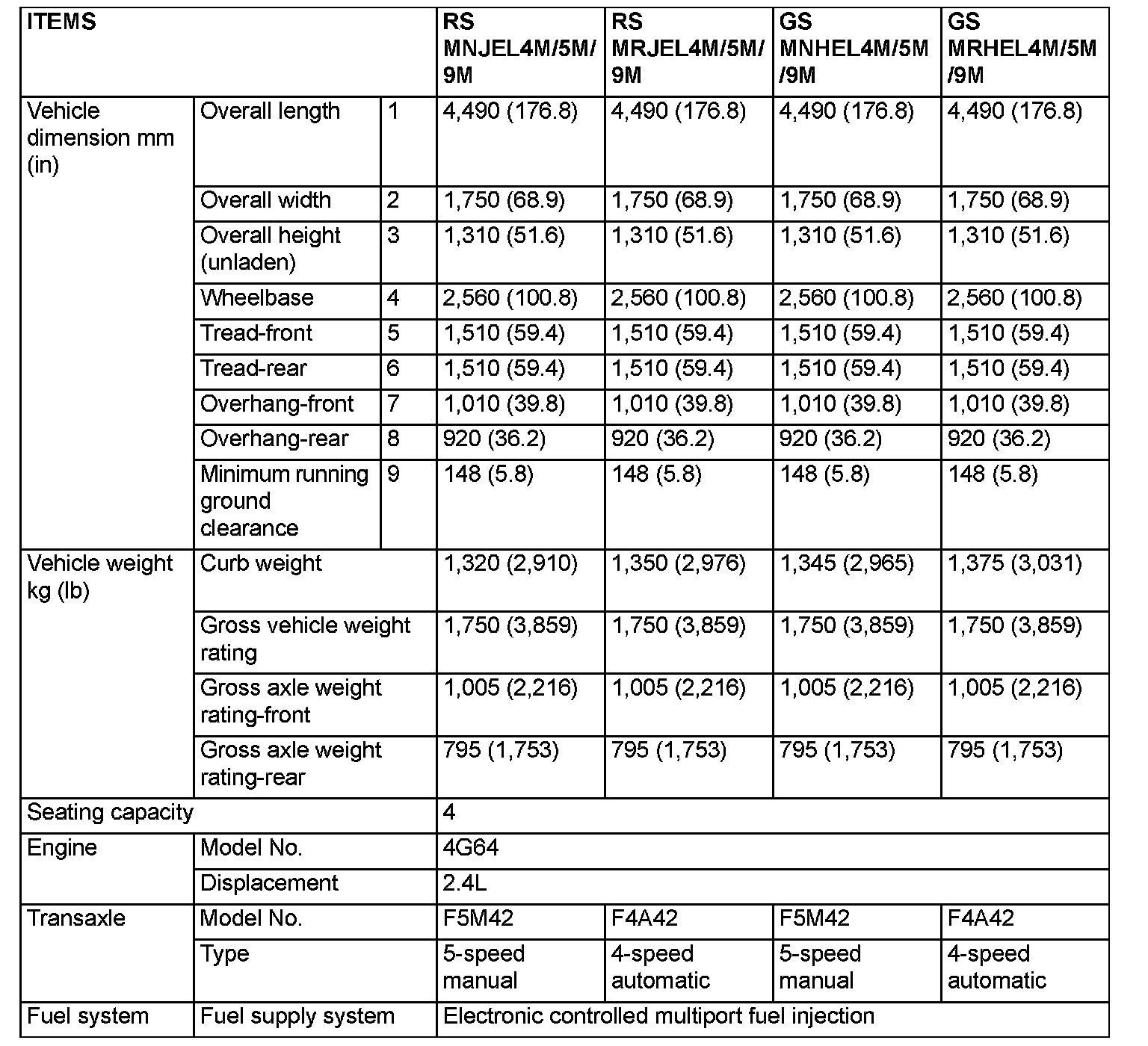

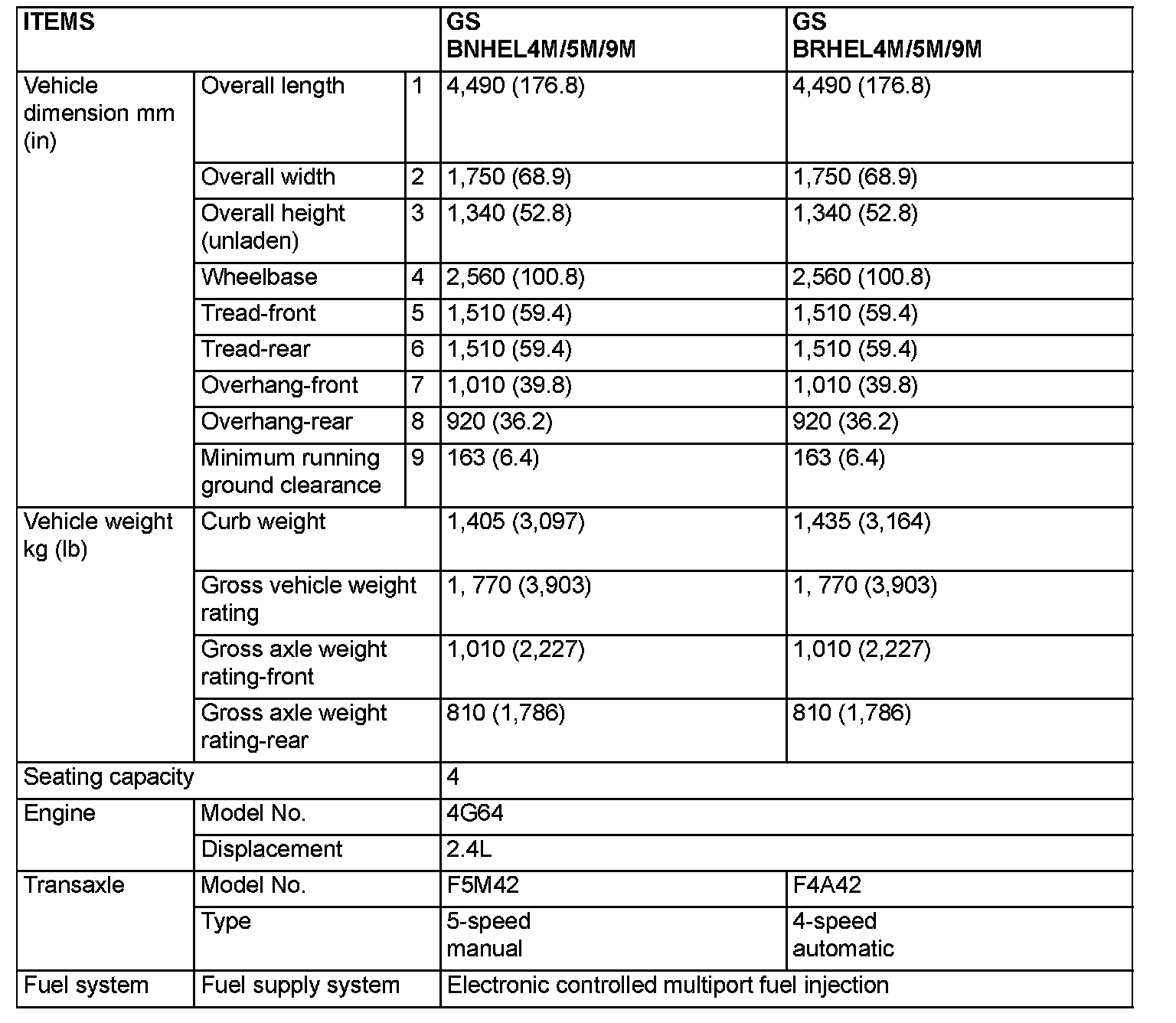

GENERAL SPECIFICATIONS (Model with 2.4L Engine)





GENERAL SPECIFICATIONS (Model with 3.0L Engine without Variable Induction System)





GENERAL SPECIFICATIONS (Model with 3.0L Engine with Variable Induction System)
