Alternator: Service and Repair

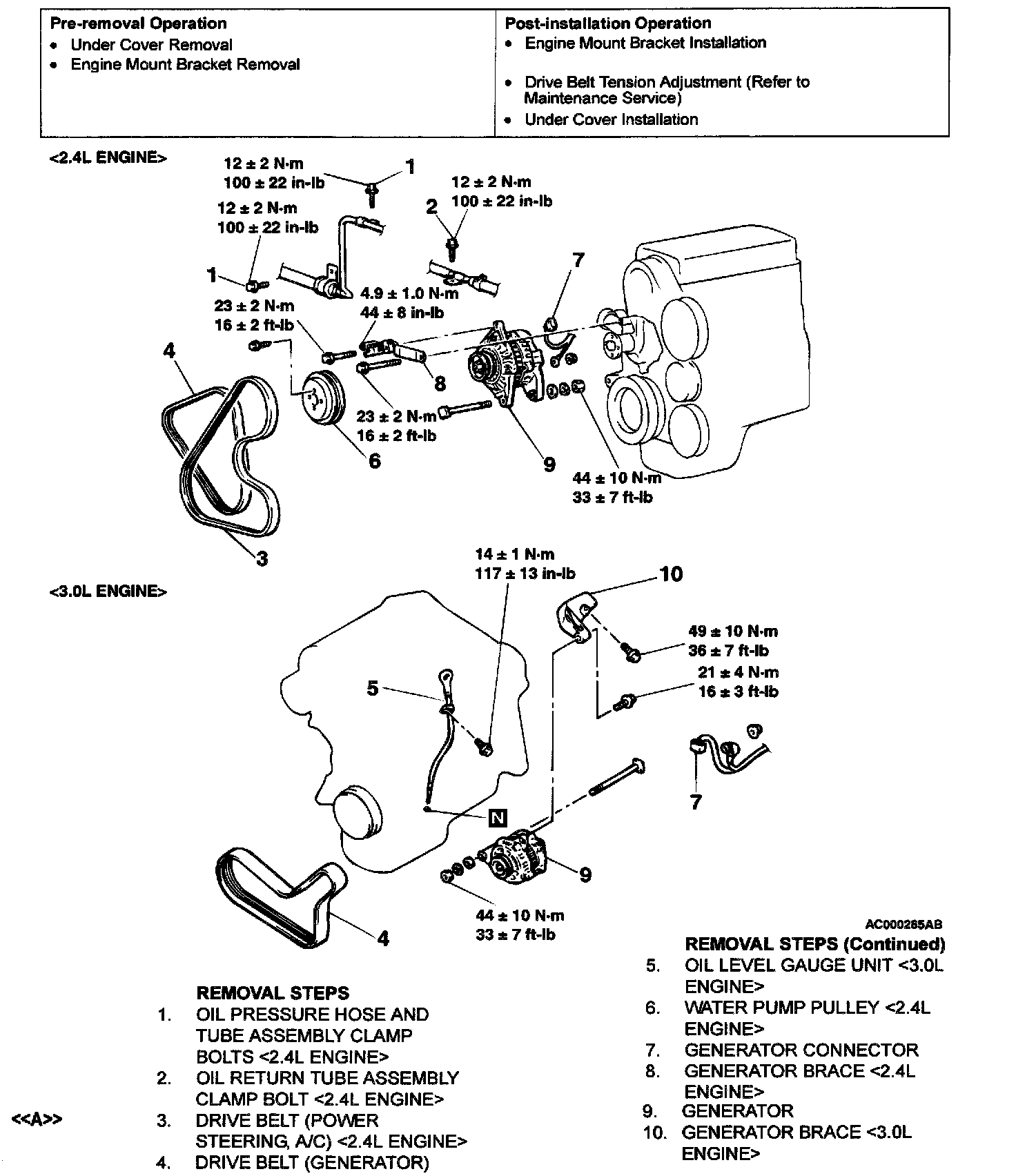

GENERATOR ASSEMBLY
REMOVAL SERVICE POINT
<> DRIVE BELT (POWER STEERING, A/C) REMOVAL
1. Loosen nut "A" for holding the tension pulley.
2. Loosen bolt "B" for adjustments.
3. Remove the drive belt.
REMOVAL SERVICE POINT
<> DRIVE BELT (POWER STEERING, A/C) REMOVAL
1. Loosen nut "A" for holding the tension pulley.
2. Loosen bolt "B" for adjustments.
3. Remove the drive belt.
