Ignition Switch: Service and Repair

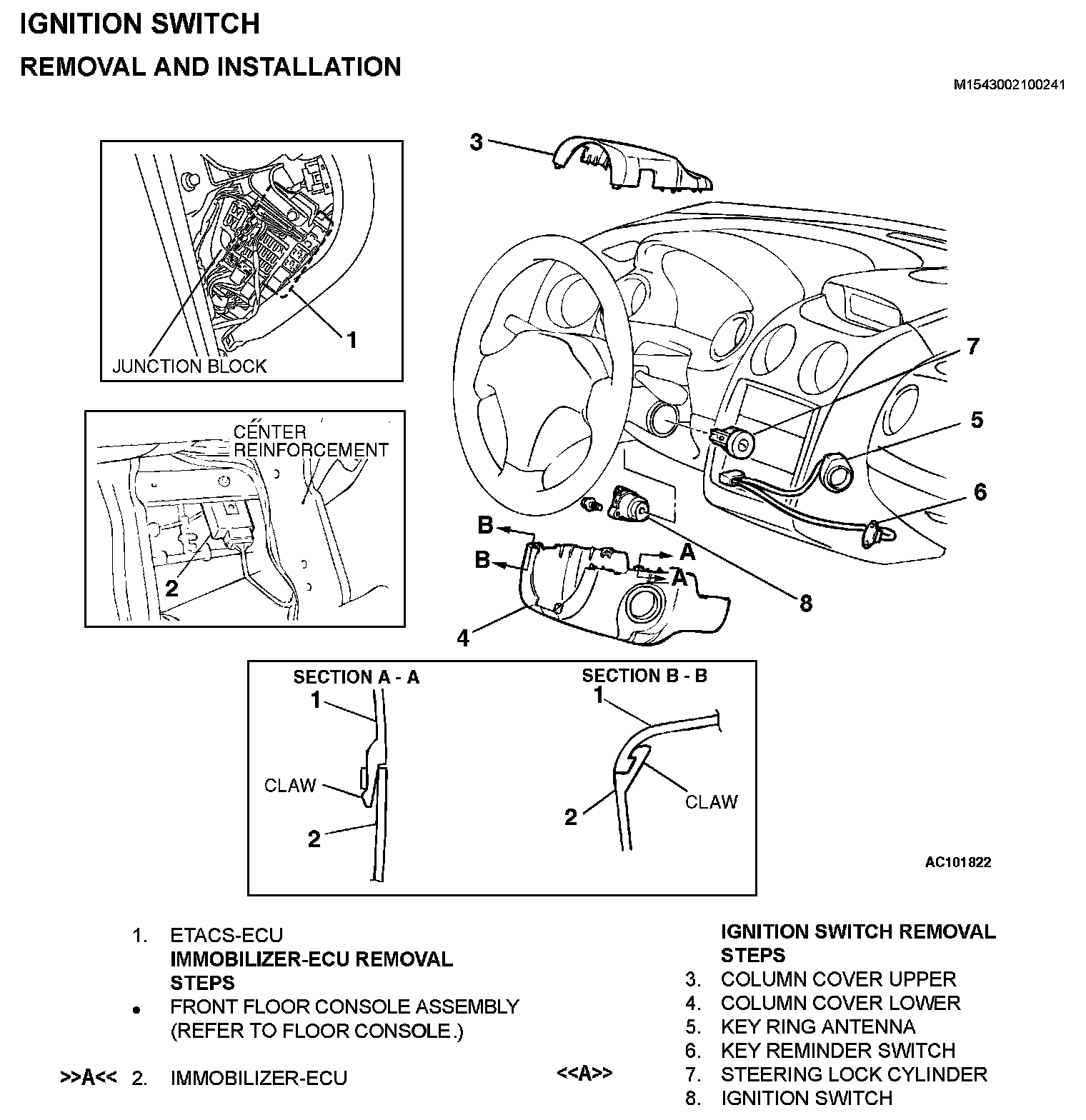

IGNITION SWITCH
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

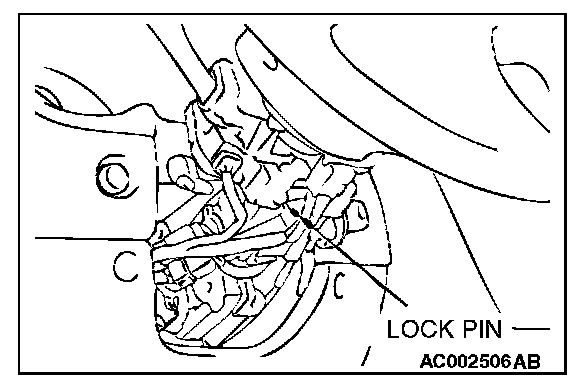

<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
INSTALLATION SERVICE POINT

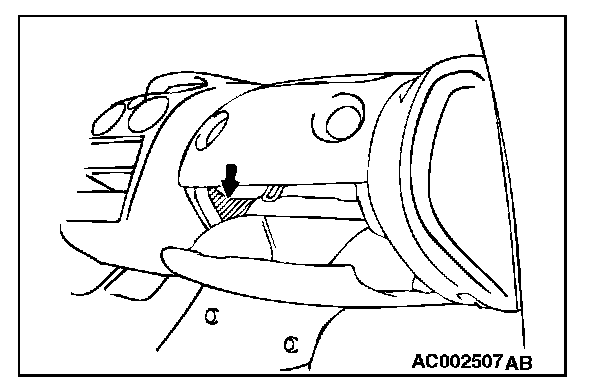

>>A<< IMMOBILIZER-ECU INSTALLATION
If the immobilizer-ECU is replaced, peel off the immobilizer serial number sticker from shown position. Then attach a new immobilizer-ECU identification sticker in the same location.
