Ignition Switch (IG1) Input Circuit

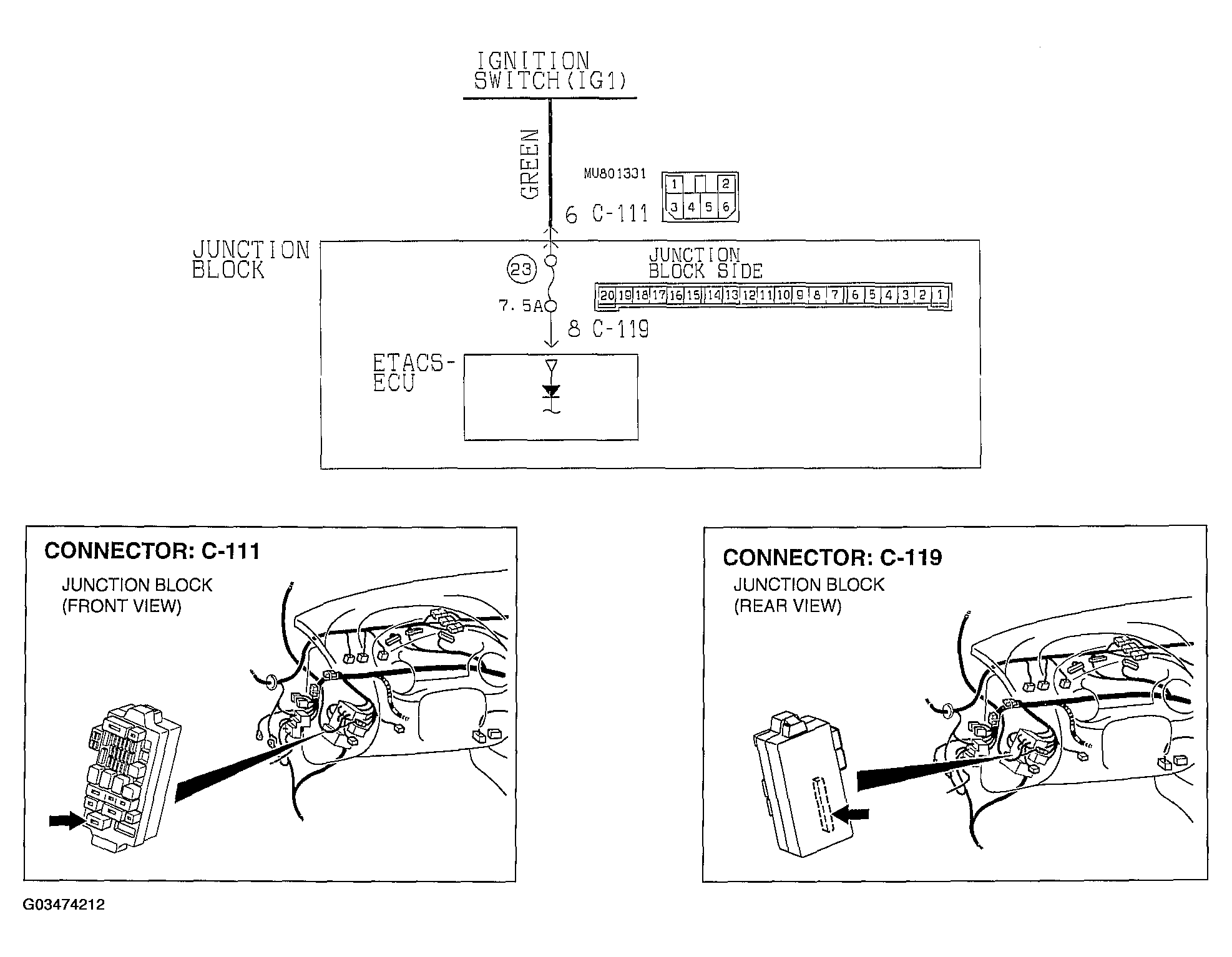

Fig 1: View Of Ignition Switch (IG1) Input Circuit Diagram And Connectors
G03474212Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
