Operating The Passenger's Power Window Up Function

When the power window sub switch is pulled up, the system energizes its respective power window motor, and then passenger's window glass rises.

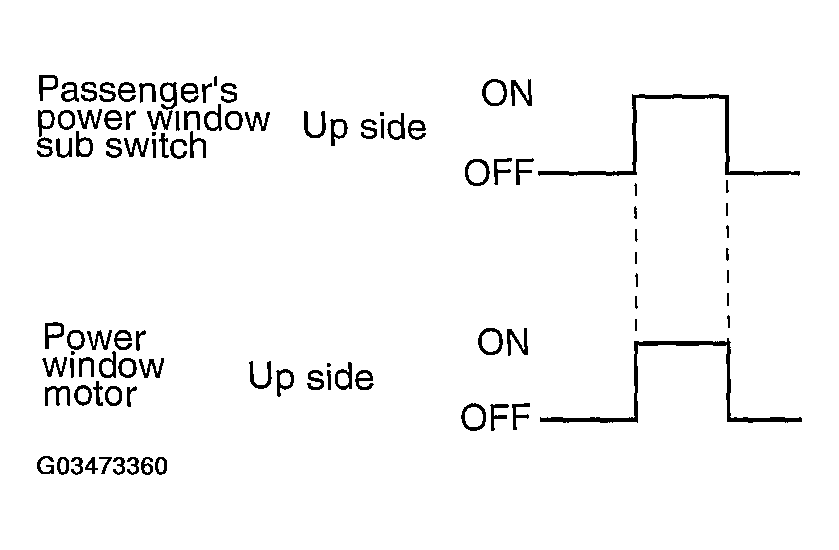

Fig 1: Identifying Power Window Sub Switch Function - Operating Passenger's Power Window Up Function
G03473360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
