>>A<< Shift Lock Cable (Selector Lever Side) Installation

  1. Shift the selector lever in the "P" position.

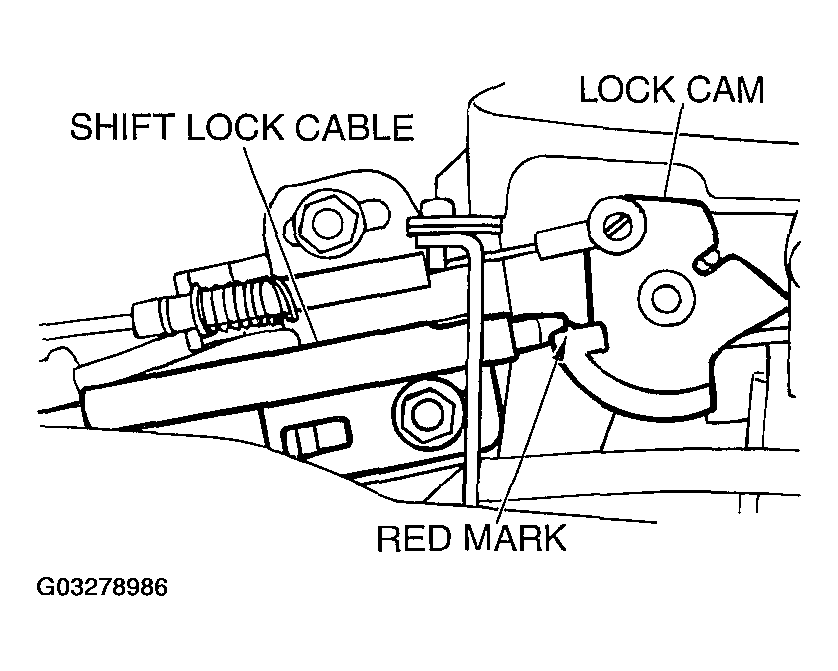

    2. Fig 1: Installing Shift Lock Cable (Selector Lever Side)
    G03278986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red mark on the lock cam.
