DTC 12: TP Sensor System (Open Circuit): Diagnosis

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)
• MB991824: V.C.I.
• MB991827: MUT-III USB Cable
• MB991911: MUT-III Main Harness B

1. Using scan tool MB991958, check data list item 11: TP Sensor.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

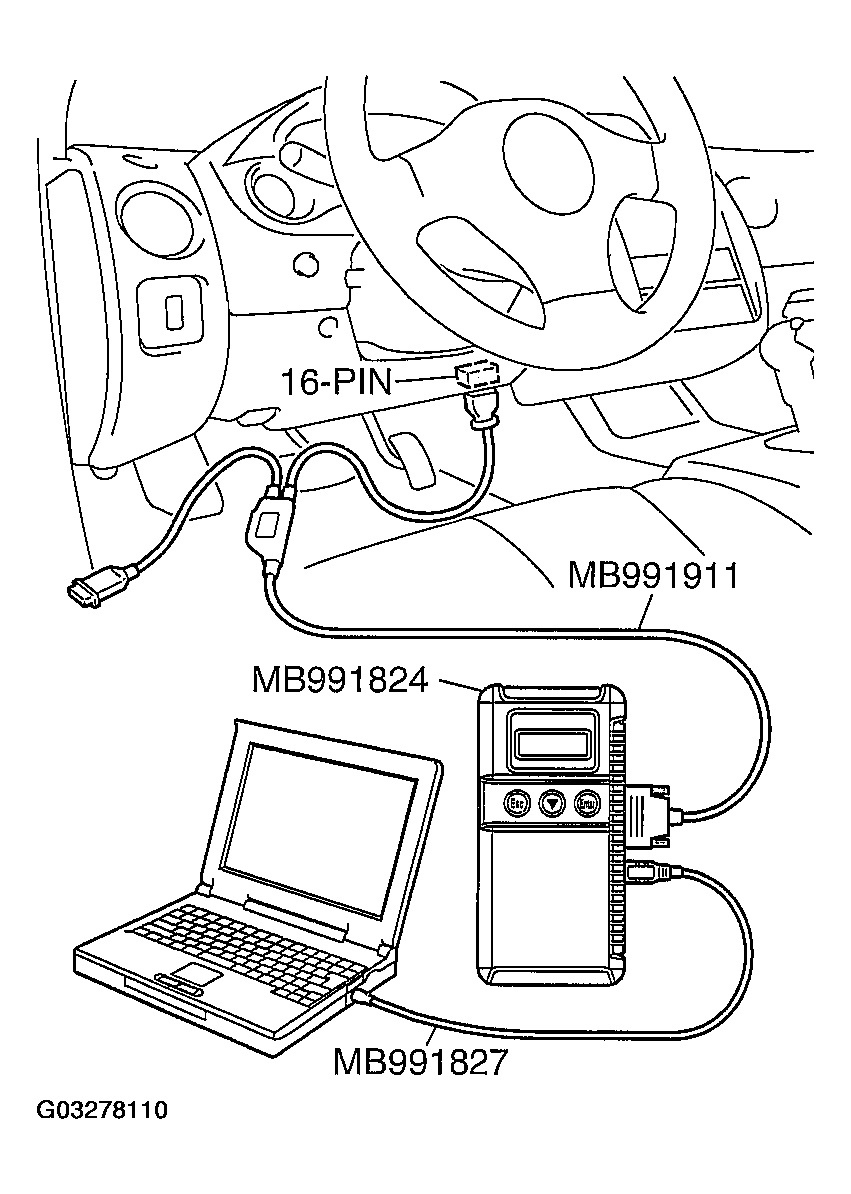

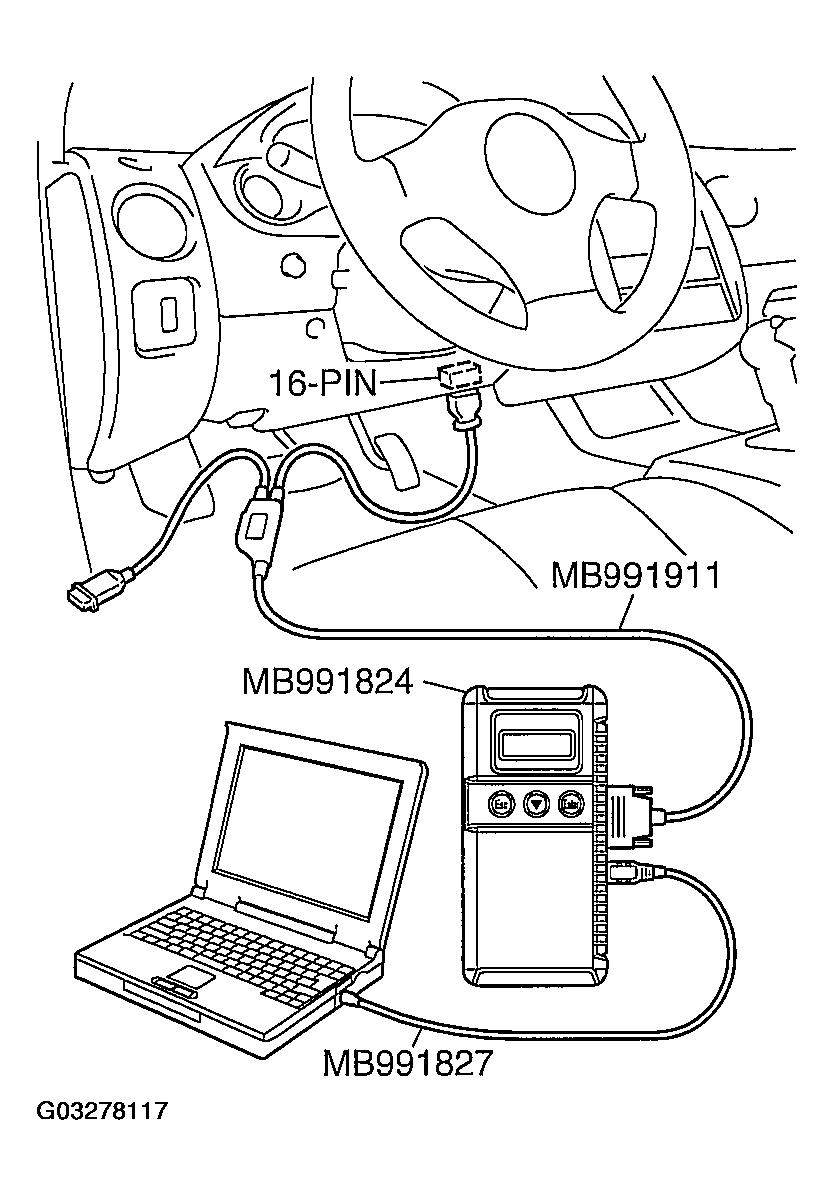

   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Connect scan tool MB991958 to the data link connector.
   2. Turn the ignition switch to the "ON" position.
   3. Set scan tool MB991958 to data reading mode for item 11: TP Sensor.
      • With the throttle valve in the idle position, voltage should measure between 535 and 735 mV.
      • With the throttle valve in the full-open position, voltage should measure between 4,500 and 5,500 mV.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

      Q: Is the measured voltage between 535 and 735 mV at idle, and between 4,500 and 5,500 mV in the full-open position?

      YES : It can be assumed that this malfunction is intermittent.

      Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS .

      NO : Go to Step 2.

2. Measure the TP sensor output voltage at the TP sensor connector B-07 by backprobing.

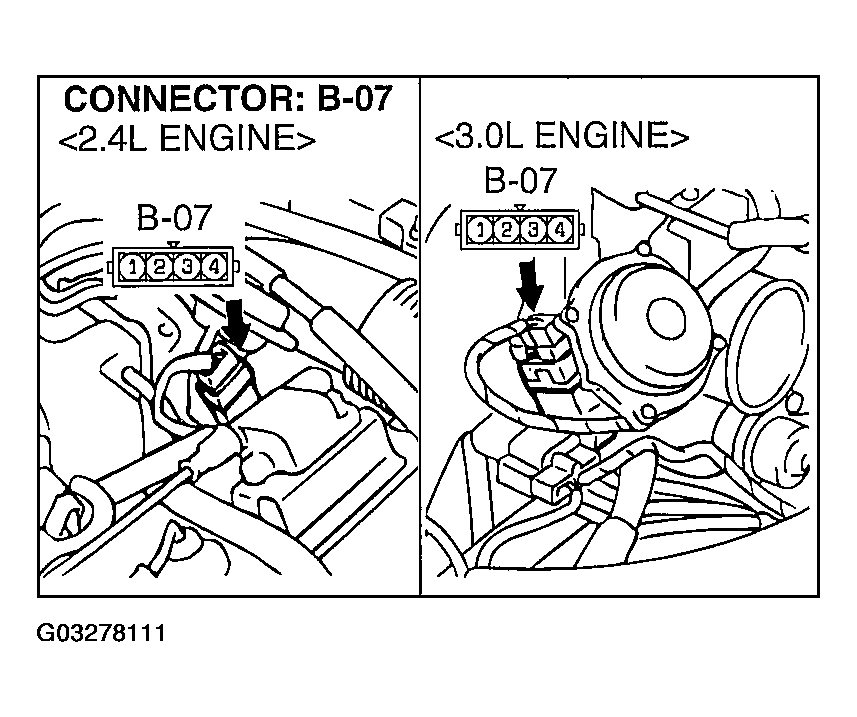

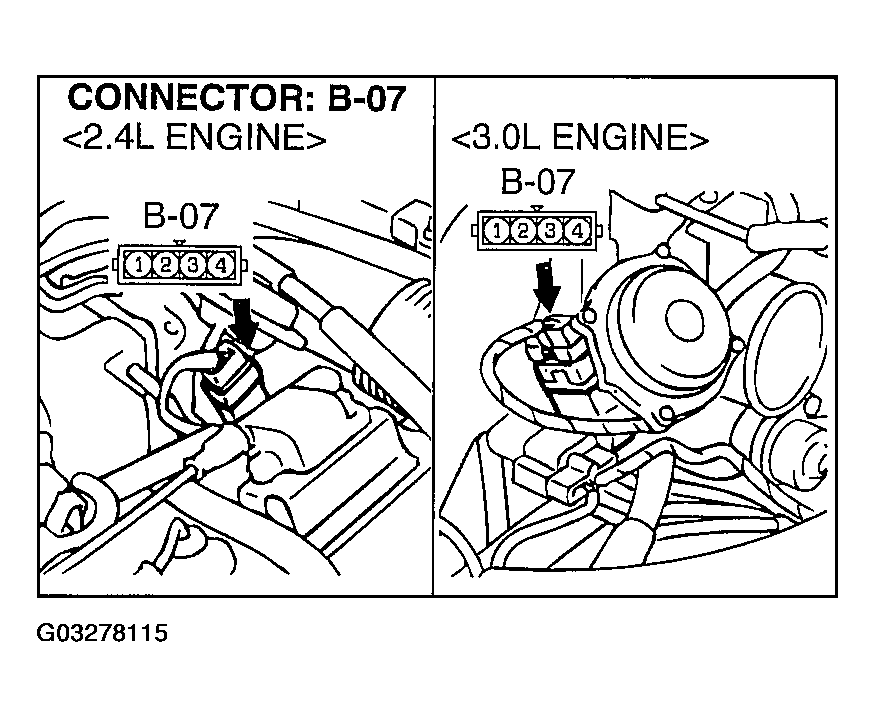

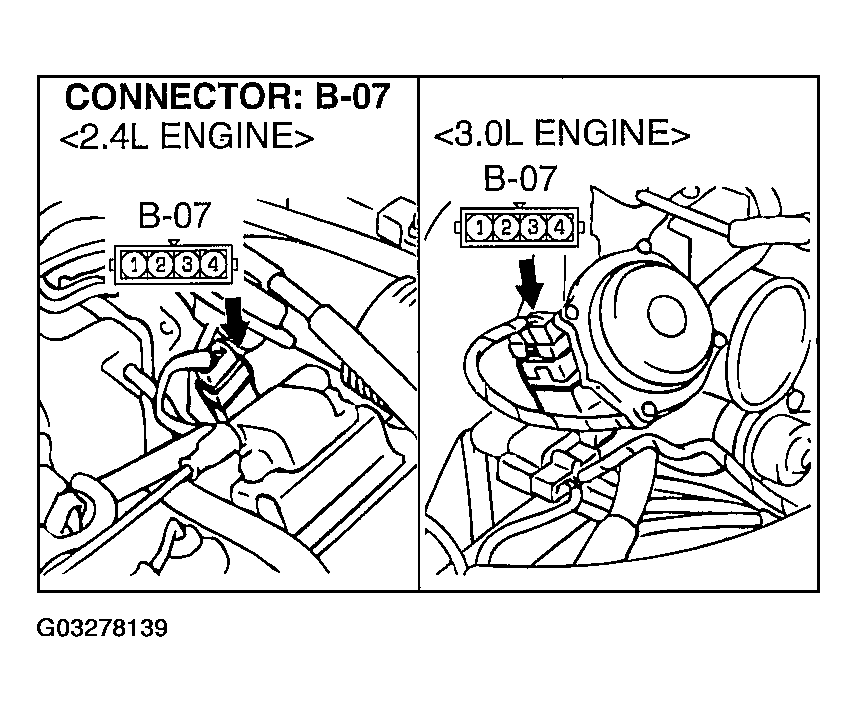

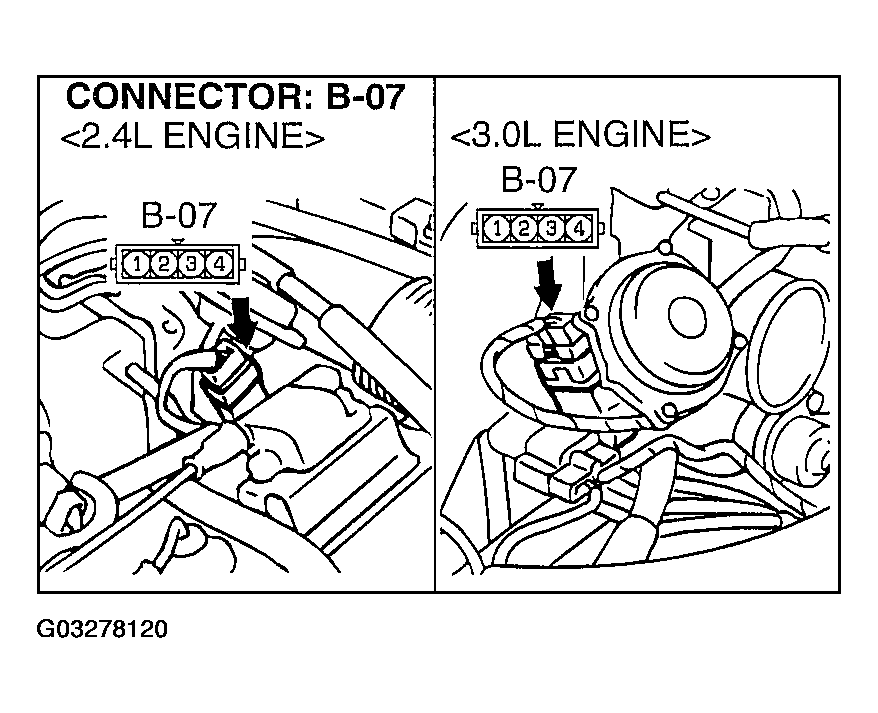

   Fig 2: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Do not disconnect connector B-07.
   2. Turn, the ignition switch to the "ON" position.
   3. Measure the voltage between terminal 3 and ground by backprobing.
      • With the throttle valve in the idle position, voltage should measure between 0.535 and 0.735 volts.
      • With the throttle valve in the full-open position, voltage should measure between 4.5 and 5.5 volts.

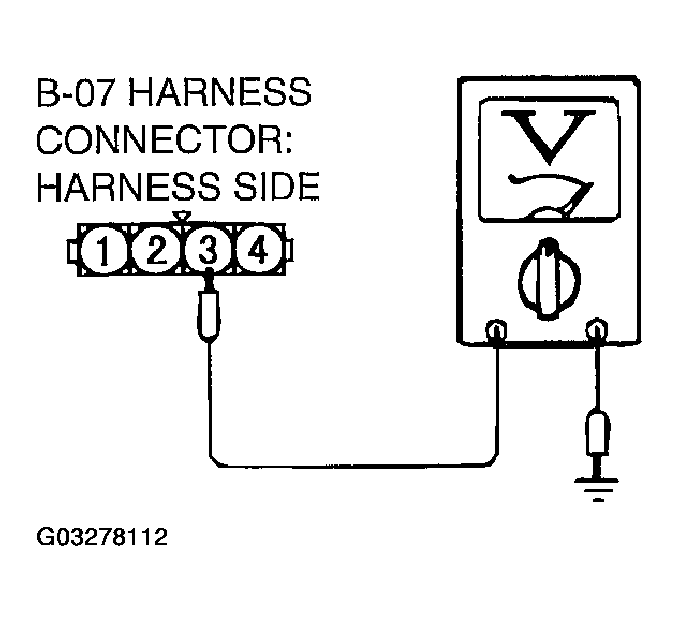

      Fig 3: Measuring Voltage Between B-07 Connector Terminal 3 And Ground

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the measured voltage between 0.535 and 0.735 volt at idle, and between 4.5 and 5.5 volts in the full-open position?

   YES : Go to Step 3.

   NO : Go to Step 8.

3. Measure the TP sensor output voltage at PCM connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine> by backprobing.

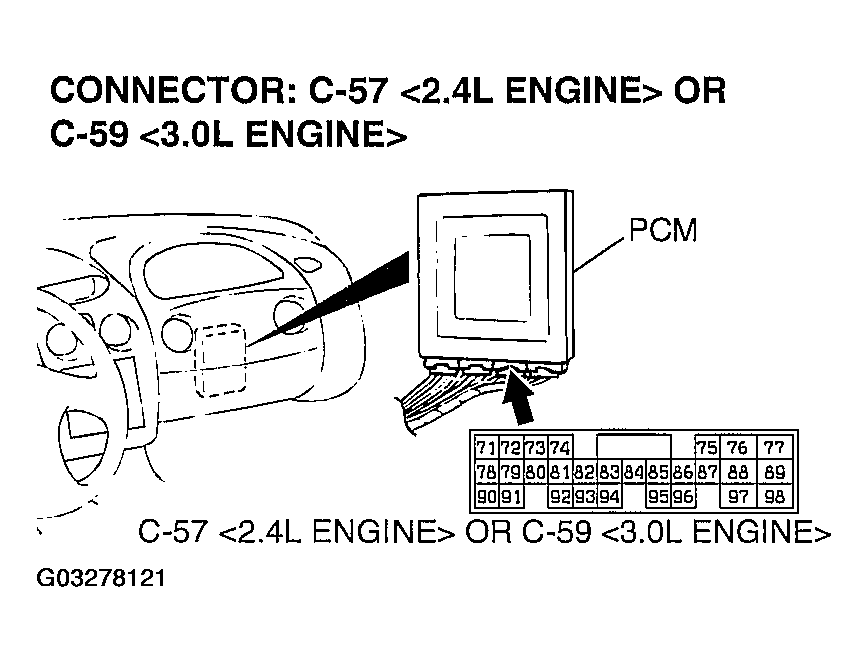

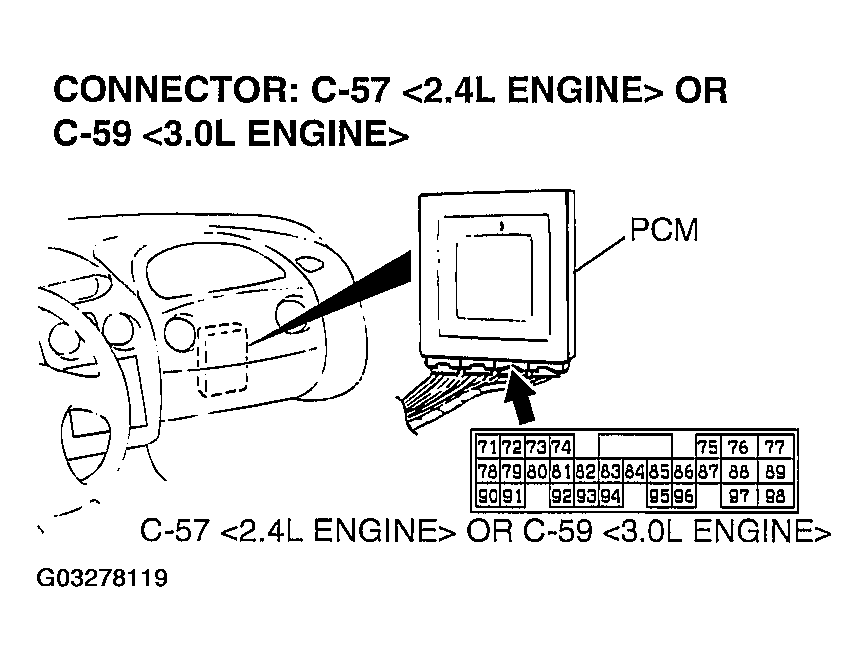

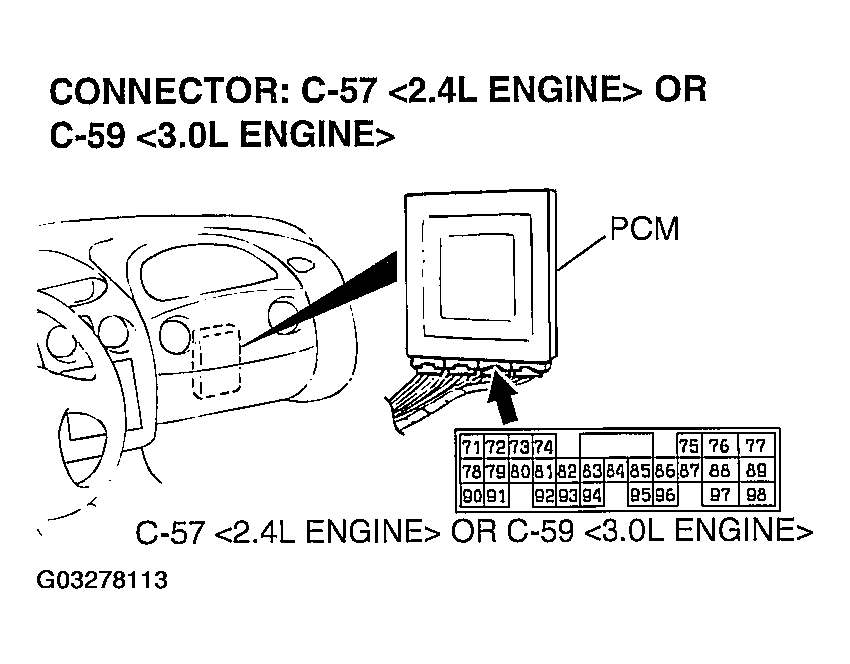

   Fig 4: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Do not disconnect connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine>.
   2. Turn the ignition switch to the "ON" position.
   3. Measure the voltage between terminal 78 and ground by backprobing.
      • With the throttle valve in the idle position, voltage should measure between 0.535 and 0.735 volts.
      • With the throttle valve in the full-open position, voltage should measure between 4.5 and 5.5 volts.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

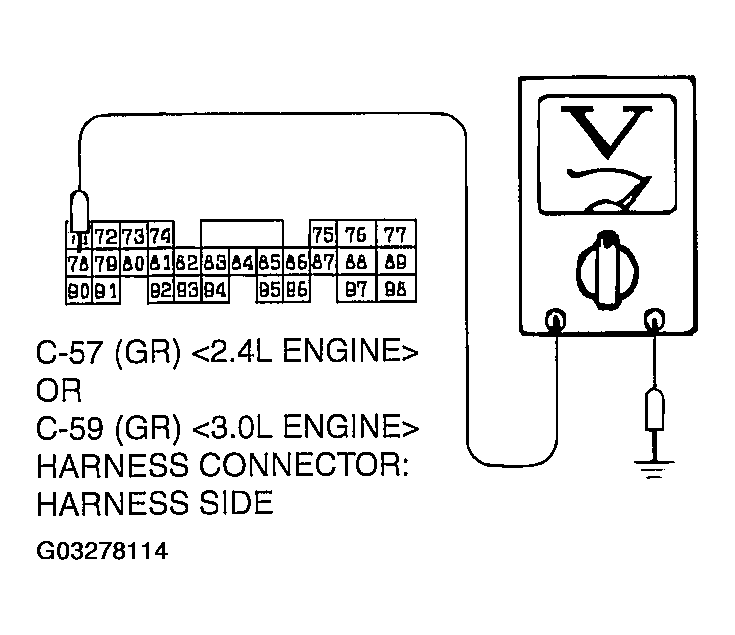

   Fig 5: Measuring Voltage Between Terminal 78 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Is the measured voltage between 0.535 and 0.735 volt at idle, and between 4.5 and 5.5 volts in the full-open position?

   YES : Go to Step 4.

   NO : Go to Step 6.

4. Check TP sensor connector B-07 and PCM connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine> for loose, corroded or damaged terminals, or terminals pushed back in the connector.

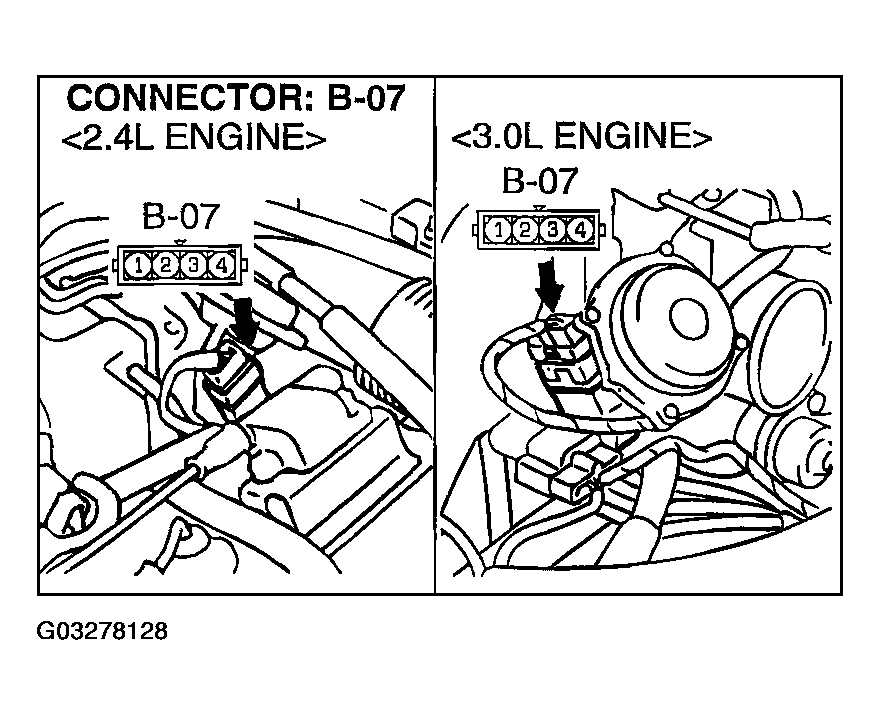

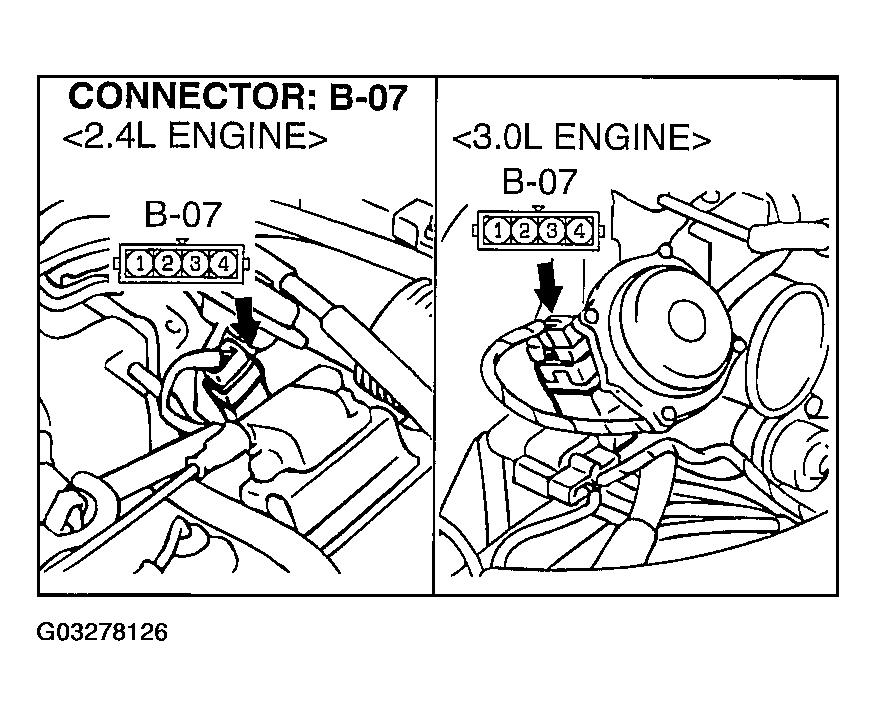

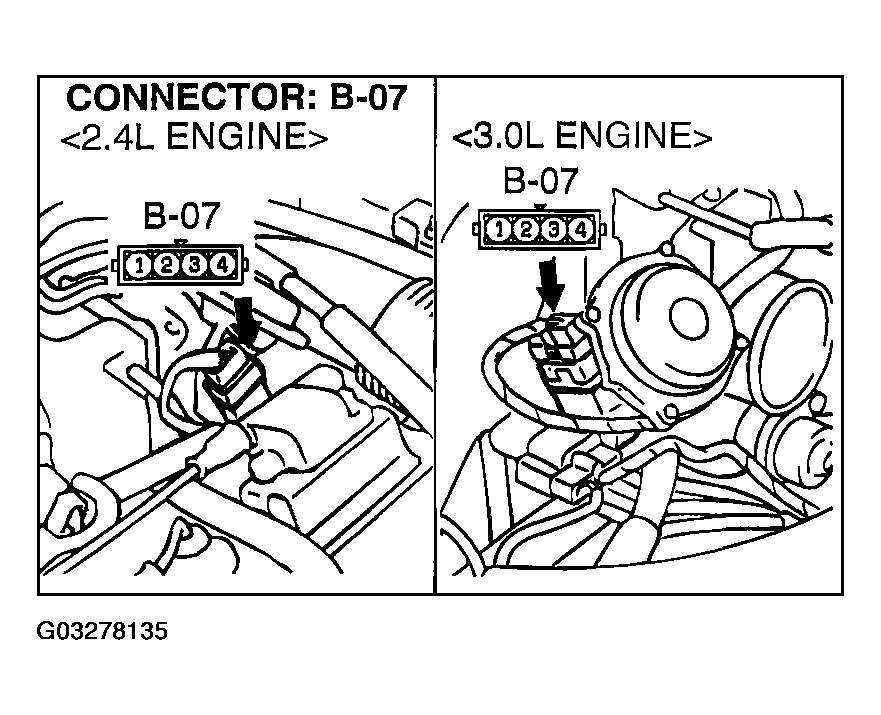

   Fig 6: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

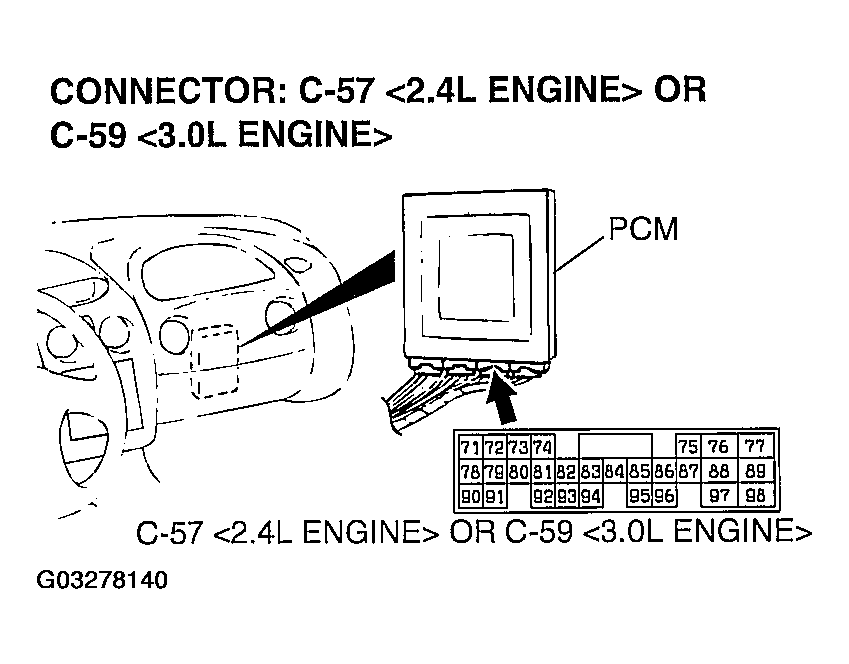

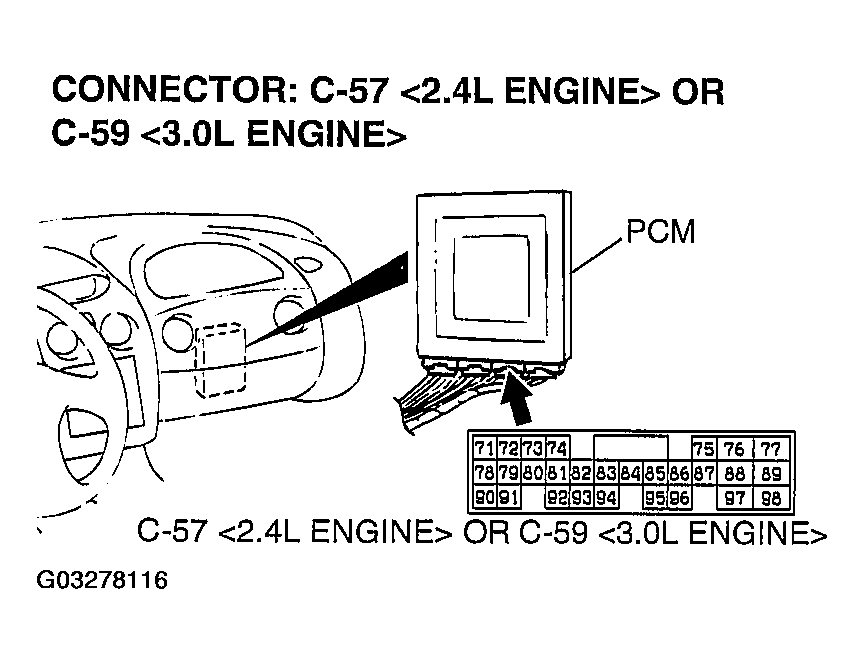

   Fig 7: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Are the connectors and terminals in good condition?

   YES : Go to Step 5.

   NO : Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION .

5. Using scan tool MB991958, check data list item 11: TP Sensor.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
   Fig 8: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Connect scan tool MB991958 to the data link connector.
   2. Turn the ignition switch to the "ON" position.
   3. Set scan tool MB991958 to data reading mode for item 11: TP Sensor.
      • With the throttle valve in the idle position, voltage should measure between 535 and 735 mV.
      • With the throttle valve in the full-open position, voltage should measure between 4,500 and 5,500 mV.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the sensor voltage between 535 and 735 mV at idle, and between 4,500 and 5,500 mV in the full-open position?

   YES : It can be assumed that this malfunction is intermittent.

   Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS .

   NO : Replace the PCM.

6. Check TP sensor connector B-07 and PCM connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine> for loose, corroded or damaged terminals, or terminals pushed back in the connector.

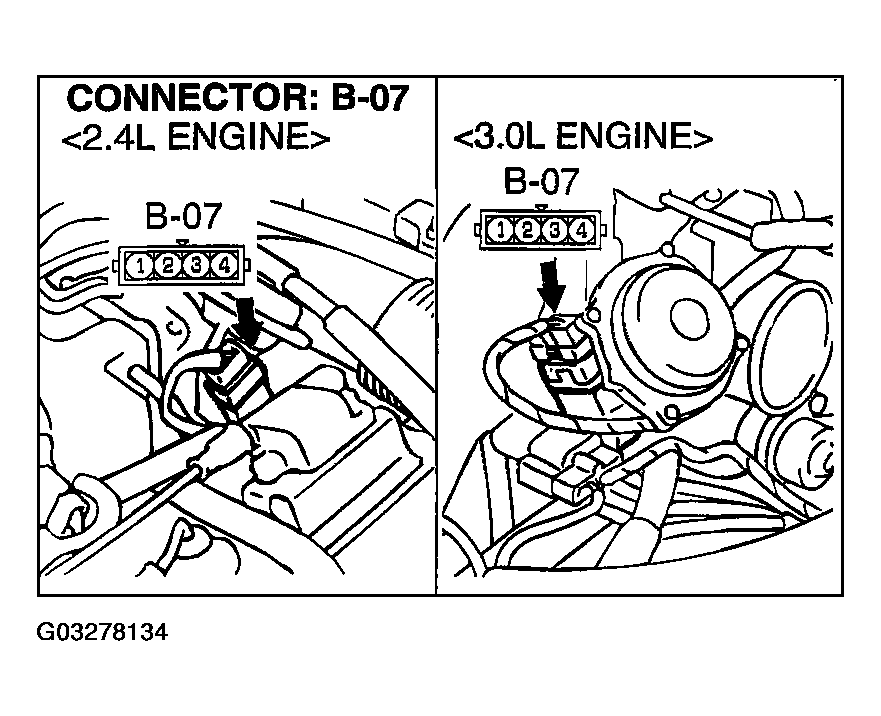

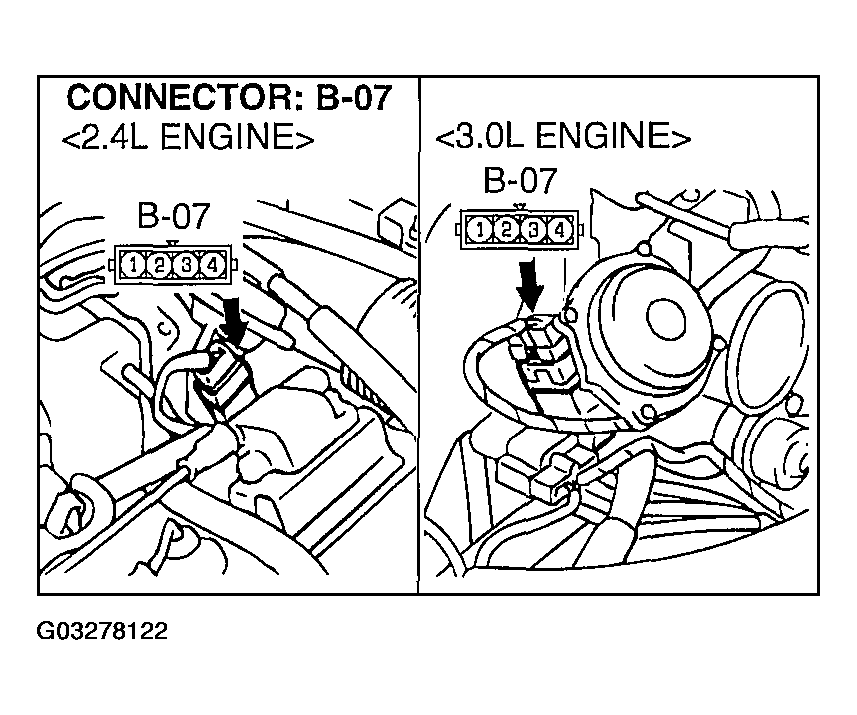

   Fig 9: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 10: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Are the connectors and terminals in good condition?

   YES : Go to Step 7.

   NO : Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION .

7. Check the harness for open circuit or damage between TP sensor connector B-07 terminal 3 and PCM connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine> terminal 78.
   Fig 11: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 12: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Is the harness wire in good condition?

   YES : Go to Step 5.

   NO : Repair or replace the harness wire.

8. Measure the power supply voltage from the PCM at the TP sensor connector B-07 by backprobing.
   Fig 13: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Do not disconnect connector B-07.
   2. Turn the ignition switch to the "ON" position.
   3. Measure the voltage between terminal 4 and ground by backprobing.
      • The voltage should measure between 4.9 and 5.1 volts.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

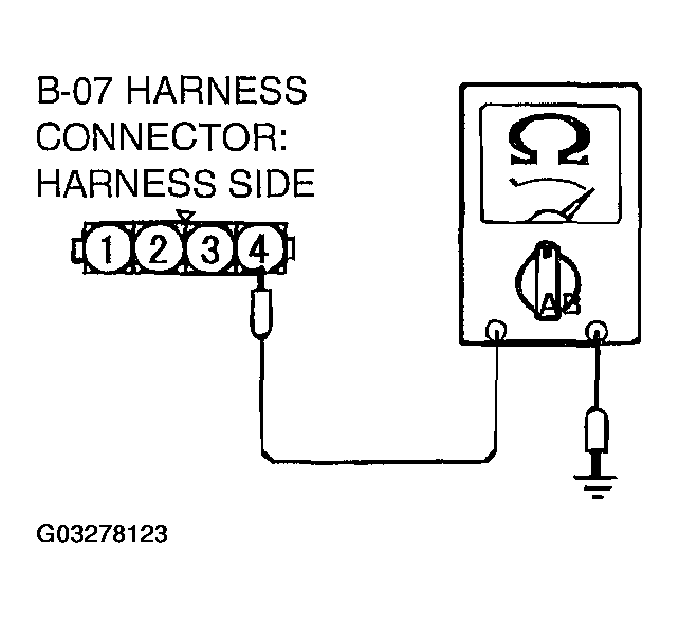

   Fig 14: Measuring Voltage Between B-07 Connector Terminal 4 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Is the measured voltage between 4.9 and 5.1 volts?

   YES : Go to Step 14.

   NO : Go to Step 9.

9. Measure the power supply voltage at PCM connector C-54 < 2.4L Engine> or C-55 < 3.0L Engine> by backprobing.

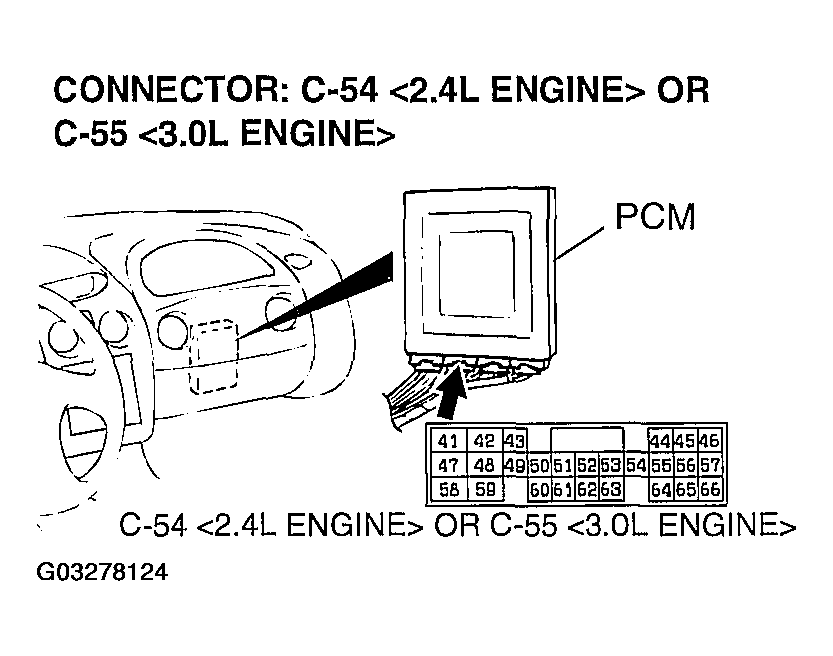

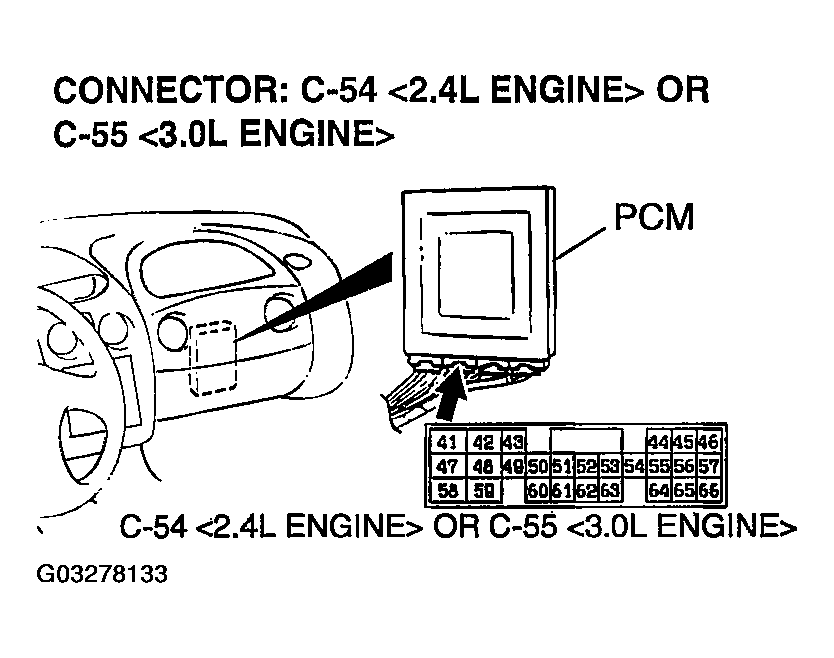

   Fig 15: Identifying Terminals Of PCM Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Do not disconnect connector C-54 < 2.4L Engine> or C-55 < 3.0L Engine>.
   2. Turn the ignition switch to the "ON" position.
   3. Measure the voltage between terminal 46 and ground by backprobing.
      • The voltage should measure between 4.9 and 5.1 volts.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

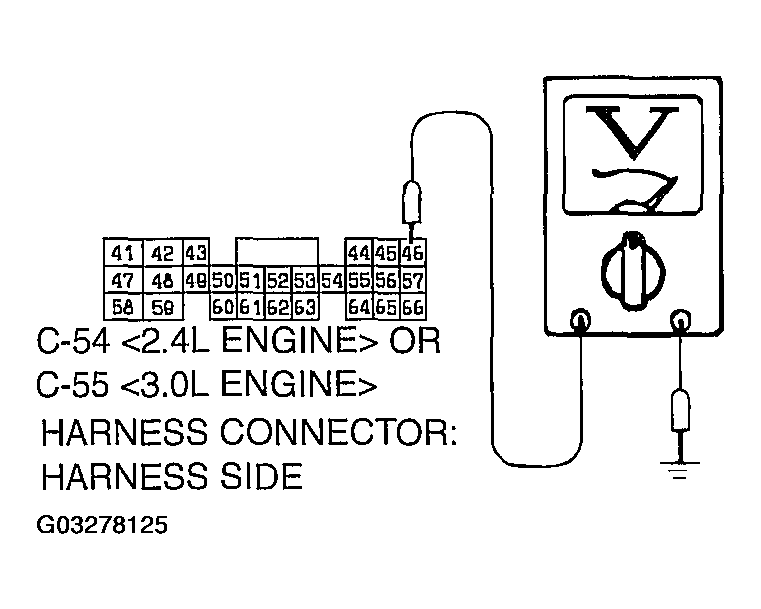

   Fig 16: Measuring Voltage Between Terminal 46 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Is the measured voltage between 4.9 and 5.1 volts?

   YES: Go to Step 10.

   NO: Go to Step 12.

10. Check TP sensor connector B-07 and PCM connector C-54 < 2.4L Engine> or C-55 < 3.0L Engine> for loose, corroded or damaged terminals, or terminals pushed back in the connector.
    Fig 17: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

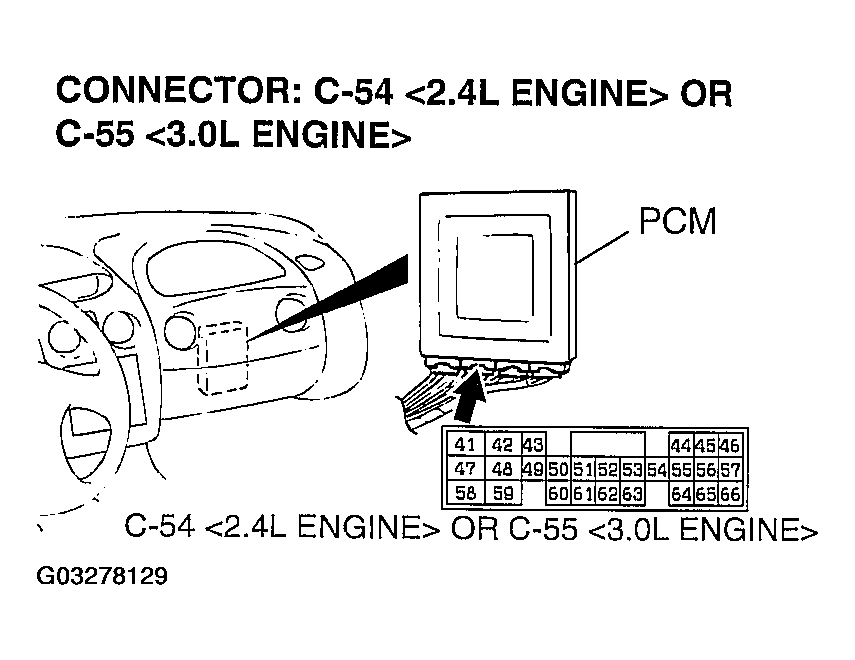

    Fig 18: Identifying Terminals Of PCM Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are the connectors and terminals in good condition?

    YES : Go to Step 11.

    NO : Repair or replace the defective components. Refer to HARNESS CONNECTOR INSPECTION .

11. Check the harness for open circuit or damage between TP sensor connector B-07 terminal 4 and PCM connector C-54 < 2.4L Engine> or C-55 < 3.0L Engine> terminal 46.
    Fig 19: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 20: Identifying Terminals Of PCM Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the harness wire in good condition?

    YES : Go to Step 5.

    NO : Repair or replace the harness wire.

12. Check TP sensor connector B-07 and PCM connector C-114 < 2.4L Engine> or C-115 < 3.0L Engine> for loose, corroded or damaged terminals, or terminals pushed back in the connector.
    Fig 21: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 22: Identifying Terminals Of PCM Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are the connectors and terminals in good condition?

    YES : Go to Step 13.

    NO : Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION .

13. Check the harness for a short circuit to ground between TP sensor connector B-07 terminal 4 and PCM connector C-54 < 2.4L Engine> or C-55 < 3.0L Engine> terminal 46.
    Fig 23: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 24: Identifying Terminals Of PCM Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the harness wire in good condition?

    YES : Go to Step 5.

    NO : Repair or replace the harness wire.

14. Check TP sensor connector B-07 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

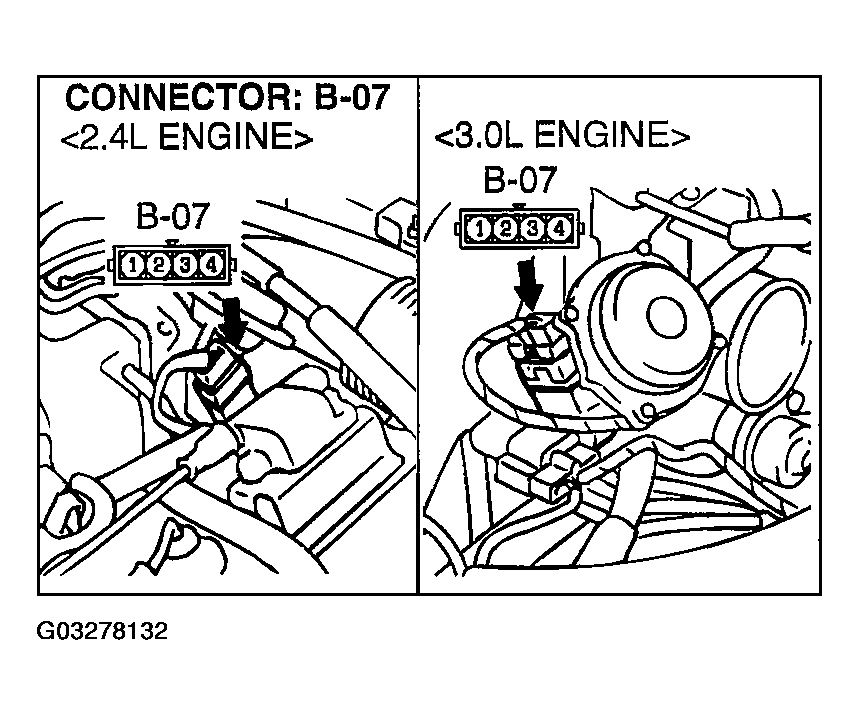

    Fig 25: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are the connector and terminals in good condition?

    YES: Go to Step 15.

    NO : Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION .

15. Check the TP sensor.
    1. Disconnect connector B-07 and measure at the TP sensor side.
    Fig 26: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Measure the resistance between the TP sensor connector terminals 1 and 4.

       Standard value: 3.5 - 6.5 kΩ

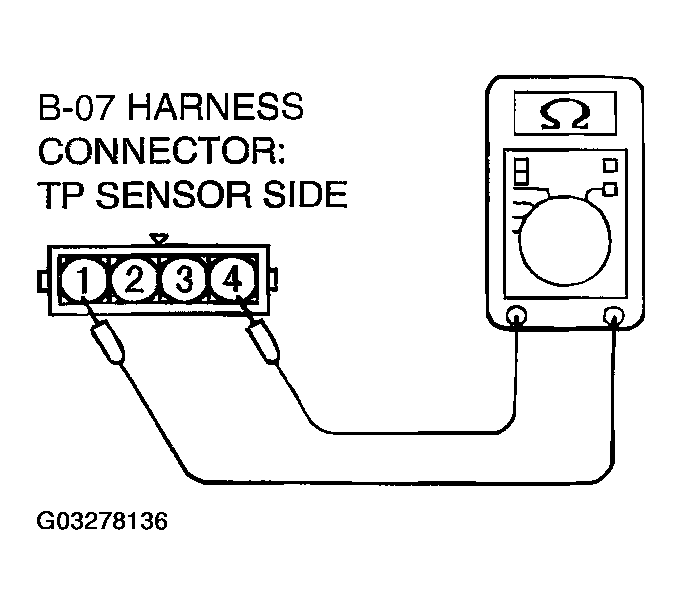

       Fig 27: Measuring Resistance Between TP Sensor Connector Terminals 1 And 4

       Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Measure the resistance between the TP sensor connector terminals 1 and 3
    4. Move the throttle valve from the idle position to full-open position.
    • The resistance should change smoothly in proportion to the opening angle of the throttle valve.

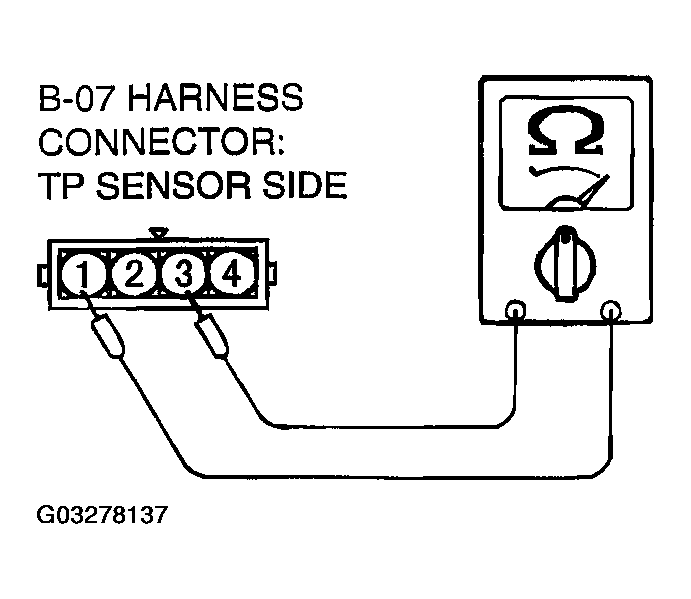

    Fig 28: Measuring Resistance Between TP Sensor Connector Terminals 1 And 3

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Does the resistance change smoothly between 3.5 - 6.5 kΩ in proportion to the opening angle of the throttle valve?

    YES : Go to Step 16.

    NO : Replace the TP sensor. Refer to THROTTLE BODY ASSEMBLY < 2.4L Engine> or THROTTLE BODY ASSEMBLY < 3.0L Engine> .

16. Check PCM connectors C-54 < 2.4L Engine> or C-55 < 3.0L Engine> and C-57 < 2.4L Engine> or C-59 < 3.0L Engine> for loose, corroded or damaged terminals, or terminals pushed back in the connector.

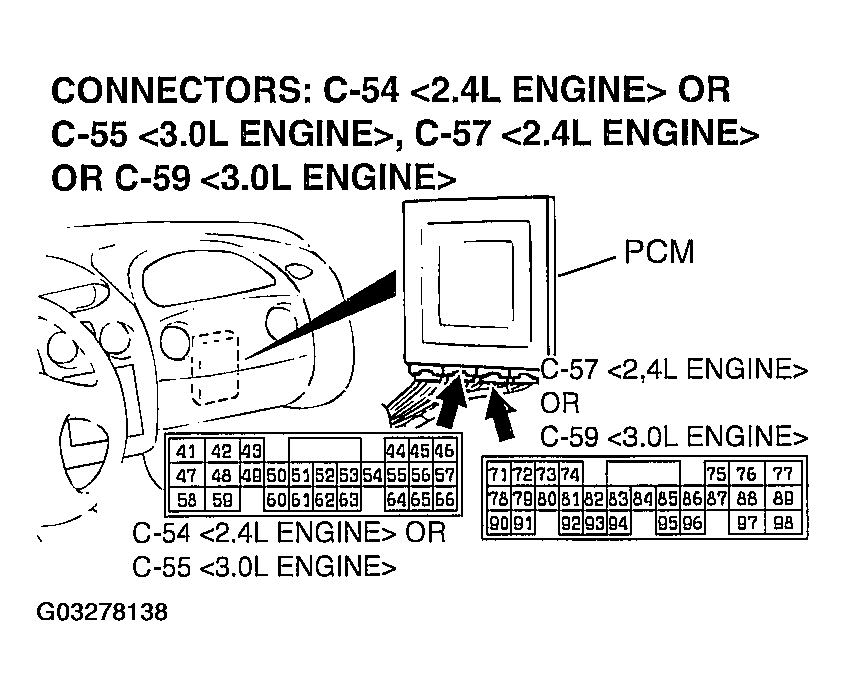

    Fig 29: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine) And Connector C-54 (2.4L Engine) Or C-55 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are the connectors and terminals in good condition?

    YES: Go to Step 17.

    NO : Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION .

17. Check the harness for a short circuit to ground or damage between TP sensor connector B-07 terminal 3 and PCM connector C-57 < 2.4L Engine> or C-59 < 3.0L Engine> terminal 78.
    Fig 30: Identifying Terminals Of TP Sensor Connector B-07 (2.4L And 3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 31: Identifying Terminals Of PCM Connector C-57 (2.4L Engine) Or C-59 (3.0L Engine)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the harness wire in good condition?

    YES: Go to Step 18.

    NO : Repair or replace the harness wire.

18. Check the TP sensor connector and harness for a short circuit to ground between the TP sensor and the auto-cruise control-ECU connector.

    Q: Are the connector and harness wire in good condition?

    YES : Adjust the TP sensor. Refer to THROTTLE POSITION SENSOR ADJUSTMENT < 2.4L Engine> or THROTTLE POSITION SENSOR ADJUSTMENT < 3.0L Engine> .

    NO : Repair or replace the damaged components.
