Input Shaft Speed Sensor System Circuit

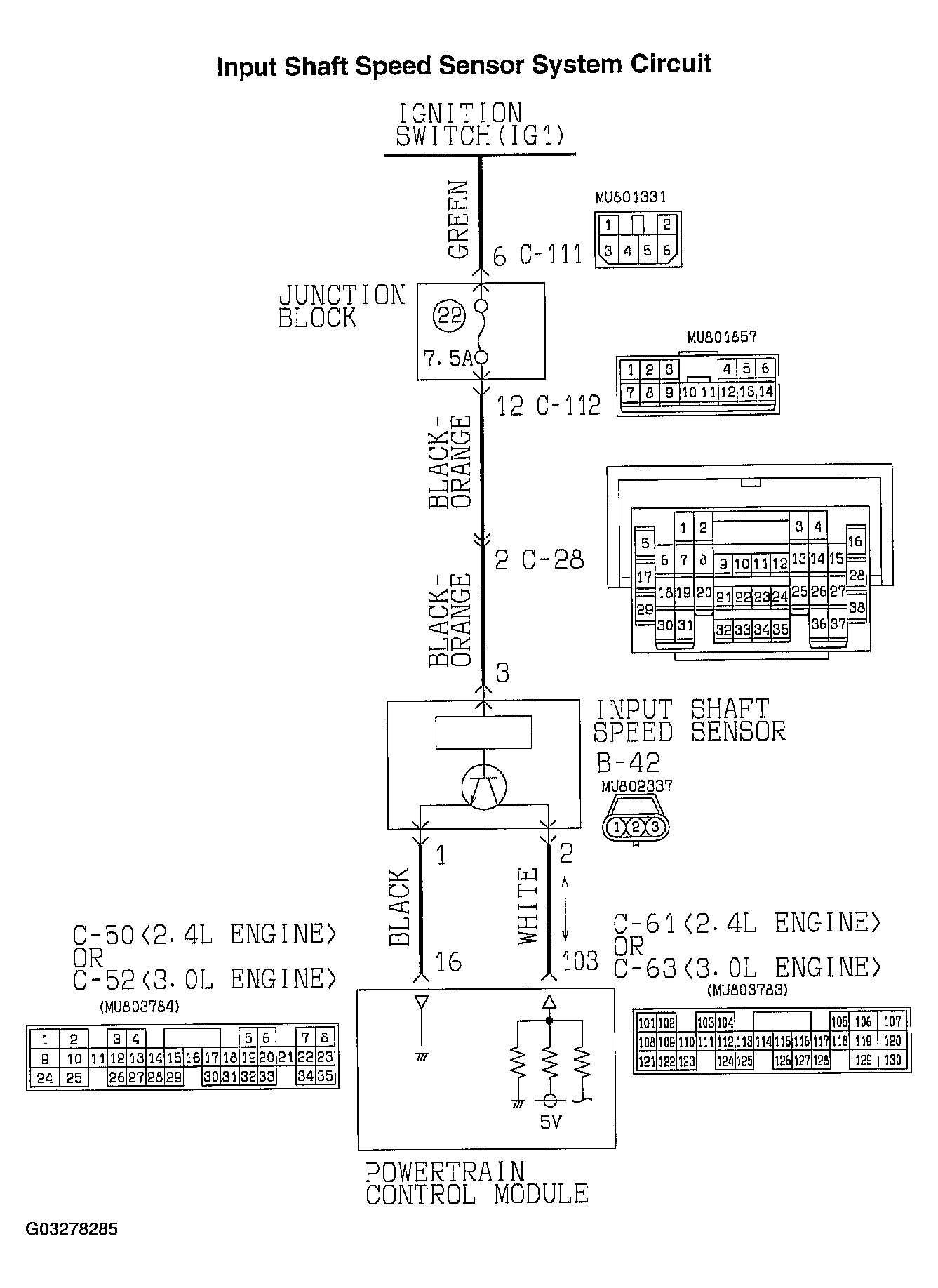

Fig 1: Input Shaft Speed Sensor System Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

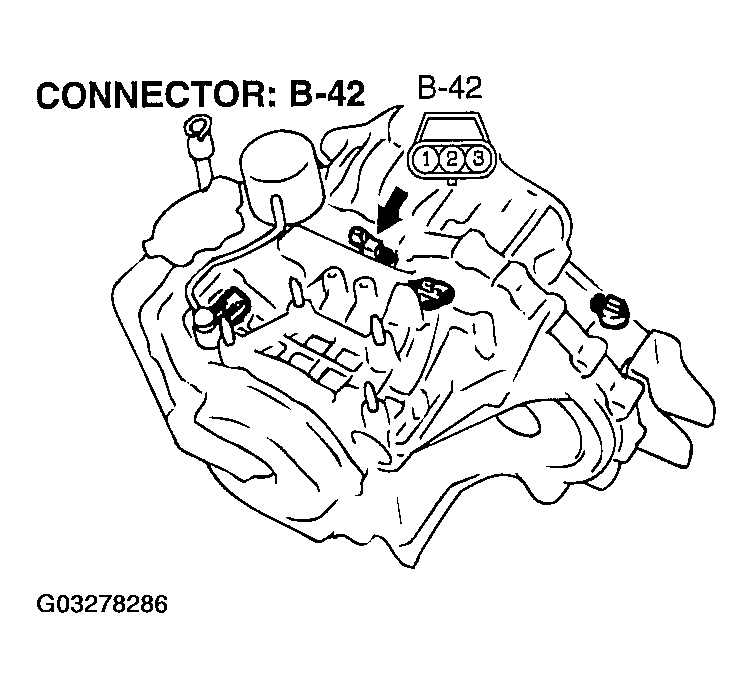

Fig 2: Identifying Connectors Of Input Shaft Speed Sensor System Circuit (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

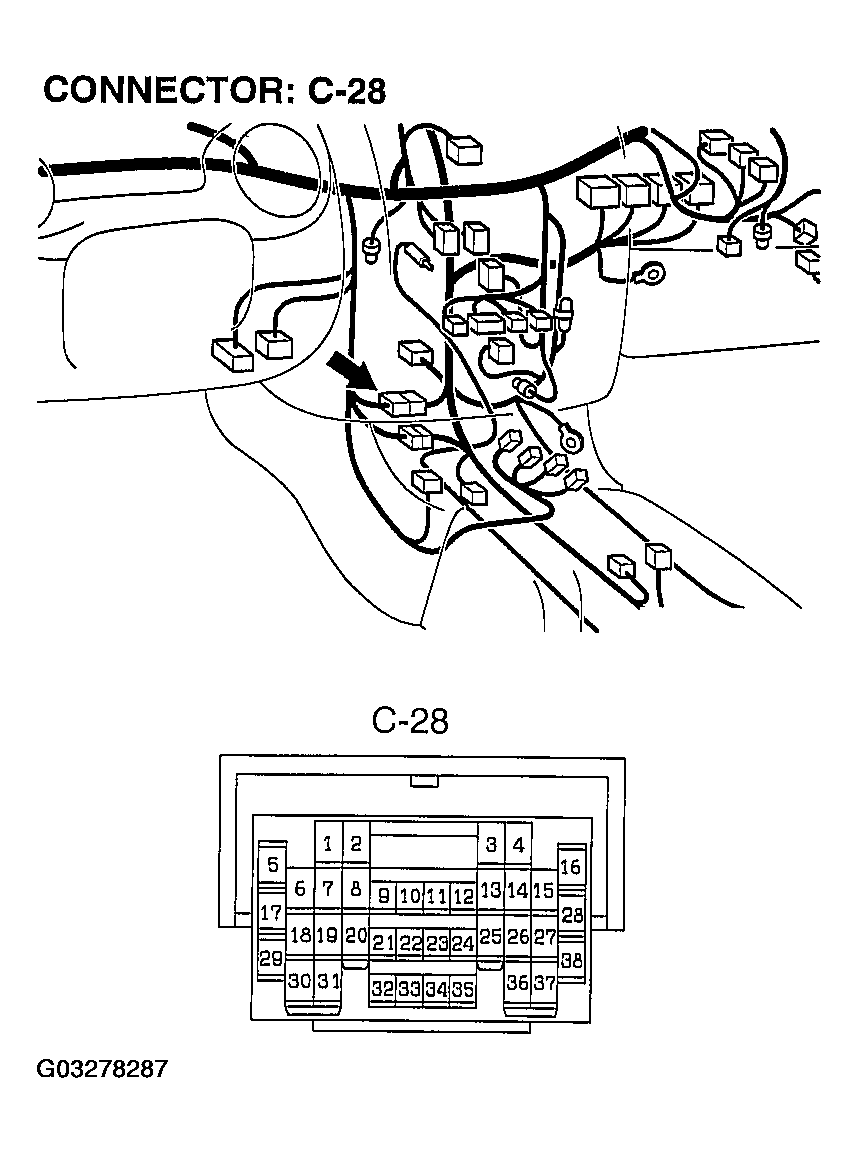

Fig 3: Identifying Connectors Of Input Shaft Speed Sensor System Circuit (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

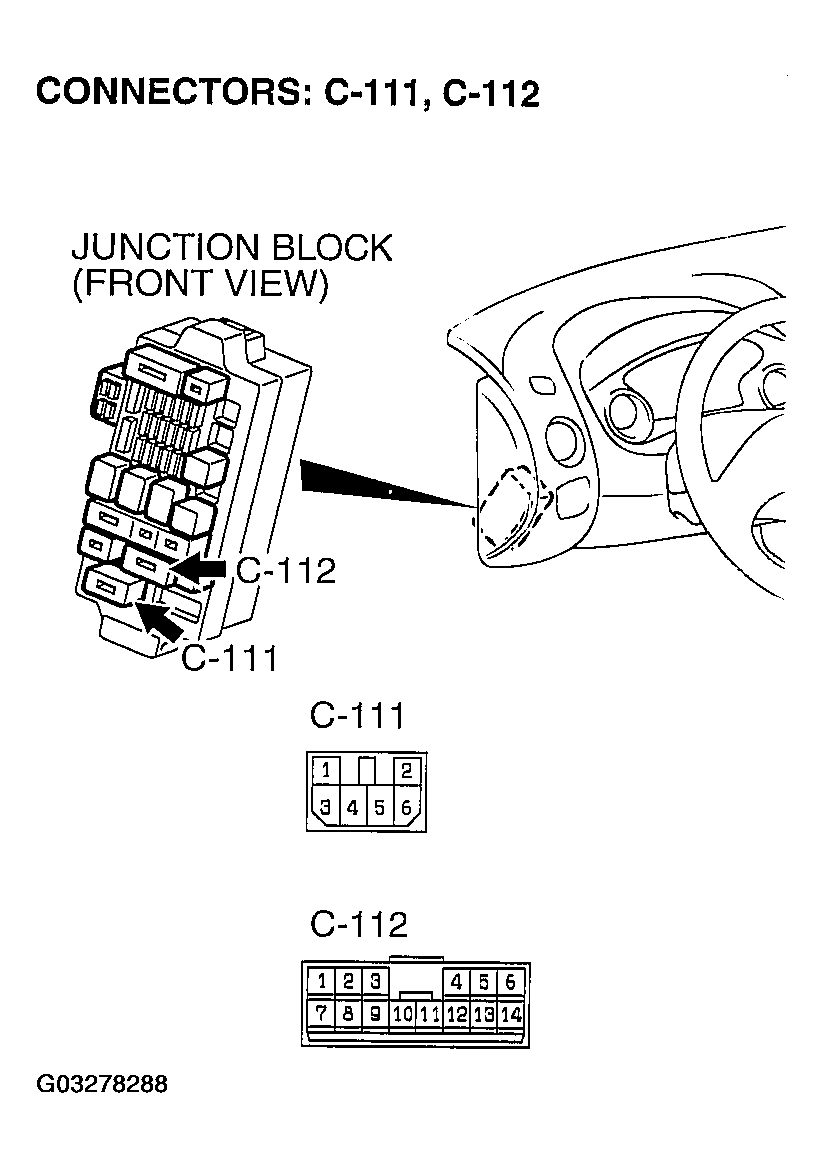

Fig 4: Identifying Connectors Of Input Shaft Speed Sensor System Circuit (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

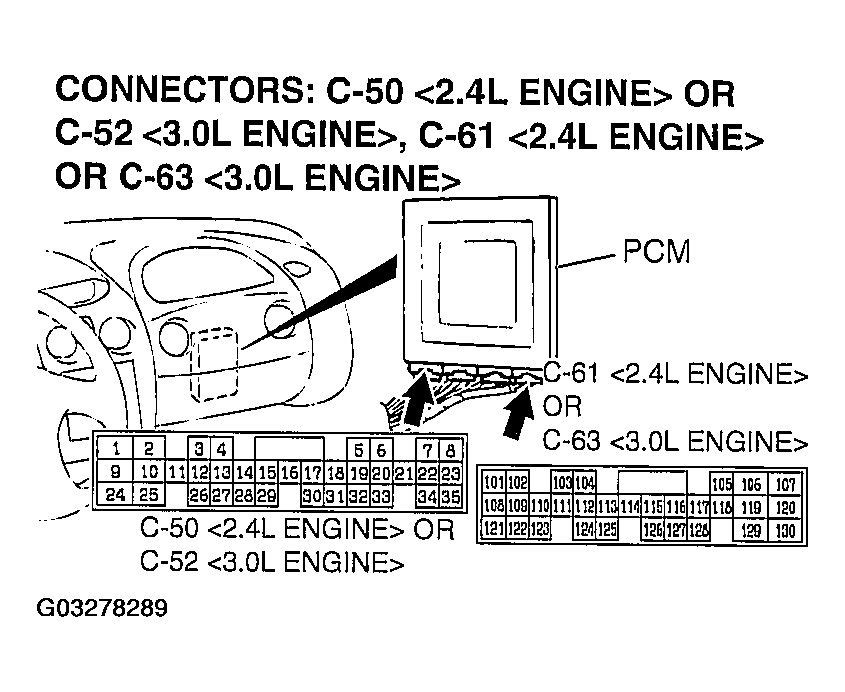

Fig 5: Identifying Connectors Of Input Shaft Speed Sensor System Circuit (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
