Transmission Range Switch System Circuit < Vehicles without Sport Mode>

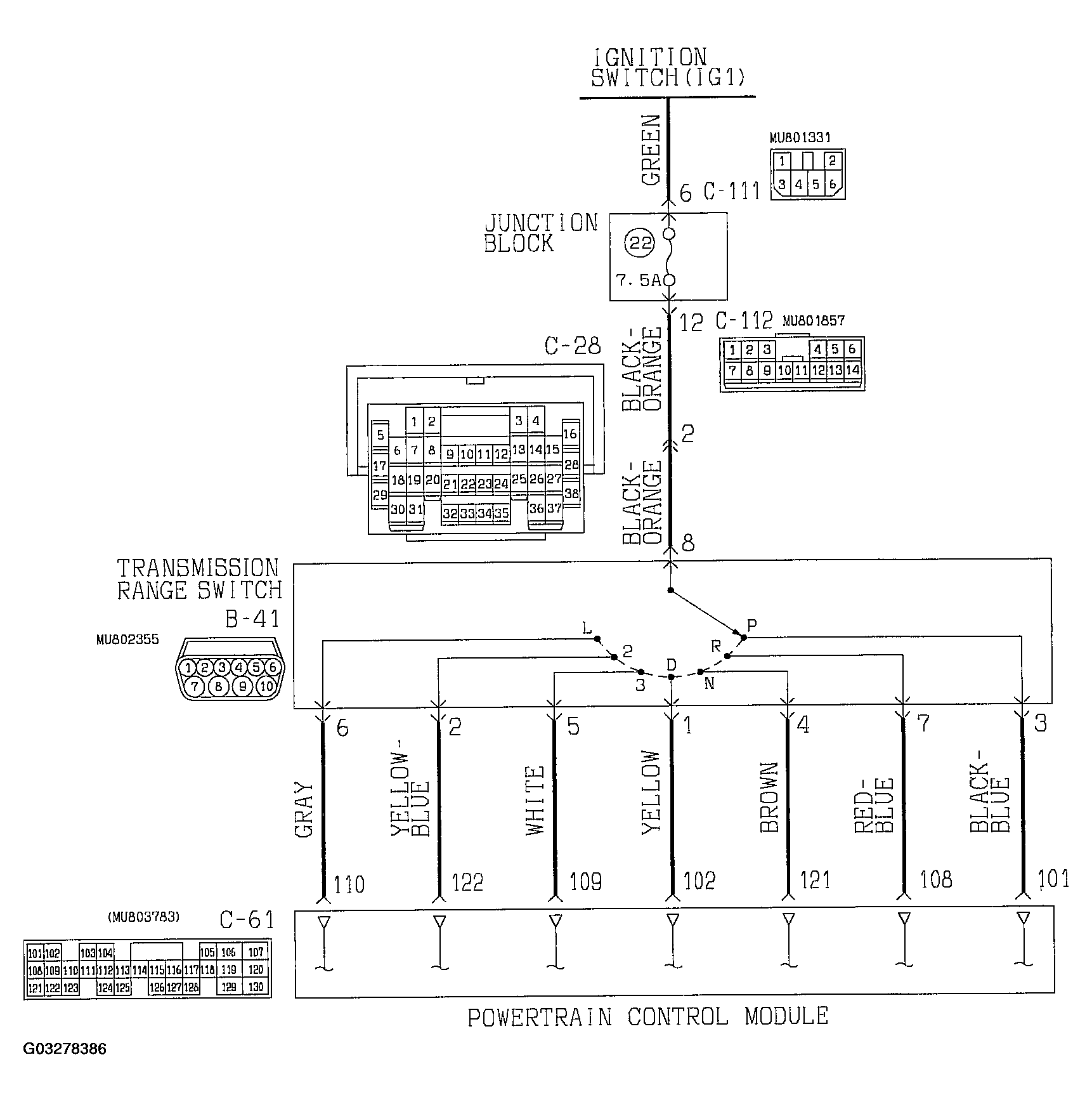

Fig 1: Transmission Range Switch System Circuit (Vehicles Without Sport Mode)
G03278386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
