LOGIC FLOW CHARTS (Monitor Sequence)

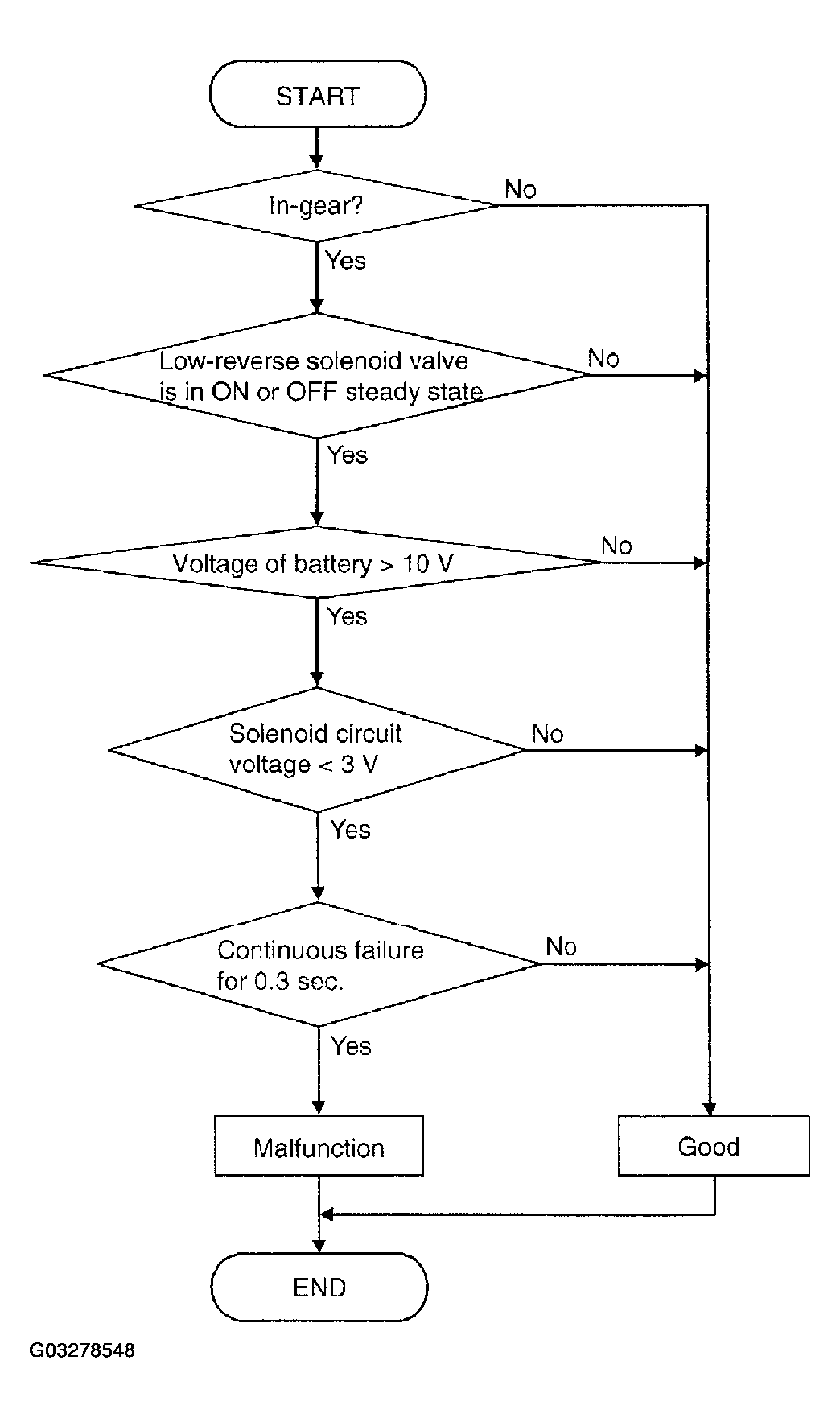

Fig 1: Logic Flow Charts (Monitor Sequence)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Sensor (The sensor below is determined to be normal)

• Torque converter clutch solenoid
• Underdrive solenoid
• Second solenoid
• Overdrive solenoid
• A/T control relay
