DTC 54 (P1751): A/T Control Relay System
>>
A/T Control Relay System Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/T Control Relay System Circuit

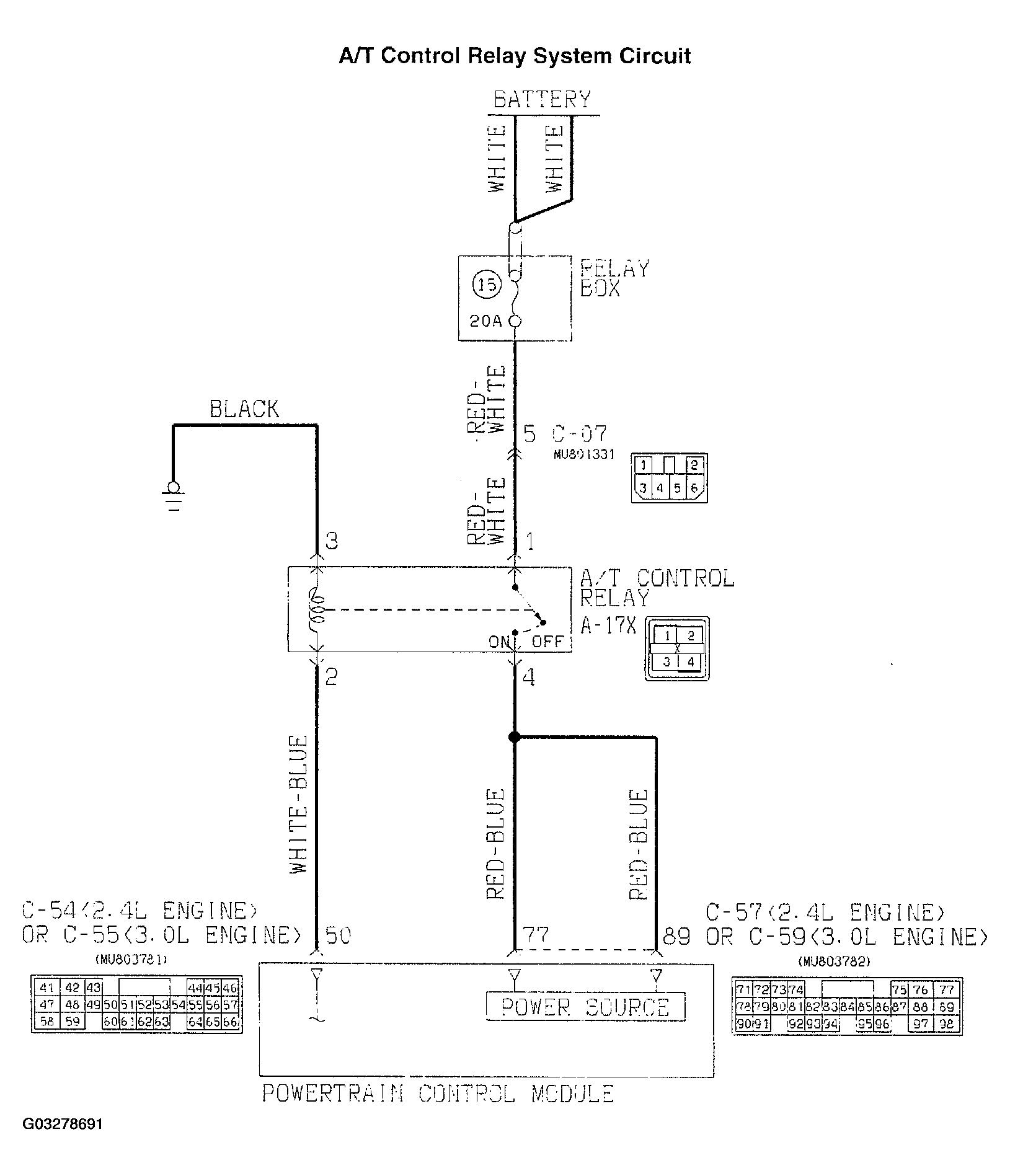

Fig 1: A/T Control Relay System Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

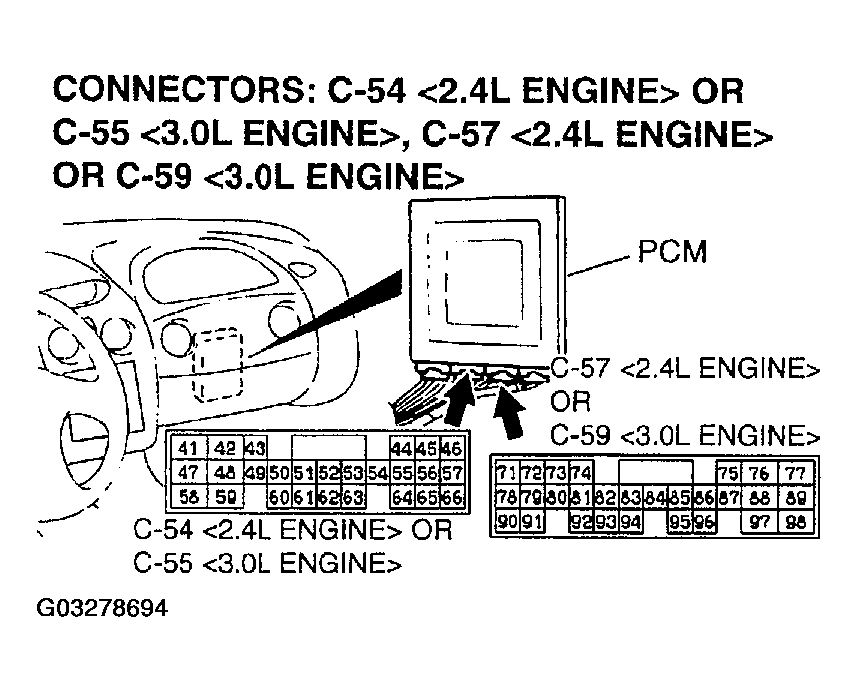

Fig 2: Identifying Connectors Of A/T Control Relay System Circuit (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

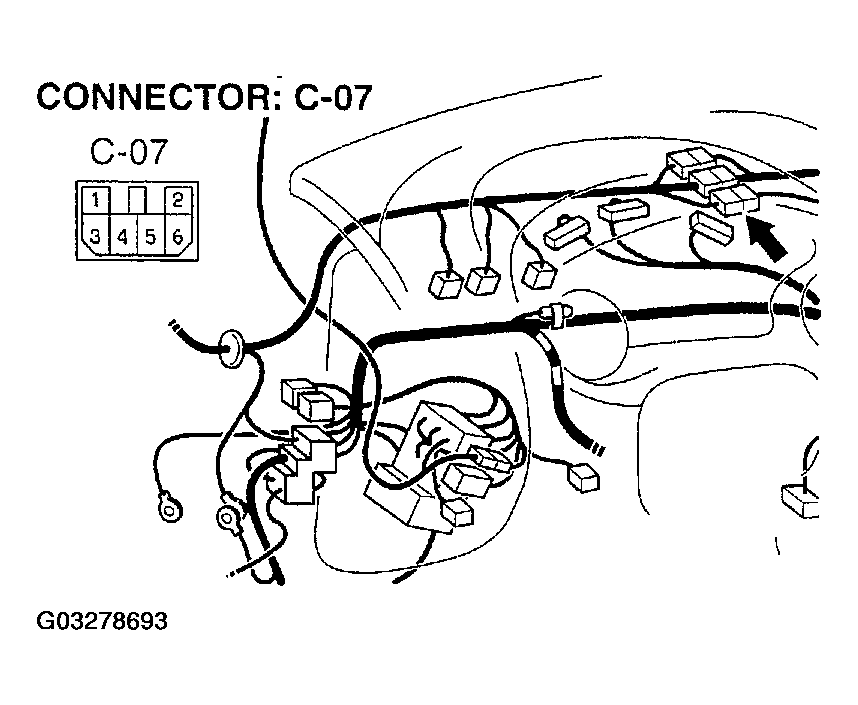

Fig 3: Identifying Connectors Of A/T Control Relay System Circuit (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Identifying Connectors Of A/T Control Relay System Circuit (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
