Auto-cruise Signal Line System Circuit

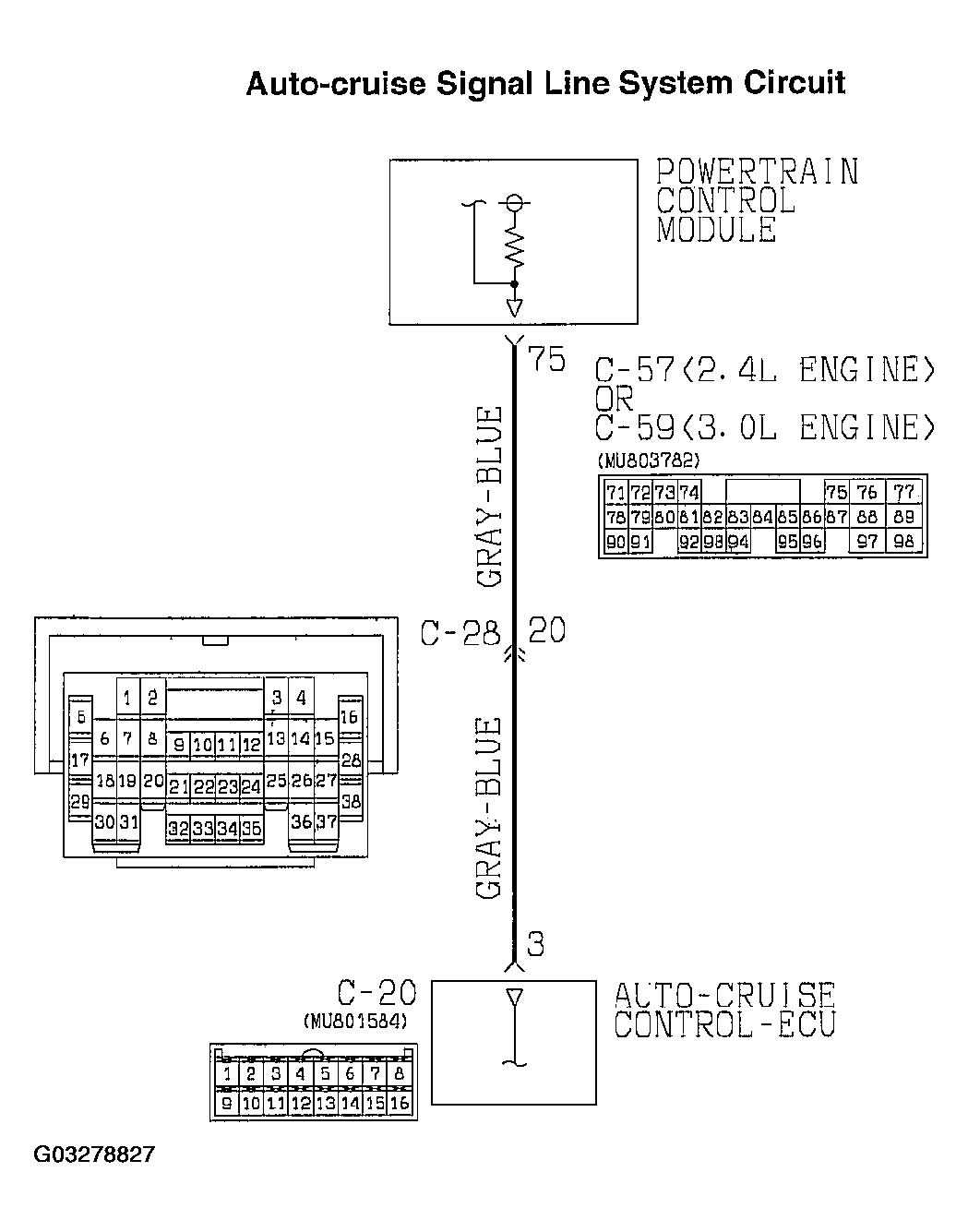

Fig 1: Auto-Cruise Signal Line System Circuit
G03278827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

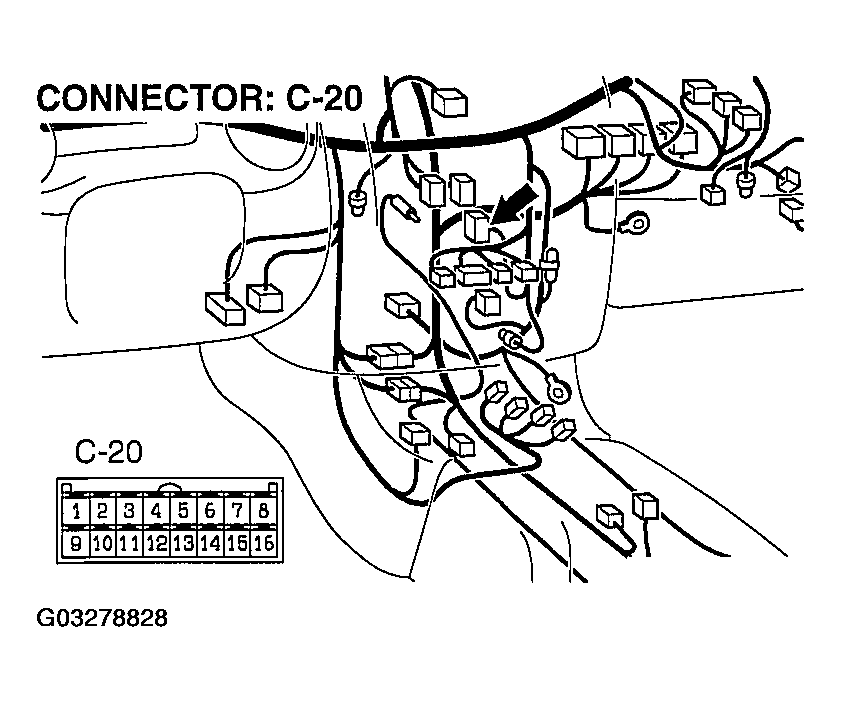

Fig 2: Identifying Connectors Of Auto-Cruise Signal Line System Circuit (1 Of 3)
G03278828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

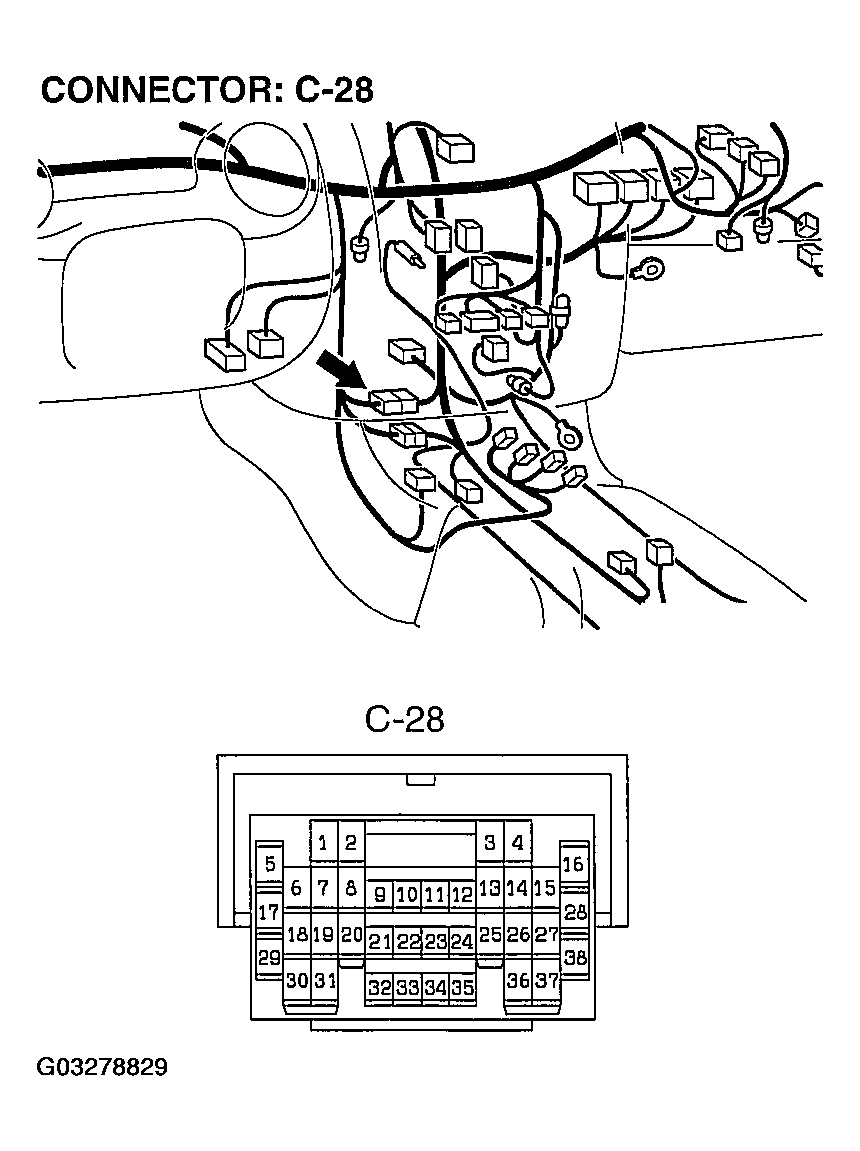

Fig 3: Identifying Connectors Of Auto-Cruise Signal Line System Circuit (2 Of 3)
G03278829Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

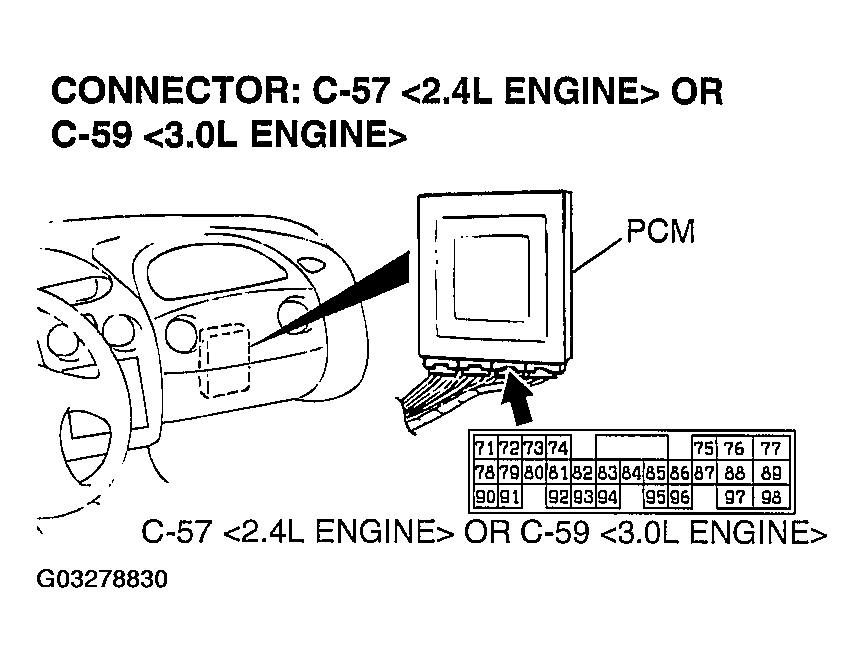

Fig 4: Identifying Connectors Of Auto-Cruise Signal Line System Circuit (3 Of 3)
G03278830Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
