< 3.0L Engine (Vehicles With Variable Induction System) > Upshift Pattern

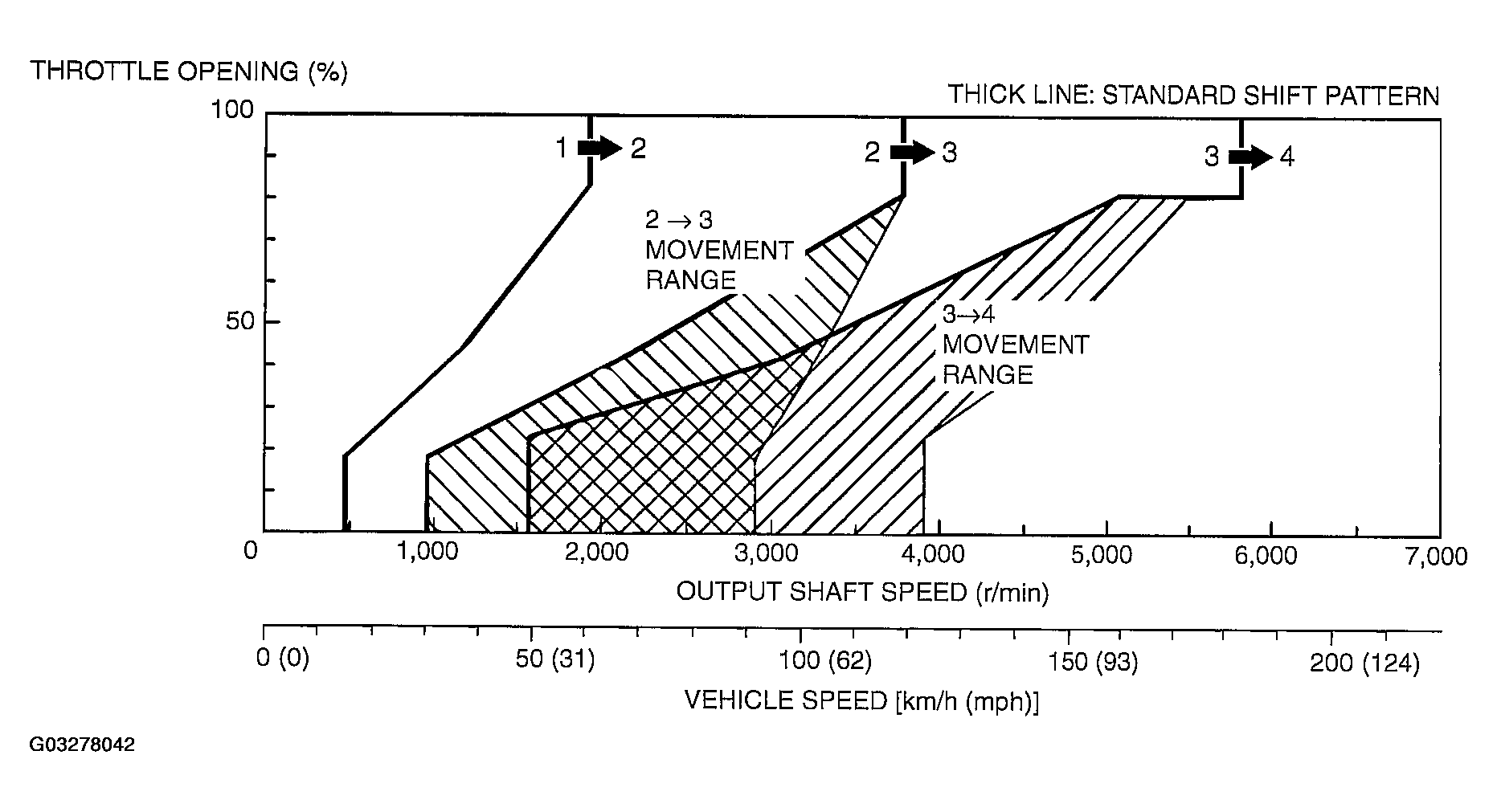

Fig 1: Shift Pattern Control - 3.0L Engine (Vehicles With Variable Induction System) Upshift Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
