A/T Control Relay Check

  1. Remove the A/T control relay.
  2. Use jumper wires to connect the A/T control relay terminal 2 to the positive battery terminal and terminal 3 to the negative battery terminal.

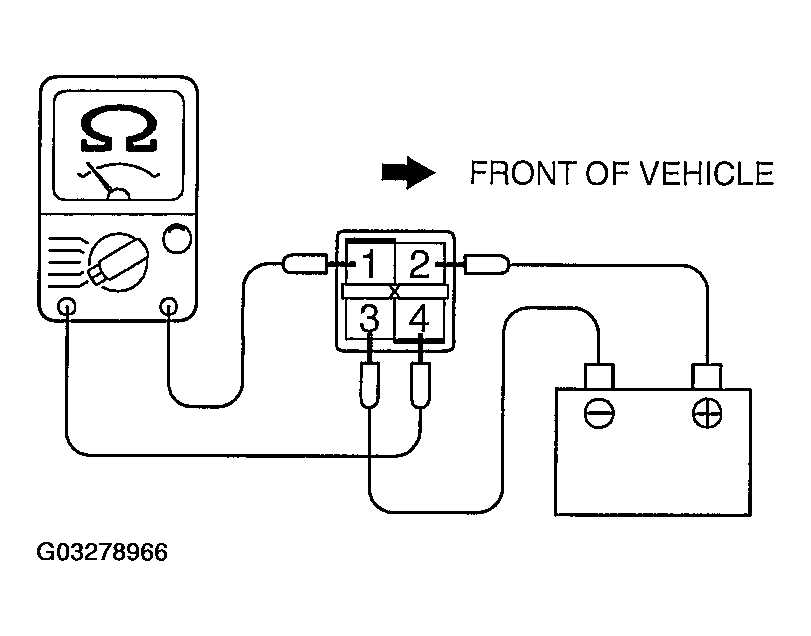

    Fig 1: Checking A/T Control Relay
    G03278966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check the continuity between terminal 1 and terminal 4 of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

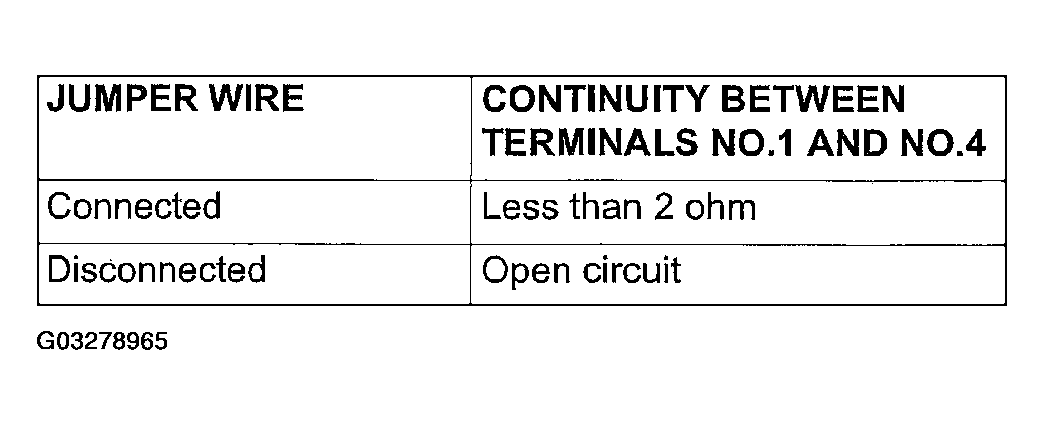

    Fig 2: A/T Control Relay Resistance Chart
    G03278965Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is any problem with the A/T control relay, replace it.
