Transmission Fluid Temperature Sensor Check

  1. Remove the transmission fluid temperature sensor.

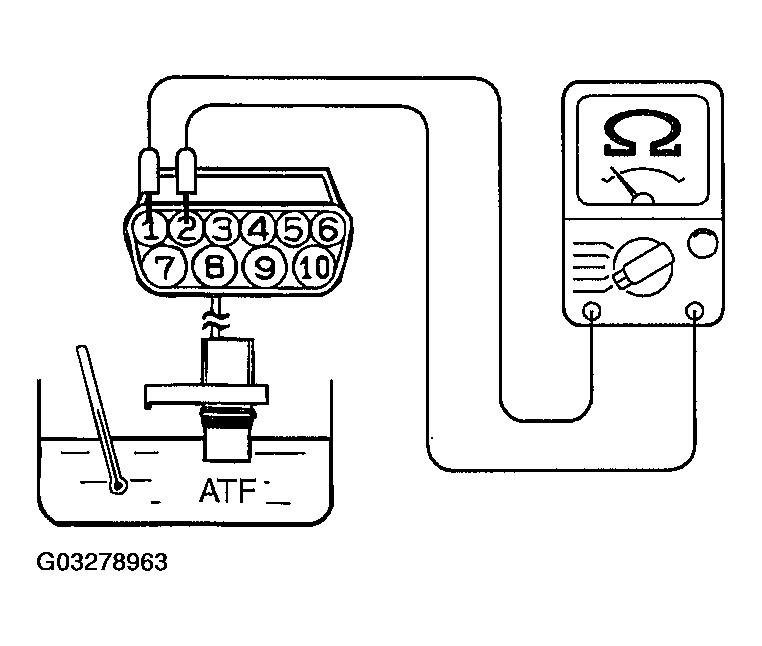

    2. Fig 1: Checking Resistance Of Transmission Fluid Temperature Sensor
    G03278963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

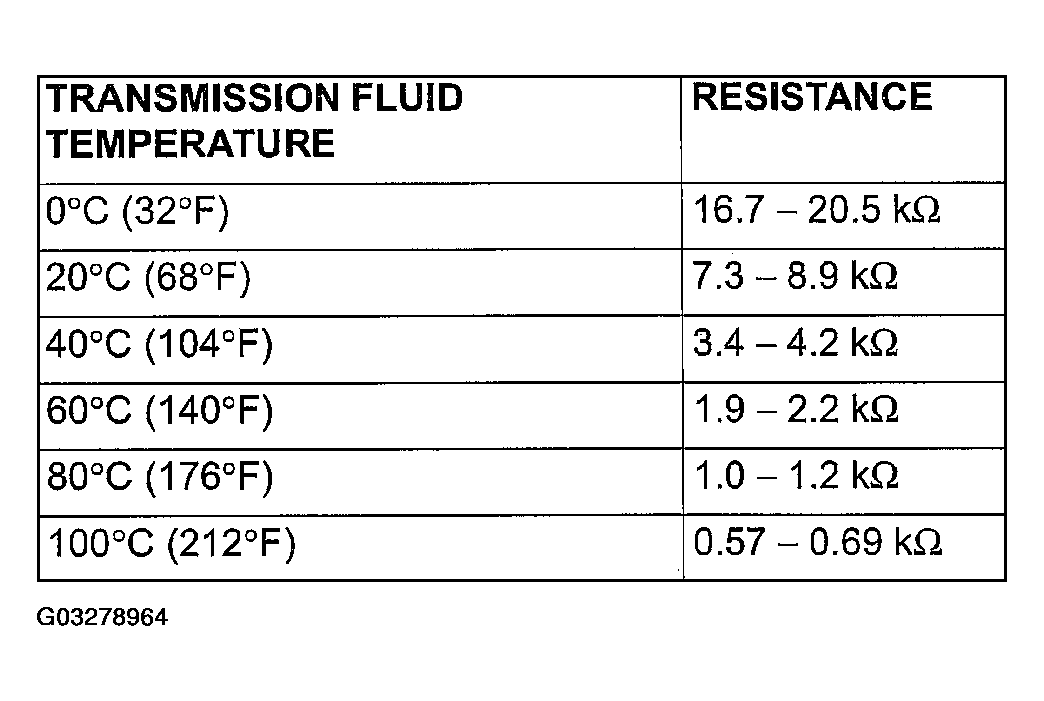

    Fig 2: Transmission Fluid Temperature Resistance Chart
    G03278964Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the transmission fluid temperature sensor resistance is outside the specified range and the "N" range indicator light is flashing, replace the transmission fluid temperature sensor.
    NOTE: The "N" range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or greater, and then stops flashing when the temperature drops below approximately 115°C (238°F).
