<< G>> Engine Assembly Support

< Engine lifter MZ2073827 is used>

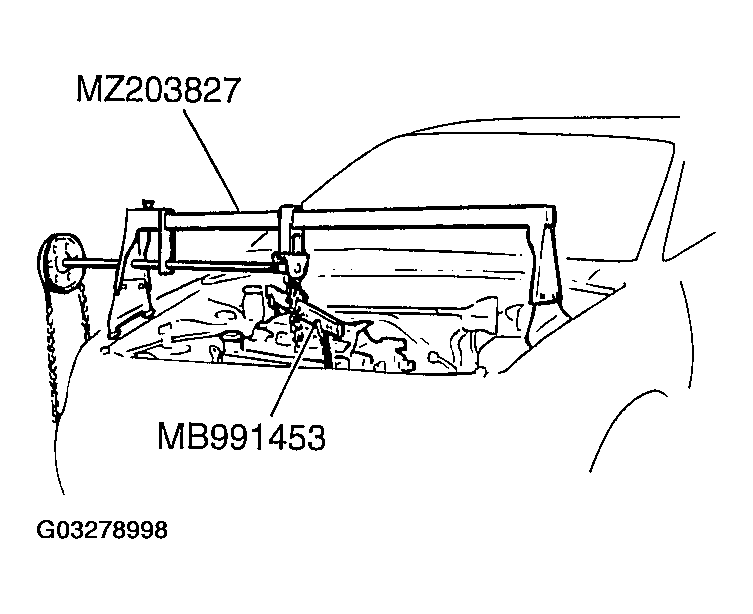

Fig 1: Supporting Engine Assembly With Special Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Set special tool MB991453 and MZ203827 to the vehicle to support the engine assembly.
< Engine hanger MB991895 is used>

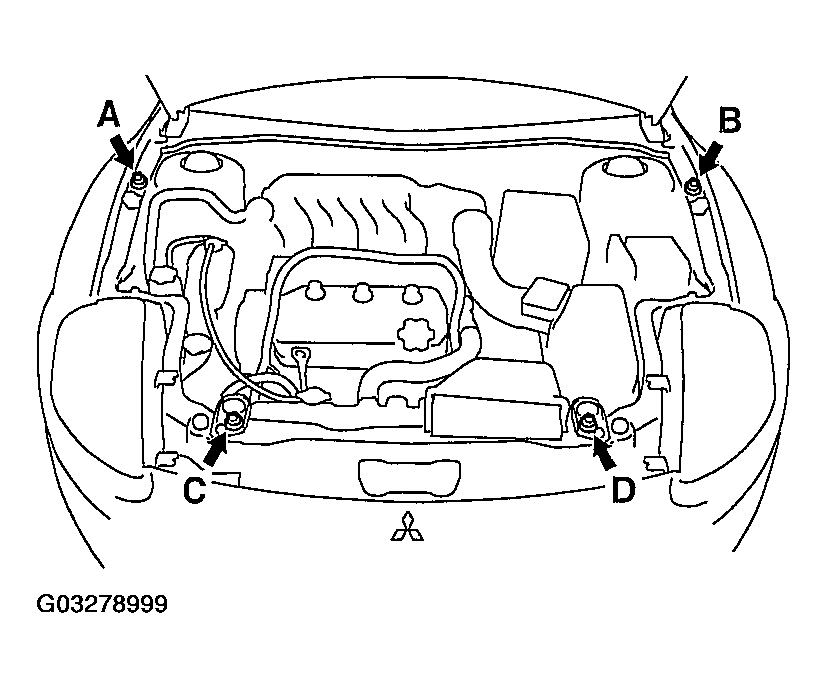

Fig 2: Identifying Location Of Front Fender Mounting Bolts And Radiator Support Upper Insulator Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.

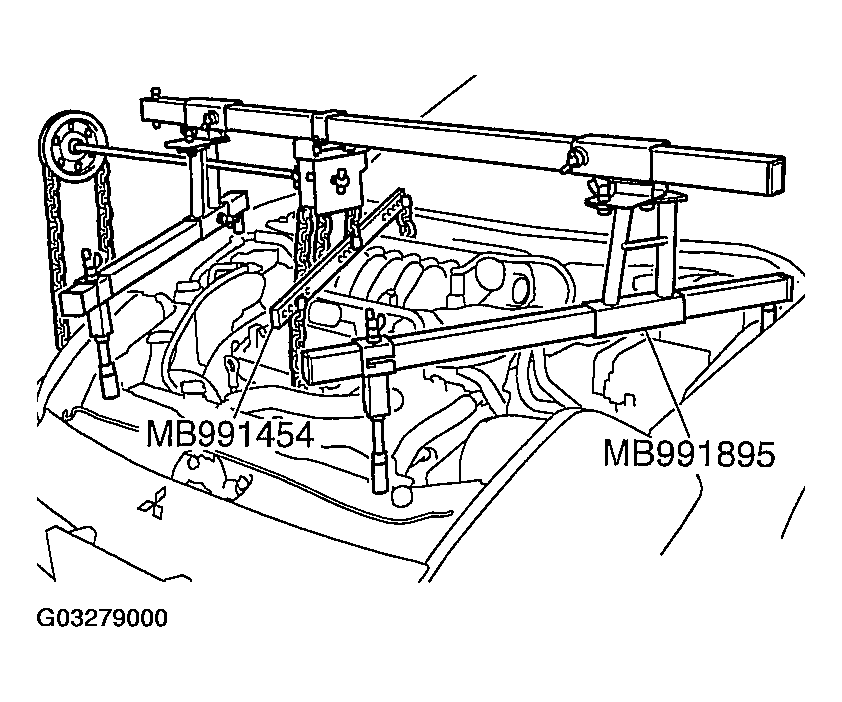

2. Set special tool MB991454 to hold the engine/transaxle assembly.

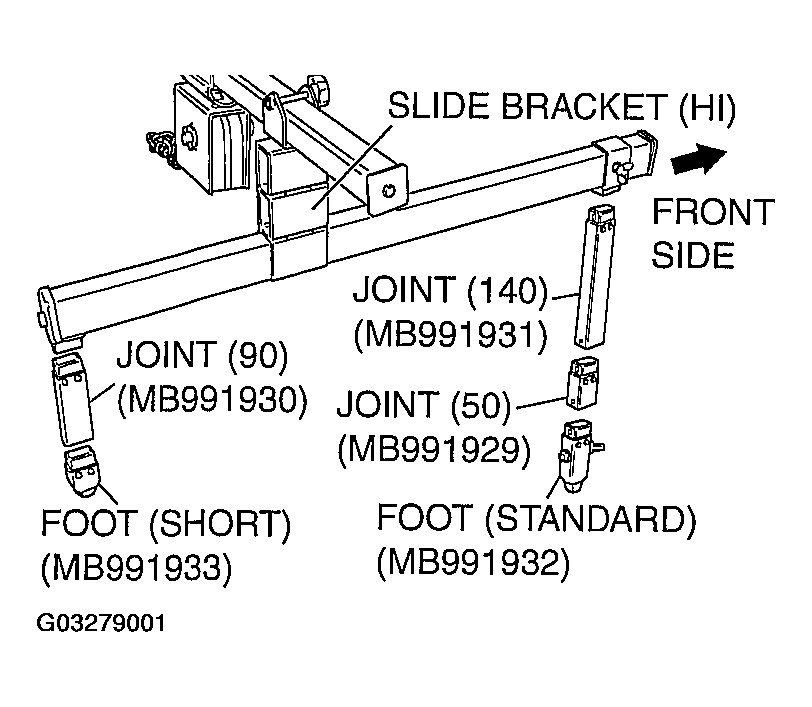

Fig 4: Assembling Engine Hanger

G03279001

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< Engine hanger MB991928 is used>
1. Assemble the engine hanger (special tool MB991928). Set following parts to the base hanger.
  - Slide bracket (HI)
  - Foot (standard) (MB991932)
  - Foot (short) (MB991933)
  - Joint (50) (MB991929)
  - Joint (90) (MB991930)
  - Joint (140) (MB991931)

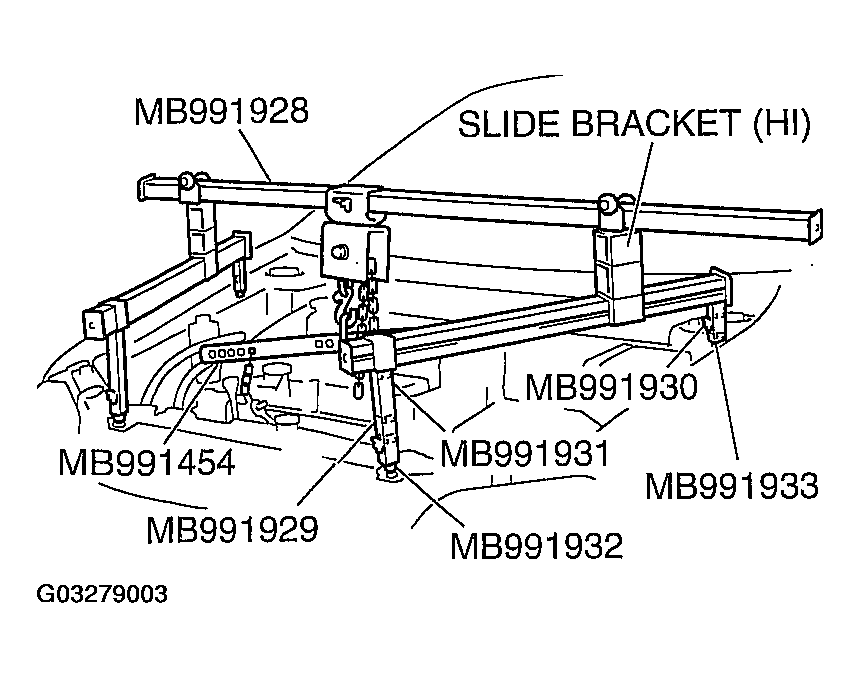

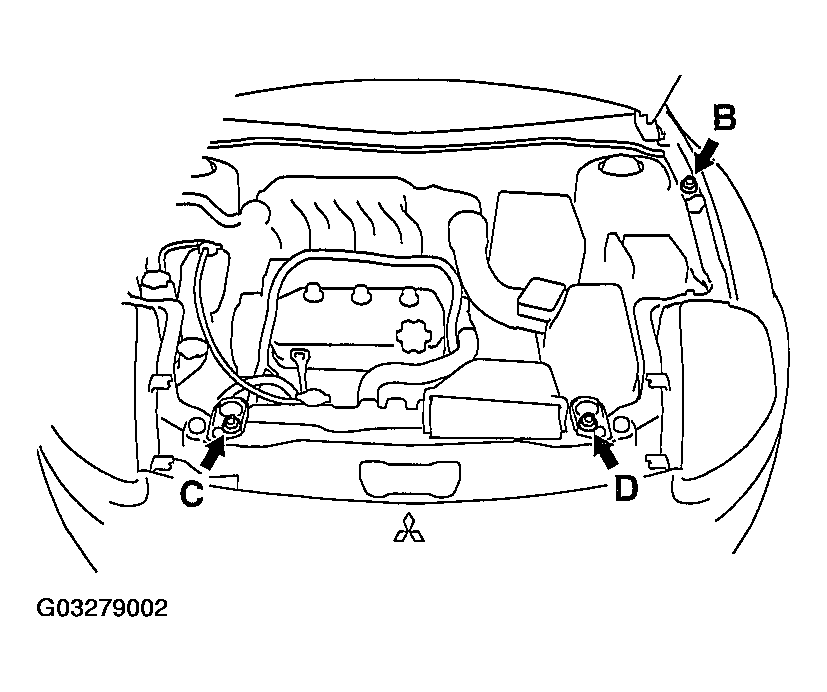

2. Set the engine hanger (special tool MB991928) to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
3. Set special tools MB991454 to hold the engine/transaxle assembly.
