>>C<< Transfer Driven Gear Installation

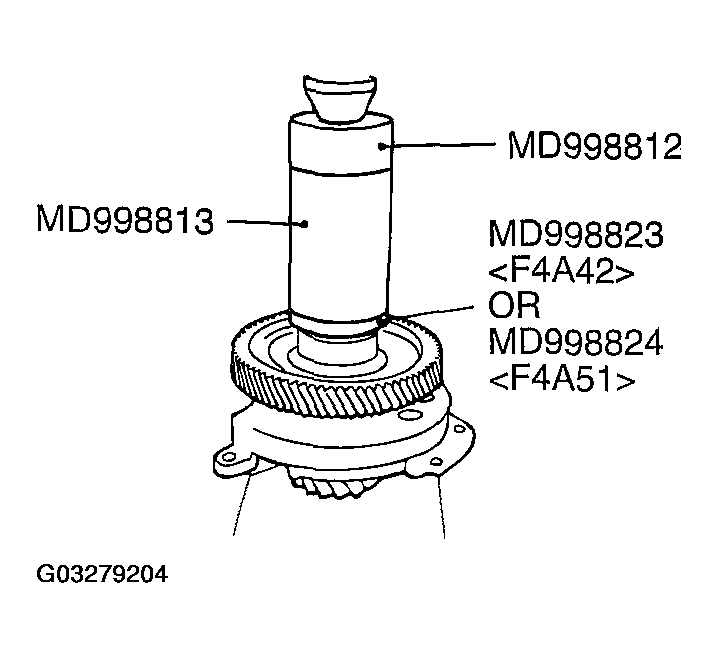

Fig 1: Installing Transfer Driven Gear
G03279204Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Set the output shaft on the press support stand.
  2. Using special tools MD998823 < F4A42>, MD998824 < F4A51>, MD998812 and MD998813, press install the transfer driven gear.
