Data List Reference Table

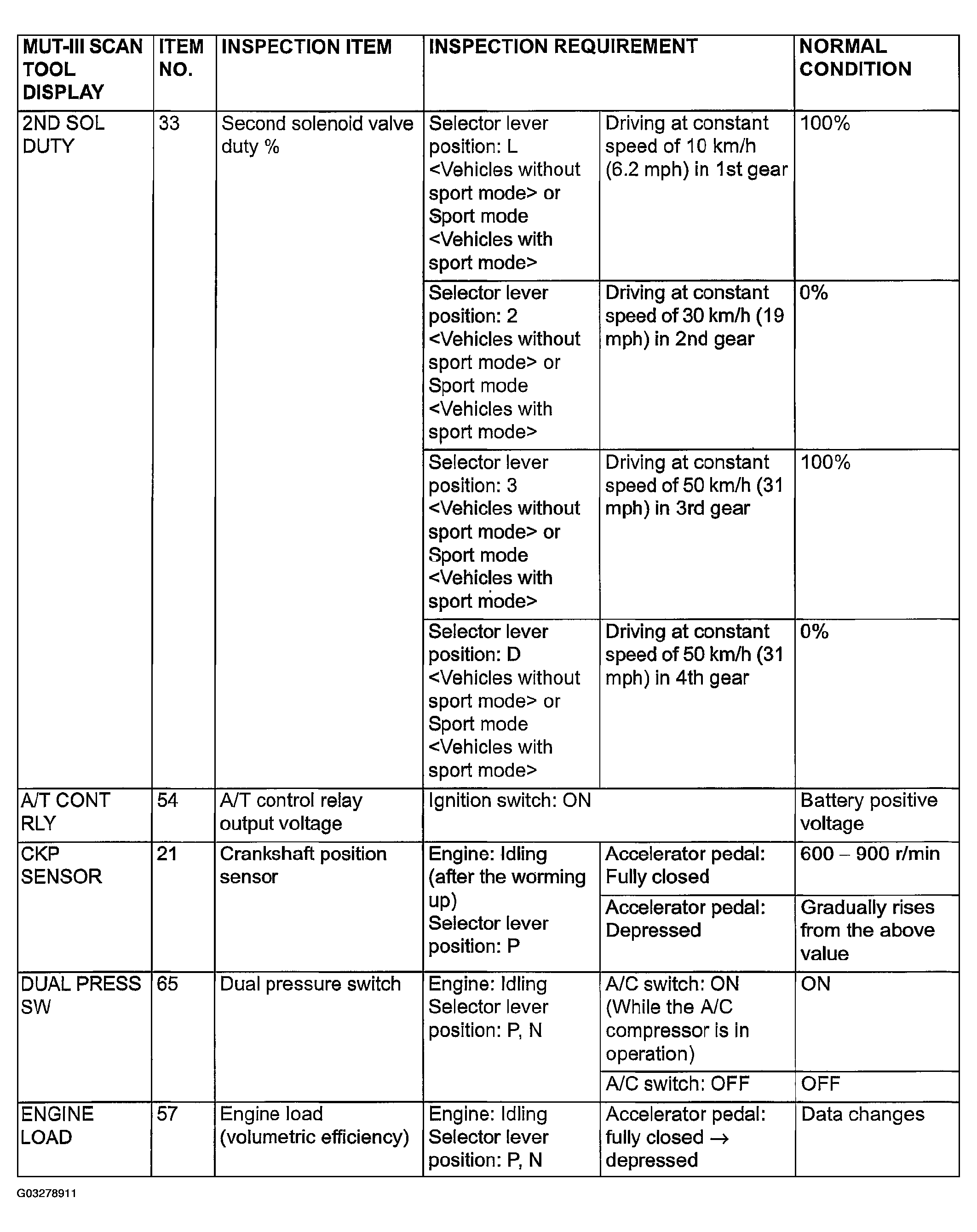

Fig 1: Data List Reference Chart (1 Of 7)

G03278911

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

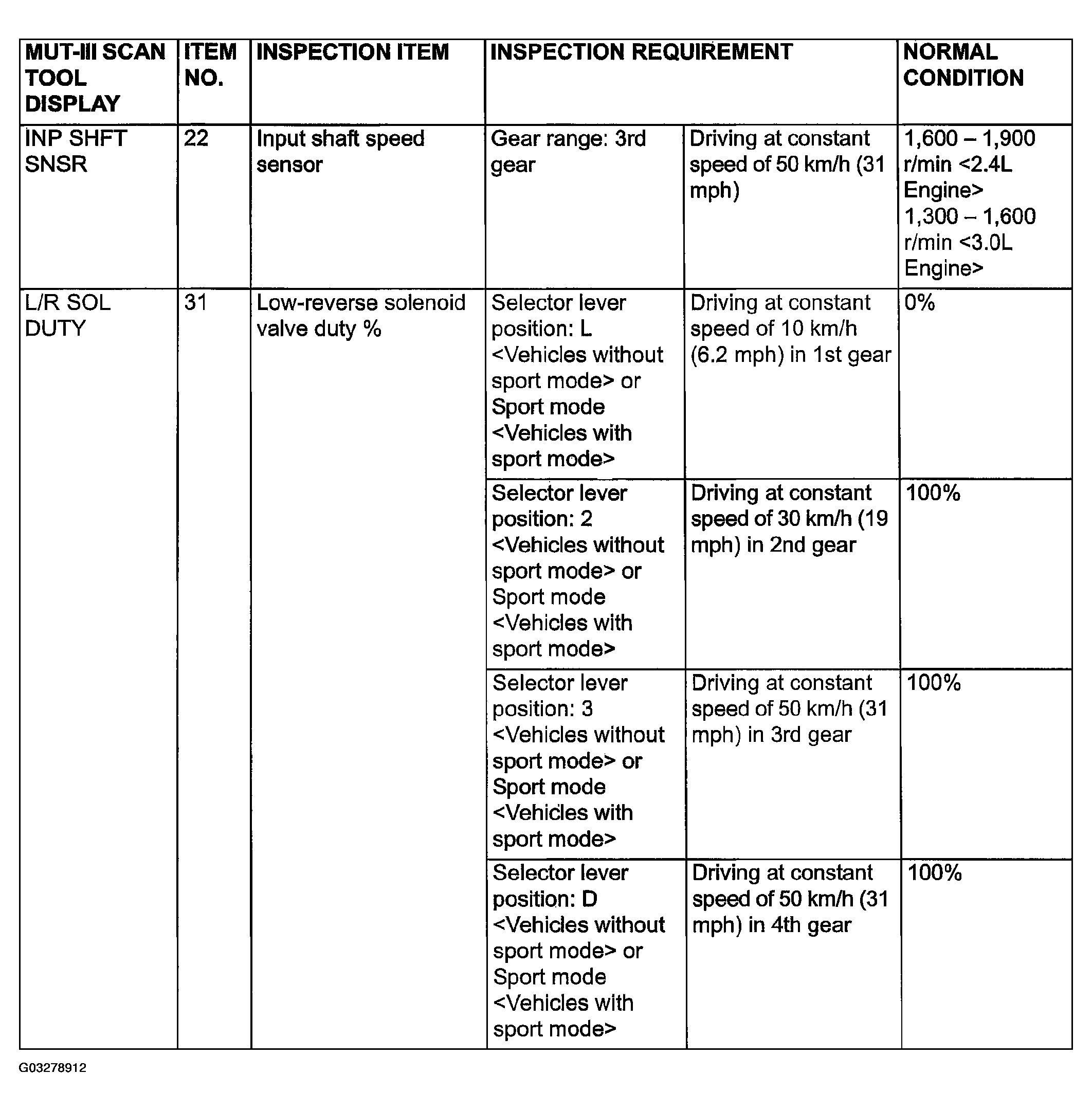

Fig 2: Data List Reference Chart (2 Of 7)

G03278912

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

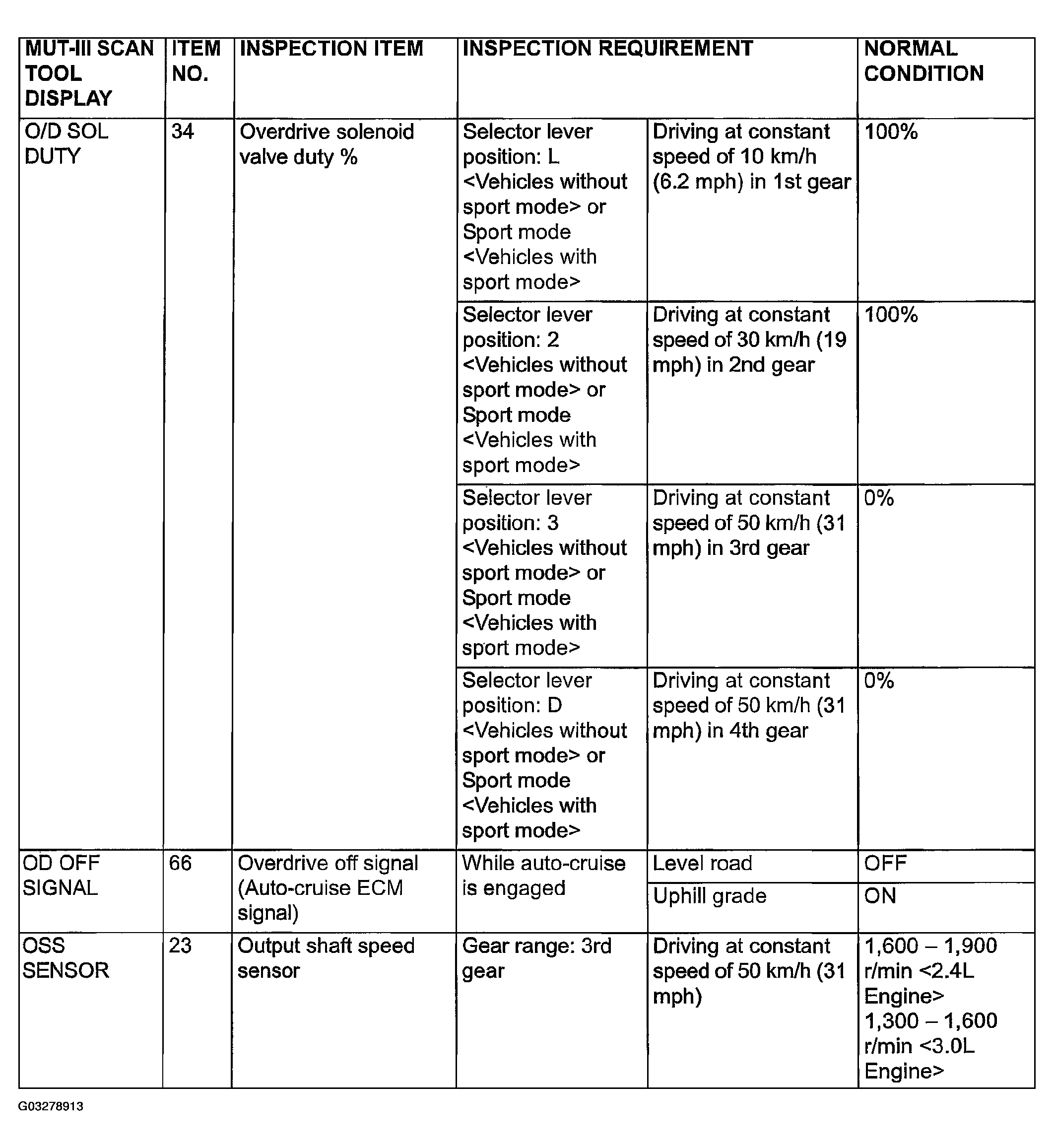

Fig 3: Data List Reference Chart (3 Of 7)

G03278913

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

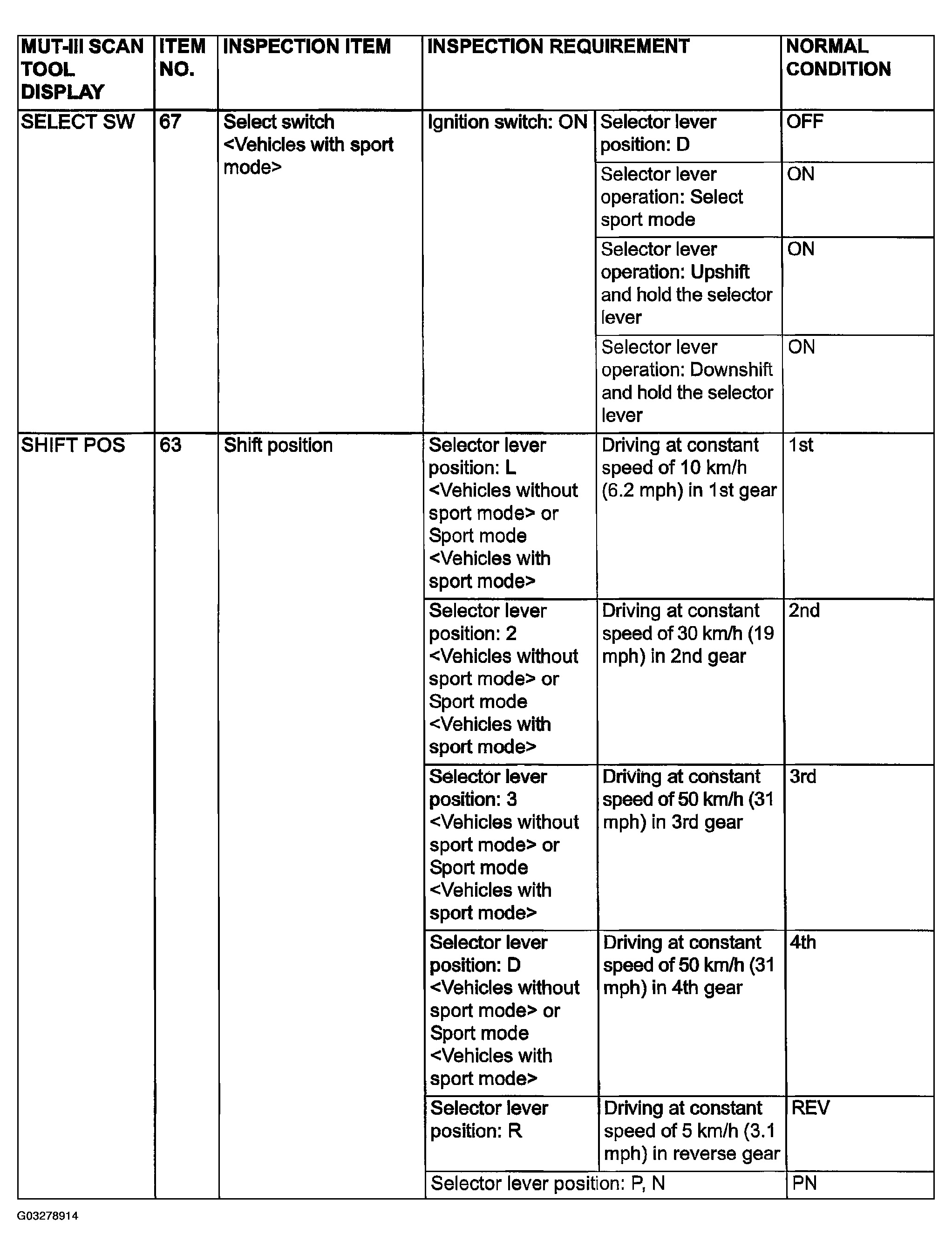

Fig 4: Data List Reference Chart (4 Of 7)

G03278914

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

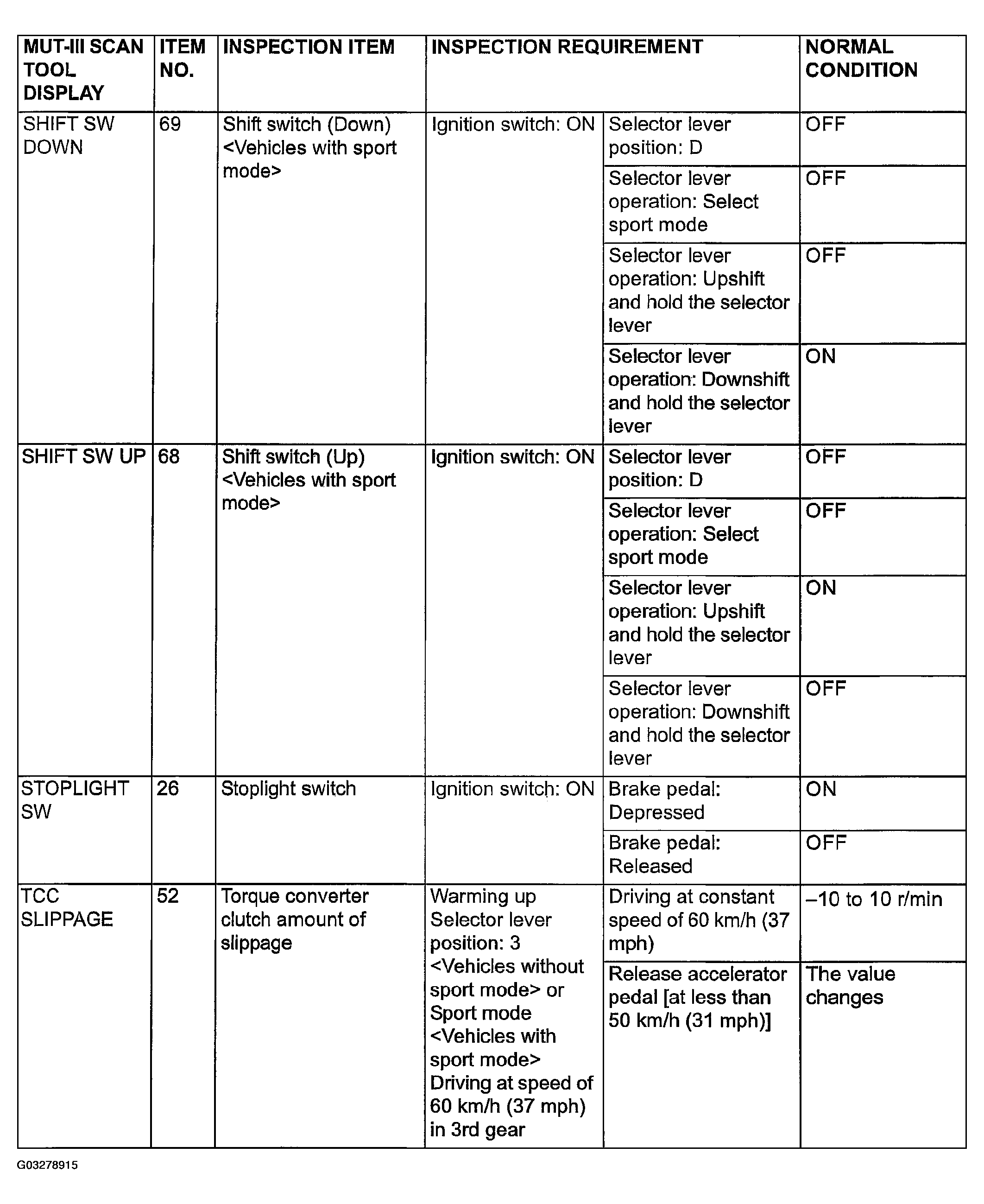

Fig 5: Data List Reference Chart (5 Of 7)

G03278915

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

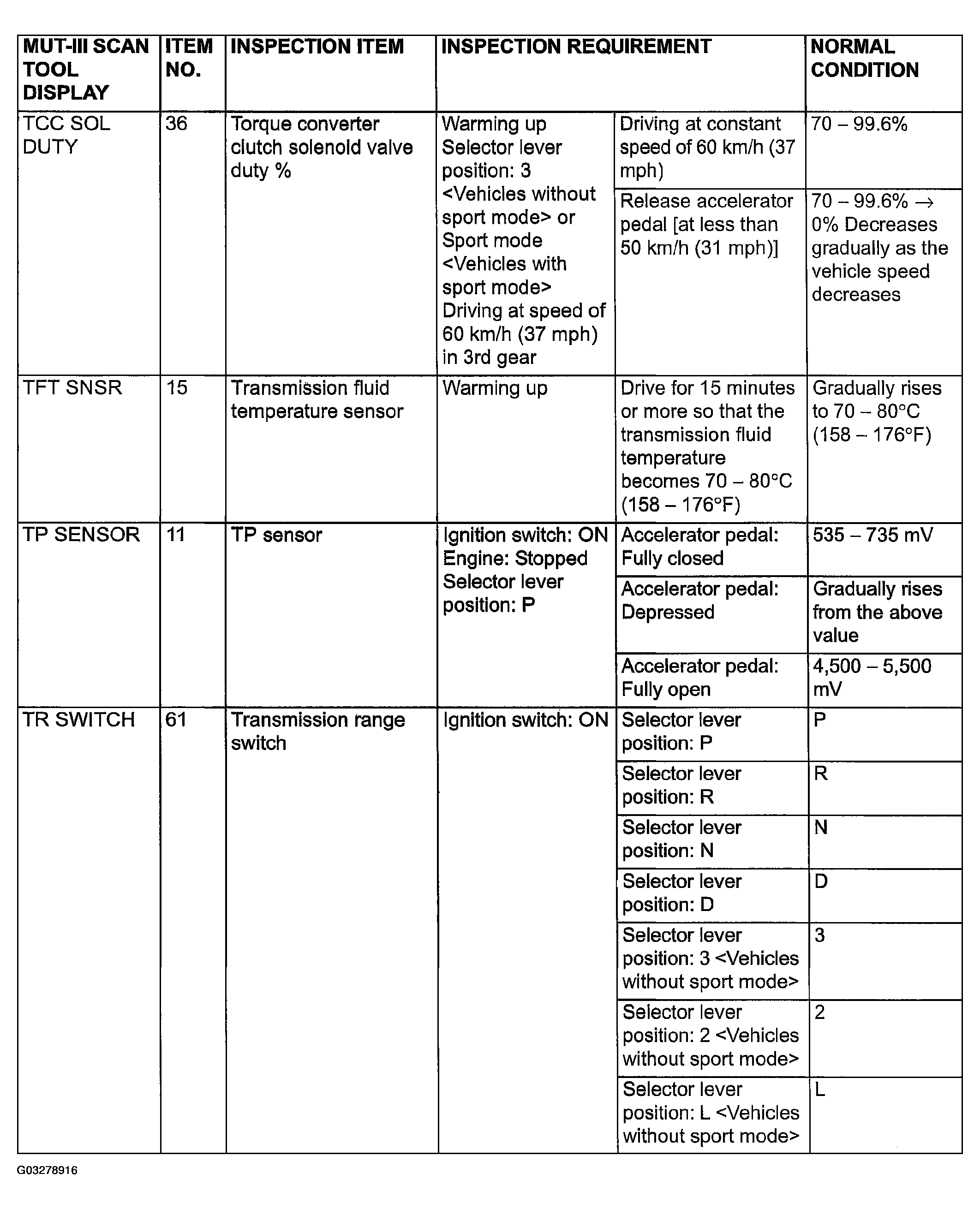

Fig 6: Data List Reference Chart (6 Of 7)

G03278916

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

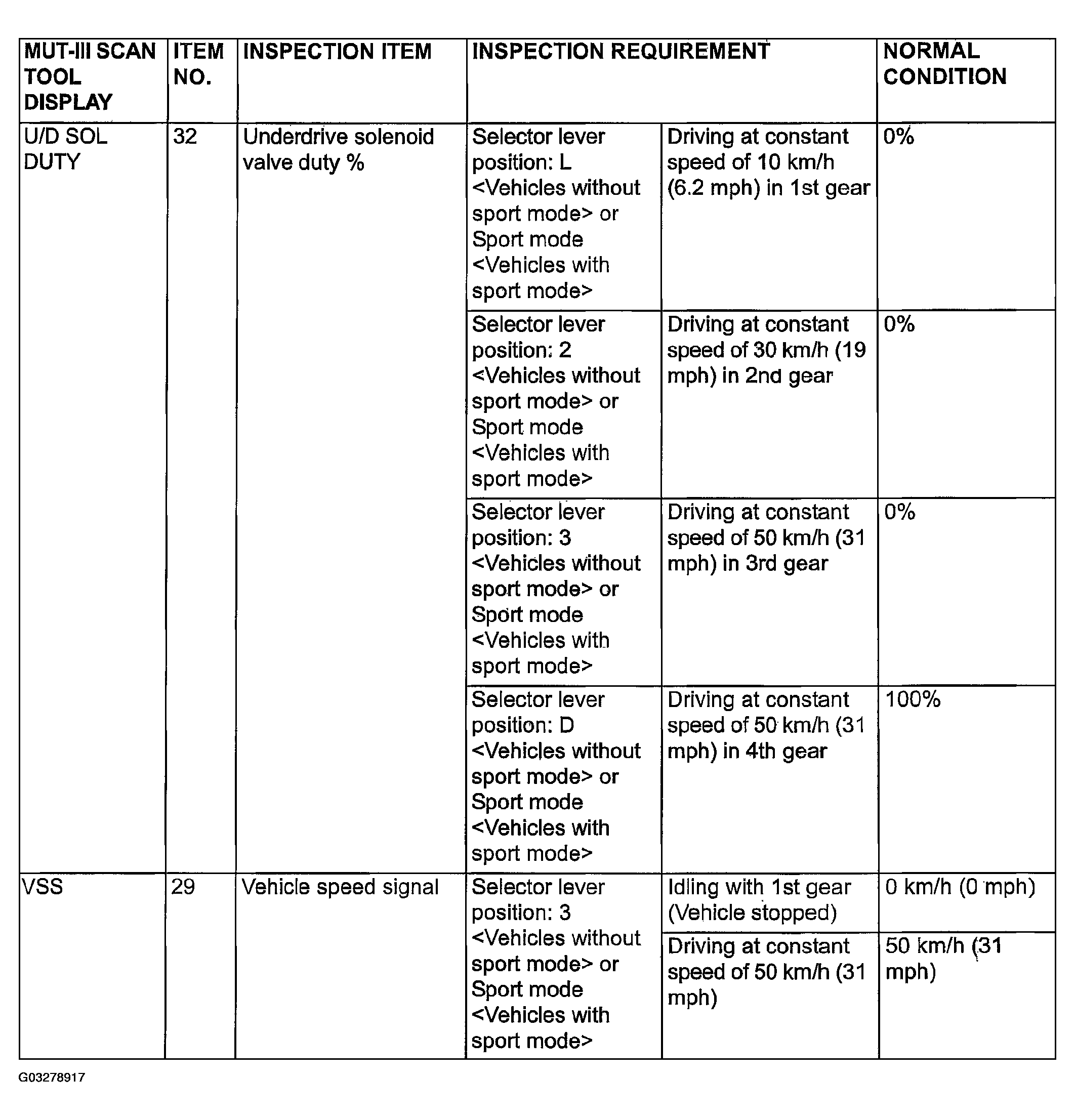

Fig 7: Data List Reference Chart (7 Of 7)

G03278917

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
