Transaxle Control: Inspection

Check the cable assembly for function and for damage.

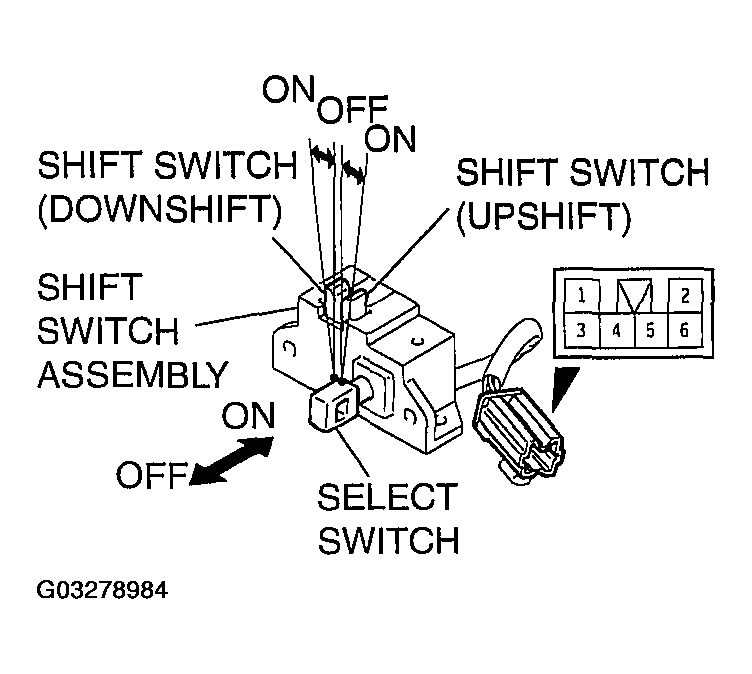

Fig 1: Identifying Shift Switch Positions And Terminals
G03278984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

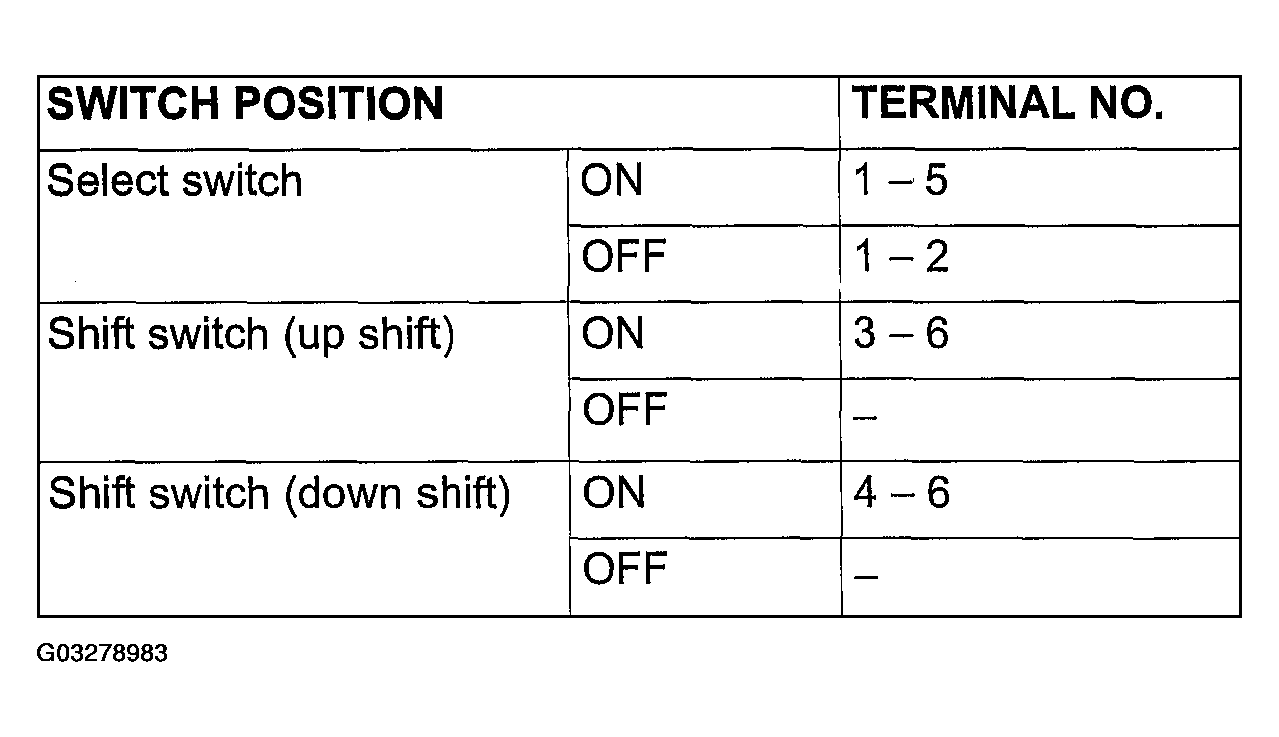

Fig 2: Shift Switch Assembly Continuity Chart
G03278983Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
