Interior Light Loaded Signal Input Circuit

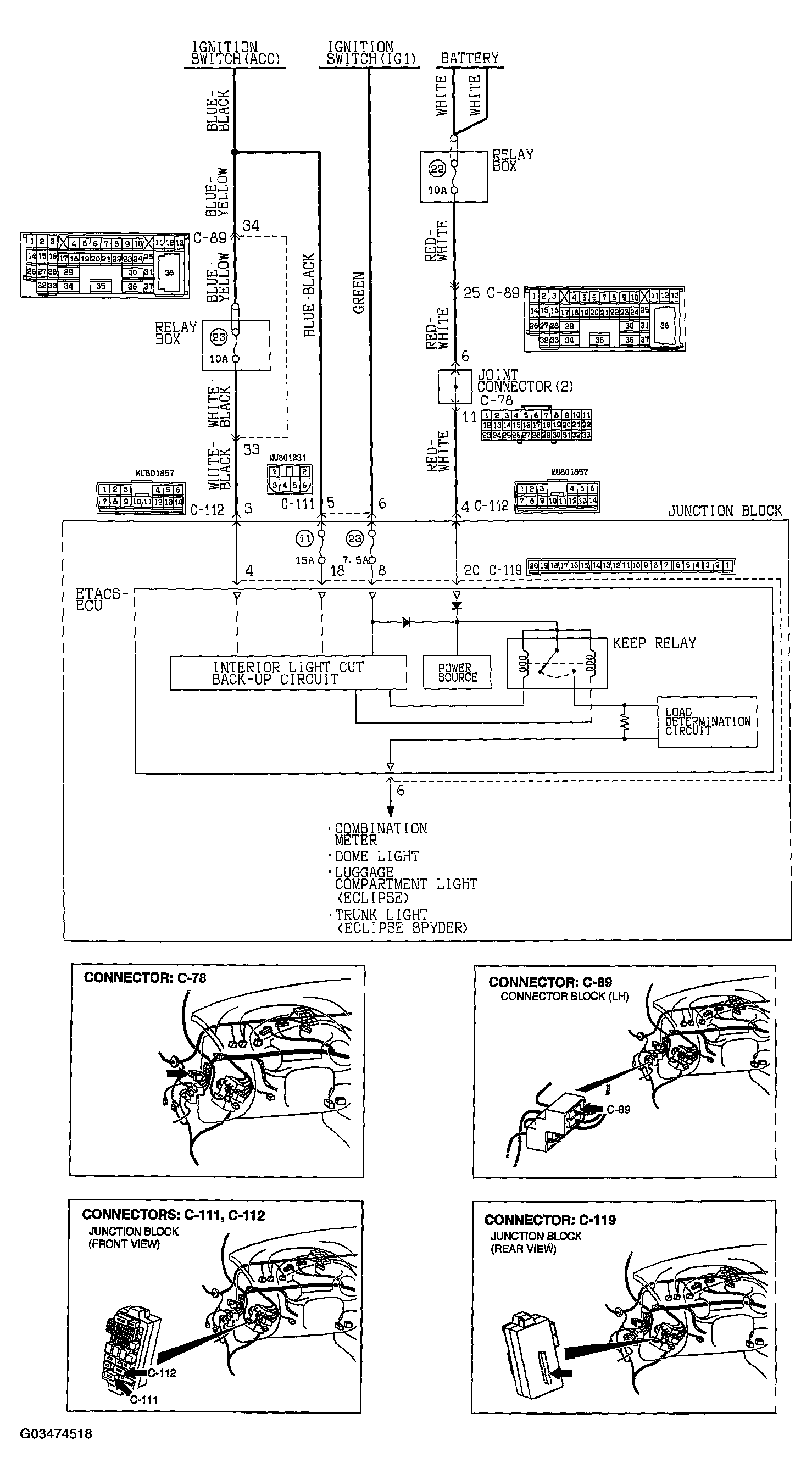

Fig 1: View Of Interior Light Loaded Signal Input Circuit Diagram And Connector
G03474518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
