Operating The Driver's Power Window Auto Down Function

When the driver's power window switch on the power window main switch is pushed down fully, the system energizes its respective power window motor, and then driver's window glass moves to its lowest position.

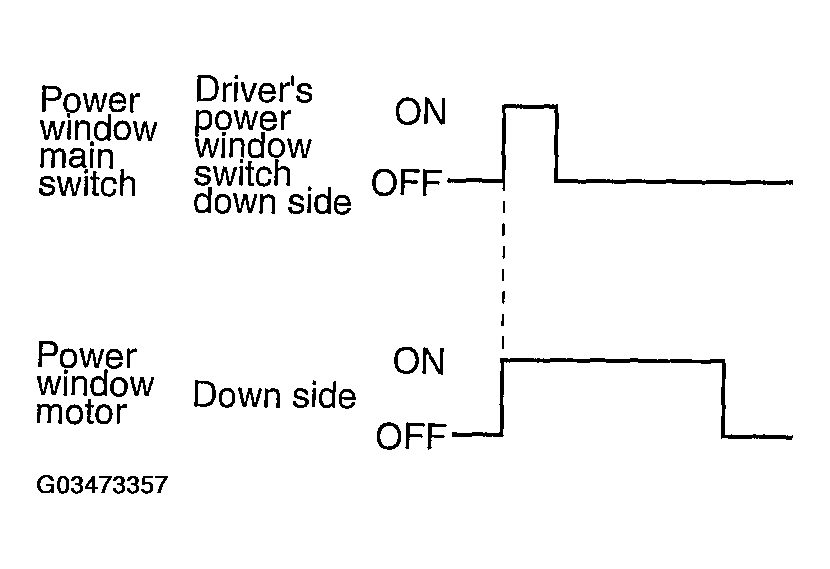

Fig 1: Identifying Power Window Main Switch Function - Operating Driver's Power Window Auto Down Function
G03473357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
